4914091 Accessories for Power Generator EFC mini Hydro Speed Control Governor
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:4914091
- Product Name:speed control governor
- weight:0.93KG
- RPM Stability:<±0.25%
- Box Size:14.5*11.2*14.8cm
- IDLE Regulation:260 ±20Hz
- ENVIRONMENT Working Humidity Range:Maximum 95%
- Voltage:24V DC
- Actuator Continuous Current:Maximum 2.5A
- Keyword:speed control governor 4914091

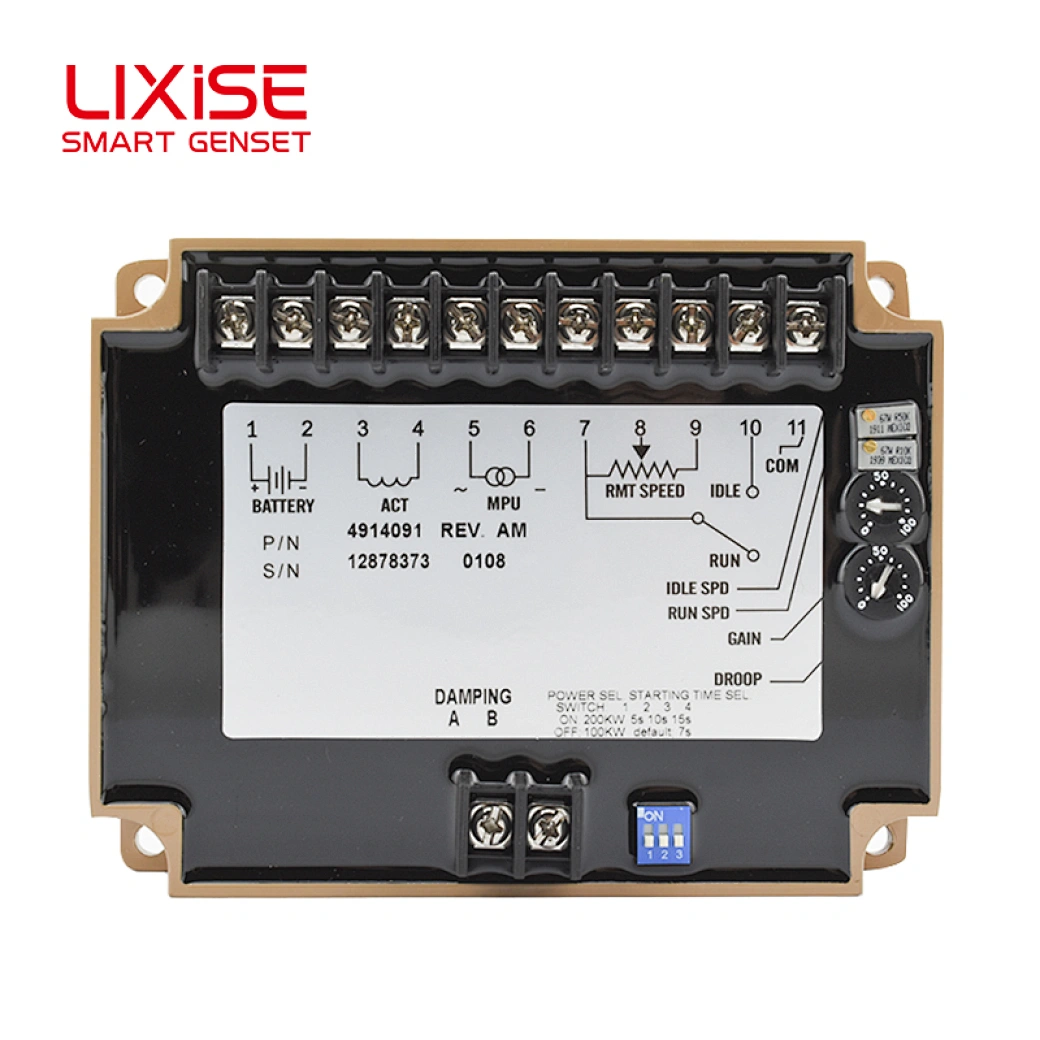

4914091 accessories for power generator efc speed governor
The generator set speed governor 4914091is designed for Compatible with Compatible with diesel generator sets with delay start and speed regulating function..
1. Application Features
A. Low smoke displacement, soft noise
B. Easily start in cold, plateau and Ww pressure areas, especially for N-G-250kw and K-G-300kw sets.
C. High ability to anti-disturbance Stable operation due to the large power walkie-talkie·
D. Actuator can not be damaged in case of short circuit due to
The output protector.
E. Diesel with water pump cam start with wad, the range of round per minute cam be ± 600, that is 1000-1200 rpm.
2. Principles
The oil valve of the speed regulator is totally
Open and if the supercharger low-speed and with little
Air input, So it is difficult to ignite the fuel and cannot
Completely ignite and have thick smoke displacement. It starry400-1200rpm, It need 3-5or 10-20 minute
To accelerate.
It can easily start if we decrease the oil input. After it start, then increase' The oil input, the speed and the diesel generator temperature will increase gradually. Thus, the smoke displacement is Ww and the noise is soft.
The operation of and use of the set after start is same as other regulators.
Specification
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Environment Temprature: | '-15 ~ 55 °C |
| Shocking: | 25HZ 2mm |
| INPUT POWER SUPPLY: | |
| Voltage: | 24V DC |
| Grounding Pole: | Negative pole |
| Power Supply: | Negative pole |
| Actuator Continuous Current: | Maximum 2.5A |
| Insulating strength | ≥500MΩ |
| Apply |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
