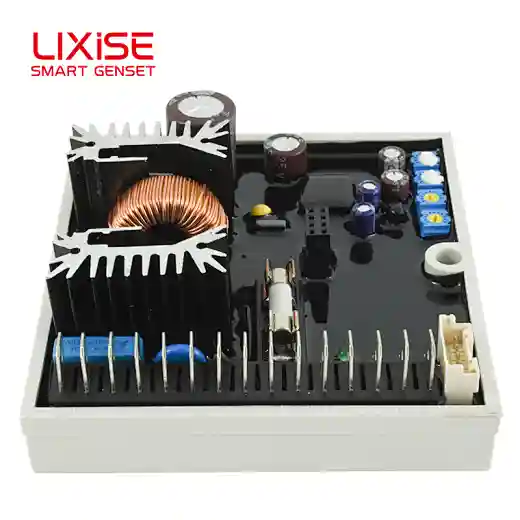

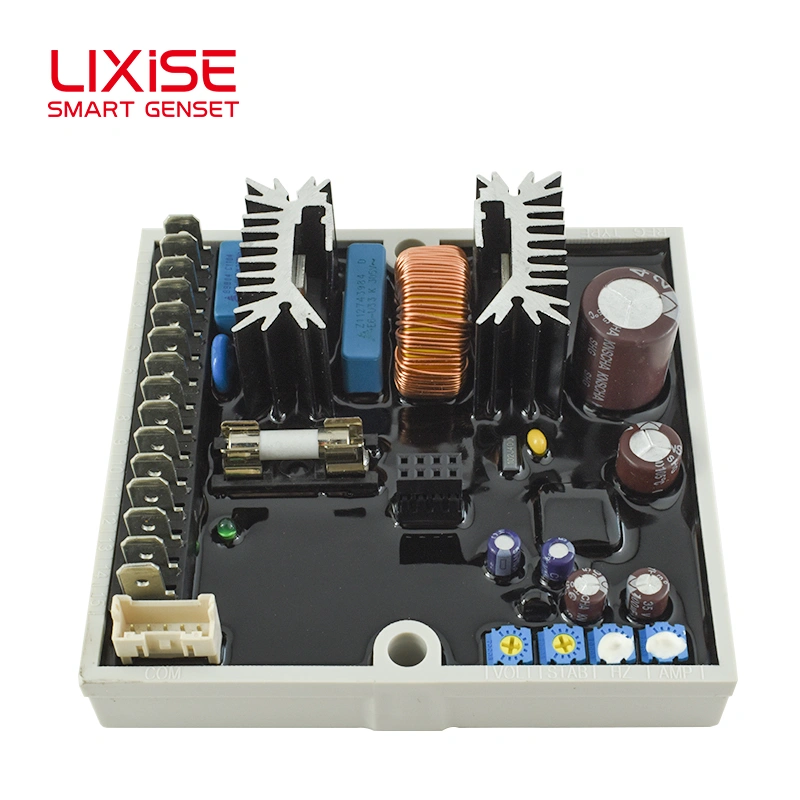

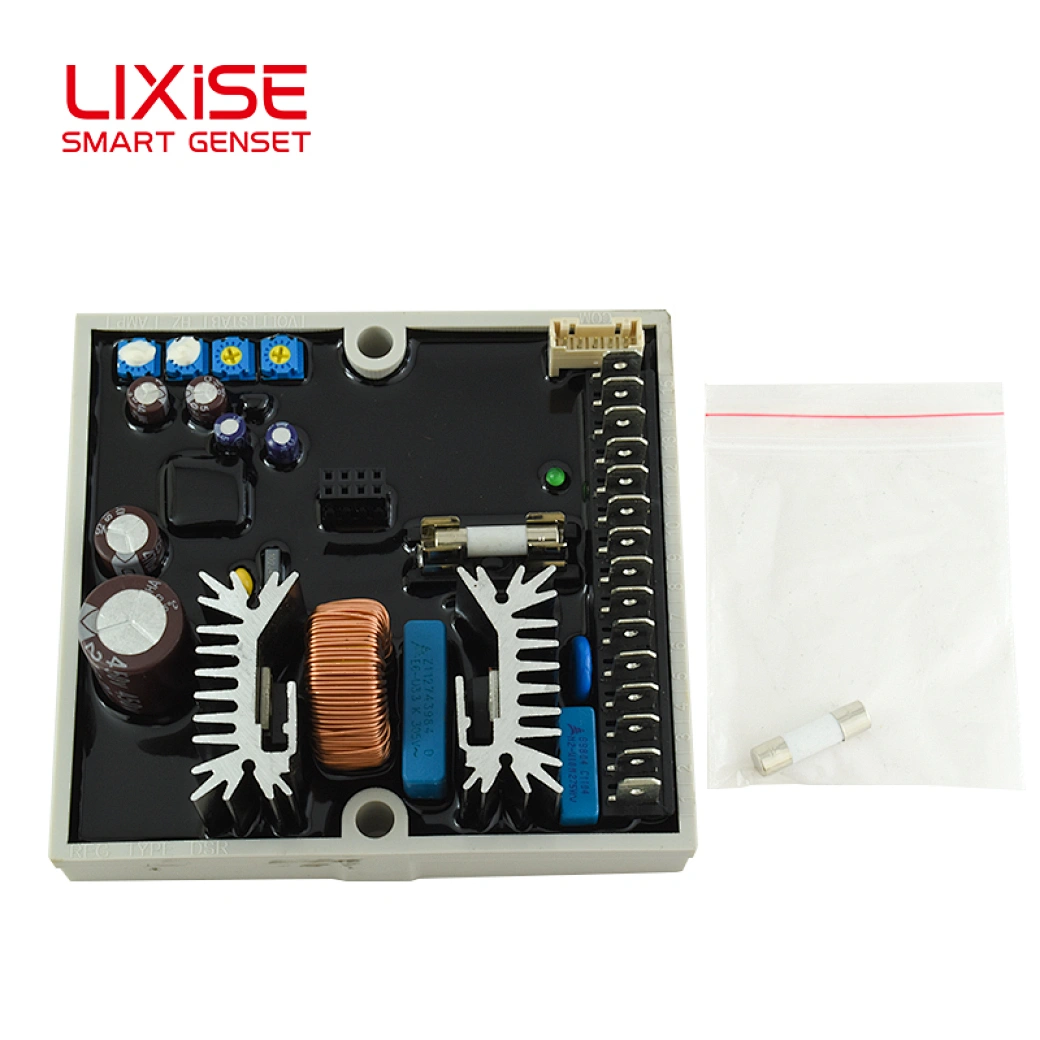

AVR DSR For Brushless Generator Alternators
DSR
minimum order
1 piece
Quantity
$137.82 - $148.40
/ piece
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:Domestic
- Model Number:DSR
- Product Name:Automatic voltage regulator
- Function:Replaced
- Usage:Regulating Voltage
- Dimensions:13.3*9.5*6.2cm
- Weight:0.3kg
- Voltage supply:40Vac/270Vac
- Frequency range:12Hz /72Hz
- Maximum continuous output current:4Adc
- Environmental temperature:-25°C / +70°C
- Guarantee:365 days
Product Description
AVR DSR diesel generator stabilizer.
AVR DSR For Brushless Generator alternators
a voltage regulator for synchronous alternators DSR
Avr Generator Parts Avr China Generator Avr Dsr For Alternator
The DSR is a voltage regulator for synchronous alternators, designed for stand alone working and calibra- tion; to maximize performance, the regulator should be understood as part of a system made up of at least three components: the DSR (control unit), a communications module and a supervision unit. The connectors for connection to and from the power generator and communications module are located on the DSR regulator. The supervision unit can be made up of a personal computer, another “synoptic” device or both; it does not have the function of controlling the system in real time, but allows programming and visualisation of all operational parameters of the DSR. If it is equipped with an RS485 or RS232 serial interface, the DI1 communications module is necessary for its connection.
Specification
Name | Automatic voltage regulator |
Model | DSR |
Voltage supply | 40Vac/270Vac (from auxiliary winding, output voltage or PMG) |
Frequency range | 12Hz /72Hz |
Maximum continuous output current | 4Adc |
Precision of voltage regulation | ± 1% from no-load to nominal load in static condition, with any power factor and for frequency variations ranging from -5% to +20% of the nominal value. |
Transient overvoltage during start up | less than 5% of nominal voltage |
Parameters | VOLT, STAB, AMP and Hz can be set with trimmers (default) 50/60Hz through a “jumper” (default); all parameters can be programmed via software. |
Environmental temperature | -25°C / +70°C |
WARNING | Operation of the DSR is not specified below 12 Hz. |
Detail Images
Packing & Delivery
Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation.
Shock bubble film: The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.
Suitable carton size We will choose the right size box according to the weight of the product. Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.
Packing tape In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.

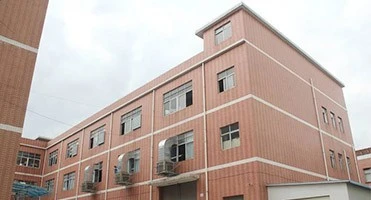

Company Profile

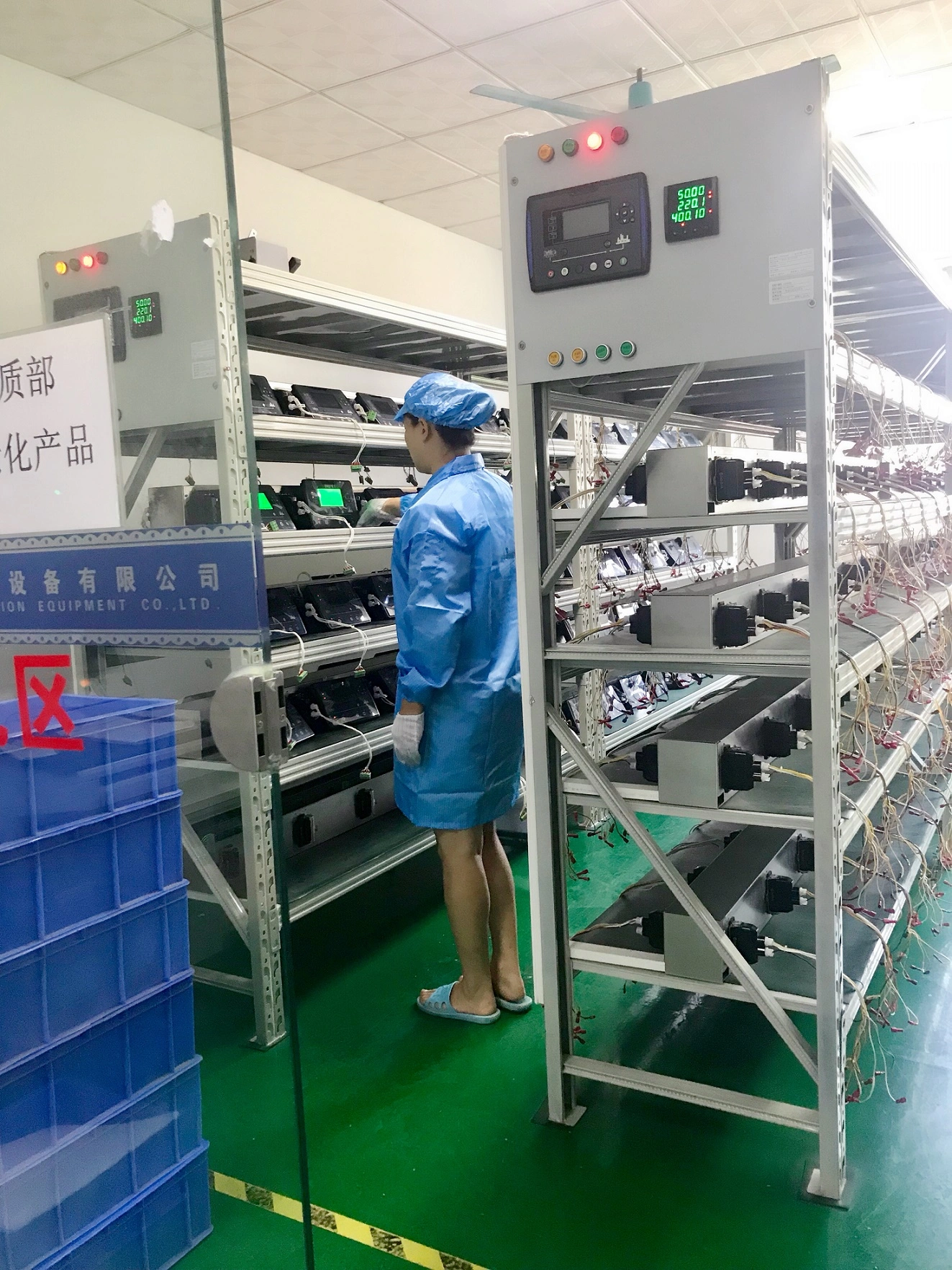

Simulation Test Platform:
Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate the operation of the generator, test whether the electrical functions of the electronic products are effective, whether the performance is reliable and stable, such as: Start, stop sensitive and effective; low-frequency, high-frequency effective early warning; low-speed, high-speed Early Warning overspeed protection; The output voltage is stable, the speed is normal and so on. Through a series of anti-true test platform inspection, screen out unqualified products or early failure products.

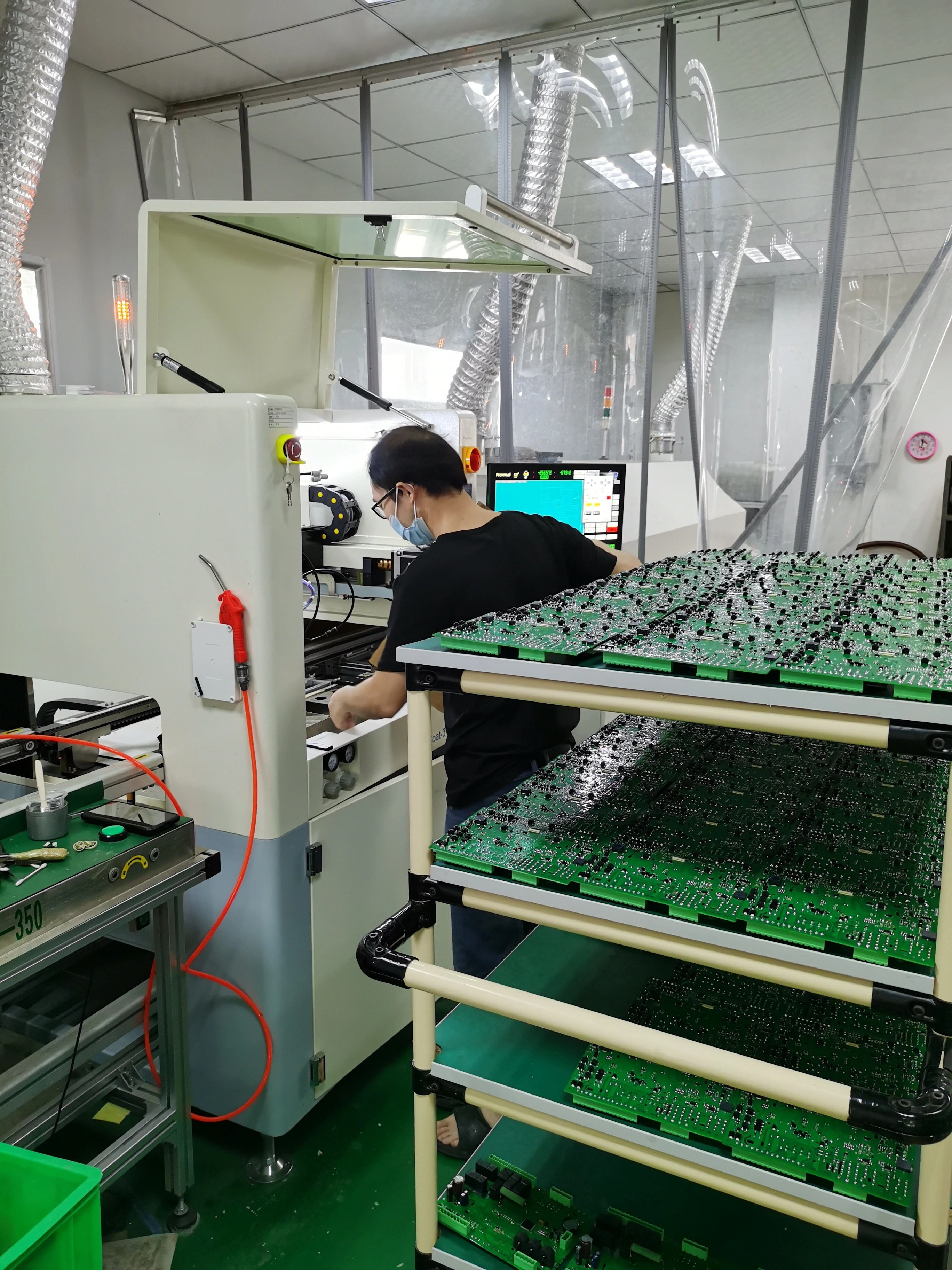

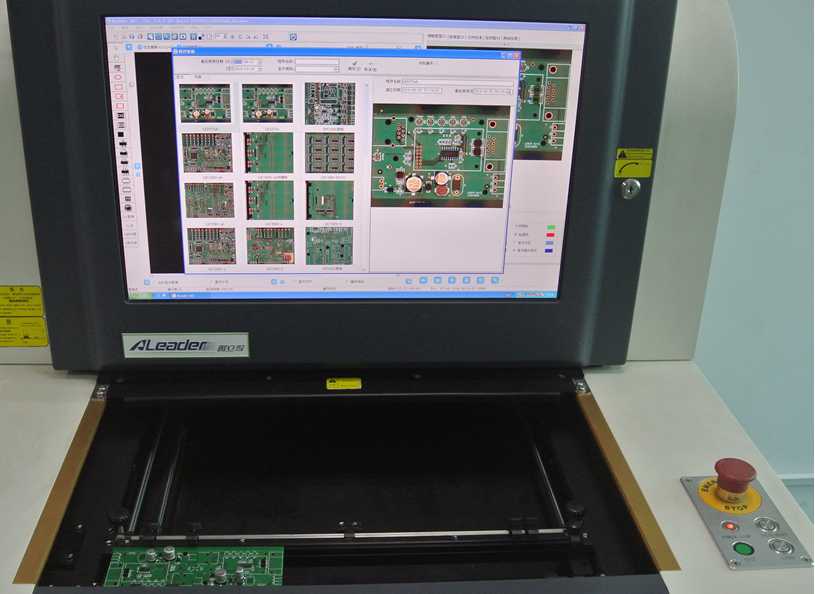

PCBA Automatic Optical Inspection Equipment：
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
Rubber sealing machine： In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even. In addition, it perfectly solves the problem that glue is not easy to dry in rainy weather, reduces the customer's waiting time, Make sure the goods are delivered on time.
Exhibitions
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world. Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
customers visiting controllers
at the Shanghai international power exhibition,there are many customers right away and we signed a cooperation agreement with the order.Spoke highly of our products are ahead in the development of the industry, fully explain our product innovation in science and technology, application and technology is the industry leader in solution.
Remote control system i6yun
In the picture, Our customers are very interested in our remote monitoring system. No matter anywhere in the world, as long as there is the network, you can use mobile phones or computers to monitor the operation data of the generator set, control and manage the generator set remotely.
Customers visit the factory
Service
Reply
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Quality
We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.
Guarantee
Guarantee:365 days after selled. During guarantee,the items share free repairs or replacement
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
