LIXiSE New AVR EVR106 Automatic Voltage Regulator for Generator High Stability Fast Reaction Speed
AVR EVR106
minimum order
1 piece
Quantity
$29.00 - $34.00
/ piece
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXISE
- Model Number:EVR106
- Name:generator AVR
- Model:EVR106
- Output (DC):Maximum continuous 8A 90 Vdc@220Vac
- Input voltage (AC):put voltage (AC) 180~250Vac,50/60Hz
- Detection voltage (AC):180~250Vac,350~480Vac
- Brand:LIXISE
- Stock:YES
- Guarantee:One Year
- Package:Carton box
Product Description
Generator Automatic VOltage Regulator EVR106
AVR EVR106 automatic voltage regulator for generator high stability fast reaction speed，
automatic voltage regulator convenient installation and maintenance，
diesel generator automatic voltage regulator 200Vac 400Vac.
The EVR106 (AVR) is an automatic generator voltage regulator based on the principle of half-wave phase-controlled rectification excitation. A device that stabilizes the output voltage of an alternator by adjusting the excitation current of the generator.It is used for generator with auxiliary winding, phase power, etc as excitation power supply . It has the characteristics of high stability, fast reaction speed and convenient installation and maintenance.
Specification
MODEL | EVR106 |
Output (DC) | Maximum continuous 8A 90 Vdc@220Vac |
Input voltage (AC) | put voltage (AC) 180~250Vac，50/60Hz |
MAX Power | 1000VA（240Vac） |
power input | |
Maximum instantaneous output current | 10ADC, ≤ 10 seconds ; |
Excitation winding resistance | Minimum 8Ω |
Detection voltage (AC) | |
1） | 180~250Vac (220Vac system) |
single phase | |
50/60 Hz | |
2） | 350~480Vac (400Vac system) |
single phase | |
50/60 Hz | |
Power consumption: | 5 VA; |
Voltage adjustment range | 180~300 Vac ；350~480Vac |
Regulating voltage precision | ±1% |
Voltage drift＜0.05% /℃ | Response time 1.5秒 |
Build Pressure: | The residual excitation voltage of the generator is automatically built, 5Vac, 25Hz |
rated current ratio | 5A |
ordinary current transformer | Droop 0 ~ 6%， 0.8 power factor; |
Operating temperature | -30ºC ~ +80ºC |

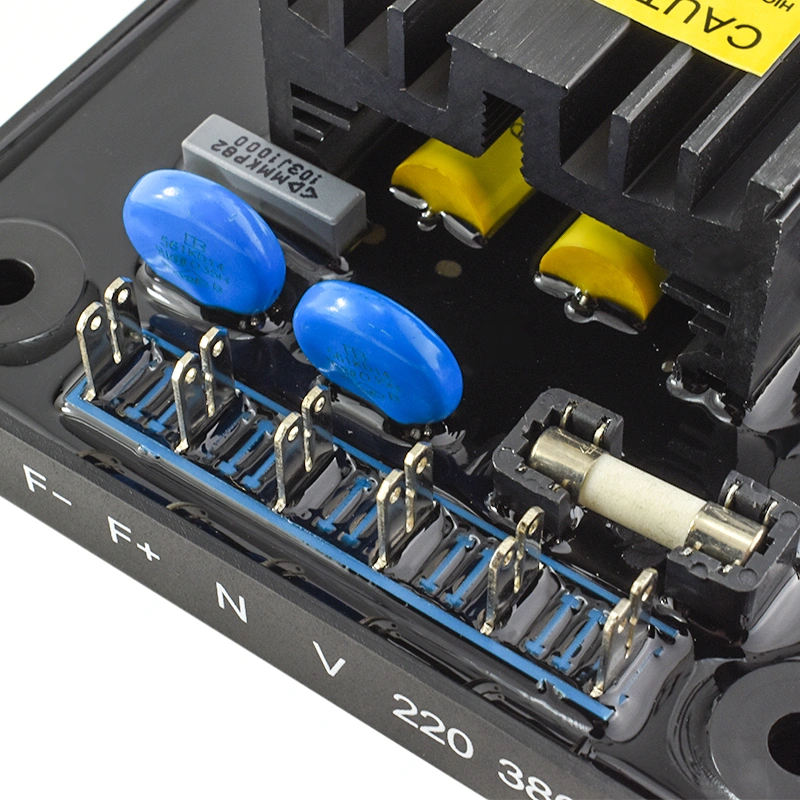

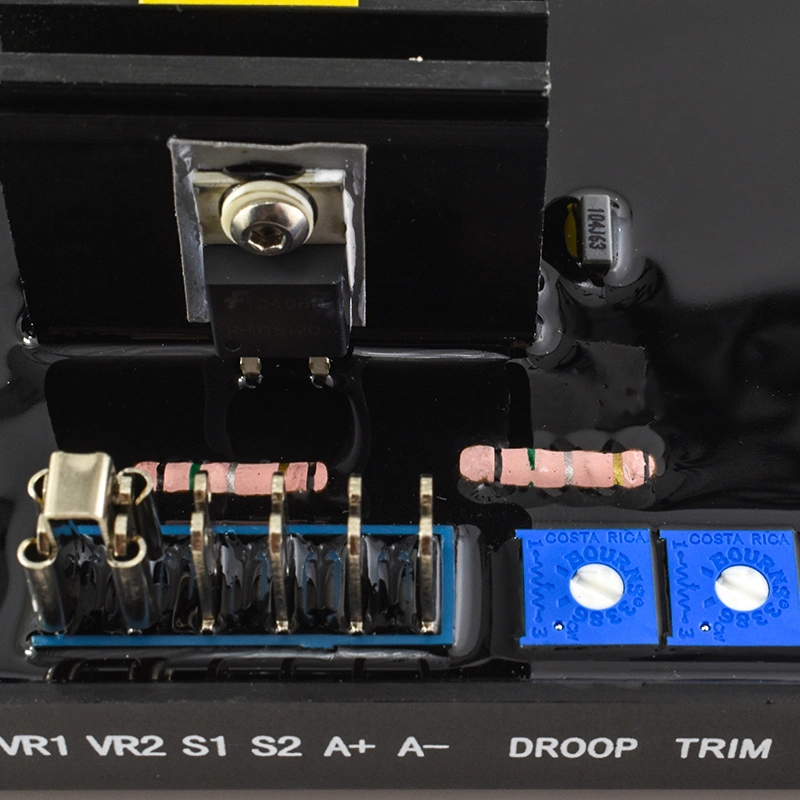

Detail Images
Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 5 to 10 business days.
Shock bubble film
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.
Suitable carton size
Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.
Packing tape
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.
Company Profile

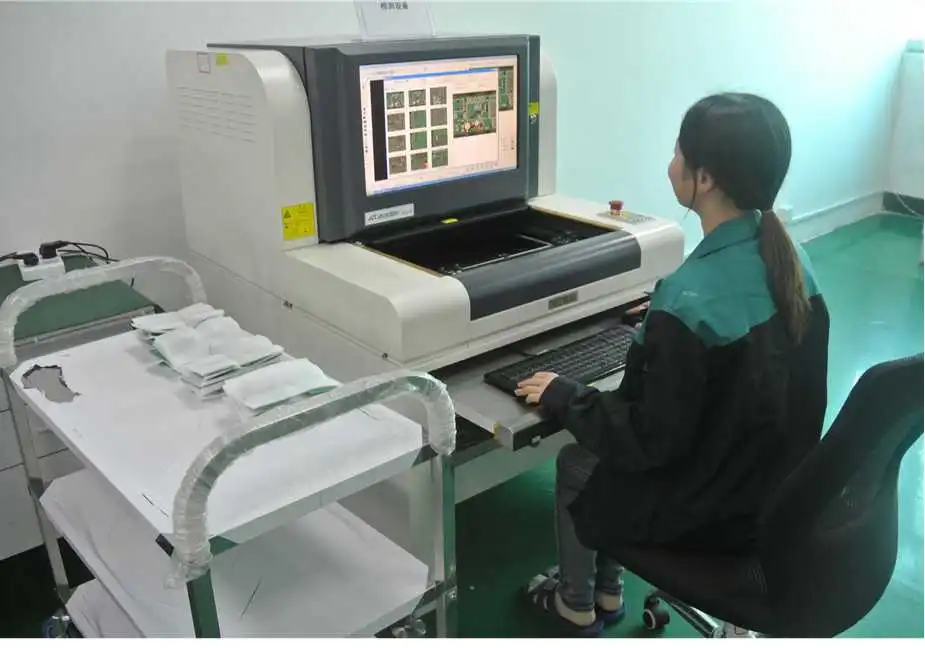

PCBA Automatic Optical Inspection Equipment
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
Rubber sealing machine
In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even. In addition, it perfectly solves the problem that glue is not easy to dry in rainy weather, reduces the customer's waiting time, Make sure the goods are delivered on time.

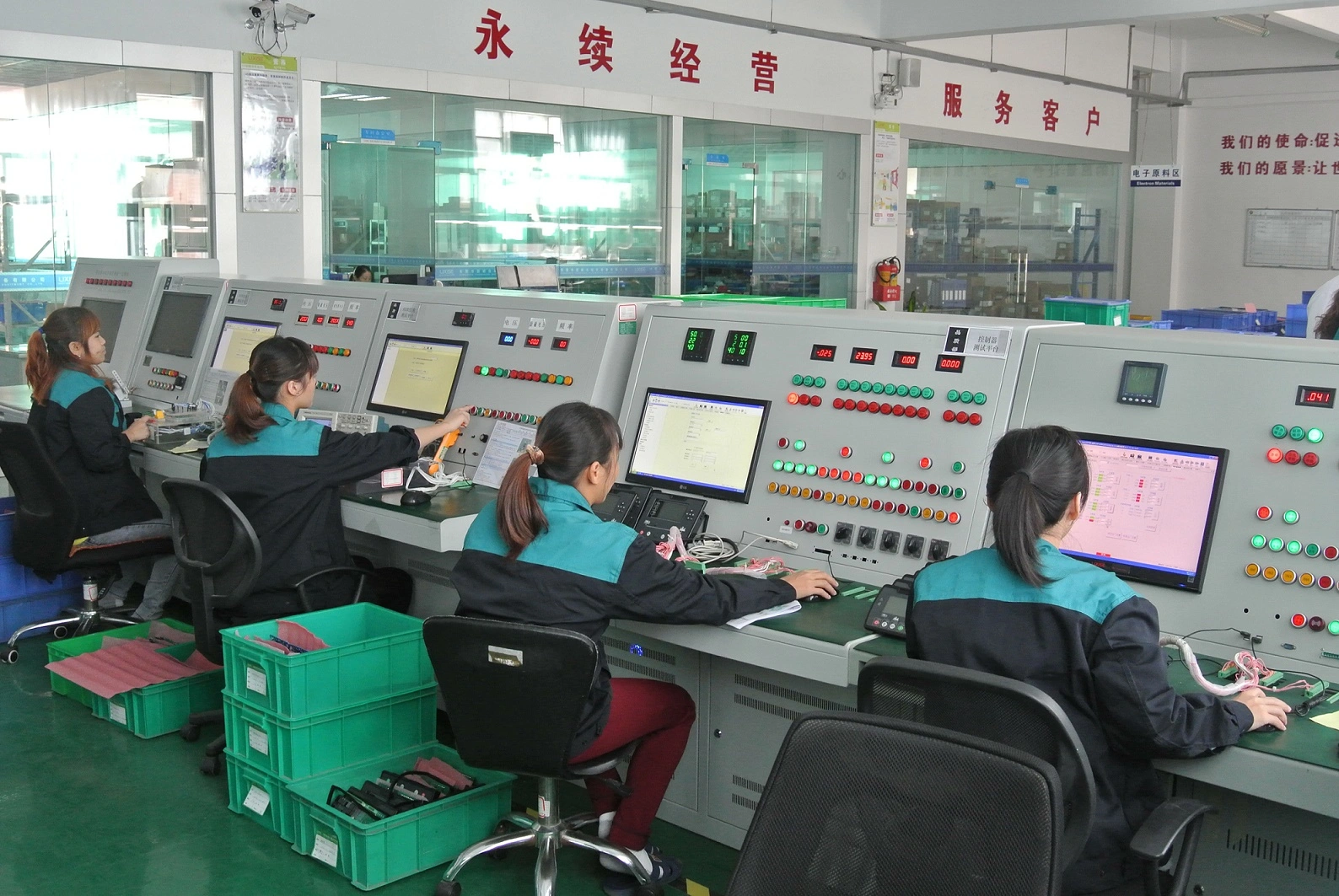

Simulation Test Platform:
Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate the operation of generator, test the electrical function of electronic products is effective, performance is reliable and stable.
Exhibition
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world. Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
at the Shanghai international power exhibition,there are many customers right away and we signed a cooperation agreement with the order.Spoke highly of our products are ahead in the development of the industry, fully explain our product innovation in science and technology, application and technology is the industry leader in solution.
Customers came to our company to learn remote monitoring system
Our Service
Guarantee
365 days after selled. During guarantee,the items share free repairs or replacement.
High quality
We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.
Reply
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
