Generator Automatic Voltage Regulator AVR GAVR-20A
- Warranty:1 year
- Certification:ISO9001
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:GAVR-20A, GAVR-20A
- weight:0.52kg
- Guarantee:365 days
- Size:14.6*10.5*6.5CM
- Certificate:ISO9001
- purpose:brushless generator
- Output:Current Continuous 6A
- Unit Power Dissipation:Max.8Watt
- Under Frequency Protection:60Hz system presets knee point at 57Hz
- Power Input Voltage:220/400VAC,1phase 2wire
Note: If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them
automatic voltage regulator for generator avr 20 amp

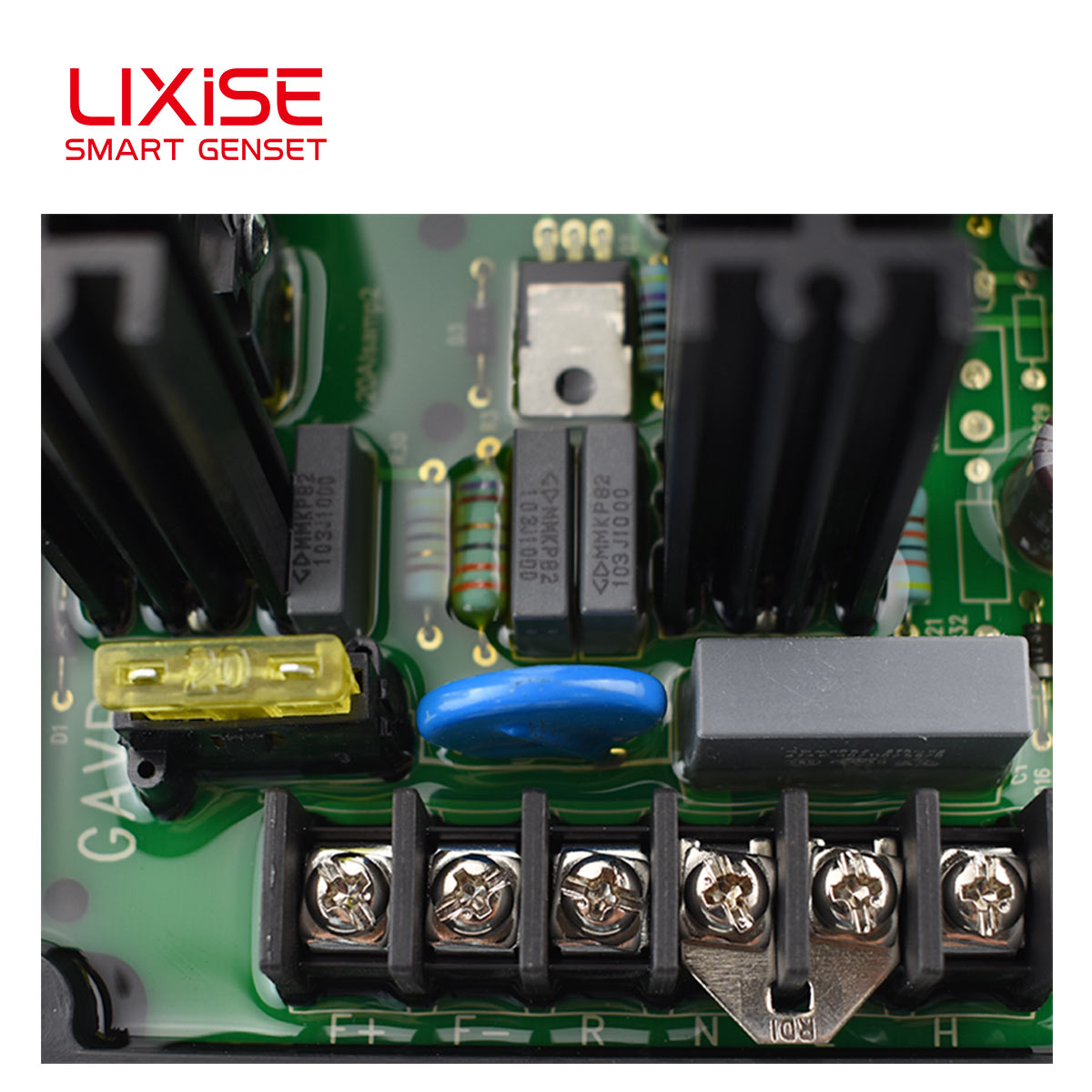

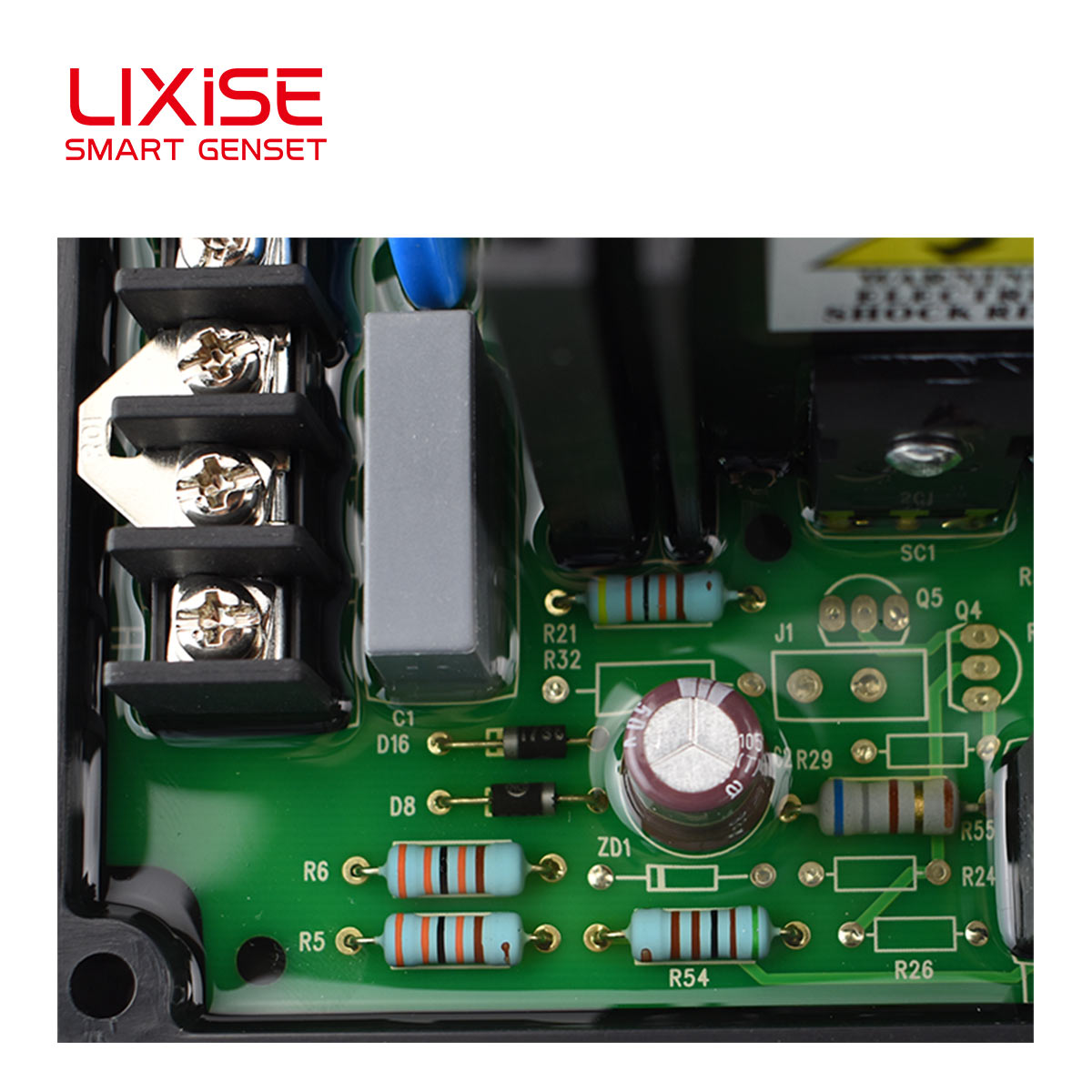

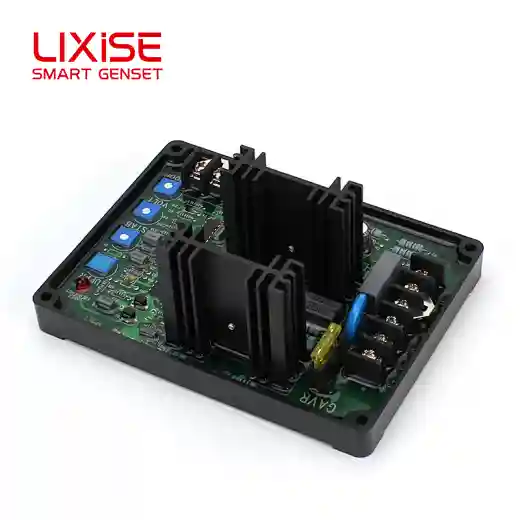

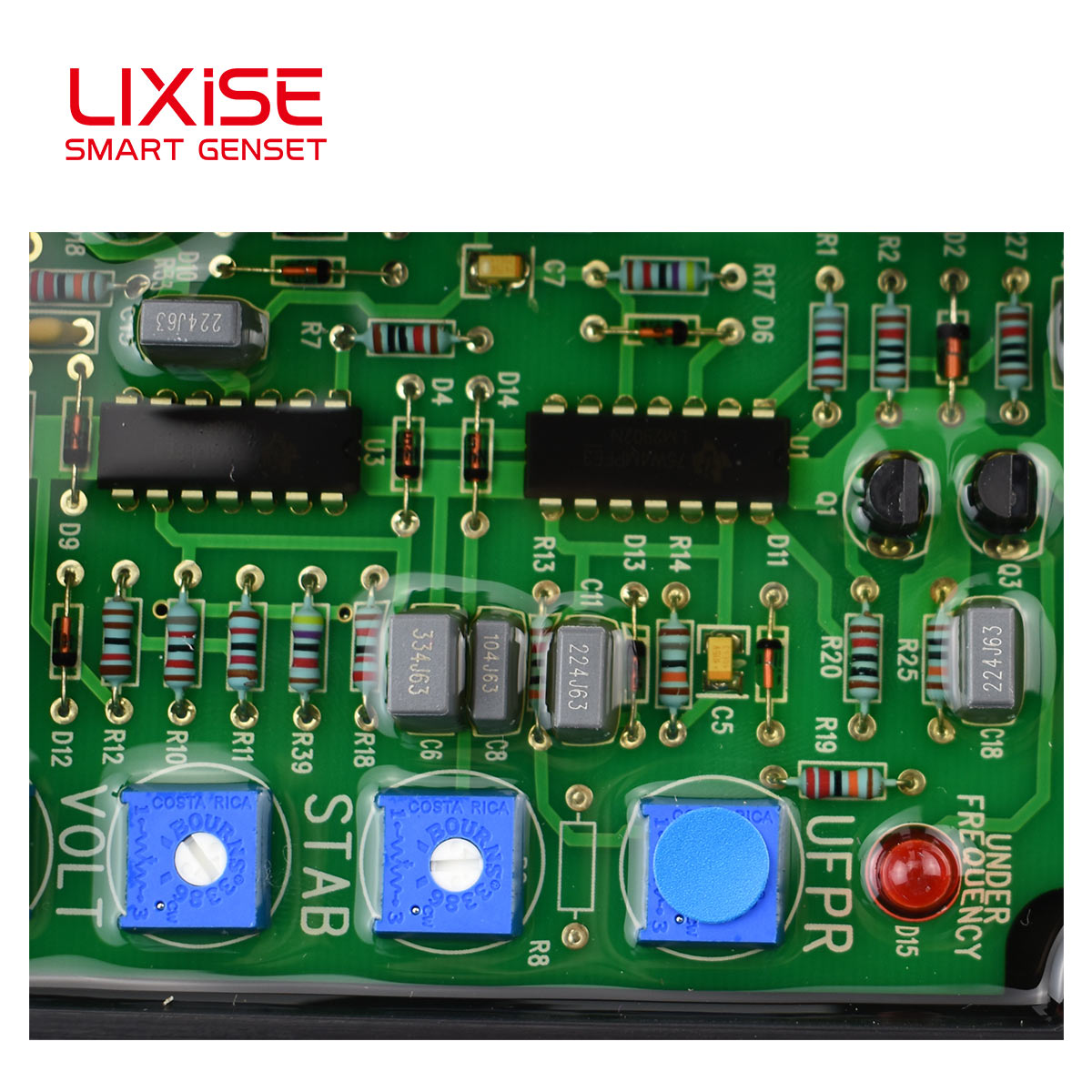

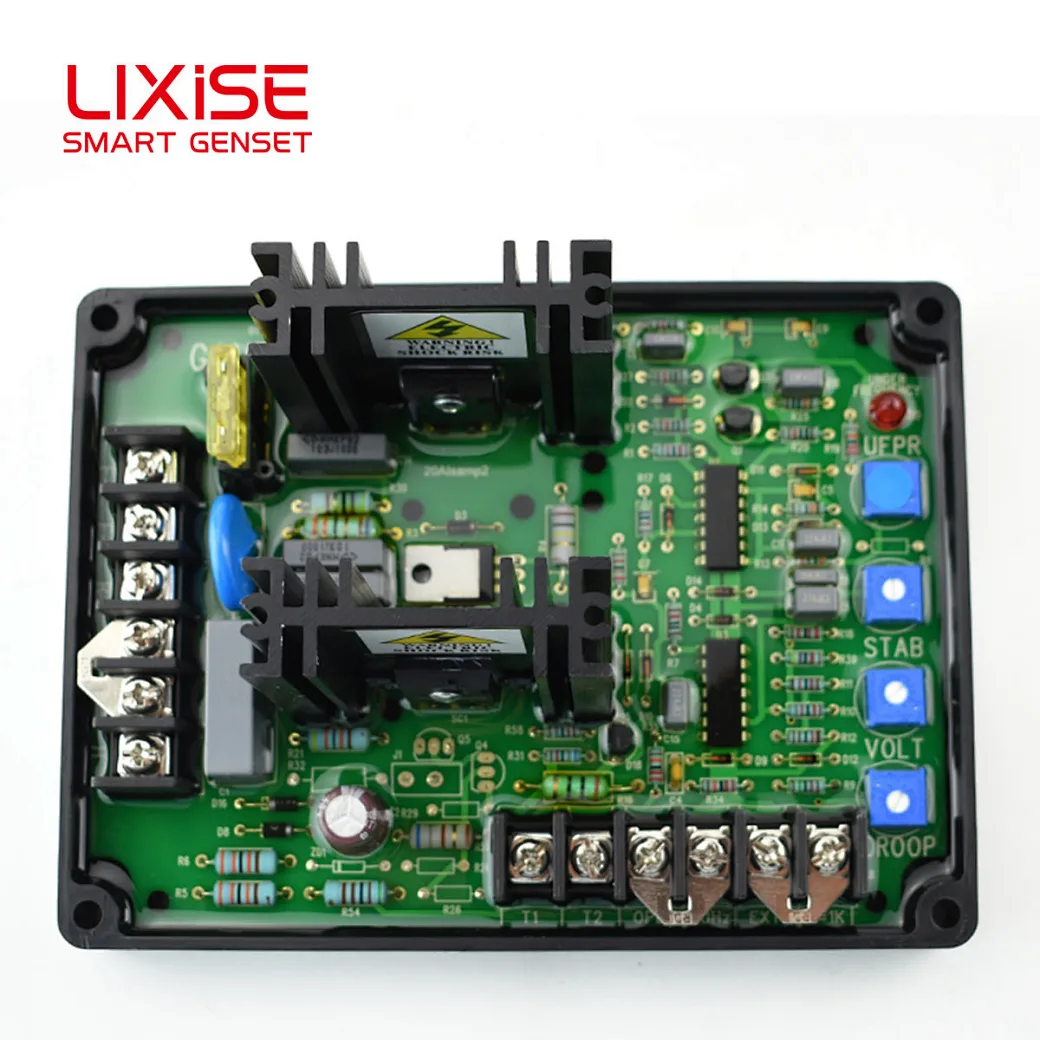

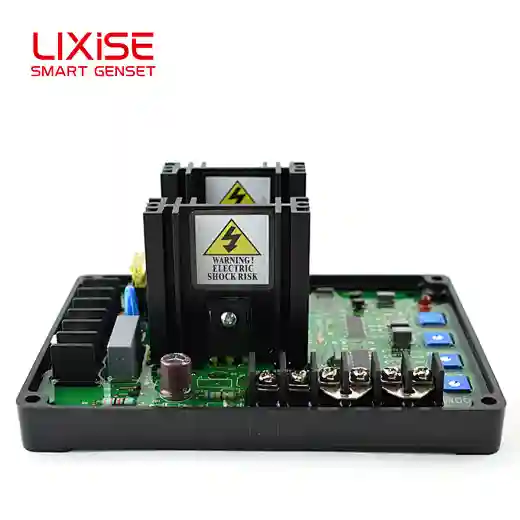

Photos---------
Description----------
GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
*Sensing Input Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal >5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
GAVR 12A
*SensingInput Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 10A for 10SEE
Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal>5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
Techinal Data:
Model | GAVR-20A |
Sensing Input Voltage | 220/400VAC,1phase 2wire |
Power Input Voltage | 180~240VAC, 1phase 2wire |
Output | Voltage Max.90VDC@240VAC input |
Current Continuous 6A | |
Intermittent 15A for 10SEE | |
Resistance Min.10Ω Max 100Ω | |
Voltage Build-up | Esidualvolts at AVR teminal >5VAC |
External Volts Adjustment | +/-7%with 1KΩ 1watt trimmer |
Unit Power Dissipation | Max.8Watt |
Under Frequency Protection | 60Hz system presets knee point at 57Hz |
Factory Settings | 50Hz system presets knee point at 47Hz |

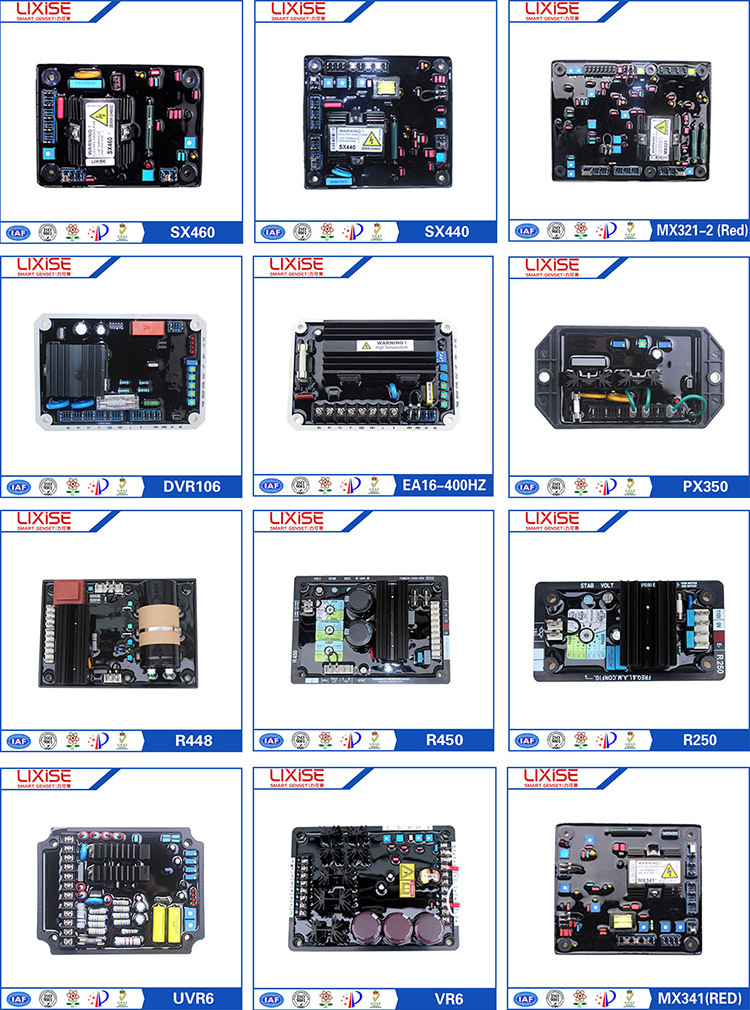

9)Relative Models:
Apply------ |
*Biogas Power Generation |
*Natural Gas Power |
*Field Engineering |
*Electric Power |
*Factory |
*Fire-fighting |
Why Choose Us? ---------
MOVE ADVANTAGE | |||
sales | 4000pcs/month | the fastest transit time | 2days! |
inventory situation | a lauge number of stocks | operational advantages | easy for operation |
production cycle | 1~3days | Service | answer all of your questions within 1day |

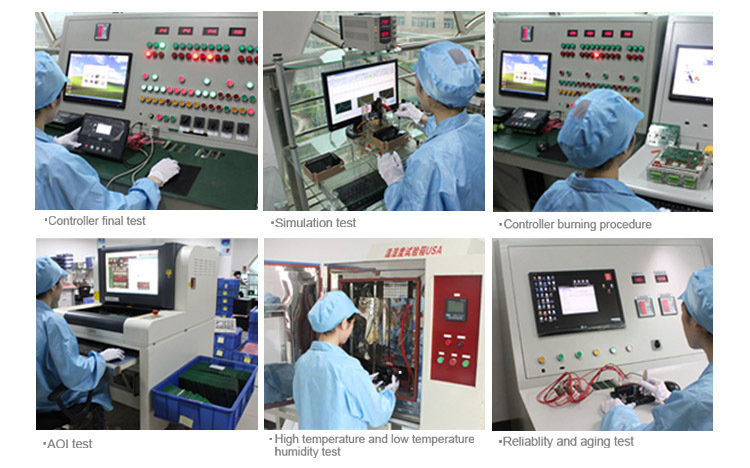

11)Factory's photos and patent:
