Diesel Generator Automatic Voltage Regulator AVR DVR2000E
DVR2000E
minimum order
1 piece
Quantity
$395.00 - $450.00
/ piece
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:Domestic
- Model Number:DVR2000E
- Product Name:Automatic voltage regulator
- Usage:Regulating Voltage
- Function:Replaced
- Type:Electric
- Input Voltage:100-300VAC
- Output:Max 90VDC at 240VAC input
- Weight:1.5kg
- Packing:Carton
- Guarantee:360days
Product Description
AVRDVR2000Ediesel generator stabilizer.
Diesel Generator Automatic Voltage Regulator AVR DVR2000E Generator AC Voltage Stabilizer AVR DVR2000E Automatic Voltage Regulator Dvr2000e Stabilizer Avr Generator AC Voltage Stabilizer

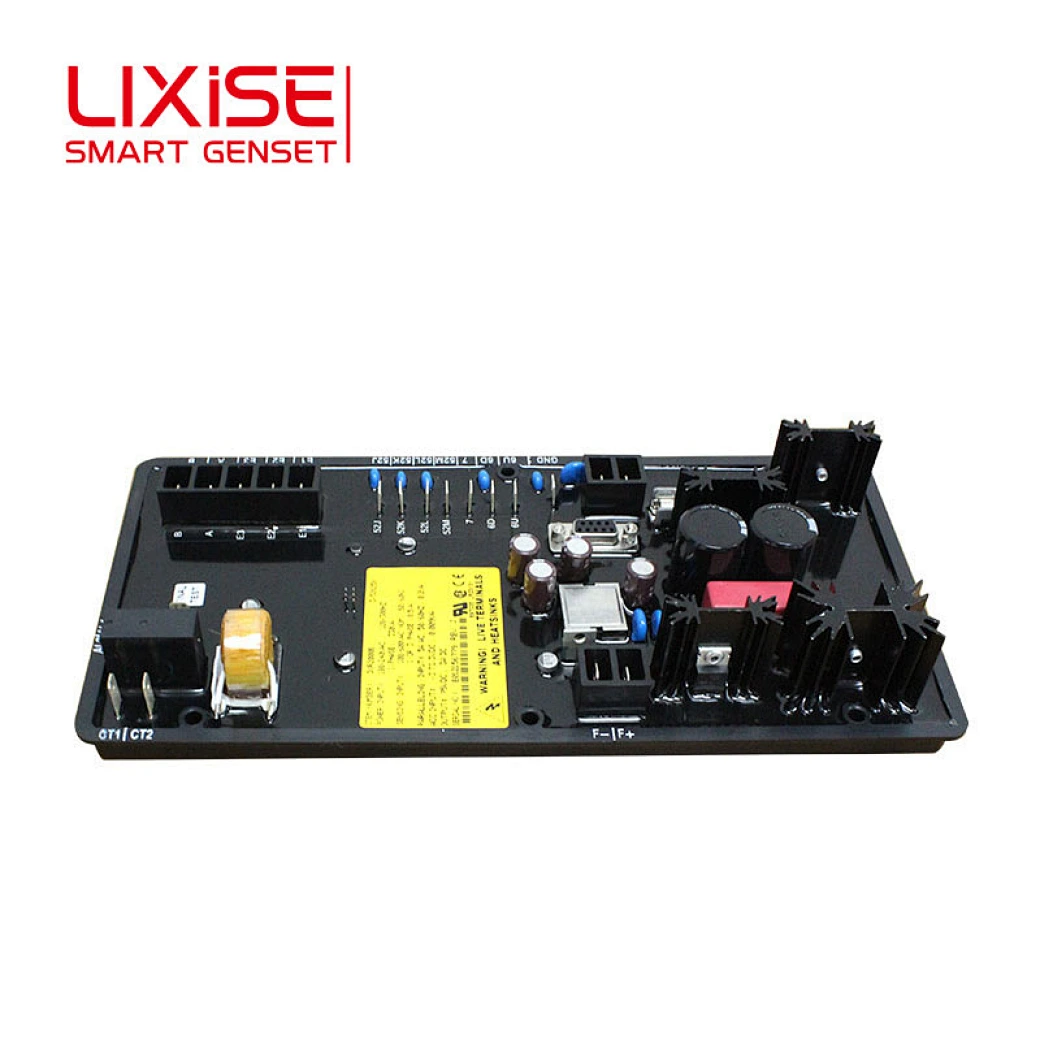

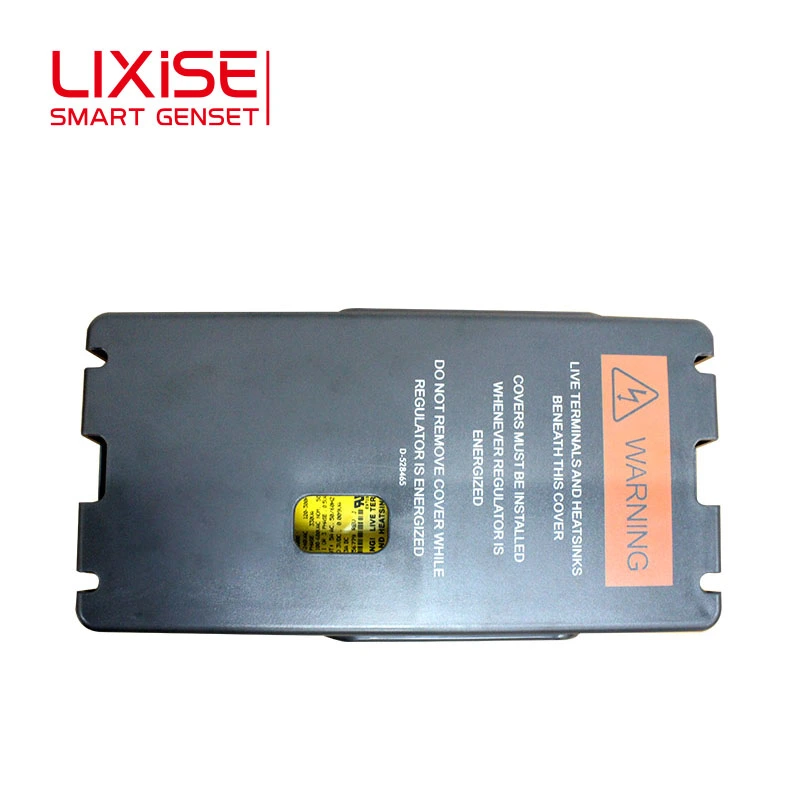

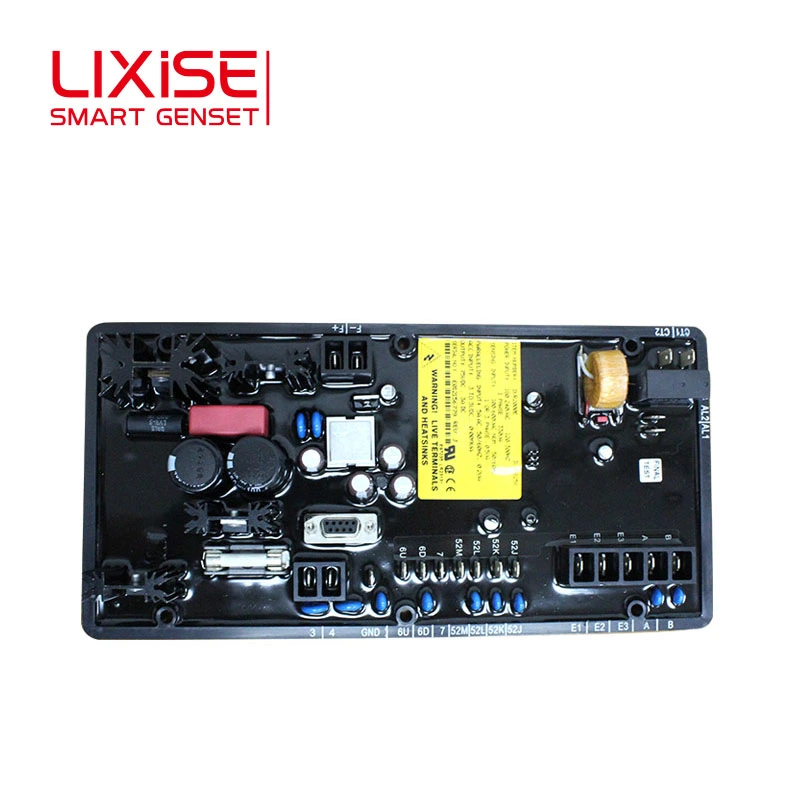

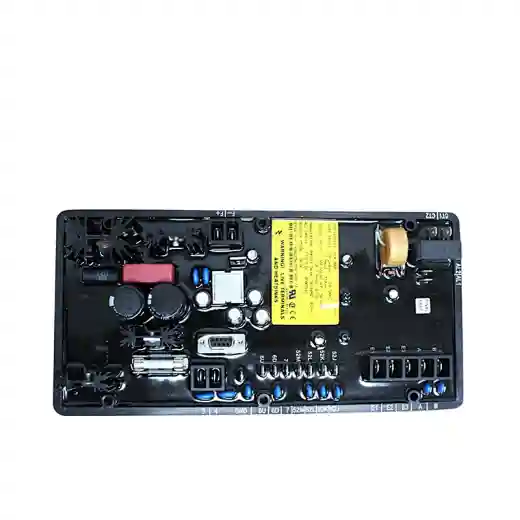

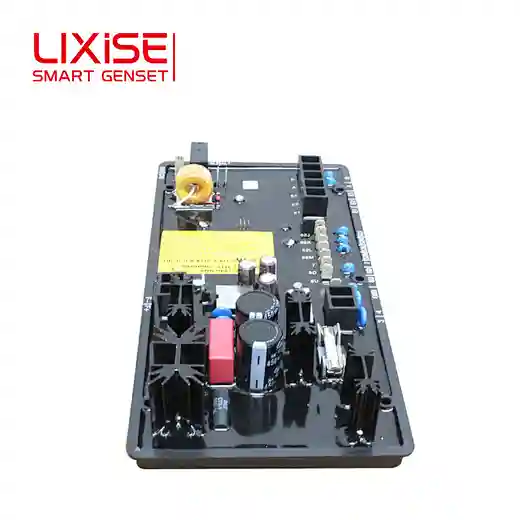

Generator AC Voltage Stabilizer AVR DVR2000E Automatic Voltage Regulator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. The DVR2000E is an electronic, solid-state, microprocessor-based control device. The DVR2000E regulates the output voltage of a brushless, ac generator by controlling the current into the generator exciter field. Input power to the DVR2000E is from a multi-pole, high-frequency, permanent magnet generator (PMG). The DVR2000E is supplied in an encapsulated package designed for behind-the-panel mounting. The DVR2000E is held in place by thread-forming screws that thread into its plastic shell. Front panel indicators (LEDs) annunciate regulator status and system conditions. DVR2000E connections are made through quarter-inch, quick-connect terminals on the rear panel. A 9-pin DB-9 type connector on the rear panel provides communication between the DVR2000E and an IBM compatible PC.
Specification
Name | Automatic voltage regulator | ||
Model | DVR2000E | ||
SENSING/POWER INPUT | Voltage | 100-300VAC, 1 phase 2wire | |
Frequency | 50/60 Hz jumper selectable | ||
MAGNETIC FIELD OUTPUT | Voltage | Max 90VDC at 240VAC input | |
Current | Continuous 5A, Intermittent 7A in 10 seconds | ||
PRESSURE REGULATING ACCURACY | <+/0.05%RMS with 4% engine governing | ||
Weight | 1.5kg | ||
Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 3 to 10 business days.
Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation.
Shock bubble film
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation
Suitable carton size
We will choose the right size box according to the weight of the product. Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.
Box packing requirements
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.Marks should be pasted according to clients’s requirement.arks should be pasted according to clients’s requirement.
Company Profile
Our Company TUANCHENG/FEIRUI Committed to the development,production,sales of generator controller,data collector,automatic voltage regulator,speed governor,battery charger and other intelligent automation products.These pare parts of generator sets are exported to more than 70 countries and regions such as Asia,Middle East , Africa and South America,and are favored by customers at home and abroad. In 2009, the company has been implementing refined and specialized production process management, and introduced the simulation and automated test equipment of NI from the United States. AOI testing equipment is introduced to minimize the reliability problems caused by false welding or weak welding. Initial joint venture established in 2013, set design, development, manufacture, sales and service in the integration of brand enterprises, the company launched the"i6 cloud platform"is a USES the Internet technology, the generator is connected to the cloud server, from all kinds of terminal (PC, mobile phone) can monitor the operation of the generator set data and control the generating set. Based on this monitoring service as the core, it provides users with health monitoring, remote fault diagnosis service and maintenance service of generator set, and provides e-commerce service and technical exchange platform for generator industry. I6 cloud services in the remote monitoring technology applications, mobile base station communication applications and system integration solutions and other power communication fields, mobile communication companies, government agencies and quickly put into use in the market. From 2016 to 2017, it has successively cooperated with huawei, China Telecom, China Mobile, ZTE and other enterprises, making great breakthroughs and providing professional solutions for enterprises. After more than 10 years of technical accumulation and technical cooperation with Singapore company, it has a leading R&D team, especially remote monitoring and Internet of Things technology. It has successively obtained more than 30 national patents including WIFI technology, black box patent technology, health monitoring and remote fault diagnosis. Moreover, our company has a number of qualifications: Passed the CE certification in 2013. In 2014, the company obtained THE ISO9001 quality system certification issued by TUV Certification Authority in Germany. In 2017, it obtained the certification of environmental system and safety management, and was rated as"High-tech Enterprise"for many years in a row. Our mission: to promote the intelligent development of Chinese generators; Our vision:Let the generator also enjoy a healthy life.

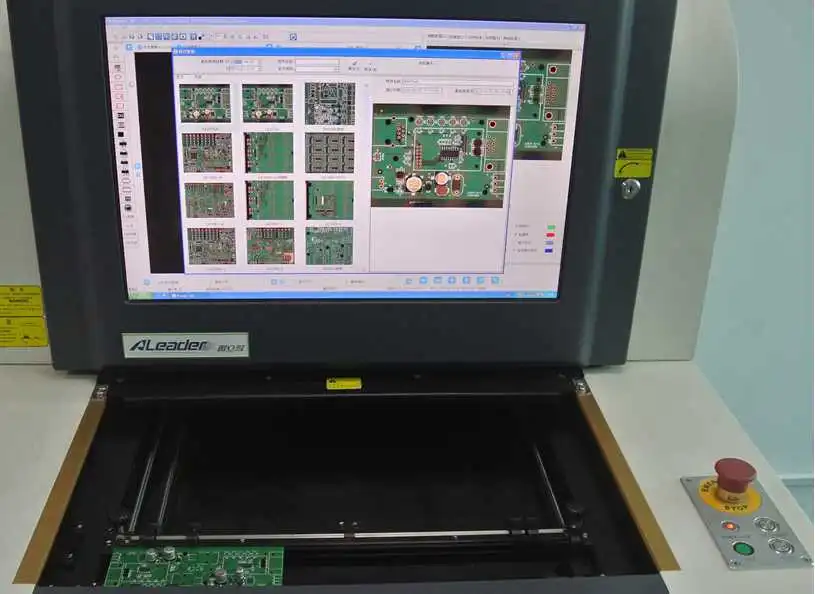

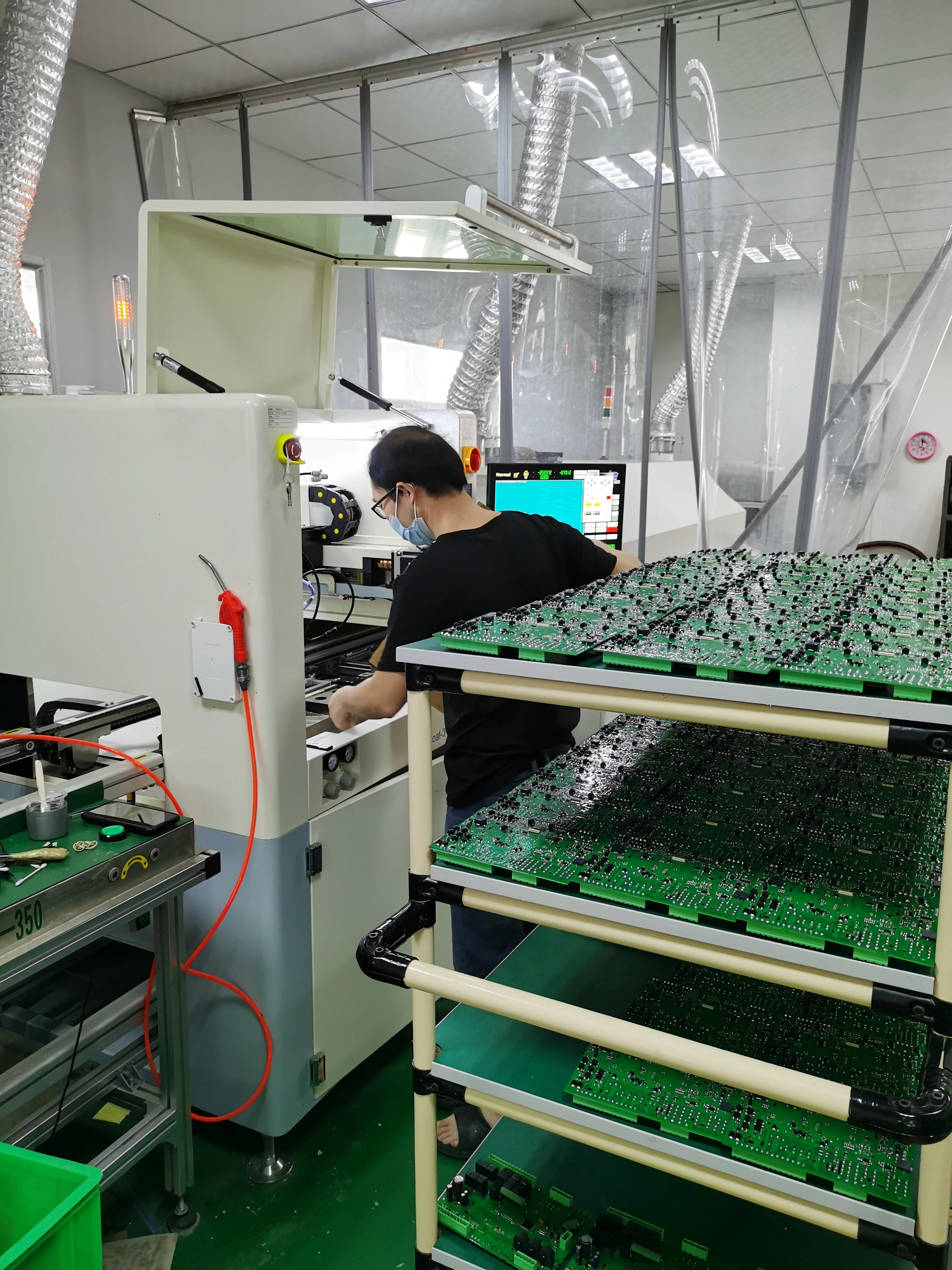

PCBA Automatic Optical Inspection Equipment:
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
1. After the solder paste printing: printing process can be found in the defect, which will produce bad because the solder paste printing welding defects to a minimum. 2. reflow ago: most defects can be found from the solder paste printing and placement of the machine. 3. Reflow: bad ownership process can be detected at this stage, so there is no defect flows final customer.

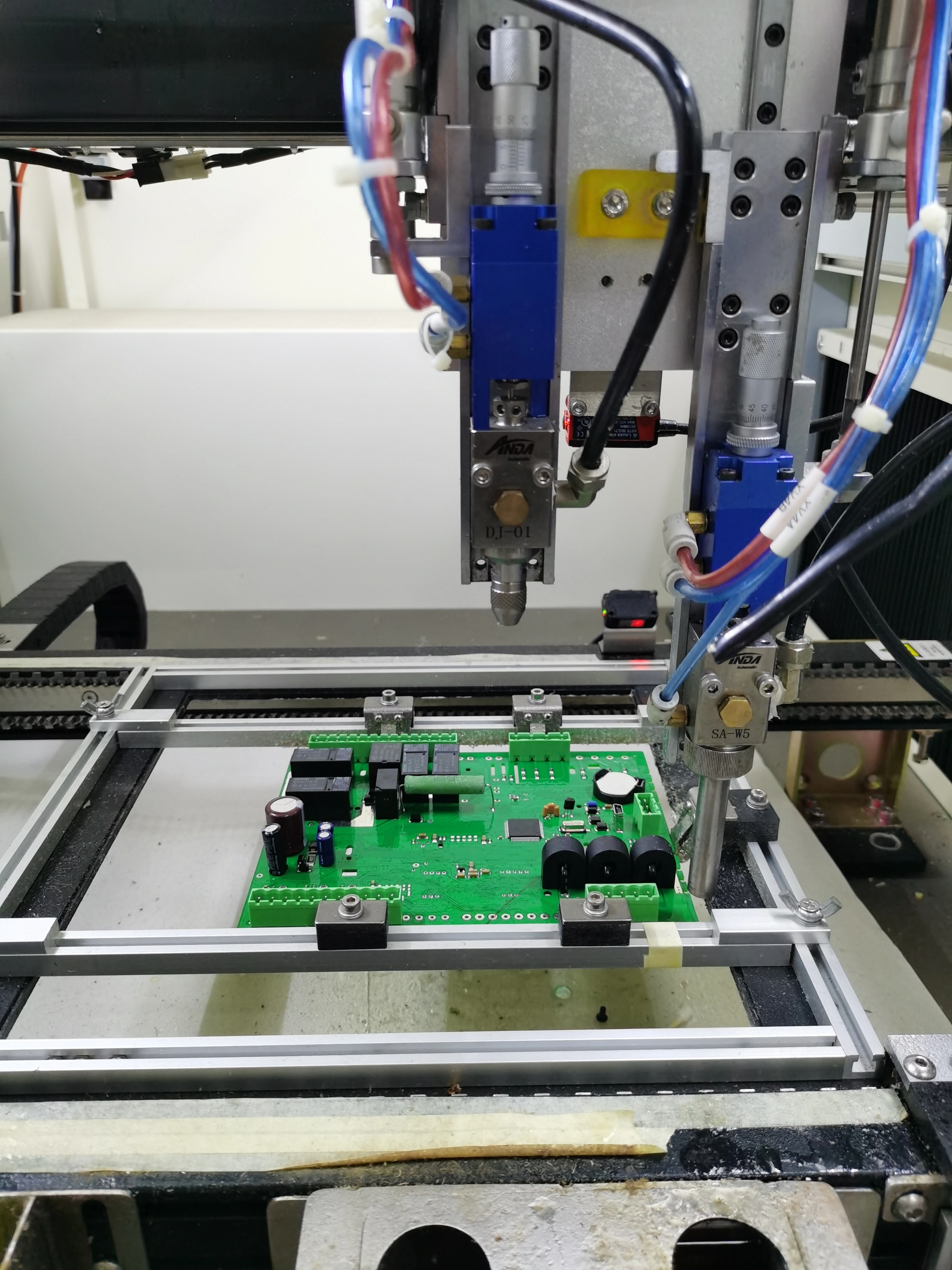

Sealing machine
In order to improve production efficiency, the company adopts advanced glue injection machine, and the glue surface of products sprayed by the machine is more beautiful and even.
In addition, it perfectly solves the problem that the glue is not easy to dry in rainy weather, reduces the waiting time of customers, and can meet the urgent order needs of customers.

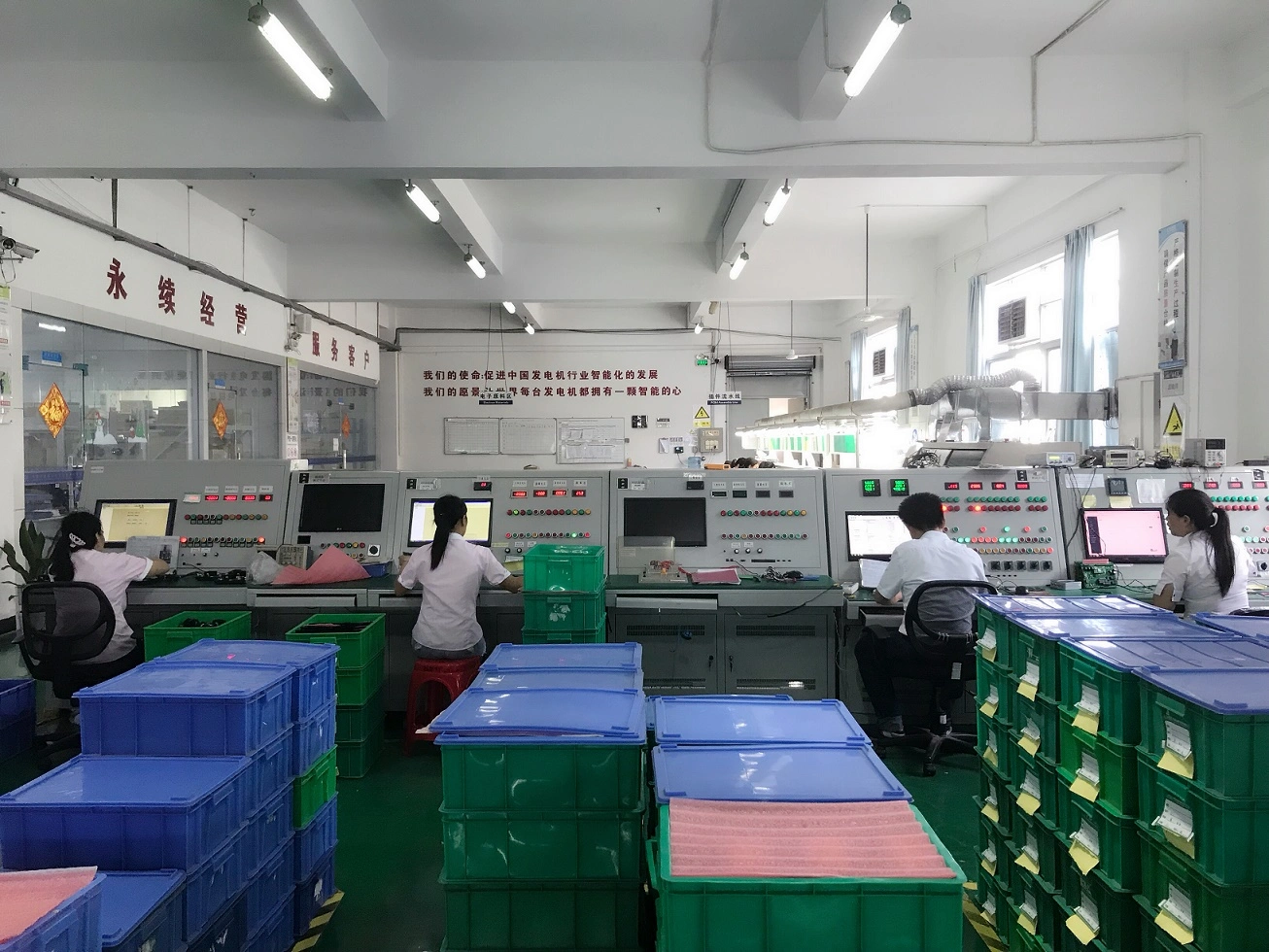

Simulation Test Platform:
Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate and test the electrical functions of the electronic products in the operation of the generator, whether there are effective, reliable and stable performance.

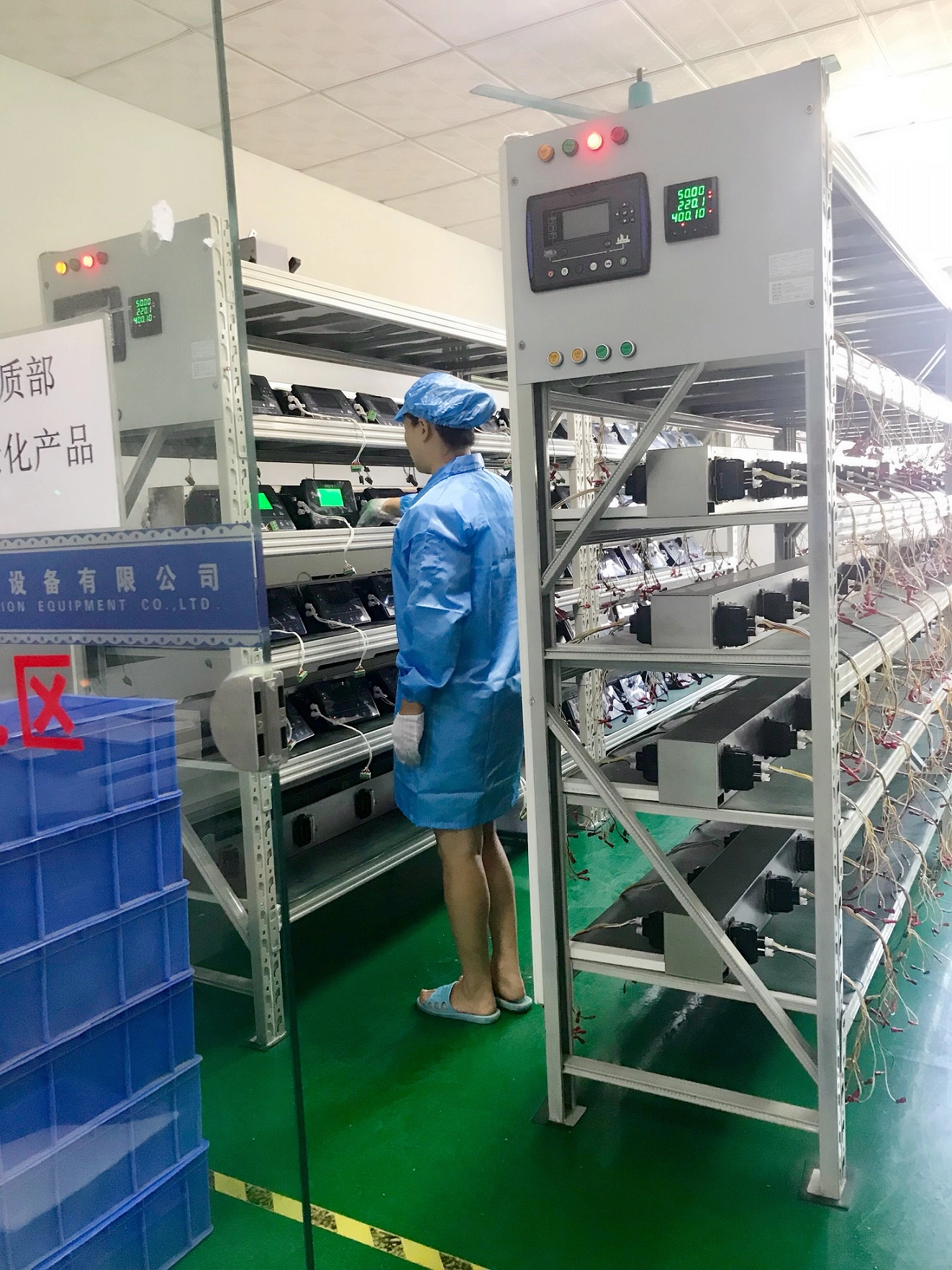

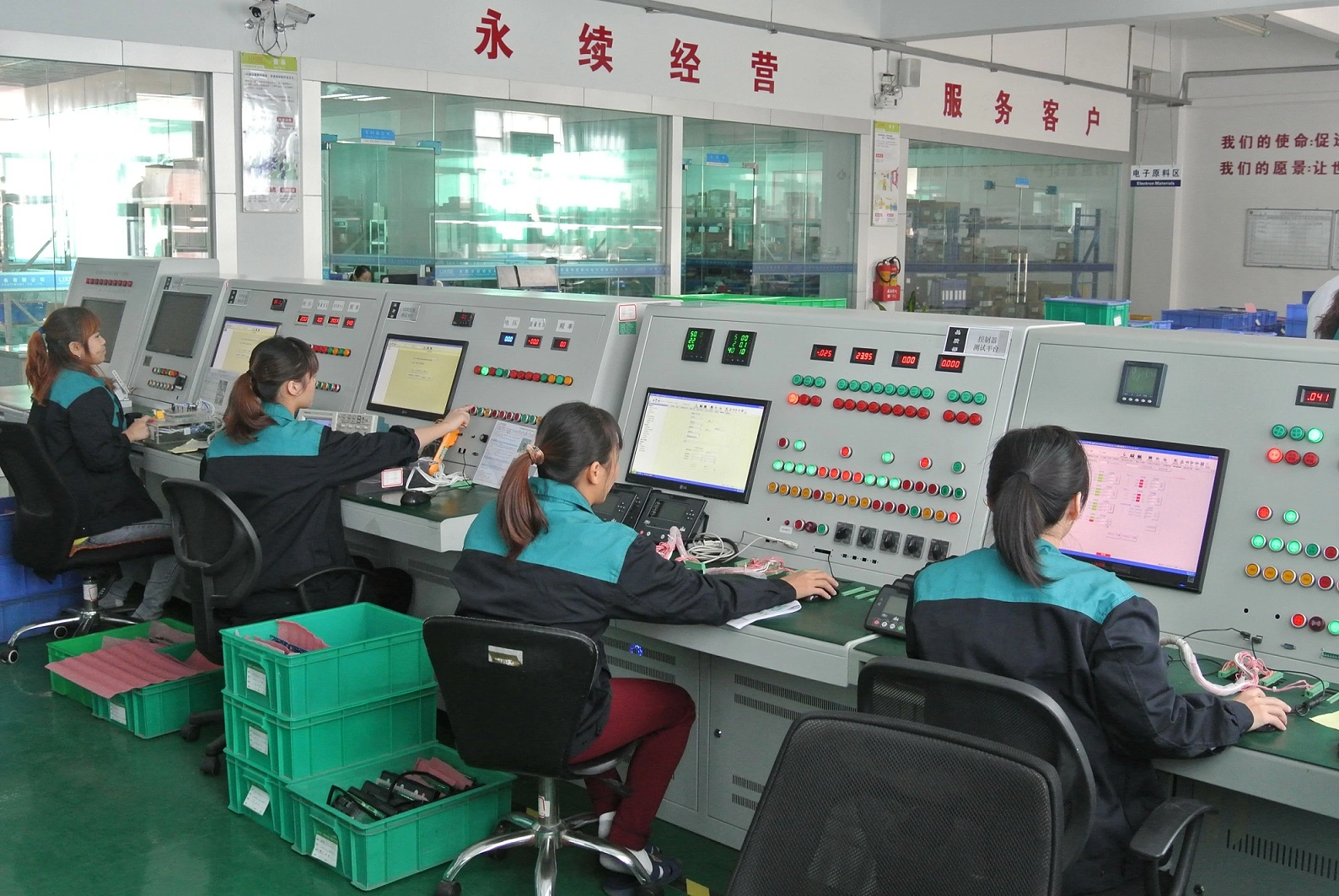

Workshop Goods Final Test Room：
Products be aging tested specially, such as Regulator Board(AVR) Seriees, Governor Series, Controller Series and so on. It simulating generator load works for 12 hours continuely,to test products' Electrical Property if reliable and stable , after continuous work in high temperature. (According to Aging Test of electronic components probable failure course of various reasons,unqualified items and early-failures will be filtered).
EXHIBITION
EXHIBITION
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world.
Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
Customer Impression: Customers highly appraise the company's advanced technology research and development ability, perfect production process and advanced testing equipment. More importantly, the products are simple to operate and have complete functions, which attract customers to place orders and purchase on site.
Controllers
Customers highly appraise the company's advanced technology research and development ability, perfect production process and
advanced testing equipment. More importantly, the products are simple to operate and have complete functions, which attract
customers to place orders and purchase on site.
advanced testing equipment. More importantly, the products are simple to operate and have complete functions, which attract
customers to place orders and purchase on site.

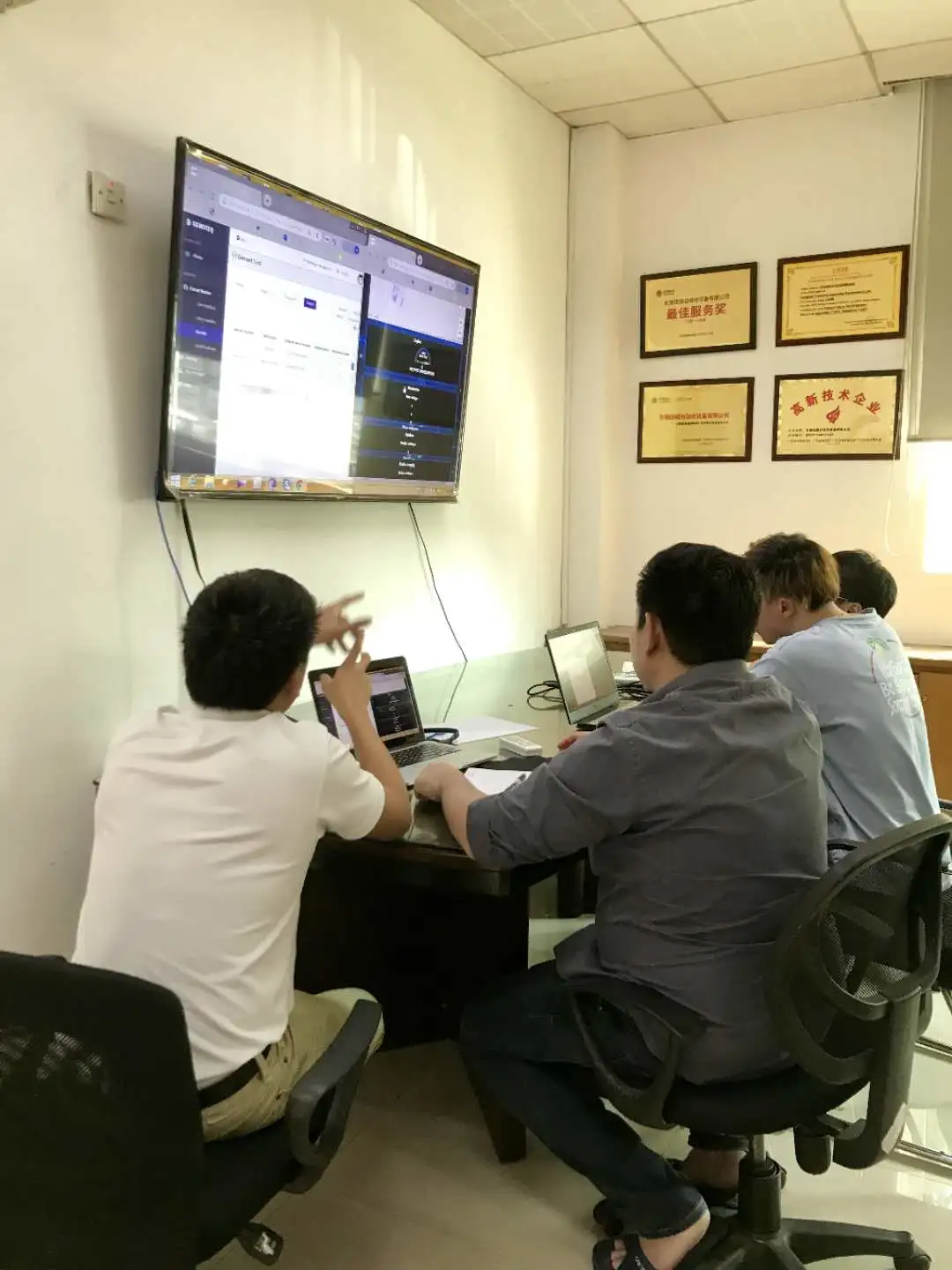

Remote control system
In the picture, Our customers are very interested in our remote monitoring system. No matter anywhere in the world, as long as
there is the network, you can use mobile phones or computers to monitor the operation data of the generator set, control and
manage the generator set remotely. In addition to monitoring the basic information of the unit, it can also monitor the excitation
voltage, the output voltage of the electric regulation, the bearing temperature, the winding temperature, etc.
there is the network, you can use mobile phones or computers to monitor the operation data of the generator set, control and
manage the generator set remotely. In addition to monitoring the basic information of the unit, it can also monitor the excitation
voltage, the output voltage of the electric regulation, the bearing temperature, the winding temperature, etc.
CUSTOMERS CAME FOR VISITING
OUR SERVICE
Reply
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a
call any time.
call any time.
High quality
We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many
national patents.
national patents.
Guarantee
Guarantee:365 days after selled. During guarantee,the items share free repairs or replacement.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
Our mission: let the generator also enjoy a healthy life!
