Diesel Generator Engine Speed Controller ESD5525

ESD5525
minimum order
1 piece
Country of Origin
shenzhen
Quantity
$55.00 - $63.00 / piece
Contact Now
add to cart
  • Warranty:3months-1year, 1year
  • Certification:CE
  • Place of Origin:Guangdong, China, Guangdong, China, Guangdong, China (Mainland)
  • Brand Name:LIXiSE, LIXiSE
  • Model Number:ESD5525, ESD5525
  • certificate:ISO9001
  • Current Type:AC
  • weight:0.7kg
  • purpose:brushless generator

Note: If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them

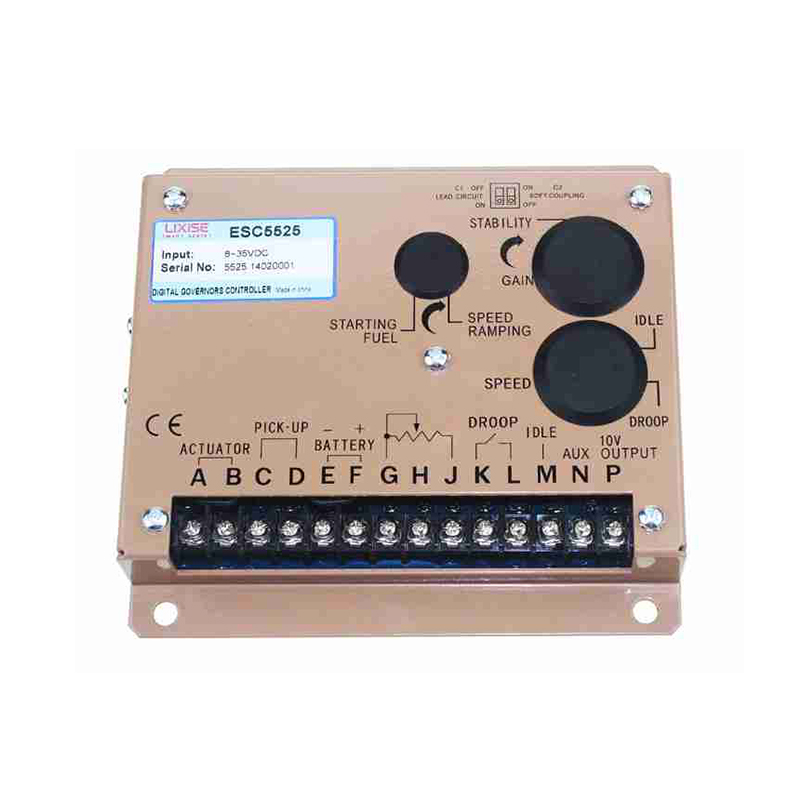

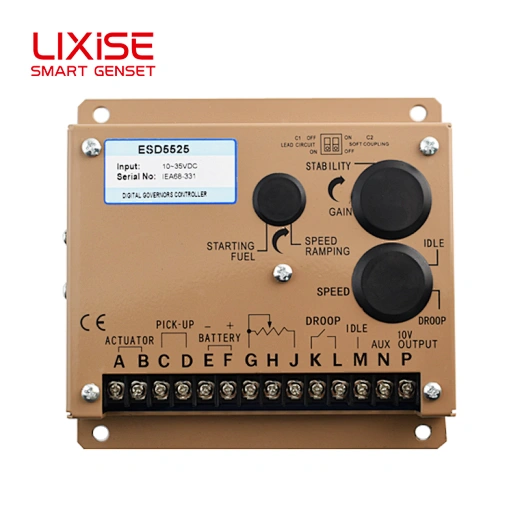

ESD 5525 speed governor

Photos:

Description----

The ESD5525 Series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.

(PER5520E is designed for EFC series.)

Isochronous Operation/Steady Stability---- +/-0.25%

or better Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected)

Power Consumption----50 ma continuous plus acutator current

Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous

ESD5525
InputSupply12 or 24 VDC Battery System (Transient and Reverse Voltage)
PolarityNegative Ground (Case Isolated)
Power Consumption50 ma continuous plus actuator current
Actuator Current Range @ 25 Deg. C - (Inductive Load)Min.2.5 Amps; Max. 10Amps continuous
Speed Sensor Signal0.5-120 Volts RMS
PerformanceIsochronous Operation/Steady State Stability±0.25% or better
Speed Range/Governor1K to 7.5K Hz continuous
Speed Drift with Temperature±1 Max
Idle Adjust CW60% of set speed
Idle Adjust CCWLess than 1200 Hz.
Droop Range1-5% regulation
Droop Adj. Max. (K-L Jumpered)400 Hz., ±75Hz. Per 1.0A change
Droop Adj. Min. (K-L Jumpered)15Hz., ±6Hz. Per 1.0A change
Speed Trim Range±200 Hz
Remote Variable Speed Range500 - 7.5 Hz. Or any part there of
Terminal Sensitivity J100 Hz., ± 15Hz / Volt @ 5.0 K Impedance
Terminal Sensitivity L735 Hz., ±60 Hz / Volt @ 65 K Impedance
Terminal Sensitivity N148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance
Terminal Sensitivity P10 VDC Supply @ 20 ma Max
EnvironmentalAmbient Operating Temperature Range-40 to +85 Deg. C
Relative HumidityUp to 95%
All Surface FinishesFungus Proof and Corrosion Resitant
ReliabilityVibration1G at 20 to 100 Hz.
Testing100% Functionally Tested

9)Relative Models:

Usage

* Biogas Power Generation
*Natural Gas Power
*Field Engineering
*Electric Power
*Factory
*Fire-fighting

Why choose us------?

In line with the quality=life and belief in people-oriented,

continuous improvement management. Coupled with honesty, pragmatism.

Innovation and spirit of the pursuit of the perfect blog for the word each generator to

Create an intelligent heart

MOVE ADVANTAGE
sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3daysServiceanswer all of your questions within 1day

Payment Term

1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment Term

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing remittance copy.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.

5.Delivery time depends on destination and other factors, it may takes up to 20 business days.

6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

Guarantee

1. Guarantee:365 days after selled.

2. During guarantee,the items share free repairs or replacement.

3. Customer is responsible for the freight come-and-go,and the custom tax.

4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.

5. To save the cost,pls send the item back without packing.

6. Pls provide the defective appearance and related invoice number.

7.We do not repair or replace item with an expired warranty.

8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

We are expecting the long time and mutual benefit cooperation with you!
