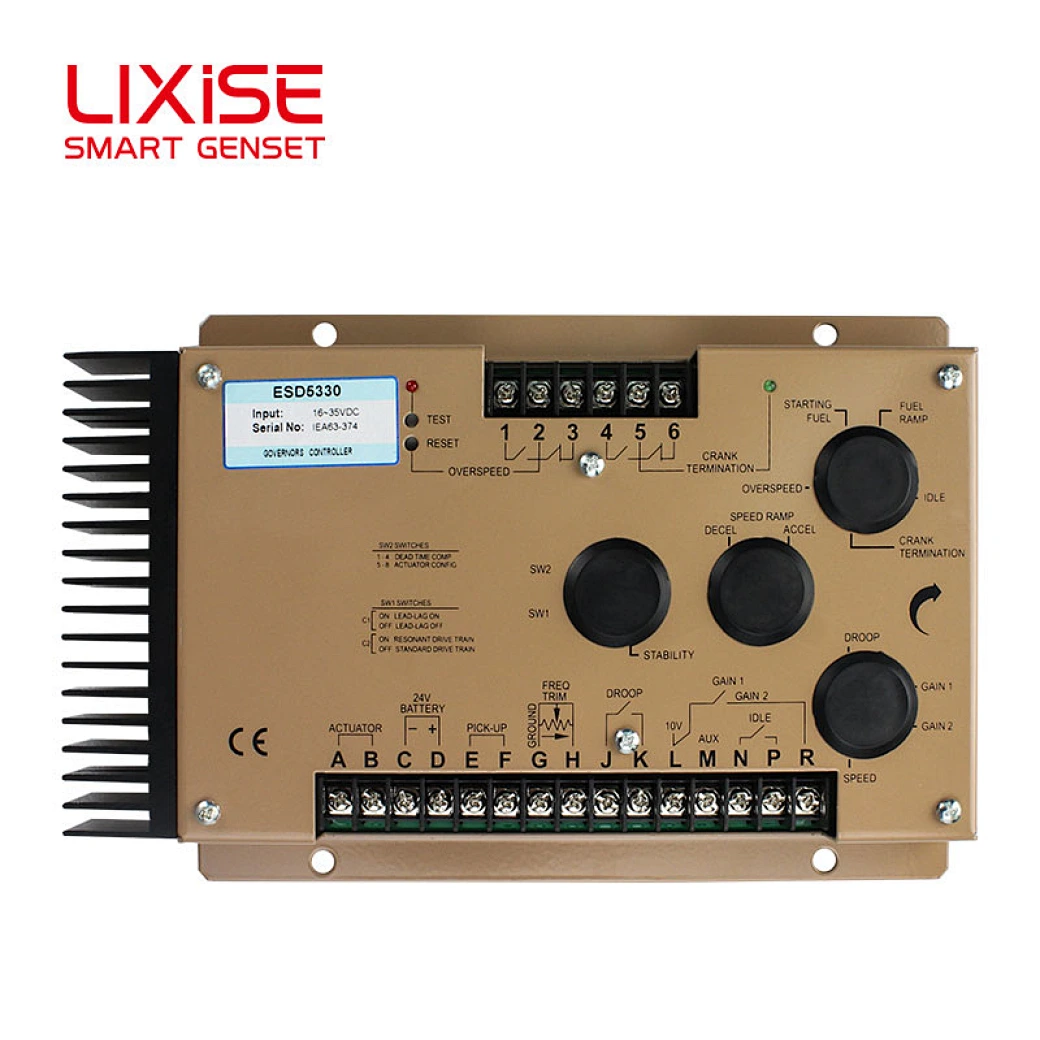

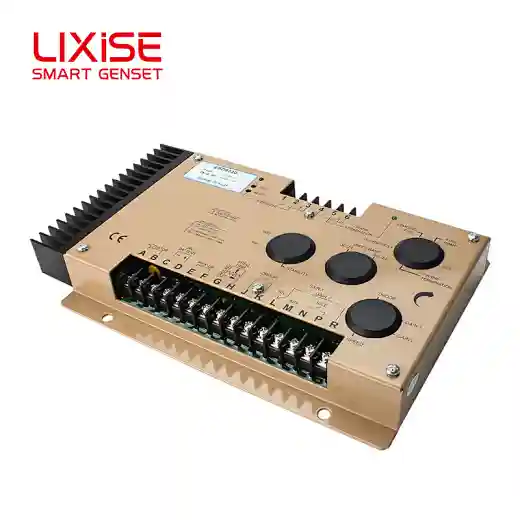

Speed Control Unit ESD5330 Genset Electronic Governor
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China, Guangdong China (Mainland)
- Brand Name:LIXiSE, LIXiSE
- Model Number:ESD5330, ESD5330
- name:Speed Controller ESD5330E
- Reliability Shock:10 G (11 ms)
- Guarantee:1 years
- liability Vibration:1G at 20 to 100 Hz
- weight:1.3KG
- Environmental Relative Humidity:Up to 95%
- Certificate:ISO9001 .
speed control unit ESD5330 genset electronic governor
The PER5330 series speed control unit is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment.The circuit board is conformally coated to seal out moisture and resist vibration.If water,mist or condensation can come in contact with the controller,it should be mounted vertically.This will allow any accumulated fluids to drain away from the speed control unit.
2)WIRING
The electrical connections are illustrated in figure 1. on page 3. Actuator and Battery connections to terminals ABC and D should be appropriately sized with respect to to maximum current consumption of the actuator that is being used. Long cable runs require an increased wire size to minimize voltage drops.
Battery positive (+) input, Terminal D, should be fused for 20 Amps as illustrated to protect system wiring.
The magnetic speed sensor connections to Terminals E and F must be shielded for their entire length. The speed sensor cable shield should only be connected to the case as shown.
The shield should be insulated to insure that no other part of it comes in contact with engine ground, otherwise, stray signals may be introduced into the PER5330 causing erratic operation.
3)Relative products:
3044196
3044195
4914090
3062322
3062323
3098693
3037359
| Input | Supply | 24 ± 20% VDC battery systems ( transient and reverse voltage Protected) |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 100 MA (No actuator current) | |
| Maximum Actuator Current | Internally limited to 9 A continuous | |
| Speed Sensor Signal | 0.5-50 Volts RMS | |
| Performance | Isochronous Operation/Steady State Stability | ±0.25% or better |
| Speed Range/Governor | 1K to 7.5K Hz continuous | |
| Speed Drift with Temperature | ±1 Max | |
| Idle Adjust CW | 25-85% of rated speed | |
| Droop Range | Adjustable from 0-5% for a 1.5 A actuator current change | |
| Droop Adj. Max. (K-L Jumpered) | 400 Hz., ±75Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz | |
| Remote Variable Speed Range | 25 to 100% of rated speed | |
| Terminal Sensitivity H | -105 Hz, ±15 Hz/Volt @ 5 K Impedance | |
| Terminal Sensitivity M | -130 Hz, ±15 Hz/Volt @ 1 M Impedance | |
| Terminal Sensitivity K | -685 Hz, ±40 Hz/Volt @ 225 K Impedance | |
| Terminal Sensitivity N | +1000 Hz, ±50 Hz/Volt @ 8 K Impedance | |
| Environmental | Ambient Operating Temperature Range | -40 to +85 Deg. C |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 1G at 20 to 100 Hz. |
| Shock | 10 G (11 ms) | |
| Testing | 100% Functionally Tested |
