ESD5522 names of parts of generator governor controller

ESC5522, ESC5522
Minimum order quantity:
1 piece
$64.00 - $74.00 / piece
Contact Now
add to cart
  • Warranty:3months-1year
  • Certification:CE
  • Place of Origin:Guangdong, China, Guangdong, China (Mainland)
  • Brand Name:LIXiSE, LIXiSE
  • Model Number:ESC5522, ESC5522
  • certificate:ISO9001
  • IDLE adjustment:160 ± 20Hz ~ 95% of set speed
  • Speed Range:1KHz ~ 7.5KHz
  • Output Current at 10V:20mA Max.
  • Working Humidity Range:Maximum 95%
  • Guarantnee:1 year
  • OEM:yes

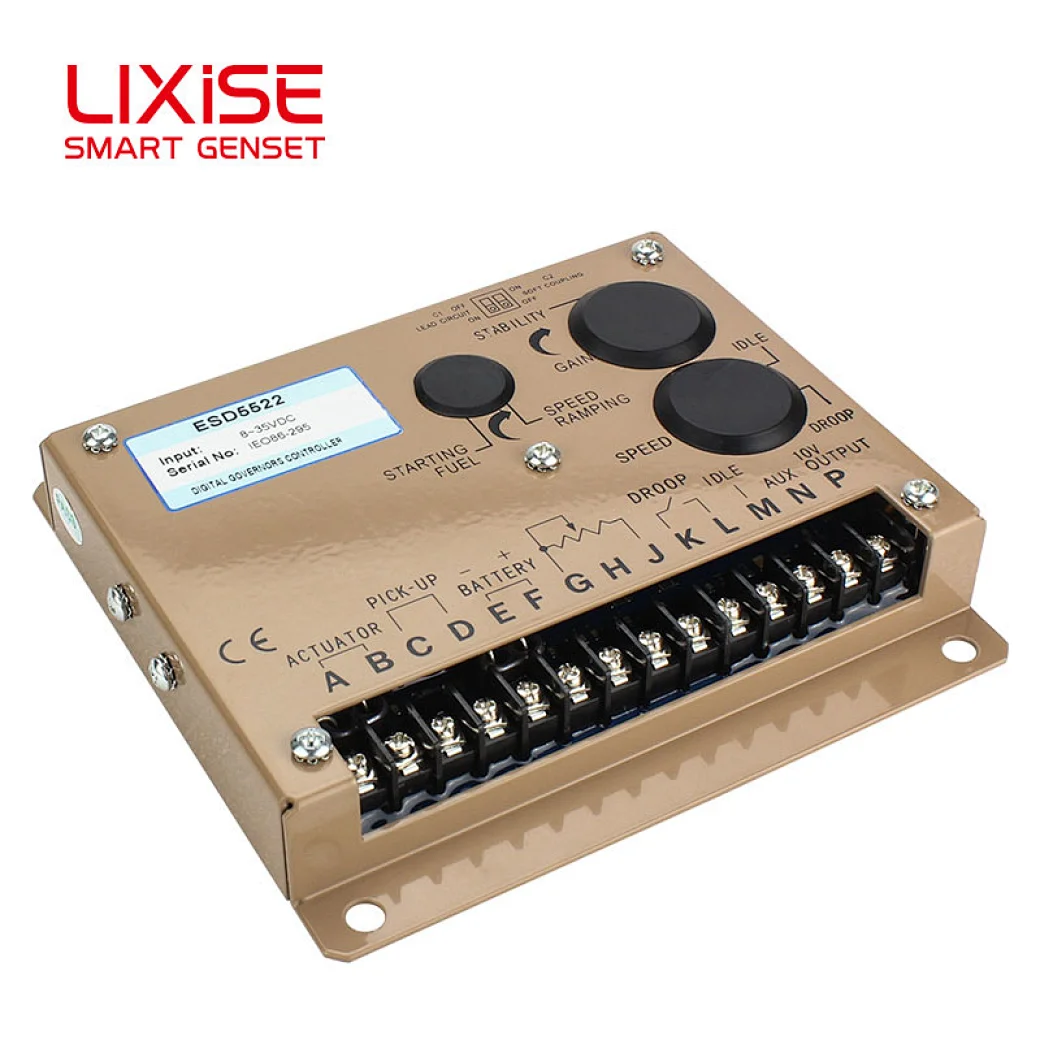

ESD 5522 names of parts of generator governor controller

Product Description

TheESD5522E /5525 Series speed control unit is an

all electronic device designed to control engine speed with fast and

precise response transient load changes.

(PER5520E is designed for EFC series.)

Isochronous Operation/Steady Stability---- +/-0.25%

or better Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected)

Power Consumption----50 ma continuous plus acutator current

Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous


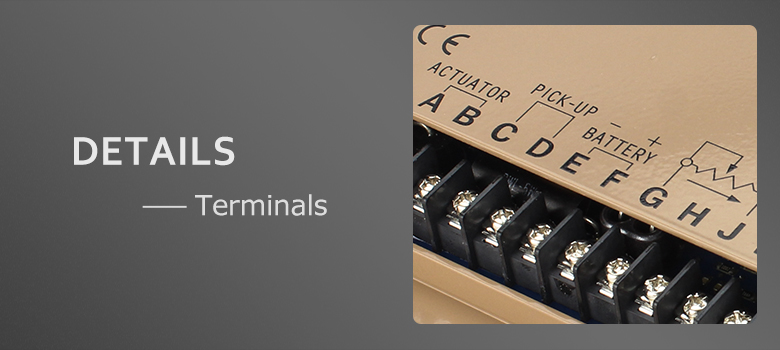

InputSupply12 or 24 VDC Battery System (Transient and Reverse Voltage)
PolarityNegative Ground (Case Isolated)
Power Consumption50 ma continuous plus actuator current
Actuator Current Range @ 25
Deg. C - (Inductive Load)
Min.2.5 Amps; Max. 10Amps continuous
PIDPID parameter is different with ESD5500
Speed Sensor Signal0.5-120 Volts RMS
PerformanceIsochronous Operation/Steady
State Stability
±0.25% or better
Speed Range/Governor1K to 7.5K Hz continuous
Speed Drift with Temperature±1 Max
Idle Adjust CW60% of set speed
Idle Adjust CCWLess than 1200 Hz.
Droop Range1-5% regulation
Droop Adj. Max. (K-L
400 Hz., ±75Hz. Per 1.0A change
Droop Adj. Min. (K-L Jumpered)15Hz., ±6Hz. Per 1.0A change
Speed Trim Range±200 Hz
Remote Variable Speed Range500 - 7.5 Hz. Or any part there of
Terminal Sensitivity J100 Hz., ± 15Hz / Volt @ 5.0 K Impedance
Terminal Sensitivity L735 Hz., ±60 Hz / Volt @ 65 K Impedance
Terminal Sensitivity N148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance
Terminal Sensitivity P10 VDC Supply @ 20 ma Max
EnvironmentalAmbient Operating
Temperature Range
-40 to +85 Deg. C
Relative HumidityUp to 95%
All Surface FinishesFungus Proof and Corrosion Resitant
ReliabilityVibration1G at 20 to 100 Hz.
Testing100% Functionally Tested

Note: The performance parameters in the frequency when measuring 4000Hz

sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3days


answer all of your questions within 1day
