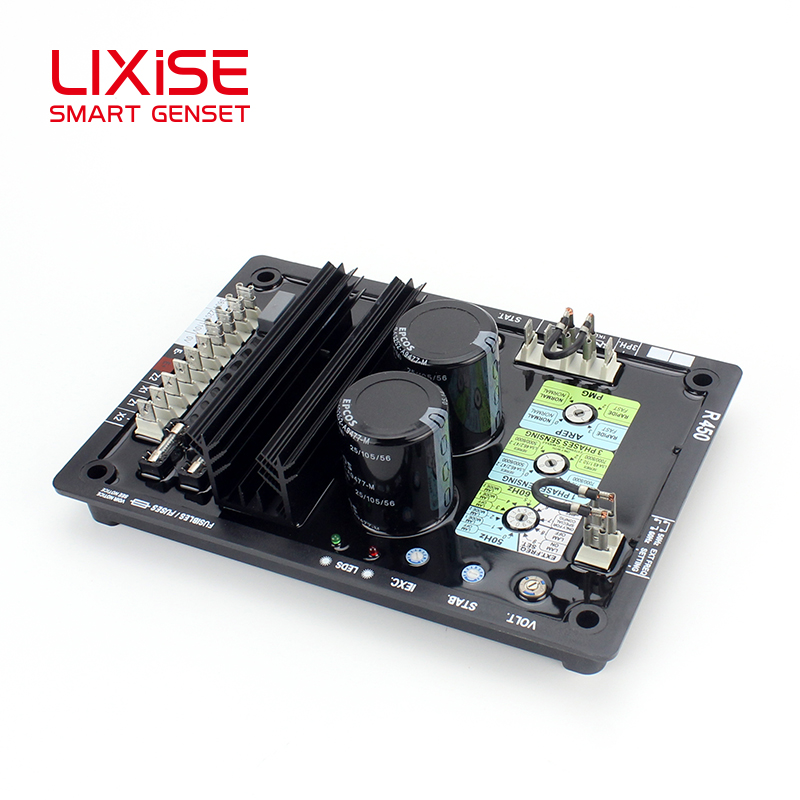

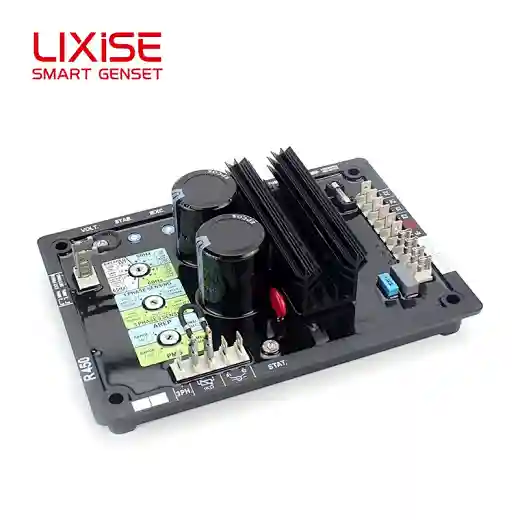

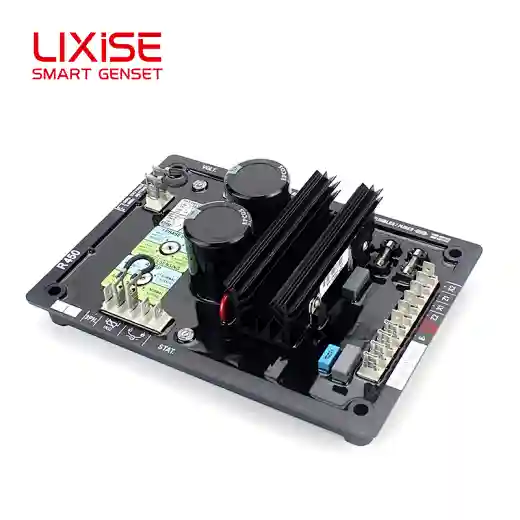

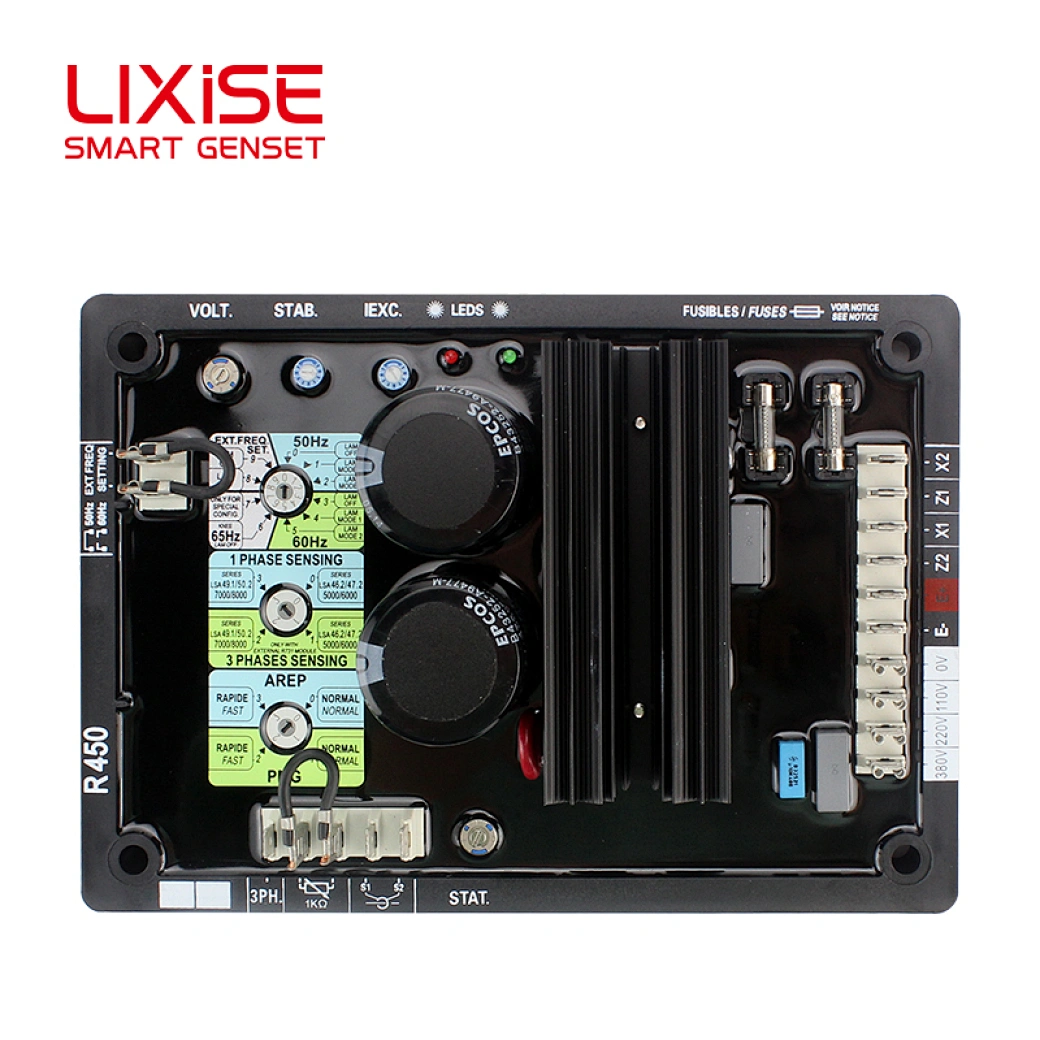

LIXiSE Generator Spare Parts R450 Brushless AVR for Genset Alternator Automatic Voltage Regulator

AVR R450
minimum order
1 piece
$95.00 - $105.00 / piece
Contact Now
add to cart
  • Warranty:1year
  • Certification:ISO9001
  • Place of Origin:Guangdong, China, Guangdong China(Mainland)
  • Brand Name:LIXiSE
  • Model Number:R450, R450
  • weight:1KG
  • purpose:brushless generator
  • Size:21.5*15*6 cm
  • Services:OEM
  • delivery date:In stock

Product Description

R450 AVR is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage.

On Application of load, the rotation speed of the generator set deceases, when it passes below the preset frequency threshold the LAM causes the voltage to drop by approximately13% or 25% and consequently the quantity of active load applied is reduced by approximately 25% to 45%, until the speed reaches its rated value again. Hence the LAM can be used either to reduce the speed variation (frequency) and its duration for a given applied load, or to increase the applied load probable for one speed variation (turbo-charged engine).

1. Leroy SomerAutomatic Voltage Regulator R450

2.Single or three phase voltage sensing with optional module.
3. Load acceptance module, PMG / AREP excitation system
4. Phase to phase voltage sensing.
5. Suitable for high levels of vibration and harsh environments

Main characteristics:

Voltage regulation +/- 0.5% at steady state and constant speed.

Control by transistor means that the regulation quality is independant of applied load.

Phase to phase voltage sensing.

Suitable for high levels of vibration and harsh environments.

Integrated"LAM"and"auto adaptative LAM"system to cope with load impacts applied to the engine

AREP or PMG excitation with normal or fast response.

Single or three phase voltage sensing with optional module.

Rotating switch facilitating selection.

Voltage230± 2V
Voltage Steady Range± 1V
Starting Excitation Voltage1.5V
Loading CapacityWith 110% loading, the regulator can work normally
Output Voltage Steady on hot and cool condition2V
Temperature float on Output Voltage2V


sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3days


answer all of your questions within 1day
