Generator Spare Parts AVR Alternator Voltage Regulator R449
R449
minimum order
1 piece
Quantity
$51.97 - $58.78
/ piece
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:R449
- Product Name:Automatic Voltage Regulator
- weight:1.2KG
- OEM:yes
- Usage:Regulating Voltage
- Service:OEM
- Function:Replaced
- Stock:YES
- Packing:Carton
- Size:21cm x14.5cm x6cm
- Quality Class:High Quatity
Product Description

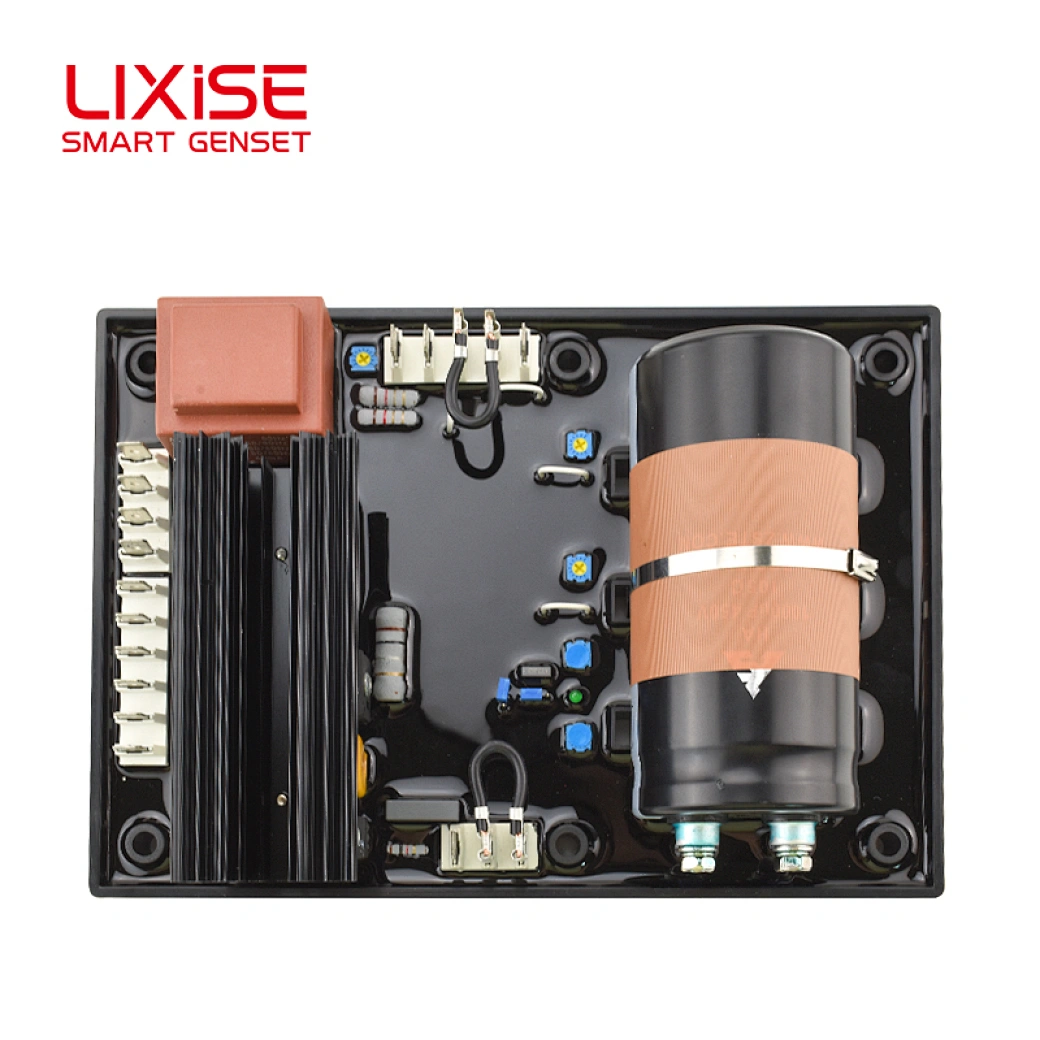

AVR R449 diesel generator stabilizer.
The circuitry of the R449 Automatic Voltage Regulator (AVR) provides closed loop control of the alternator output voltage by regulating the exciter field current. Which can be powered by either AREP or the PMG field excitation systems and is fitted as standard on 8100 Series Alternators & 9100 Series Alternators.
*Quad-rature droop adjustment
*Alternator output voltage adjustment
*Stability adjustment
*LAM Threshold (under speed) adjustment
*Excitation ceiling adjustment
*Selection of single phase or three phase* voltage sensing
*Selection of normal or rapid response time
*50 Hz or 60 Hz frequency option
*Remote voltage adjustment option
*LAM enable/disable option
Specifications
*Normal AVR supply power:2
Auxiliary windings(X1,X2,and Z,Z2)
*Shunt supply:150V-50/60Hz
*Rated overload current:10A,10s
*Electronic built-in(overload,short
circuit,and loss of sensing)
*Protection of power inputs by fuses F1
*Voltage Sensing:5VA insulated transformer with input voltage taps at:
*Terminals 0-110V=95 to 140V
*Terminals 0-220V=170 to 260V
*Terminals 0-380V=340 to 520V
*Quad-rature droop adjustment
*Alternator output voltage adjustment
*Stability adjustment
*LAM Threshold (under speed) adjustment
*Excitation ceiling adjustment
*Selection of single phase or three phase* voltage sensing
*Selection of normal or rapid response time
*50 Hz or 60 Hz frequency option
*Remote voltage adjustment option
*LAM enable/disable option
Specifications
*Normal AVR supply power:2
Auxiliary windings(X1,X2,and Z,Z2)
*Shunt supply:150V-50/60Hz
*Rated overload current:10A,10s
*Electronic built-in(overload,short
circuit,and loss of sensing)
*Protection of power inputs by fuses F1
*Voltage Sensing:5VA insulated transformer with input voltage taps at:
*Terminals 0-110V=95 to 140V
*Terminals 0-220V=170 to 260V
*Terminals 0-380V=340 to 520V
Specification
Steady state voltage regulation | ±0.5% |
Remote voltage adjustment range | ±5% |
Short circuit capability | 3 x Irated for 10 seconds |
0-110v Terminals = 95 to 140 volts (50/60 Hz) | |
0-220v Terminals = 170 to 260 volts (50/60 Hz) | |
0-380v Terminals = 340 to 520 volts (50/60 Hz) | |
Normal (1 sec) for ± 20% voltage variation | |
Rapid (0.3 sec) for ± 20% voltage variation |

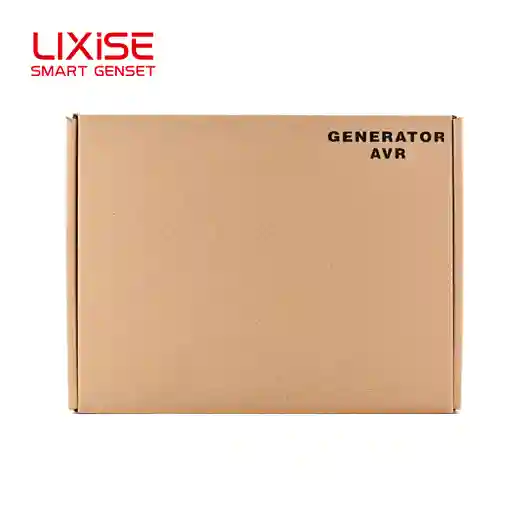

Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 3 to 10 business days.
Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation.
Shock bubble film
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation
Suitable carton size
We will choose the right size box according to the weight of the product. Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.
Box packing requirements
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.Marks should be pasted according to clients’s requirement.arks should be pasted according to clients’s requirement.
