Generator Speed Governor Diesel Generator Speed Control Unit EG3002
EG3002
minimum order
1 piece
Quantity
$54.00 - $60.00
/ piece
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:EG3002
- Weight:0.825kg
- Body size:14.5*11.3*4.7cm
- Test temperature:75 degree
- Color:yellow /gray
- Purpose:brushless generator
- Output Current:From 0.5 Amp to 15 Amp
- Frequency Range:600 Hz ~ 9500 Hz (PMG Signal)
- Material:Hard rubber base
- Certificate:ISO9001
- Guarantee:365days

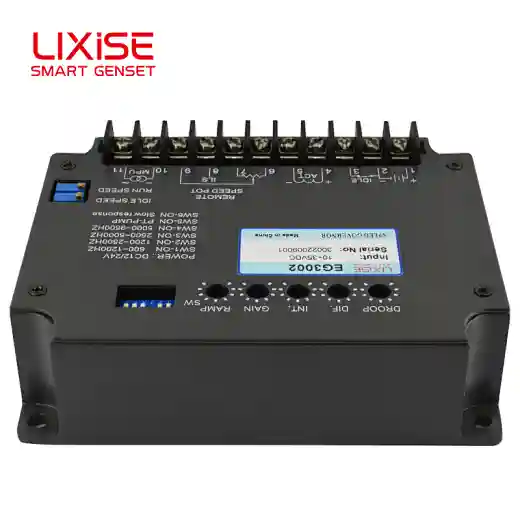

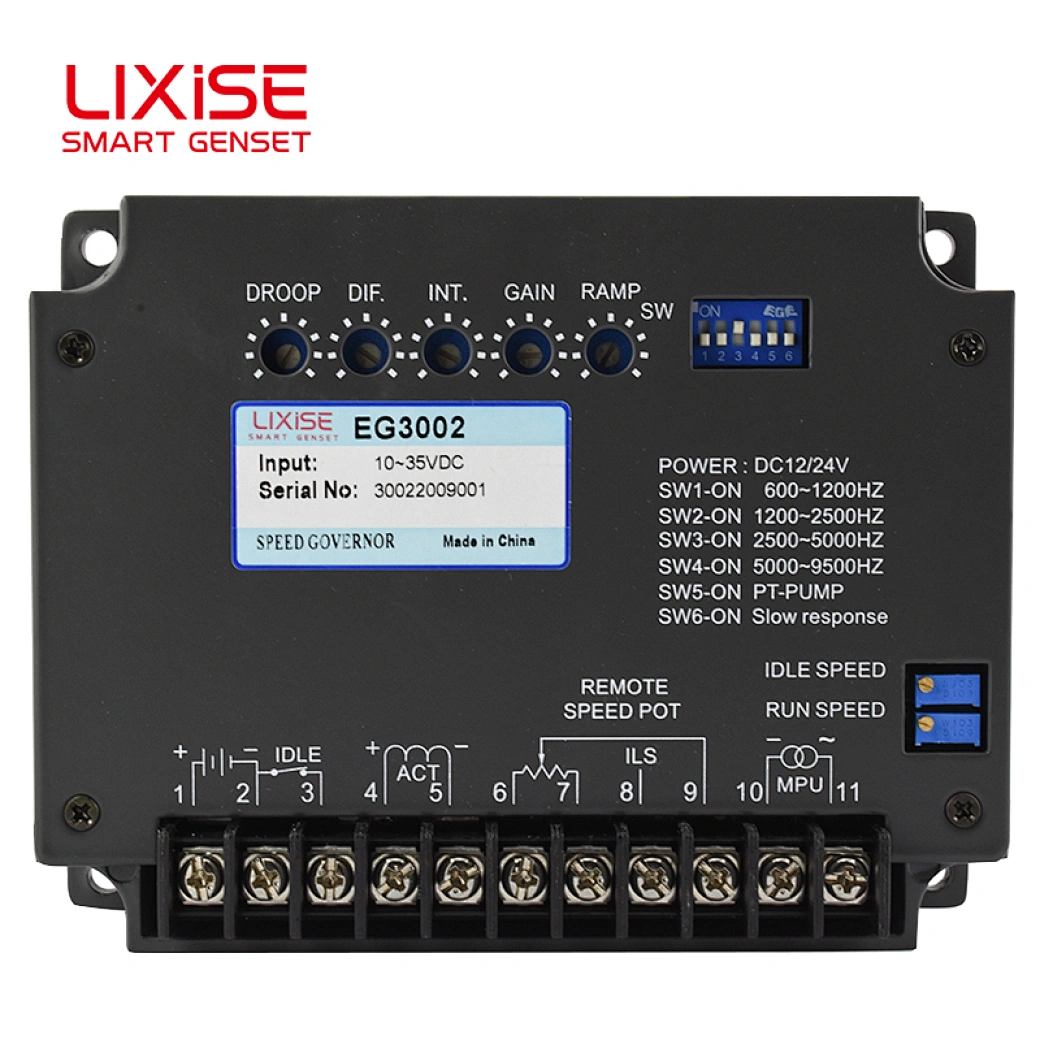

Engine Speed Control Unit EG3002
Product Description
generator governor automatic control speed regulator EG3002.
Universal Electronic Engine Governor Controller.
Diesel generator speed control unit,engine speed module.
The EG3002 electronic controller takes a signal from a magnetic pickup(MPU) and compares it with a preset engine speed to control drive voltage to the actuator to maintain constant engine speed.The EG3002 has engine start smoke suppression,IDLE speed control,Ramp Time Setting,applixable for MPU frequency range of 600 to 9500 HZ.The unit has setting for use with Cummins High-gain(PT PUMP)engines and"extreme slow response"engines.
Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps,in PTs Pumps, also can be used with Low
Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
Features · Works on a wide ranges of MPU/flywheel frequencies · 15 Amp Max Output · Suitable for all types of diesel and Gas engines · High Sensitivity and stable at Low Frequency Variations · Moisture, vibration, and rust protected, Epoxy encapsulated electronics · For Use With Isochronous Generators & Automatic Paralleling PLC controls · Idle Speed Adjustment and connections for a Remote Speed POT
Specification
SECTION 2:SPECIFICATION | |
Operating Voltage(Terminals 1,2) | Speed Droop |
Voltage 10-32vdc | 0-4% (adjustable) |
Outputs(Terminals 4,5) | Stability |
Voltage Max.95% of Input Voltage | Speed variation less than +/-0.25% at constant load |
Current Continuous 7A min.0.5A | |
Max. 15A 10seconds | |
Static Power Consumption | |
MPU Signal(Terminals 10,11) | Less than 1Walt@12 Vdc |
Frenquency 10-10,000Hz | Less than 2 Walt@24 Vdc |
Voltage 1-120Vac(RMS) | |
Frenquency Adjustment | Speed Temperature Shift |
Speed Adjustment pot (25 tum) | Less than 3% at temperature range -40 to +80℃ |
Setting range 600-9,500Hz (With DIP Switch) | |
Remote Speed Potentiometer(Terminals 6,7,9) | Environment |
Max. +/-7% @5 KΩ 1 walt potentiometer | Operating Temperature -40 to +80℃ |
Storage Temperature -40 to +85℃ | |
Isochronous Load Sharing (ILS) (Terminals 6,8) | Relative Humidity Max.95% |
Input Resistance greater than 2 KΩ | Vibration 5.5Gs@60Hz |
Input Ranges -5 Vdc to +5 Vdc/0 to 10 Vdc | |
Sensitivity 15%@10 Vdc | |
Dimensions | |
IDLE Control (Terminals 2,3) | 147.0(L) x 114.0(W) x 50.0(H) mm |
Adjustment range 30-90% of Normal Speed | 5.79(L) x4.49(W) x 1.97(H) inch |
Ramp Time | Weight |
3-20 seconds(adjustable) | 690g +/- 2% |
1.52lb +/-2% |

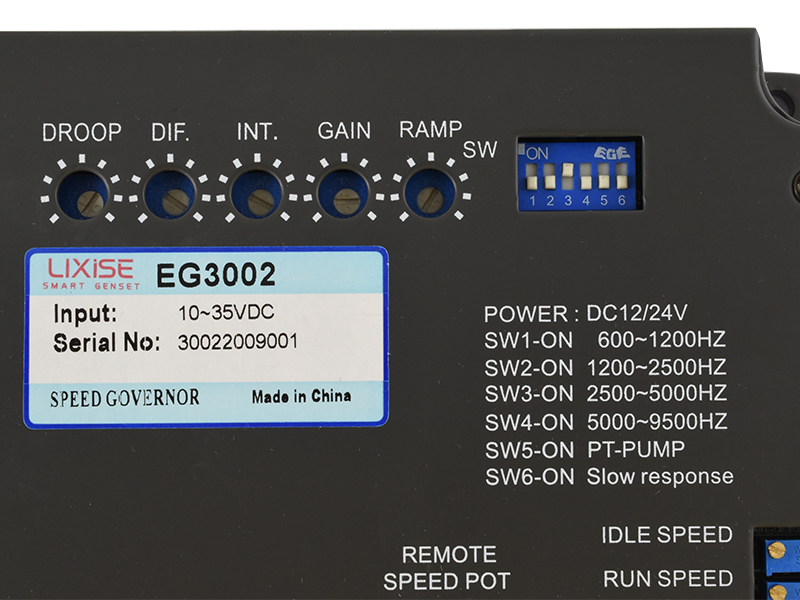

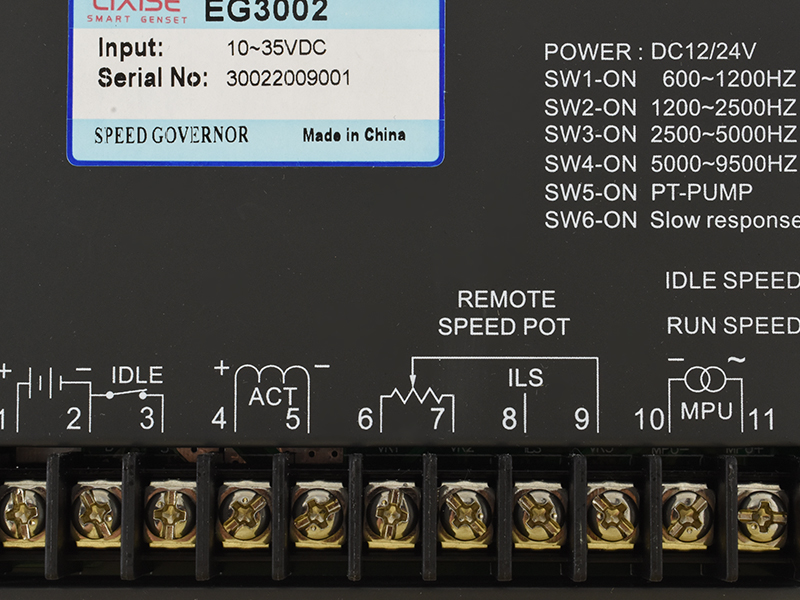

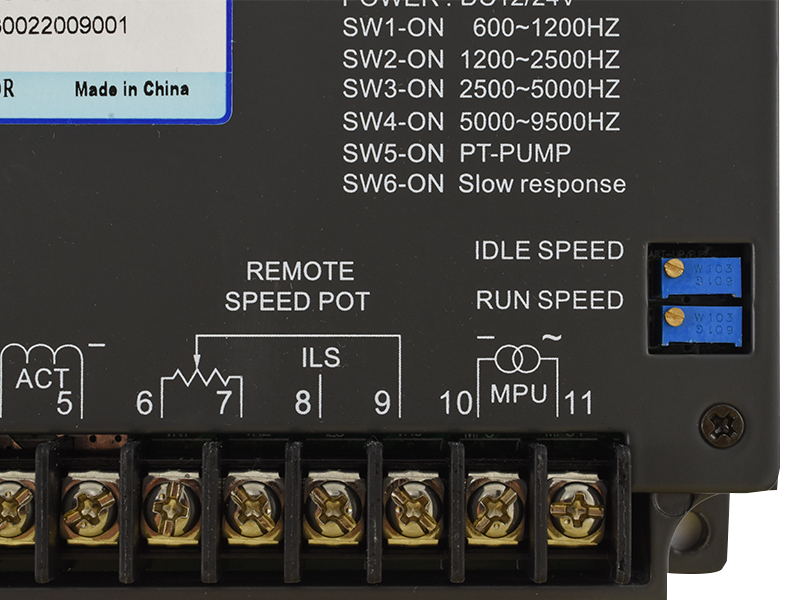

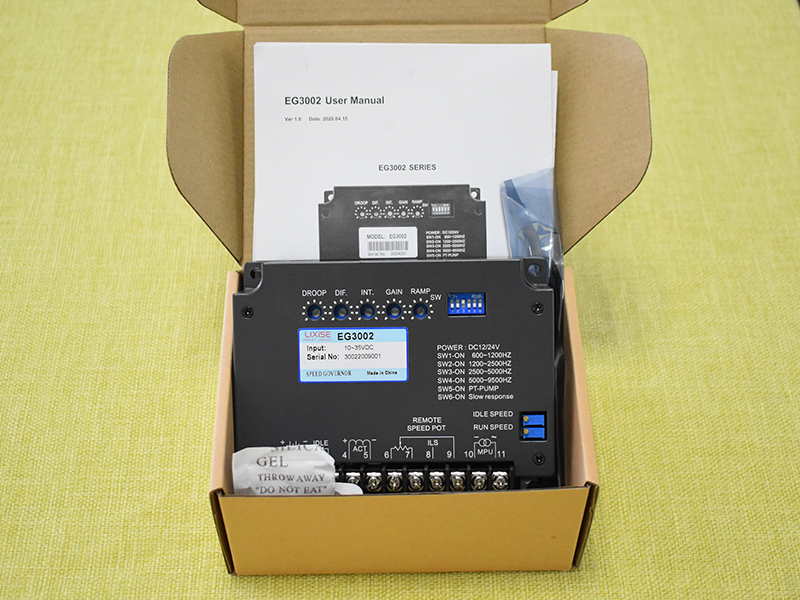

Detail Images
Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 3 to 10 business days.
Shock bubble film： The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation
Suitable carton size： We will choose the right size box according to the weight of the product. Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.
Box packing requirements： In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.Marks should be pasted according to clients’s requirement.

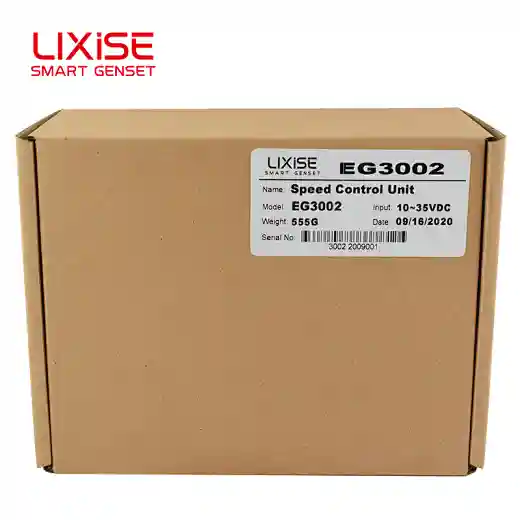

Material: PE bag & Hard paper box. Size of box:15*15*6.5cm Size of carton :51*41*39cm 36pcs/carton
Company Profile
Dongguan Feirui Electronics Co., Ltd. is located in Donguan City, which is known as"the World's Factory"in China. We are engaged in developing and producing engine parts including starting controllers, speed control units, automatic voltage regulators (AVR), synchronizers, load share modules, and other correlative generator accessories, such as chargers, sensors, actuators and other related products. We have emulational system which is the most advanced in the same industry. The system can imitate the whole process of real generator. Therefore, we can control our quality with the precise testing equipment. On the other hand, we own some generator experts with rich experience in electromechanical automatic control system. Being good at soft ware & hard ware, these experts are trained by some well-known diesel engine factories. With about 10 years' experience and skill, we can supply the best technology support service. According to customers' requirements, we can develop some special products and supply OEM service. Due to our unremitting efforts for many years, we have set up wholesalers in Nigeria, Egypt, Thailand and Philippines. Following the ideal of"Quality First, Credit and Service is Our Belief", we strive for innovation to make satisfied generator parts. We expect to create more achievement tomorrow and welcome you to contact us for cooperation.

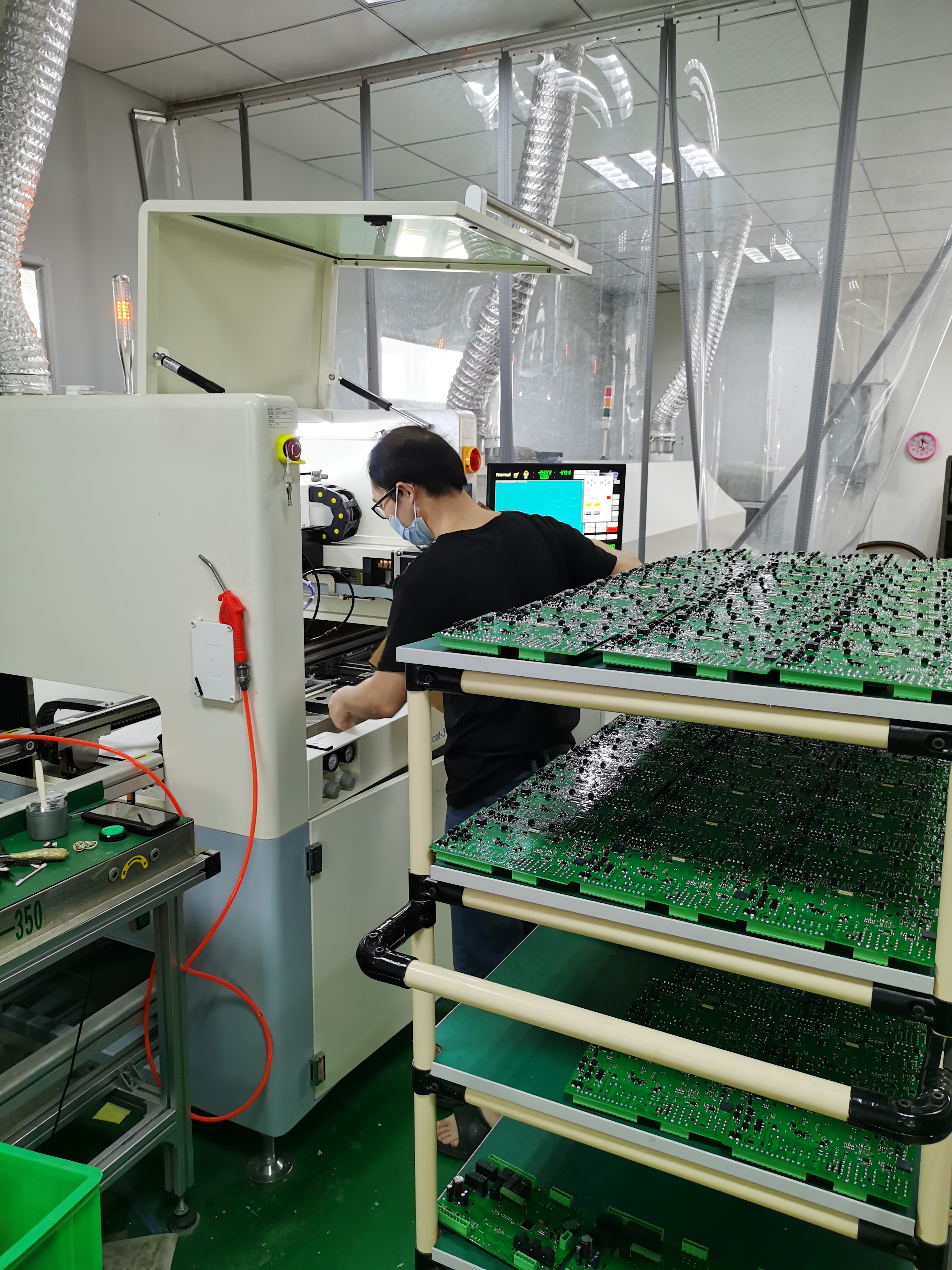

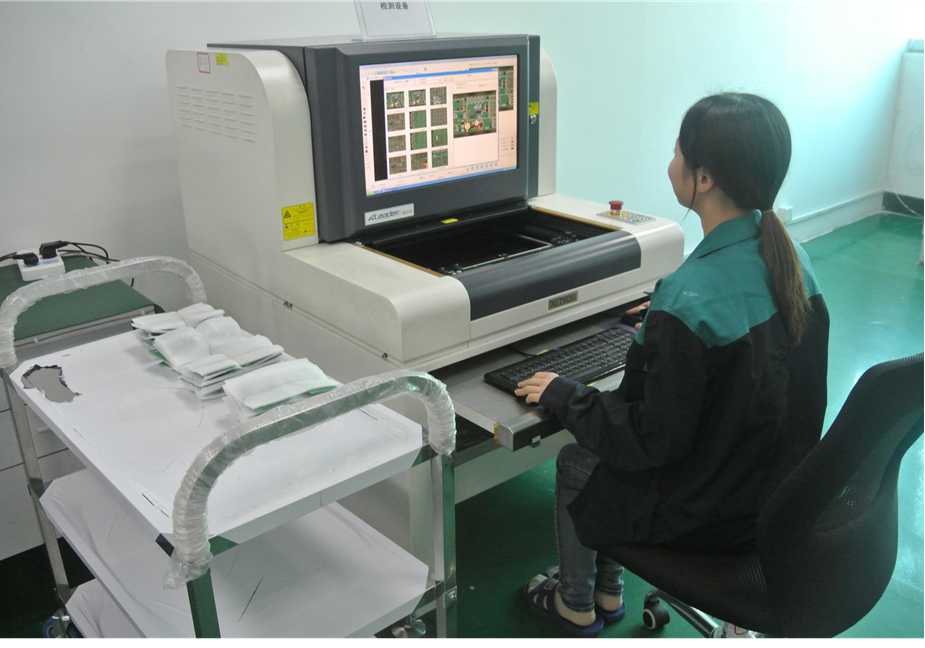

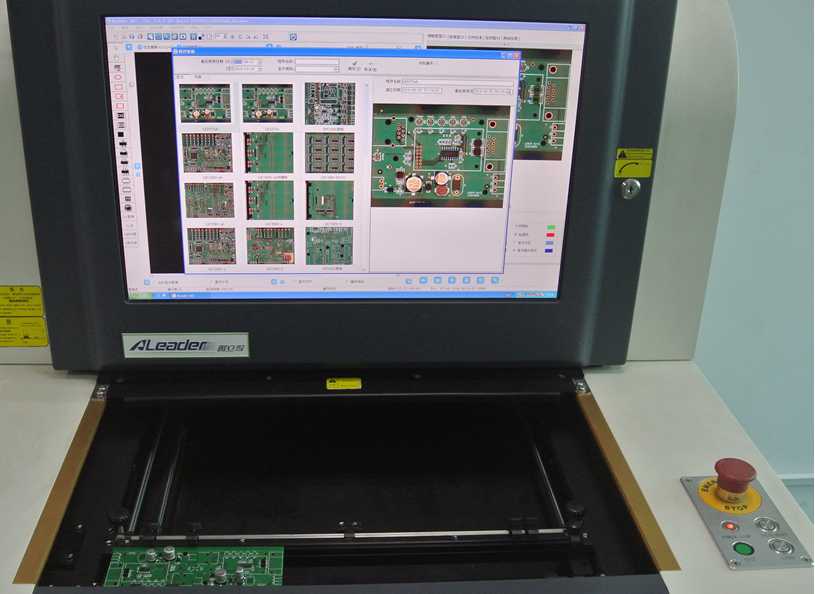

PCBA Automatic Optical Inspection Equipment:
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
1. After the solder paste printing: printing process can be found in the defect, which will produce bad because the solder paste printing welding defects to a minimum. 2. reflow ago: most defects can be found from the solder paste printing and placement of the machine. 3. Reflow: bad ownership process can be detected at this stage, so there is no defect flows final customer.

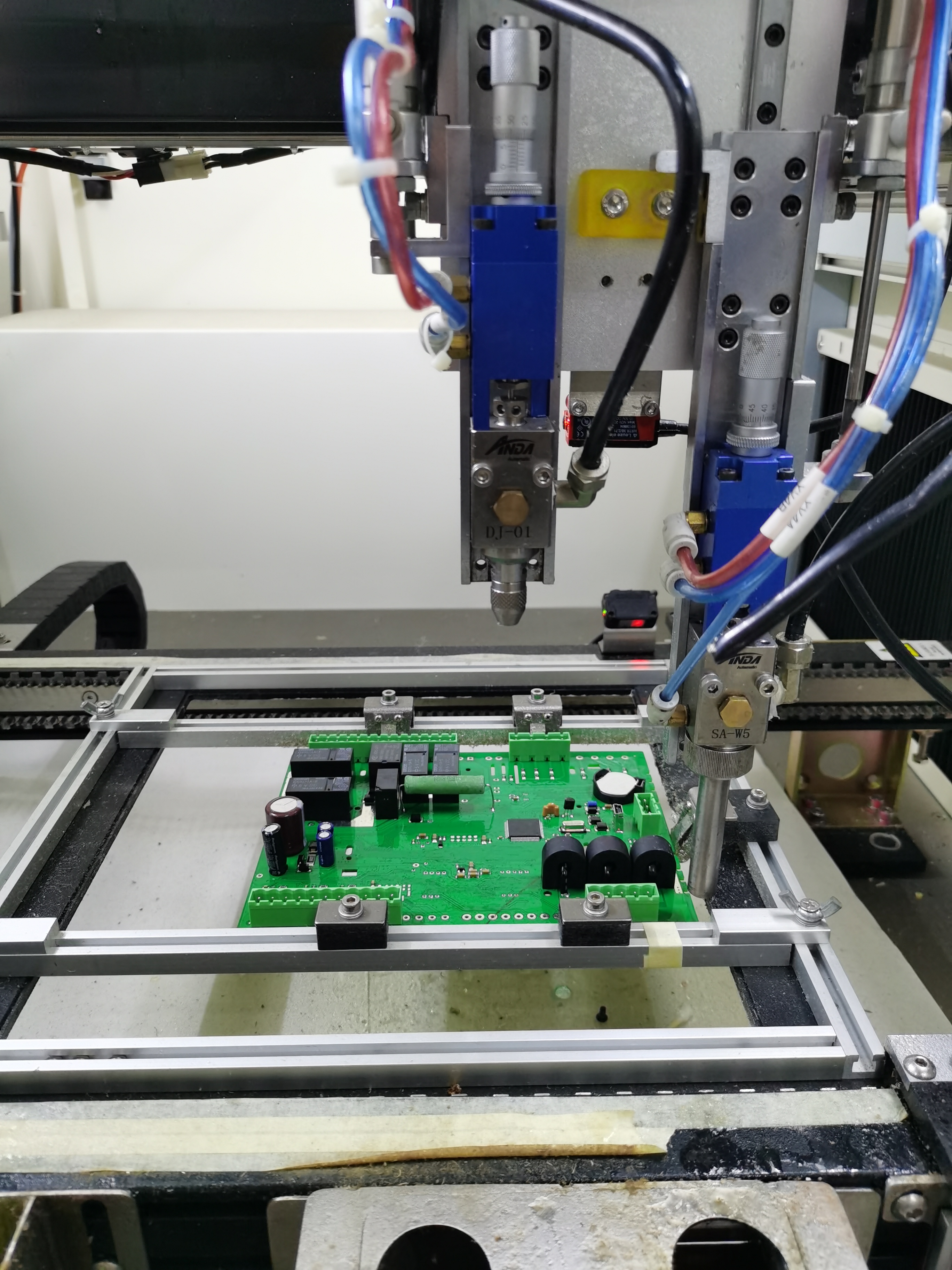

Sealing machine
In order to improve production efficiency, the company adopts advanced glue injection machine, and the glue surface of products sprayed by the machine is more beautiful and even.
In addition, it perfectly solves the problem that the glue is not easy to dry in rainy weather, reduces the waiting time of
customers, and can meet the urgent order needs of customers.
customers, and can meet the urgent order needs of customers.

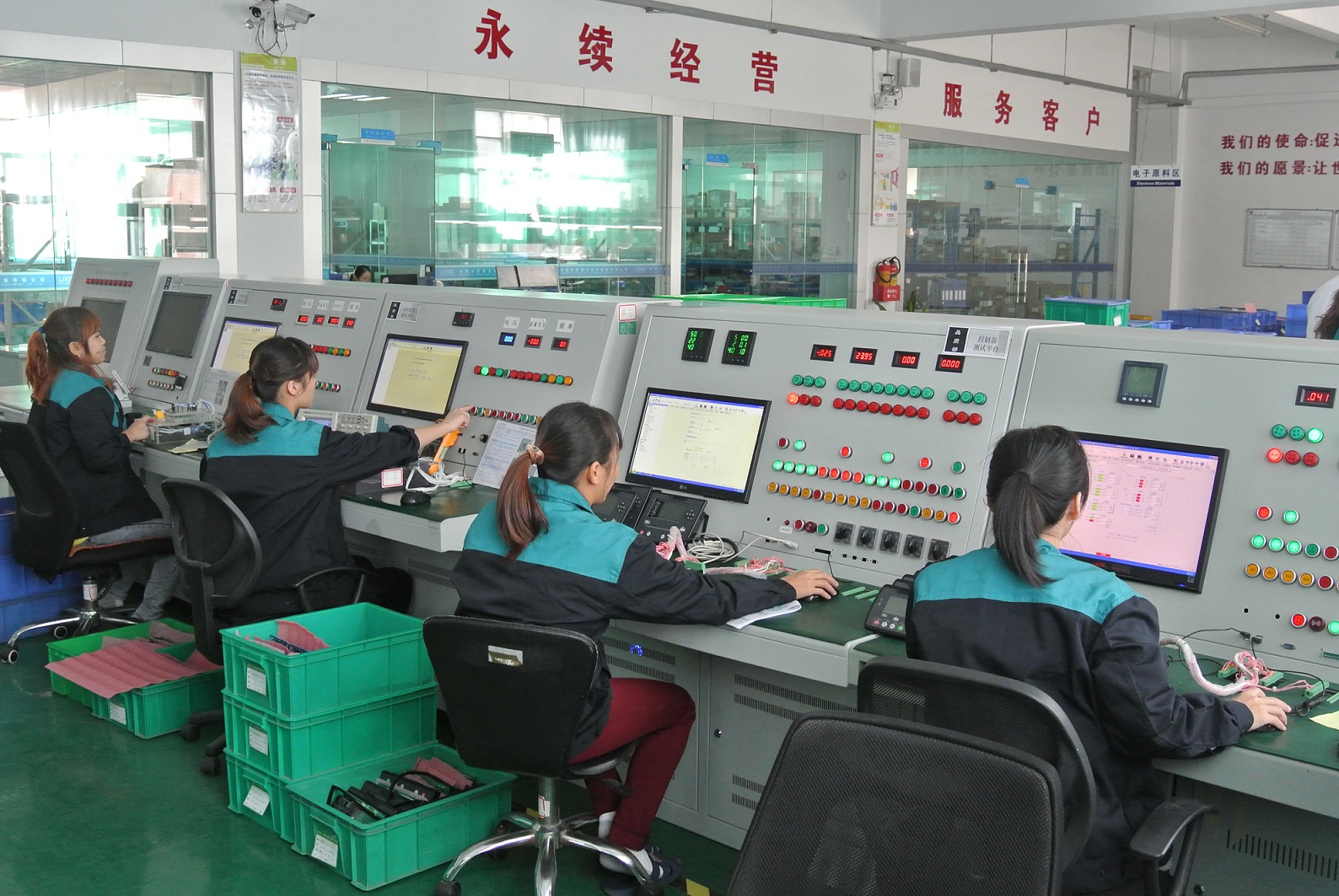

Simulation Test Platform:
Quality Department simulation test platform, Simulate and test the electrical functions of the electronic products in the operation of the generator, whether there are effective, reliable and stable performance

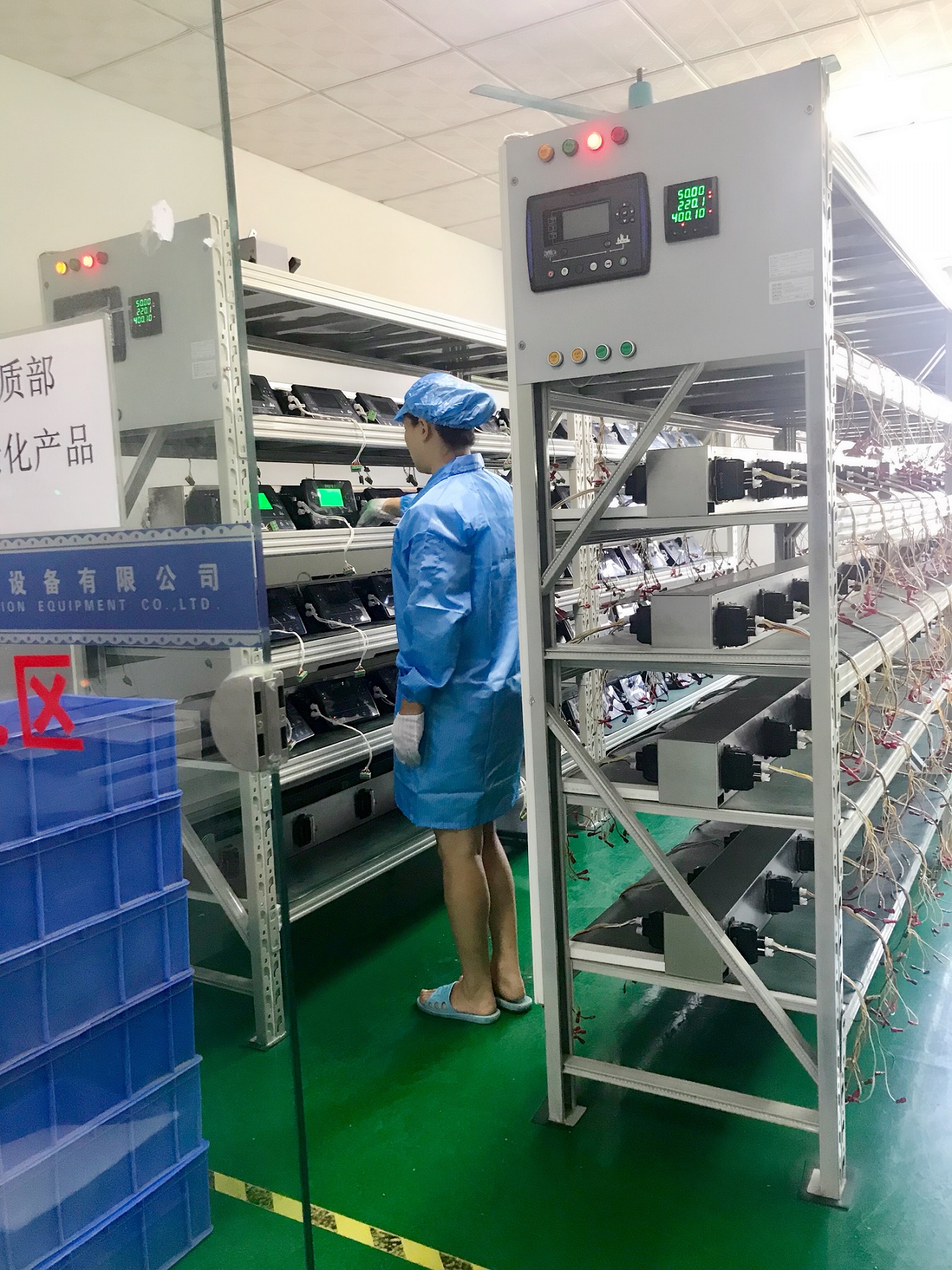

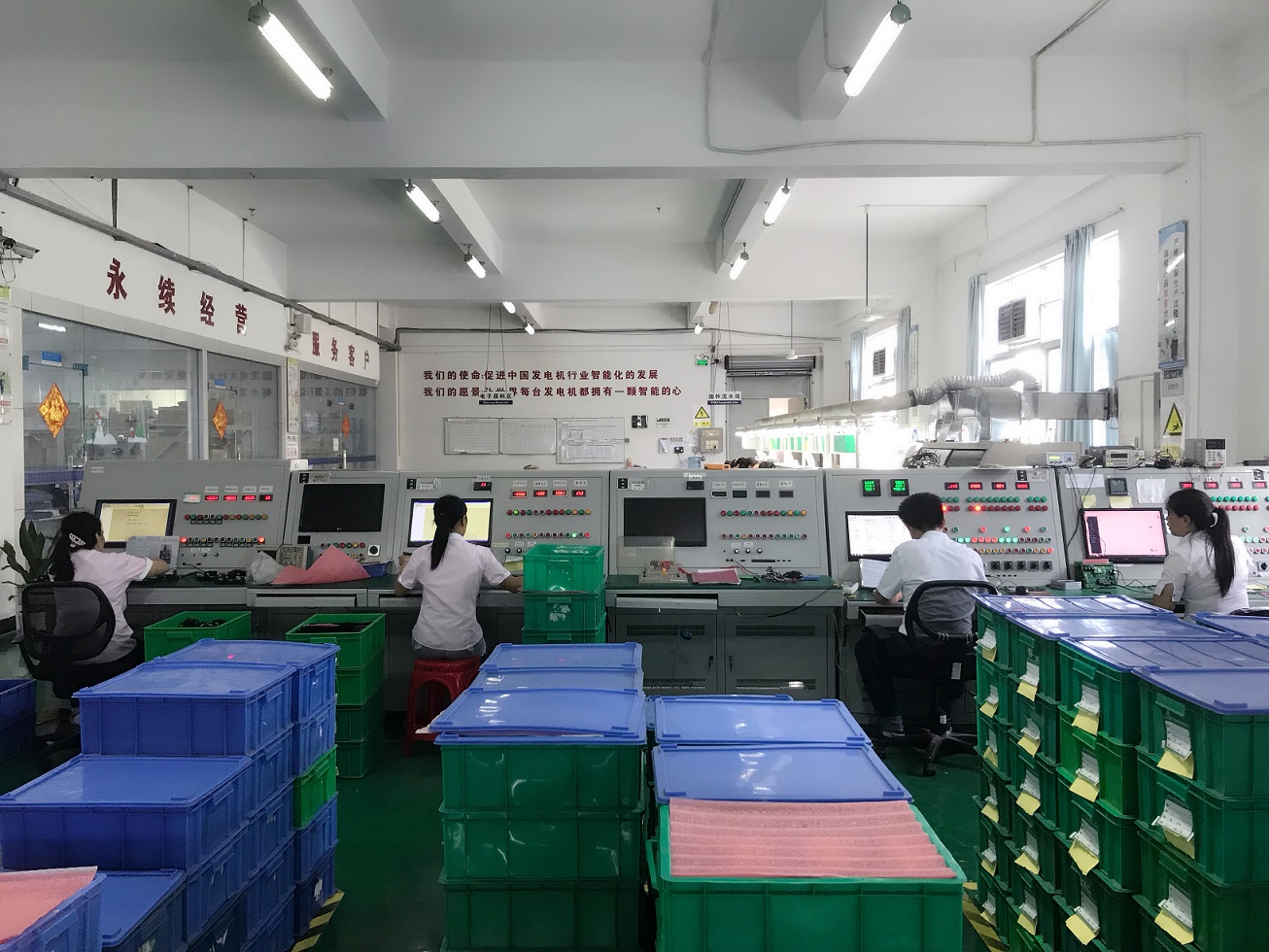

Workshop Goods Final Test Room：
