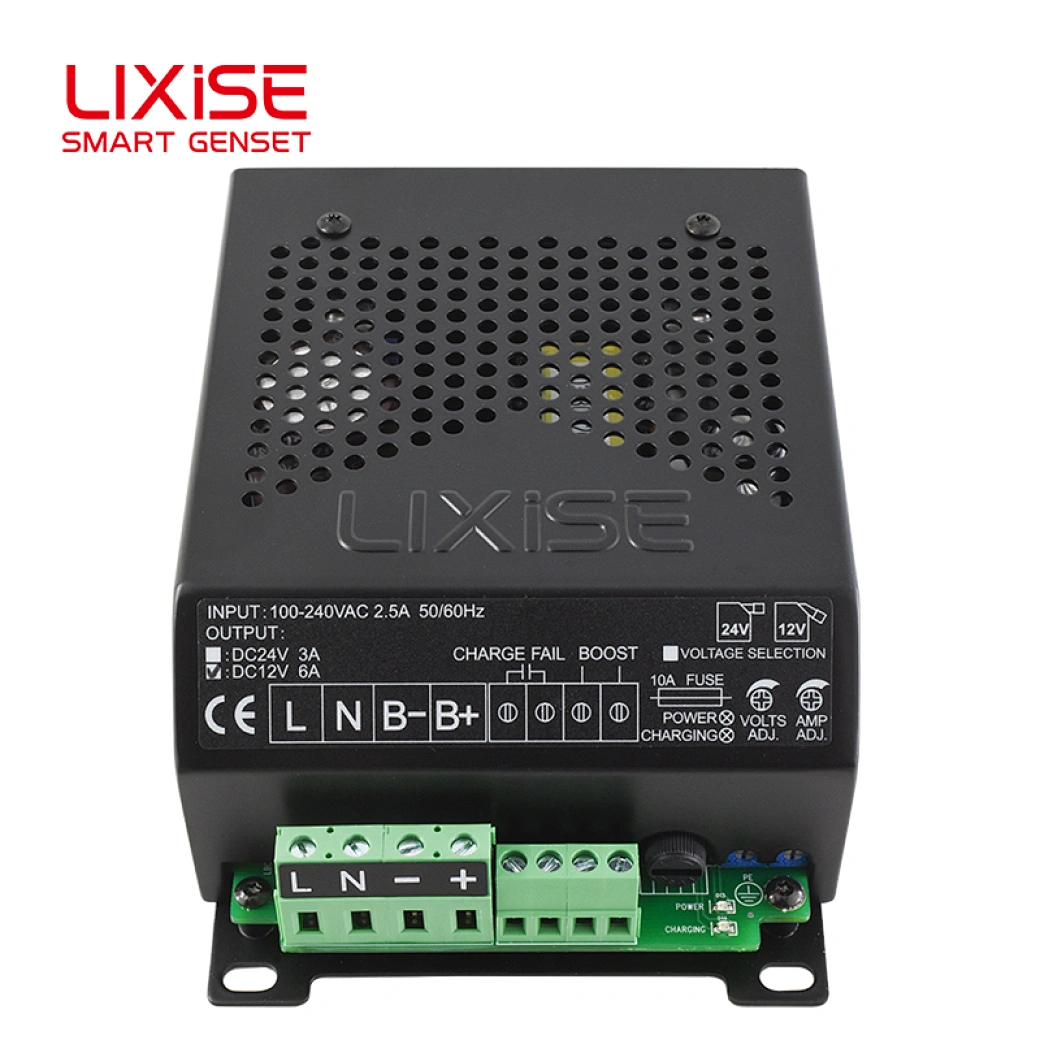

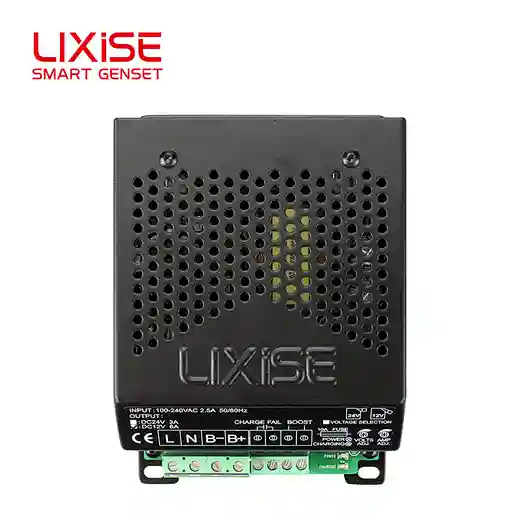

LBC1206B 12V 6A LIXiSE Charger for Diesel Generator Battery Charger
- Warranty:1 year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:LBC1206B
- Weight:0.75kg
- Type:Electric
- Purpose:Power supply
- size:138 mm*90mm*53 mm
- OEM:yes
- Product Name:generator automatic battery charger
- Keyword:battery charger 12 volt

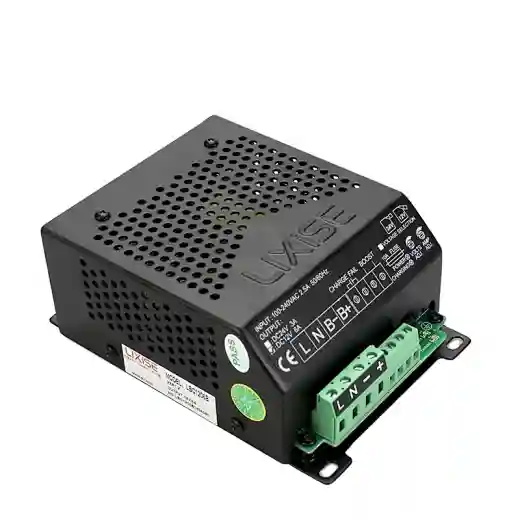

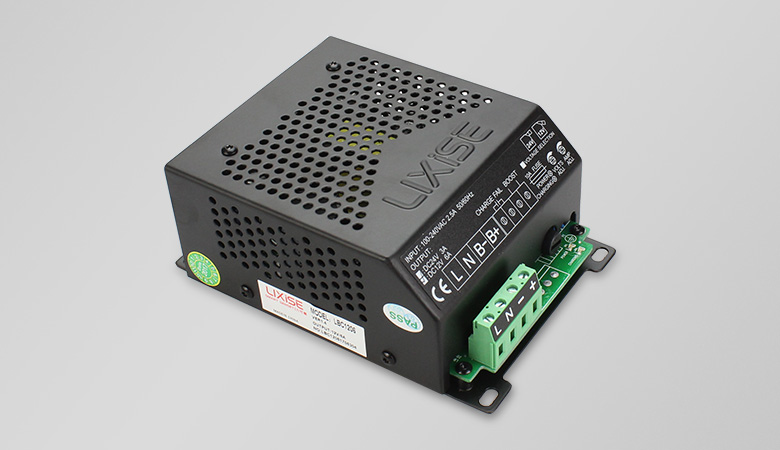

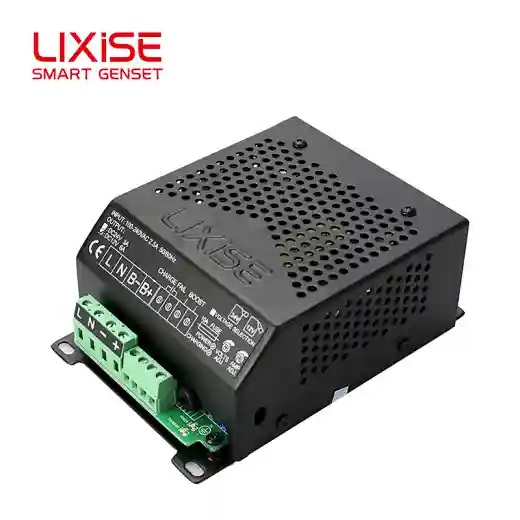

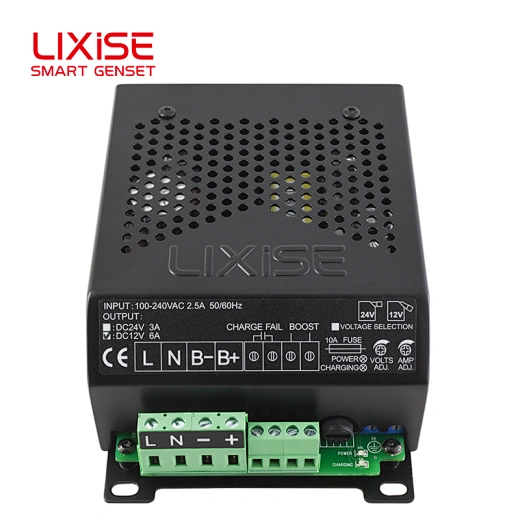

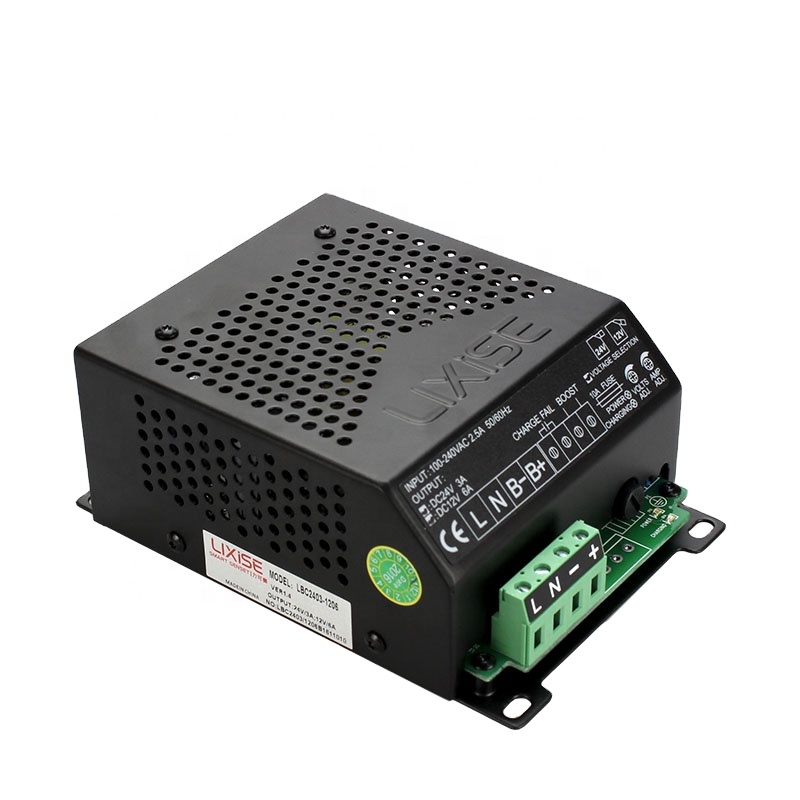

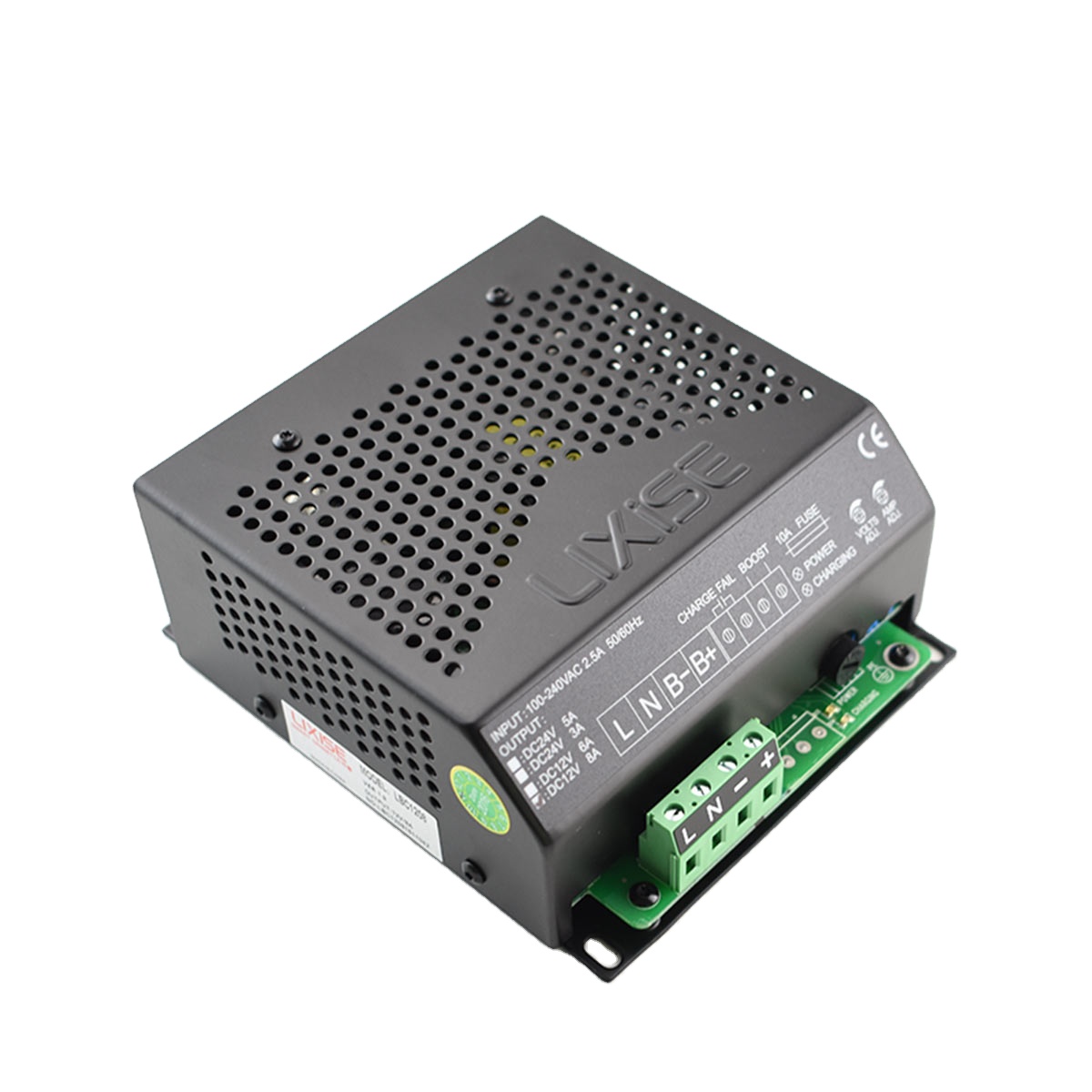

LBC1206B LIXiSE diesel generator automatic battery charger 12 volt
Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.
Selling point:
Does many sections of charging, extend battery life 30%;
Does have short circuit resistance, resistance to reverse function;
Does high reliability, can work normally in - 30 ~ 70 degrees;
Does plus: one year replacement, lifetime warranty;
Why did you choose us:
Many sections of the charging: constant voltage, constant current, a trickle charge, full automatic stop, extend battery life by 30%;
With functions of short circuit resistance, resistance to reverse;
LED charging status indication, a see will know whether they have been full of;
With charging output contact failure, can be connected to the PLC, generator controller, etc., realize charging fault alarm;
With the BOOST up voltage function, compensation winter filling dissatisfaction phenomenon;
High reliability, can work in - 30 ~ 70 degrees;
Wide input voltage range: 100-265 vac.
Use switch circuit structure, efficiency is as high as 86.7% @ 265 vac.
Six core window:
Many sections of the charging: constant voltage, constant current, a trickle charge, full automatic stop, extend battery life by 30%;
Charger has perfect resistance to short circuit and reverse connect protection, when the battery capacity is very minimal (resistance), load short circuit, or the charger connect to the mains to charge battery at the same time to start the engine at the same time, still for the constant current output current without damage, so when the battery as the starting power supply at the same time, the charger can not disconnect measures;.
For charge indicator LED charging status indication: red, light when charging, full of rear light.The green power light
With charging output interface failure, can be connected to the PLC, generator controller, such as charging fault alarm.In the low storage battery voltage, the short circuit, there is no ac power failure such as effective;
With the BOOST up voltage function, compensation winter filling dissatisfaction phenomenon;
Over temperature protection function.When the internal temperature automatic protection, return to work after being cool.Ensure the safety of the charger and battery;
| Category | Project | Specification | |||
| Input Characteristic | nominal AC input voltage range | AC (100~240)V | |||
| Max. AC input voltage range | AC (95~280)V | ||||
| AC frequency | 50 Hz/60 Hz | ||||
| No-load power consumption | <3 W | ||||
| efficiency | AC 110 V | AC 220 V | |||
| >82% | >86% | ||||
| Max. input active power | LBC 2405 | LBC 2403 | LBC 1206 | LBC 1208 | |
| 168 W | 97 W | 90 W | 118 W | ||
| Max. Input current | 2.9 A | 1.8 A | 1 A | 1.5 A | |
| Output Characteristic | No-load output voltage | 27.6 V,error ±1% | 13.8 V, error ±1% | ||
| rated charging current | 5 A,error ±2% | 3 A,error ±2% | 6 A,error ±2% | 8 A,error ±2% | |
| rated output | 135 W | 85 W | 83 W | 111 W | |
| Alarm Output | relay contact | 0.5 A/250 VAC(Only useful with B suffixes, such as LBC2405B) | |||
| Insulating Property | insulating resistor | Input and output,input and shell both read DC500V 1min RL 500MΩ | |||
| insulating voltage | Input and output,input and shell both read AC1500V 50Hz 1min leak current IL 3.5 mA | ||||
| Working Situation | working temperature | (-30~55)°C | |||
| store humidity | (-40~85)°C | ||||
| working humidity | 20% RH~ 93% RH( no condensation) | ||||
| storage humidity | 10% RH~ 95% RH(no condensation) | ||||
| weight | 0.75 kg | ||||
| Configuration | size | 138 mm× 90 mm× 53 mm (length× width× height) | |||
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
