LBC2403-1206E Chargers Battery 12v 24v Smart Automotive Battery Charger for Generator
LBC2403-1206E
minimum order
1 piece
Country of Origin
SHENZHEN
Quantity
$22.90 - $32.30
/ piece
- Warranty:3months-1year, 12 Months
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:lixise
- Model Number:LBC2403-1206E
- Product name:Generator Battery Charger
- size:10*13*6cm
- weight:0.5 kg
- Usage:diesel engine battery charger
- Max. Input current:2.5 A
- Material:Plastic
- Max. input active power:130 W
- Package:Carton
- Keywords:battery charger for generator
Product Description
12V 24V Smart Floating Battery Charger LBC2403-1206EB Intelligent Power Charger Battery 3A 6A For Diesel Generators
OverviewLBC series Battery Charger is a charger which using latest switch power programs, and specifically for the charging characteristics of lead-acid batteries designed for engine start, suitable for lead-acid batteries of long-term supplemental charge (float), you can select the appropriate one according to the selection table.
Model | Output Voltage | Output Current | Charge Fail | BOOST |
LBC2403E | 24V | 3A | ● | ● |
LBC2403EB | 24V | 3A | ||
LBC1206E | 12V | 6A | ● | ● |
LBC1206EB | 12V | 6A | ||
LBC2403-1206E | 24V or 12V | 24V/3A 12V/6A | ● | ● |
LBC2403-1206EB | 24V or 12V | 24V/3A 12V/6A |
Features*12V / 24V voltage selection, the use of imported high quality DIP makes it more reliable and stable, easily toggle switch to select. *Take Switch Power Structure, wide range of AC input voltage, small volume, light weight, high efficience. *Using Multistage Charging Method (constant voltage, constant current, trickle float, full stop) automatic charging, fully charged according to the battery charging characteristics to prevent lead-acid battery overcharge, can maximize battery life. *With the flow, short circuit, reverse polarity protection. *With Charging Failure Alarm Output Function (Passive Relay Contact), more convenient and safe. *Charging voltage can be adjusted at the scene by the potentiometer. *BOOST boost function, short BOOST port can boost 1.0 V of output voltage, with compensation for rechargeable dissatisfaction in the winter, and better for the old battery. *Suitable for 24V battery pack, rated charging current is 3A. *Suitable for 12V battery pack, rated charging current is 6A. *Charging status LED indication: Power Indication (green), Charging Indication (red), filled with lights off.
Specification
Category | Project | Specification | ||
Input Characteristic | nominal AC input voltage range | AC (100~240)V | ||
Max. AC input voltage range | AC (95~280)V | |||
AC frequency | 50 Hz/60 Hz | |||
No-load power consumption | <3 W | |||
efficiency | >80% @AC 110V | |||
>84% @AC 220V | ||||
Max. input active power | LBC 2403E | LBC 1206E | ||
130 W | 130 W | |||
Max. Input current | 2.5 A | 2.5 A | ||
Output Characteristic | No-load output voltage | 27.6 V，error ±1% | 13.8 V, error ±1% | |
rated charging current | 3 A，error ±2% | 6 A,error ±2% | ||
rated output | 86 W | 86 W | ||
Alarm Output | relay contact | 0.5 A/250 VAC(Only useful with B suffixes, such as LBC2403B) | ||
Insulating Property | insulating resistor | Input and output、input and shell both read DC500V 1min RL≧500MΩ | ||
insulating voltage | Input and output、input and shell both read AC1500V 50Hz 1min leak current IL ≦ 3.5 mA | |||
Working Situation | working temperature | (-30~55)°C | ||
store humidity | (-40~85)°C | |||
working humidity | 20% RH~ 93% RH( no condensation) | |||
storage humidity | 10% RH~ 95% RH(no condensation) | |||
weight | 0.63 kg | |||
Configuration | size | 100mm×130mm×60mm (length× width× height) | ||
Charging voltage selection
Application of Schematic Diagram
Outline and Installing Dimension

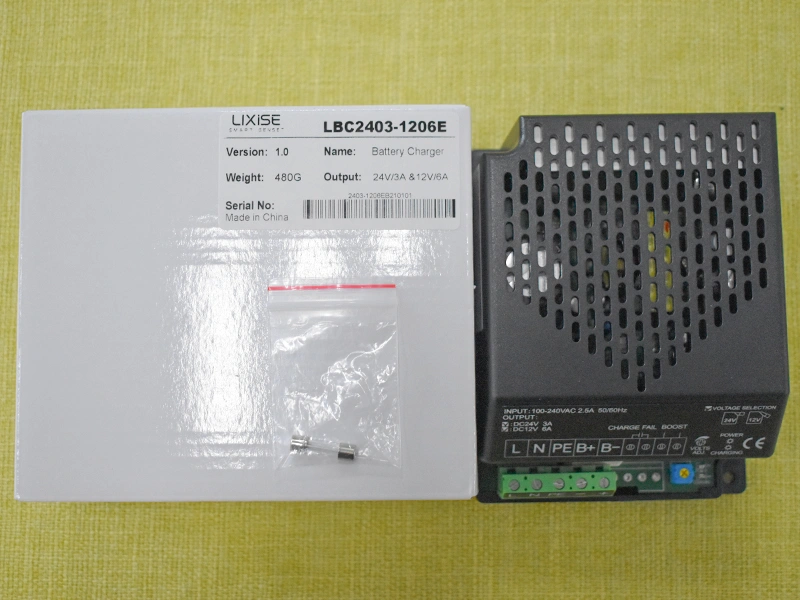

Detail Images
Packing & Delivery
Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation
Shock bubble film:
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.
Suitable carton size:
We will choose the right size box .
Too Much Weight / too little
weight per case is not good for product protection and freight savings for customers.
weight per case is not good for product protection and freight savings for customers.
Packing tape:
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.

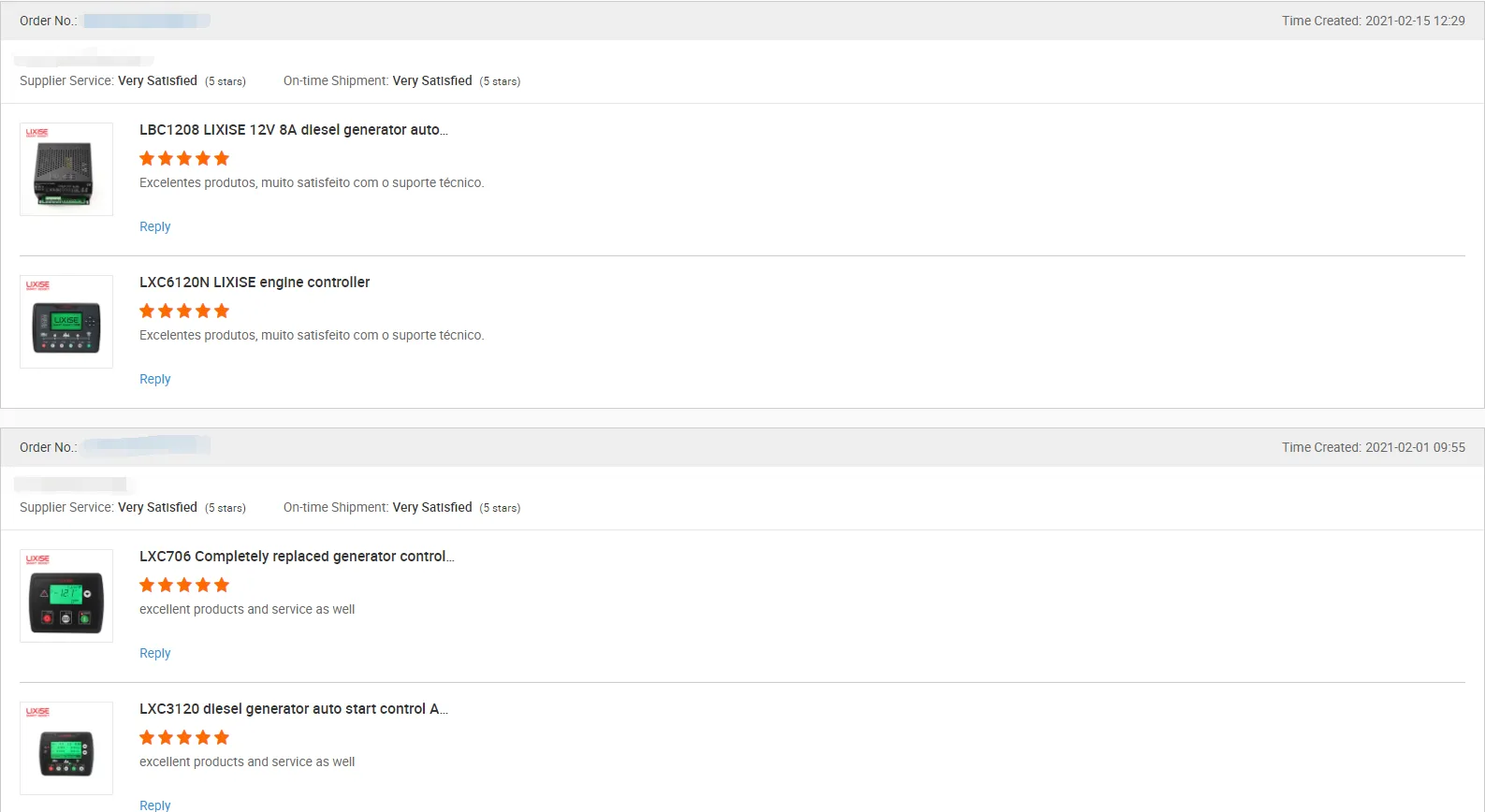

Cutomer Feedback
Company Profile

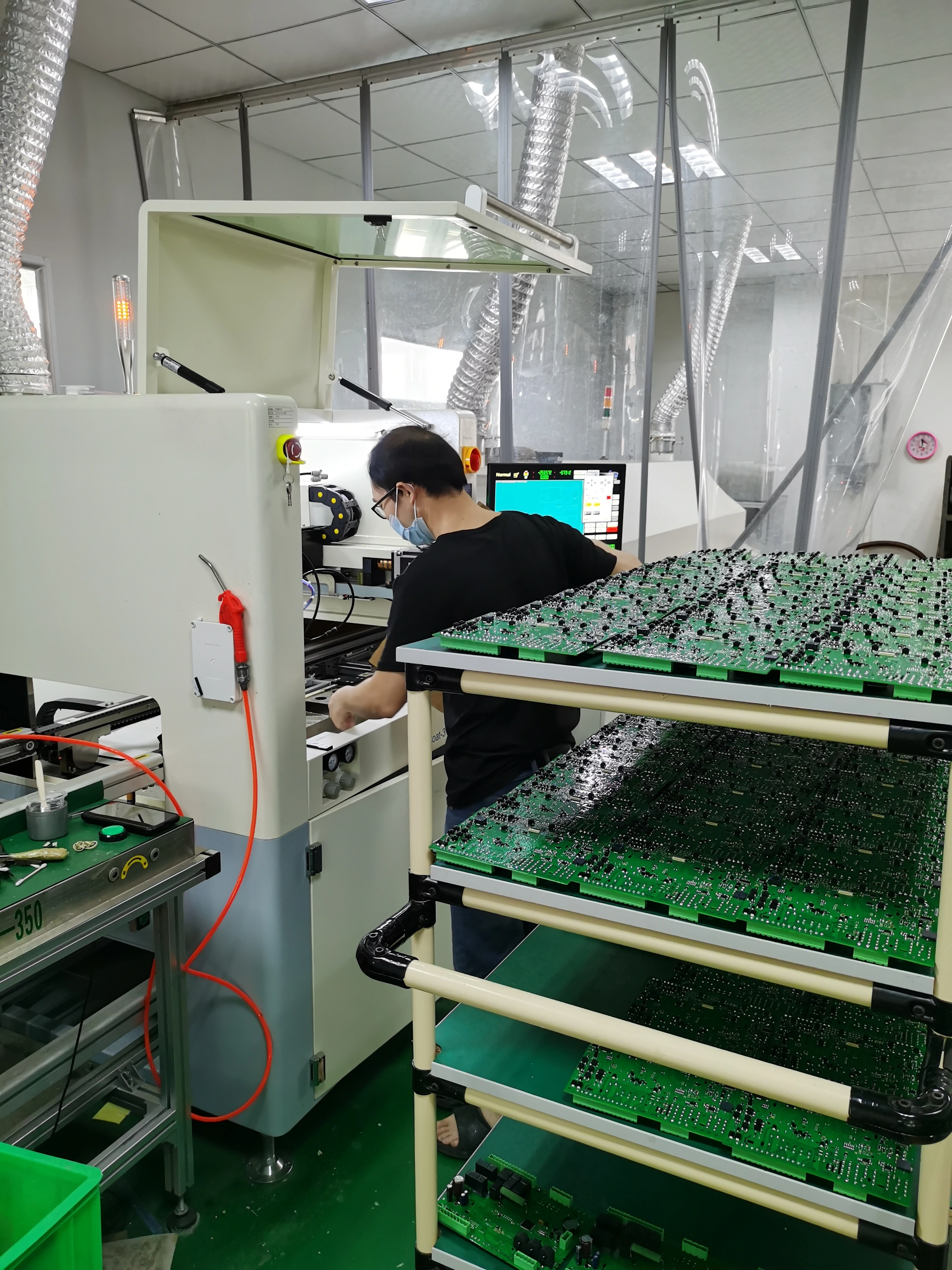

PCBA Automatic Optical Inspection Equipment:
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.
1. After the solder paste printing: printing process can be found in the defect, which will produce bad because the solder paste printing welding defects to a minimum. 2. reflow ago: most defects can be found from the solder paste printing and placement of the machine. 3. Reflow: bad ownership process can be detected at this stage, so there is no defect flows final customer.

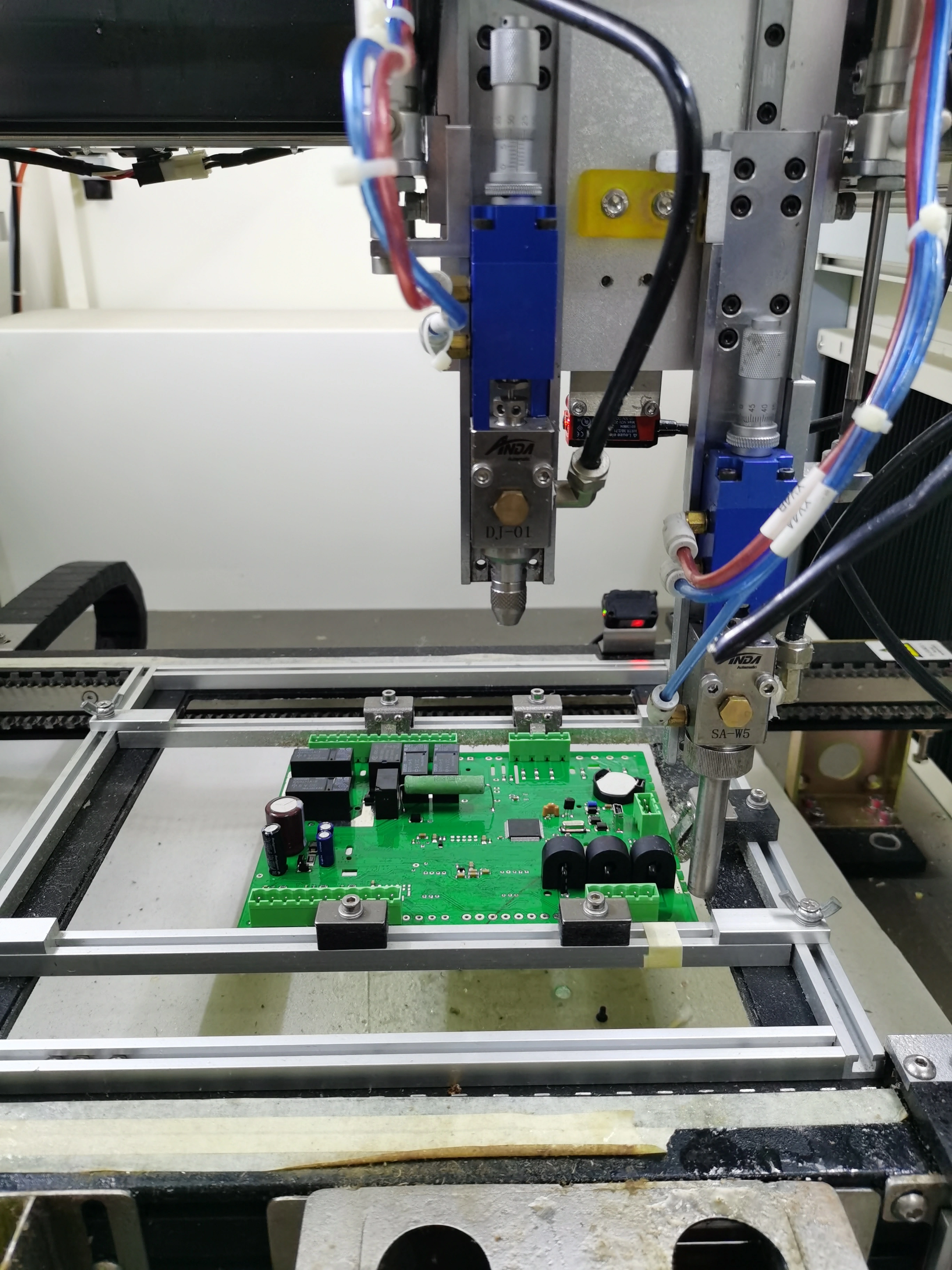

Rubber sealing machine: In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even. In addition, it perfectly solves the problem that glue is not easy to dry in rainy weather, reduces the customer's waiting time, Make sure the goods are delivered on time.
Simulation Test Platform
Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate and test the electrical functions of the electronic products in the operation of the generator, whether there are effective, reliable and stable performance
Workshop Goods Final Test Room
Products be aging tested specially, such as Regulator Board(AVR) Seriees, Governor Series, Controller Series and so on。 It simulating generator load works for 12 hours continuely,to test products' Electrical Property if reliable and stable , after continuous work in high temperature.
Exhibitions
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world. Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
Shanghai
We attracted a large number of visitors at the Shanghai International Power Exhibition. Customers speak highly of our products in the leading position in the industry development, which fully shows that our products are the industry leader in scientific and technological innovation, application technology and solutions.
CUSTOMERS came for visitingWe warmly welcome customers to visit the factory and hope that our face-to-face communication can promote better cooperation between both sides.
Reply: All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
High quality: We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.
Guarantee: Guarantee:365 days after selled. During guarantee,the items share free repairs or replacement.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
