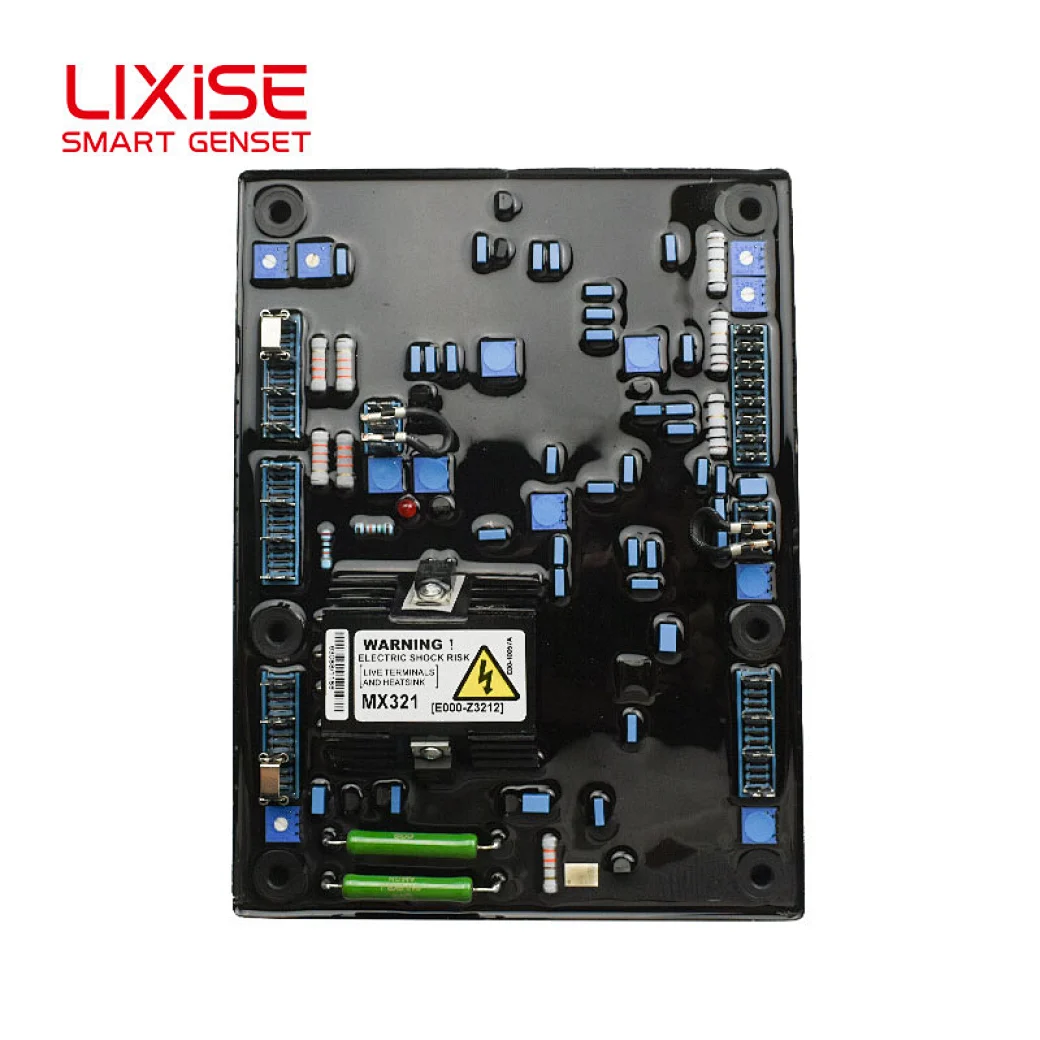

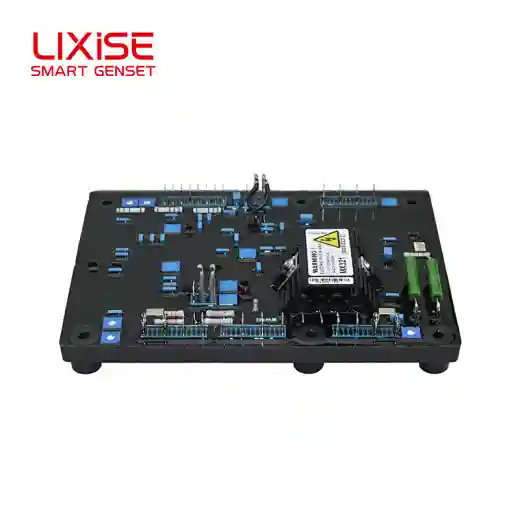

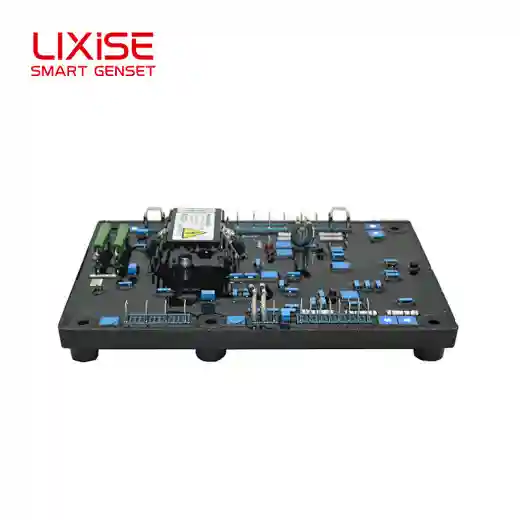

LIXiSE Automatic Voltage Regulator for Generator Parts AVR MX321

MX321 blue
minimum order
1 piece
Quantity
$105.00 - $105.00 / piece
Contact Now
add to cart
  • Warranty:3months-1year
  • Certification:CE
  • Place of Origin:Guangdong, China
  • Brand Name:LIXiSE
  • Model Number:MX321 blue
  • Place of Origin::Guangdong, China (Mainland)
  • Brand Name::LIXiSE
  • Model Number::MX321
  • Current Type::AC
  • Usage::brushless generator
  • Phase::Three Phase
  • Product Size::Size: 20.5*15.5*2.5cm
  • Name::Auotmatic voltage regulator
  • Weight::0.755kg
  • Sensing input voltage::190 -264V ac max,2 or 3 phase

LIXiSE automatic voltage regulator for generator parts avr MX321

Product Description

*3 Phase Sensing Permanent Magnet Generator type voltage regulator is a compatible replacement for Newage MX321 and Onan 305-0823.

* MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.Excitation power is derived from a three phased permanent magnet generator(PMG),to isolate the AVR control circuits from the effects of nonlinear loads and to reguce radio frequency interence on the generator terminals.Sustained generator short circuit current is another feature of the PMG system.

* The AVR sense the voltage in the main generator winding and controls the excitation to maintain the generator output voltage with the specified limits,compensating for load,speed,temperature and power factor of the generator.Thress phase RMS sensing is emplyed for superior voltage regulation.

* Adjustable soft start circuitry is included to provide a smooth controlled build up of generator output voltage.

Sensing InputVoltage190-264V ac max, 2 or 3 phase
Frequency50-60 Hz nominal
Power Input(PMGVoltage170-220V ac max, 3 phase, 3 wire
Current3A/phase
Frequency100-120 Hz nominal
OutputVoltageMax 120V dc
CurrentContinuous 3.7 A,
Intermittent 6A for 10 secs
Resistance15 ohms minimum
Regulation+/- 0.5% RMS with 4% engine governing
Thermal Drift0.02% per Deg. C change in AVR ambient
Soft Staret Ramp Time0.4 - 4 seconds
Typical system responseAVR response20ms
Filed current to 90%80 ms
Machine Volts to 97%300ms
External voltage adjustment+/-10% with 5k ohm 1 watt trimmer
Under frequency protectionSet point95% Hz
Slope100%-300% down to 30 Hz
Max. Dwell20% volts/S recovery
Unit power dissipation18 watts maximum
Analogue InputMaximum input+/- 5 Vdc
Sensitivity1v for 5% Generator Volts (adjustable)
Input resistance1k ohm
Quadrature Droop Input10 ohms burden
Max. sensitivity: 0.22 A for 5% droop 0PF
Max. input: 0.33A
EnvironmentalVibration20-100 Hz,50mm/se
100Hz – 2kHz, 3.3g
Operating temperature-40 to +70 Deg. C
Relative Humidity 0-70 Deg.
C
95%
Storage temperature-55 to +80 Deg. C
Advantages

MOVE ADVANTAGE
sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3days

Service

answer all of your questions within 1day

Application domain

Company Information

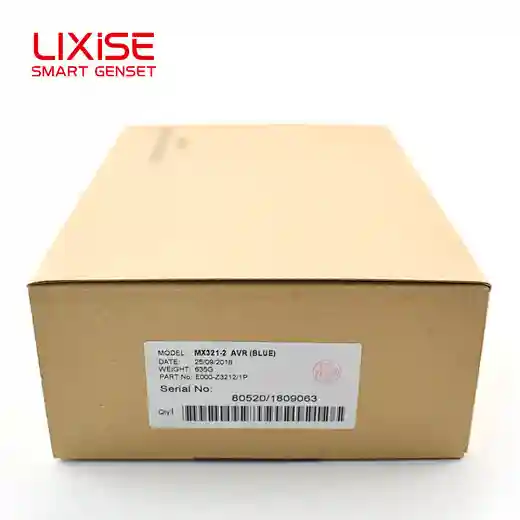

Packaging & Shipping
