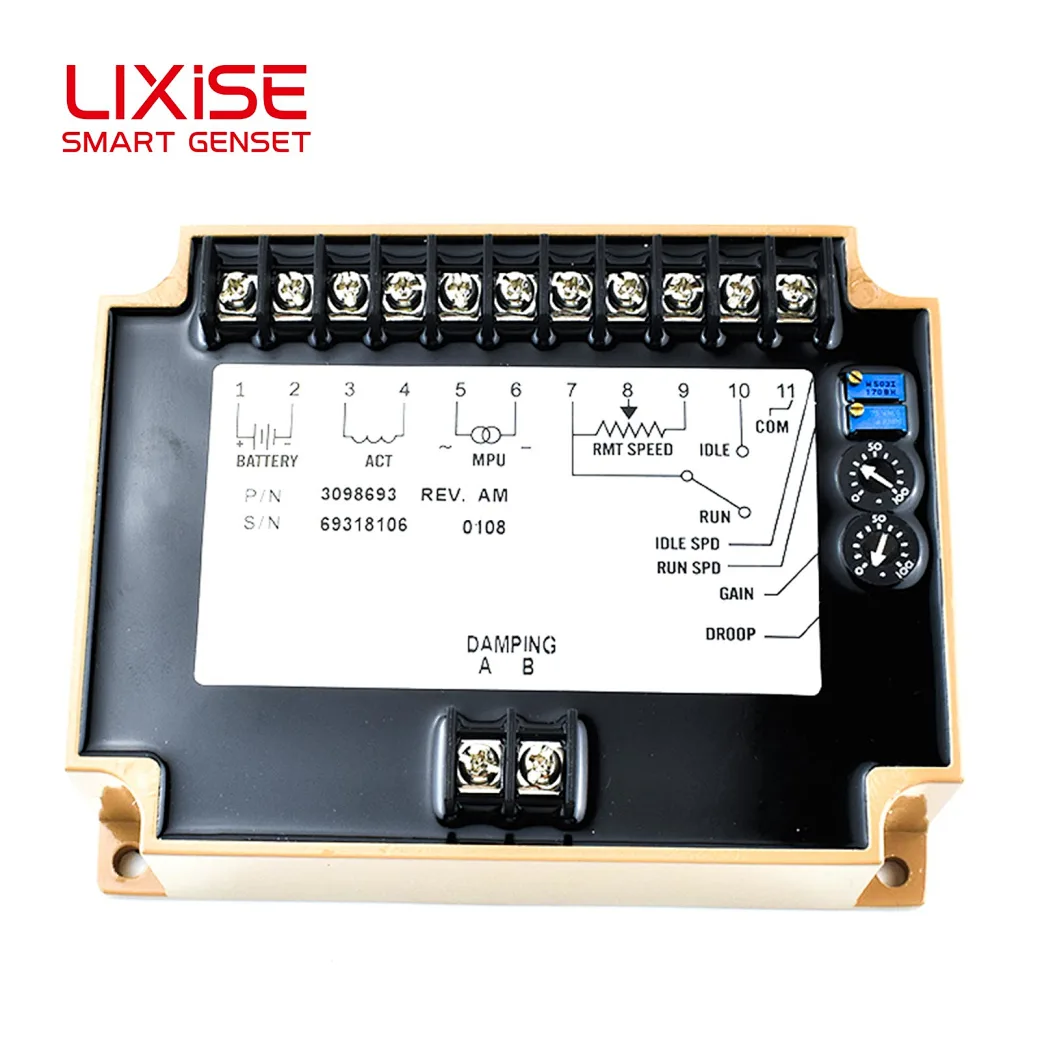

electronic governor for generators 3098693 speed governor system
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXISE
- Model Number:3098693
- weight:0.75kg
- purpose:brushless generator
- RPM Stability:<±0.25%
- Speed Range:1KHz ~ 6.5KHz
- Thermal Stability:Max ±0.7%
- IDLE Regulation:260 ±20Hz
- AUX Input Sensitivity:148Hz / 1V., ±10Hz
- Impedance:1MΩ
- Working Temp Range:-40 ~ 85 °C
- Working Humidity Range:Maximum 95%
Note: If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them
electronic governor for generators 3098693 speed governor system
Photos
Description
part module 3098693 is a engine speed controller designed by all electronic device for s actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
Parameter
| 3098693 | |
| RPM Stability | <±0.25% |
| Speed Range | 1KHz ~ 6.5KHz |
| Thermal Stability | Max ±0.7% |
| IDLE Regulation | 260 ±20Hz |
| DROOP Regulation | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity | 148Hz / 1V., ±10Hz |
| Impedance | 1MΩ |
| Working Temp Range | -40 ~ 85 °C |
| Working Humidity Range | Maximum 95% |
| Stocking Temp | -55 ~ 92 °C |
| Shocking | 20-100HZ 500mm/Sec. |
| Voltage | 12 or 24V |
| Grounding Pole | Negative pole |
| Power Supply | 40mA |
| Actuator Continuous Current | Minimum 1A, Maximum 4.5A |
| Signal | 2 ~ 120V RMS |
| Apply------ |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
