LIXiSE Engine Controller LXC6120NC Generator Control Module
LIXiSE Engine Controller LXC6120NC Generator Control Module

LIXiSE Engine Controller LXC6120NC Generator Control Module

minimum order
1 piece
Country of Origin
$94.00 - $108.00 / piece
Contact Now
add to cart
  • Warranty:3months-1year
  • Certification:ce
  • Place of Origin:Guangdong, China
  • Brand Name:LIXISE
  • Model Number:LXC6120NC
  • Name:generator controller
  • Function:start/stop/manage
  • Brand:LIXISE
  • OEM:yes
  • Certificate:ISO9001
  • Stock:YES
  • Guarantee:One Year
  • Package:Carton box
  • AC generator frequence:50/60HZ
  • Hole Size:186mm x 141mm
Product Description

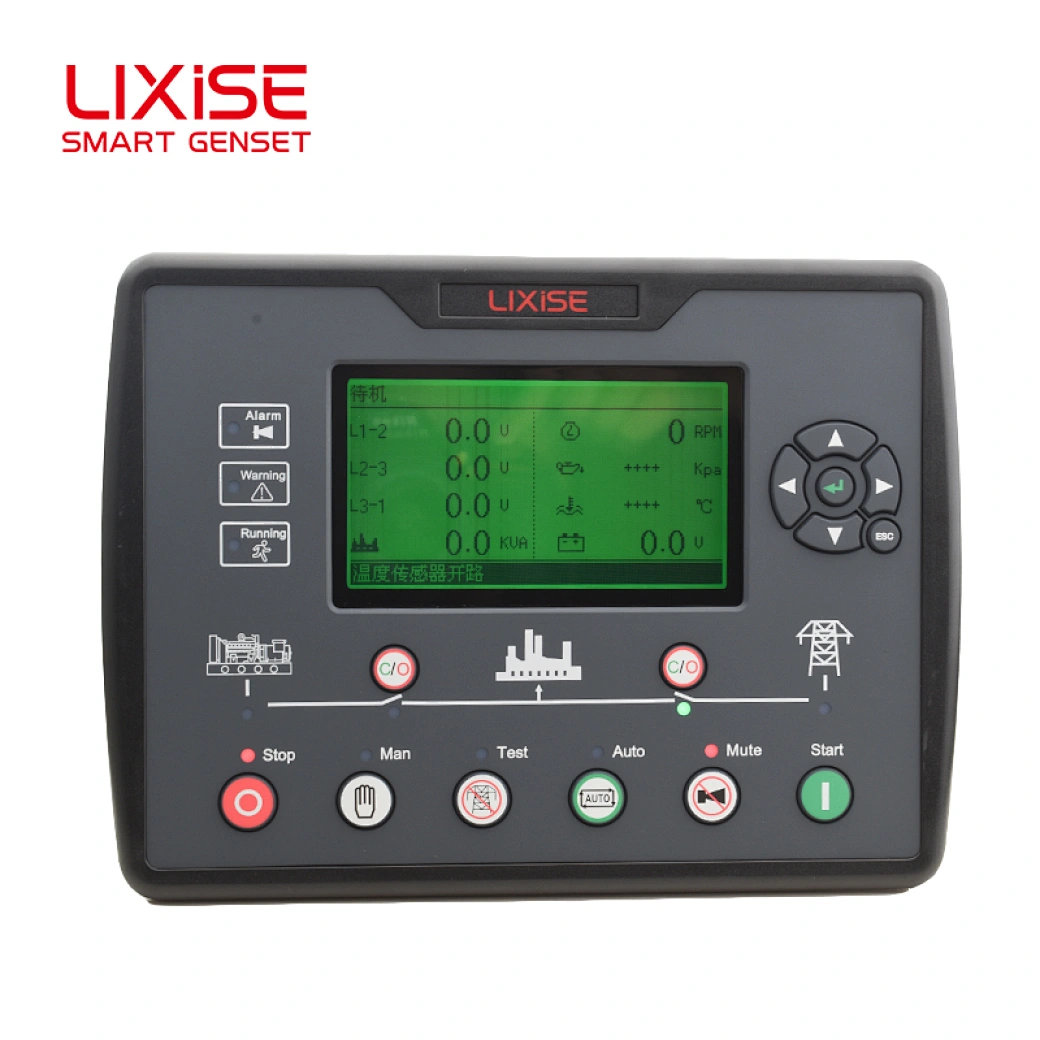

LXC6120N LIXiSE engine controller

LXC6120N series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function. The controller uses a large-screen LCD (240*128LCD)graphics display, all the important parameters can be displayed in page, save the page. At the same time can be displayed Chinese.English and other languages, all parameters can be adjusted from the controller panel, can also be a PC through a USB interface tweaks and RS485 or GPRS remote adjustment and monitoring. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.
Product Performance 1)The average load rate, by calculating the load rate, detect genset load operation, avoid overload operation. 2)Custom boot interface, user can add your own contact information, company name, logo, slogan, etc. 3)Installment payment service, through the password form to manage gensets. 4)Maintenance remind, Accumulative total run time automatically, Timely remind maintenance. 5)Big screen (240 * 128) LCD display, on a page can browse all the data, avoid frequent page breaks. 6)Multi-language selection, Support Chinese, English, Russian and Spanish. 7)USB connection, plug and play, convenient for debugging and application. 8)200 fault records, detailed record 25 parameters of failure moment, easy to analyze the failure reasons. 9)Real-time clock automatically timed training run, programmable 2 sets of training time. 10)Collect and display mains overvoltage, under voltage, over frequency, low frequency, loss phase and anti-phase warning function. 11)Level 2 different identities password, Plus a one-time temporary password, Safe and reliable. Features of LIXiSE Controllers 1)The first one in China have USB and RS232 standard controller interface , customers do not have to spend extra money and time to buy the interface adapter. 2) The first one in China launch of the generator controller with black box records.This function can record genset failure instant data to provide data basis for repairs, remote fault analysis, resolve problems quickly. 3)The first one in China use of technology to automatically adjust the contrast on the generator controller , this technology can automatically adjust the contrast according to the ambient temperature to achieve from -32 ° C ~ 65 ° C temperature range can be displayed properly.
Operating Voltage
DC8.0V to DC35.0V,Continuous Power Supply.
Power Consumption
Alternator Input Range
15V - 360 V AC (ph-N)
26V - 620 V AC (ph-ph)
15V - 360 V AC (ph-N)
15V - 360 V AC (ph-N)
Alternator Frequency
Speed Sensor voltage VPP
2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency
10000Hz (max)
Start Relay Output
16Amp Controller Power Voltage Output
Fuel Relay Output
16Amp Controller Power Voltage Output
Programmable Relay Output 1
7Amp 250VAC Voltage Free Output
Programmable Relay Output 2
7Amp 250VAC Voltage Free Output
Programmable Relay Output 3
16Amp 250VAC Voltage Free Output
Programmable Relay Output 4
16Amp 250VAC Voltage Free Output
Case Dimension
210mm x 152 mm x 48 mm
Panel Cutout
186mm x 141mm
C.T. Secondary
5A Rated
Working Conditions
Temperature: (-25~+70)°C Humidity:(20~90)%
Storage Condition
Protection Level
IP55:When waterproof rubber seal installed between the controller and panel fascia.
IP42:When waterproof rubber seal is not installed between the controller and panel fascia.
Insulating Intensity
Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA

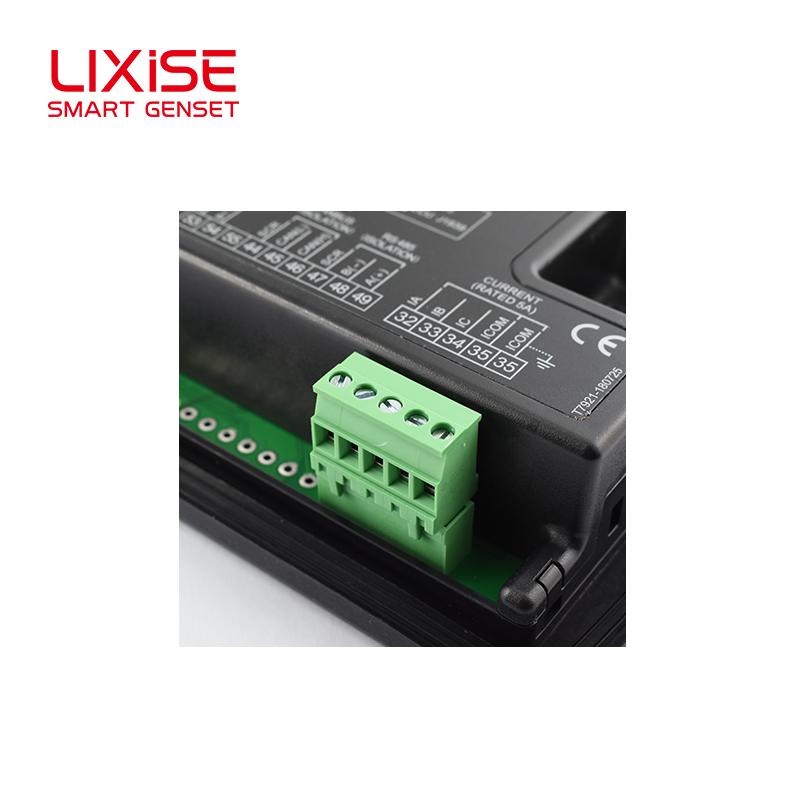

Detail Images

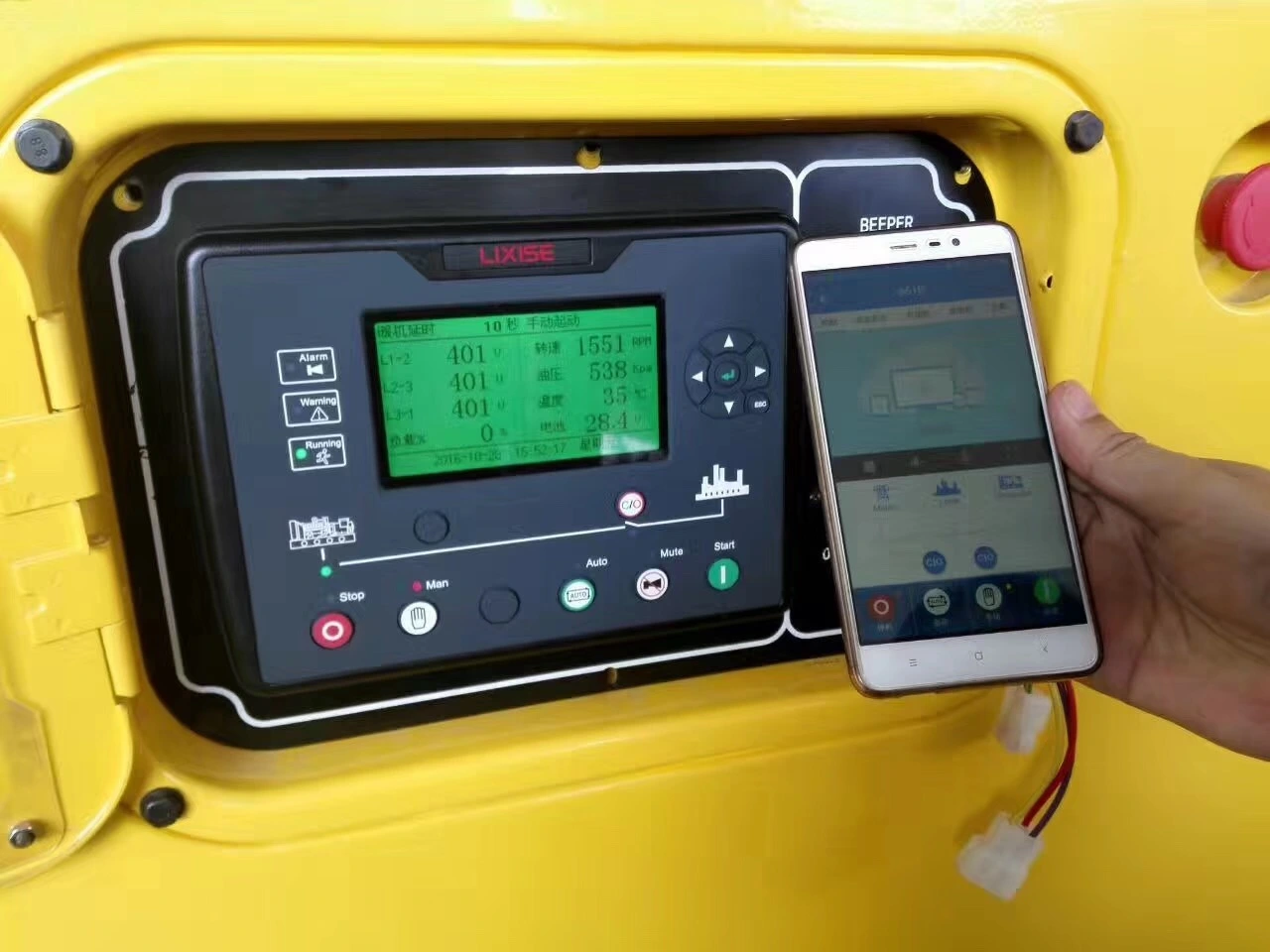

For remote monitoring
Controller LXC6120E works with DTU LXI980 4G ,It's a perfect match.

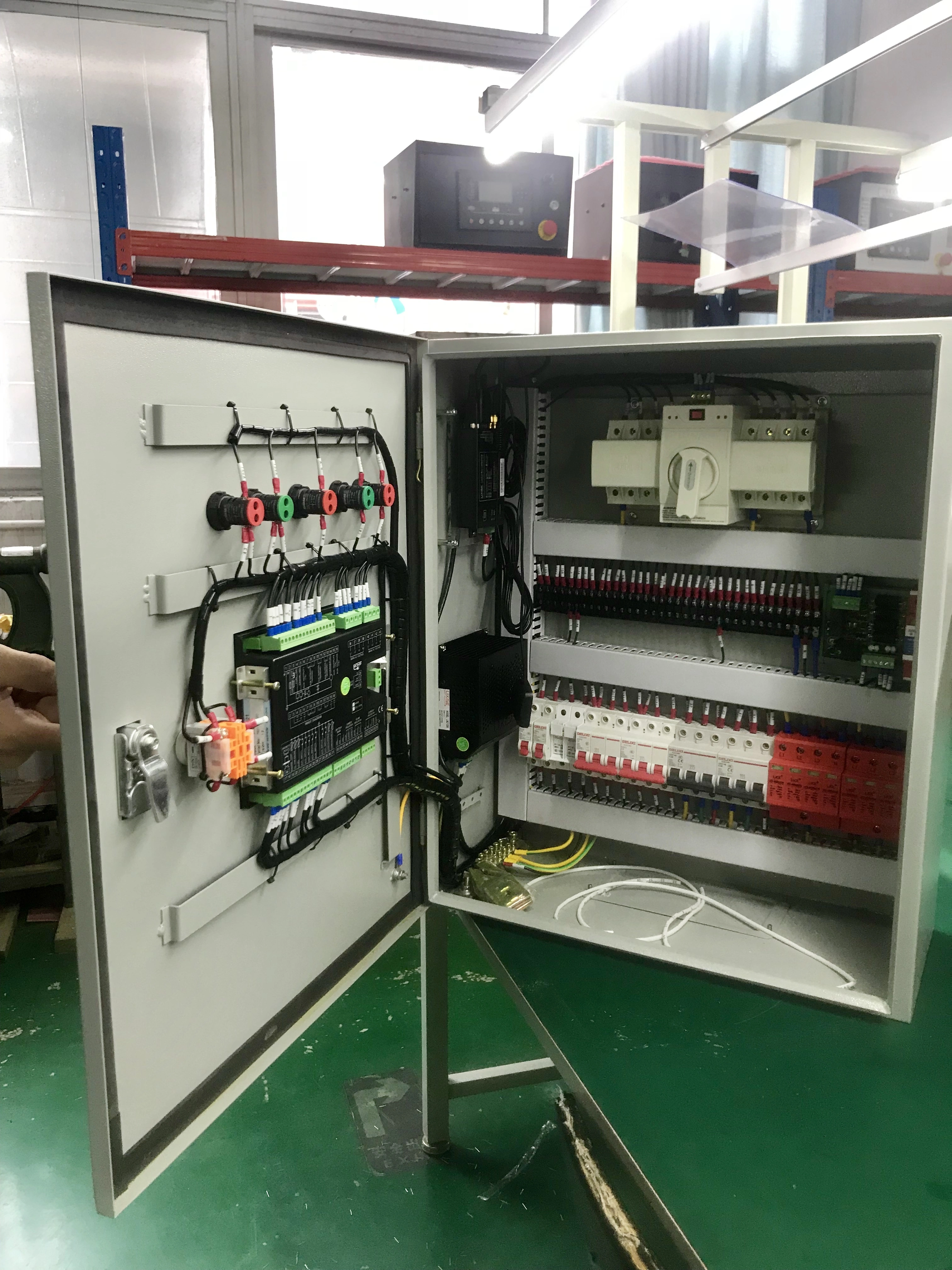

For control box

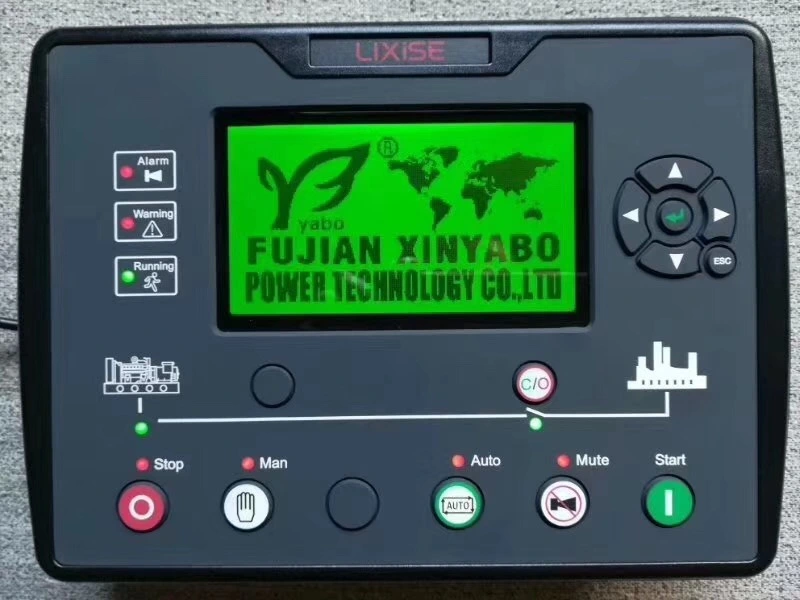

Big Screem

240 * 128 mm LCD display, on a page can browse all the data, avoid frequent page breaks.

BOOT lOGO settings

Customers can set up their own boot lOGO, promote their own brand.

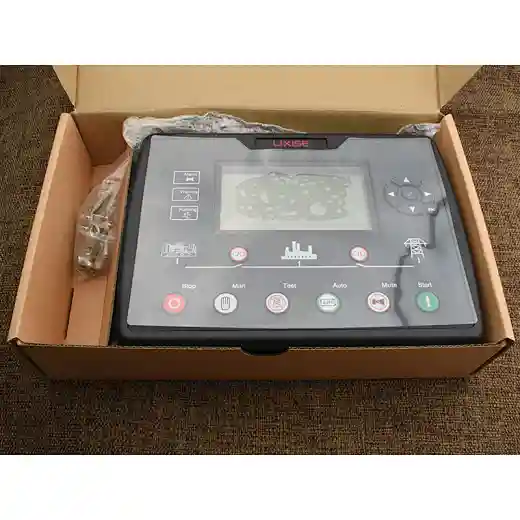

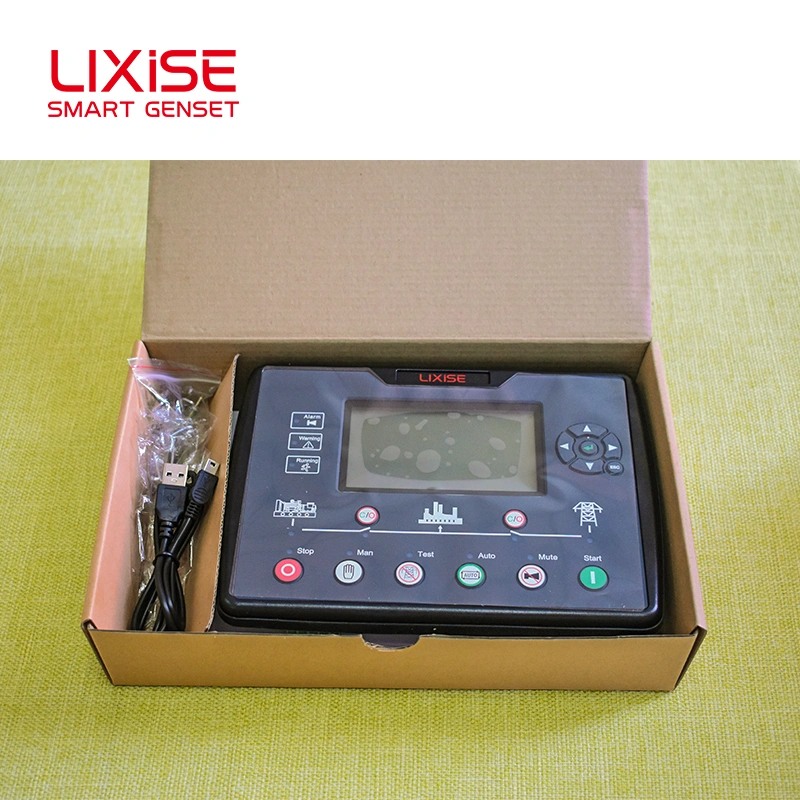

Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 5 to 10 business days.

Shock bubble film

The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.

Suitable carton size

Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.

Packing tape

In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.
Company Profile

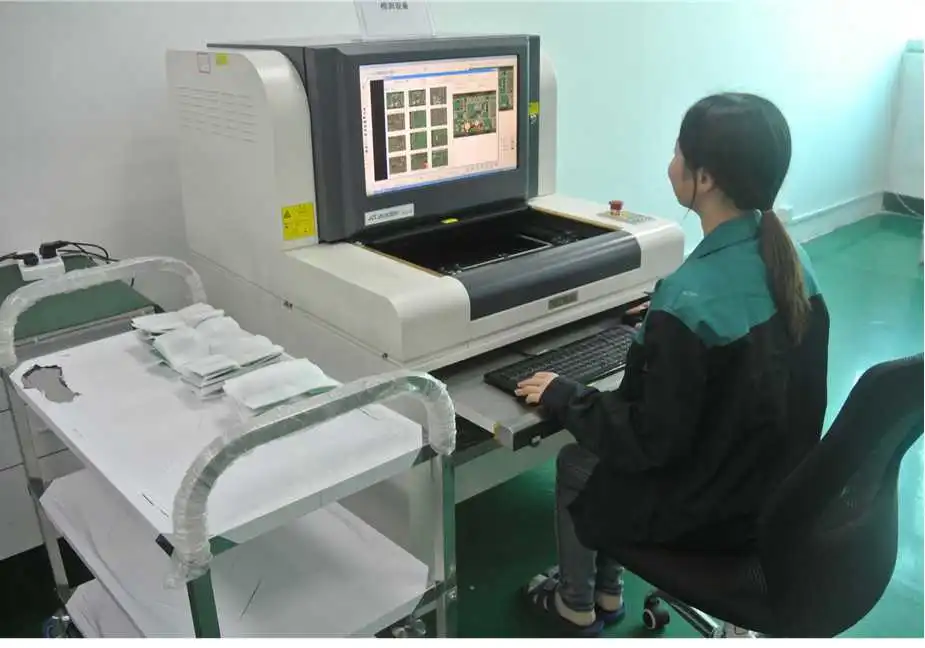

PCBA Automatic Optical Inspection Equipment

ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.

Rubber sealing machine

In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even. In addition, it perfectly solves the problem that glue is not easy to dry in rainy weather, reduces the customer's waiting time, Make sure the goods are delivered on time.

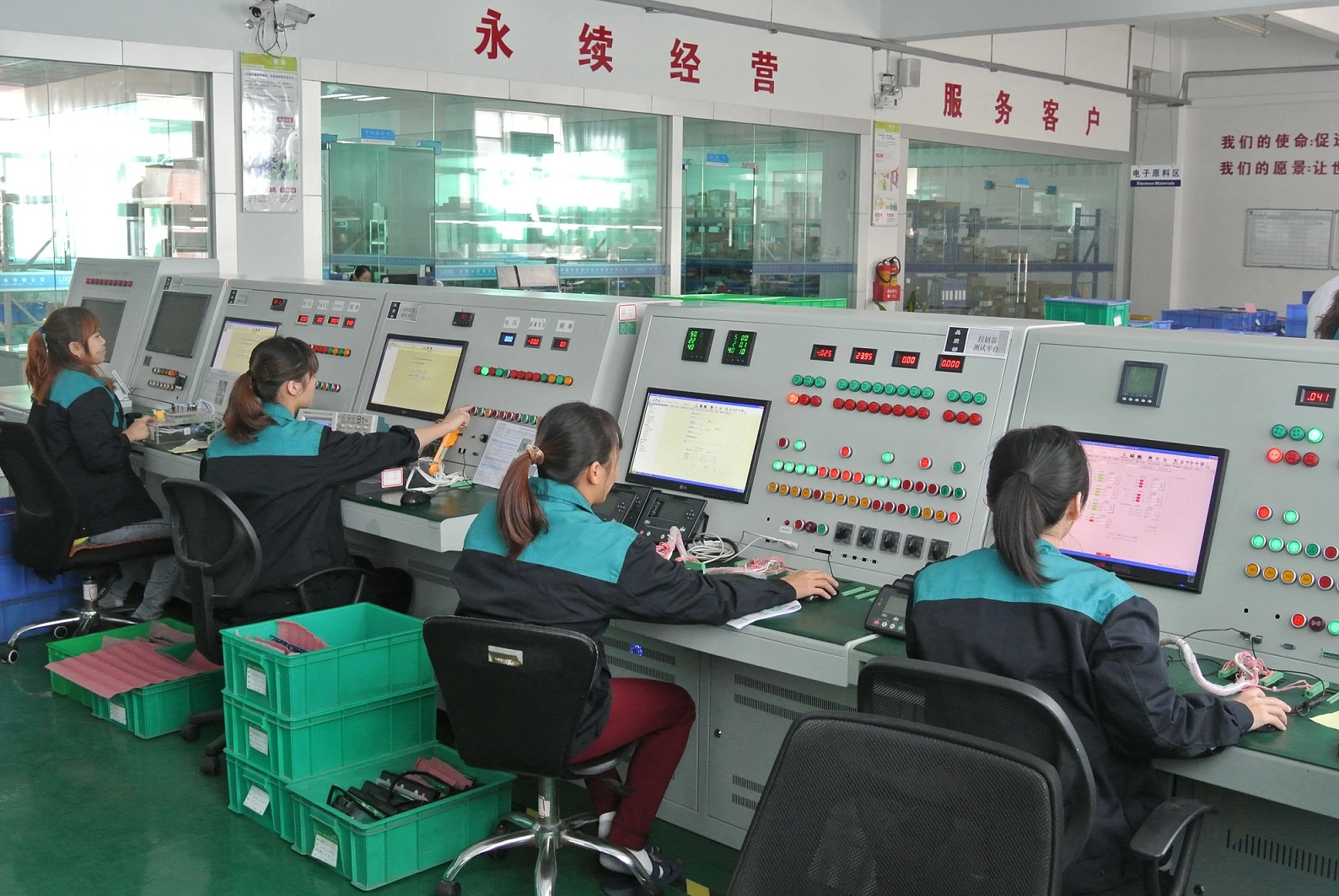

Simulation Test Platform:

Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate the operation of generator, test the electrical function of electronic products is effective, performance is reliable and stable.
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world. Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.
at the Shanghai international power exhibition,there are many customers right away and we signed a cooperation agreement with the order.Spoke highly of our products are ahead in the development of the industry, fully explain our product innovation in science and technology, application and technology is the industry leader in solution.
Customers came to our company to learn remote monitoring system
Our Service


365 days after selled. During guarantee,the items share free repairs or replacement.

High quality

We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.


All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
