LIXiSE generator set avr control board AS440
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:AS440
- Name:Automatic Voltage Regulator AS440
- Model:AS440
- Body Size:13.7*10.3*3cm
- Base Material:soft rubber base
- Usage:brushless generator
- Storage temperature:-55 to +80C
- Regulation:± 1.0%
- Color:bule
- Certificate:ISO9001
- weight:0.4kg

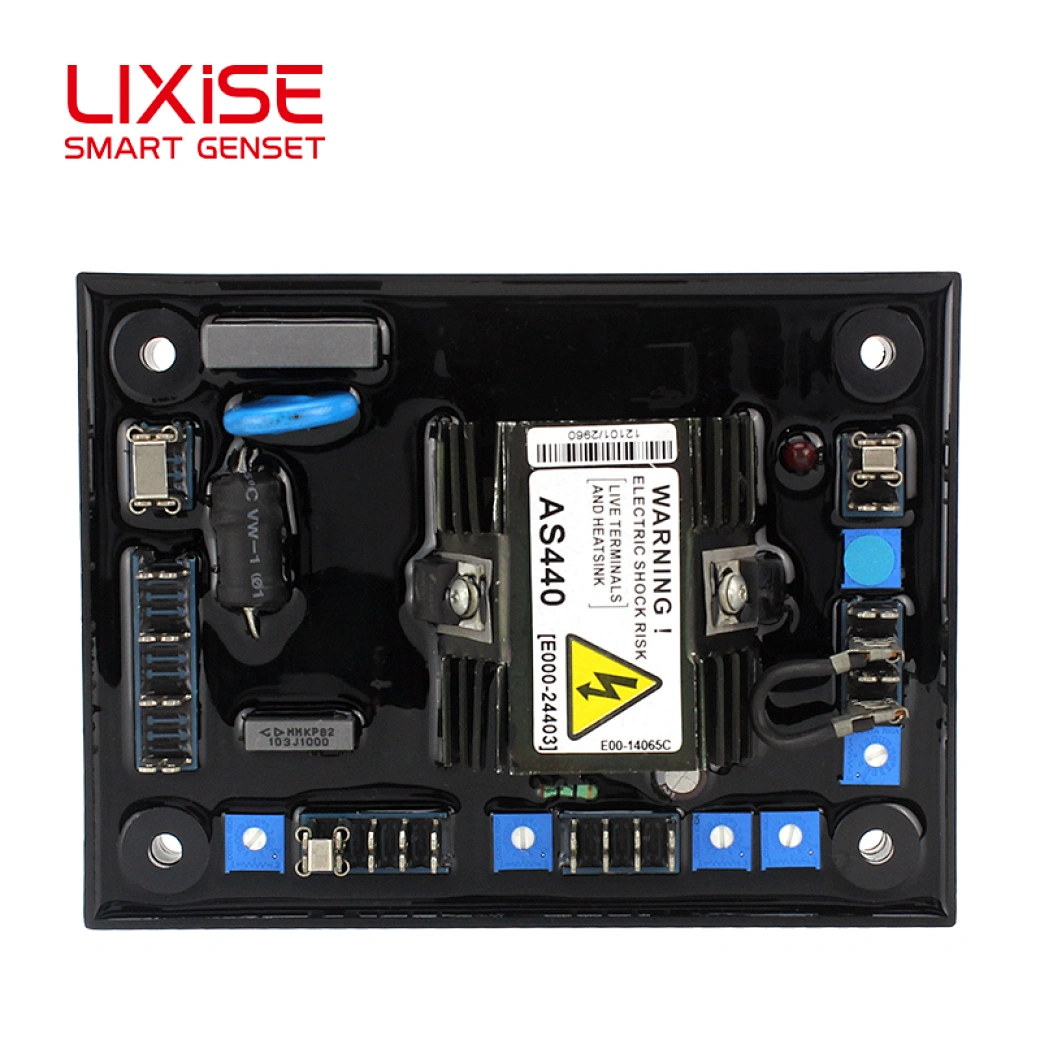

LIXiSE generator set avr control board AS440
AS440 is a half wave phase controlled thyristor type AVR and forms part of the excitation system for a brush-less generator. The design employs Surface Mount Technology (SMT) for high integration of features in a small footprint AVR.
| Sensing Input | Voltage | Jumper selectable 100-130 Vac 1 phase 190-264 Vac 1 phase |
| Frequency | 50-60 Hz nominal | |
| Power input | Voltage | 100-264 V ac 1 phase |
| Frequency | 50-60 Hz nominal | |
| Output | Voltage | 82 V d.c. @ 200 V a.c. |
| Current | Continuous 4A transient 7.5A for 10 secs | |
| Resistance | 15 ohms min (10 ohms min when input Volts is less than 175 ac) | |
| Regulation | ± 1.0% | |
| Thermal drift | 0.03% per deg. C change in AVR ambient | |
| Typical system response | AVR response | 20 ms |
| Filed current to 90% | 80 ms | |
| Machine Volts to 97% | 300 ms | |
| External voltage adjustment | ±-10% with 1kohm 1 watt trimmer Increasing resistance lowers voltage. | |
| Uuder frequency protection | Set point | 94 -98% Hz |
| Unitpower dissipation | 12 watts maximum | |
| Build up voltage | 4 Volts @ AVR terminals | |
| Analogue voltage | Maximum input | ±5 Vdc |
| Sensitivity | 1V for 5% Generator Volts (adjustable) | |
| Input resistance | 1k ohm | |
| Quadrature droop input | 10 ohms burden | |
| Max. sensitivity: 0.07 A for 5% droop 0PF | ||
| Max. input: 0.33 A | ||
| Over excitation protection | Set point | 65 V dc |
| Time delay | 10-15 seconds (fixed) | |
| Environmental | Vibration | 20-100 Hz |
| 100Hz – 2kHz | ||
| 50mm/sec | Operating temperature | 40degree under zero to 70 degree |
| 3.3g | Relative humidity 0-70℃ | 95% |
| Storage temperature | Storage temperature -55 to +80C | |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
