LXC6610B-4G controller

minimum order
1 piece
Country of Origin
$131.00 - $150.00 / piece
Contact Now
add to cart
  • Warranty:3months-1year
  • Certification:ce
  • Place of Origin:Guangdong, China
  • Brand Name:LIXiSE
  • Model Number:LXC6610B-4G
  • Stock:YES
  • Purpose:generator
  • OEM:yes
  • Certificate:ISO9001
  • Alternator Frequency:50/60Hz
  • Weight:0.68kg
  • Hole Size:186mm x 141mm
  • Product Name:generator controller



Product Description

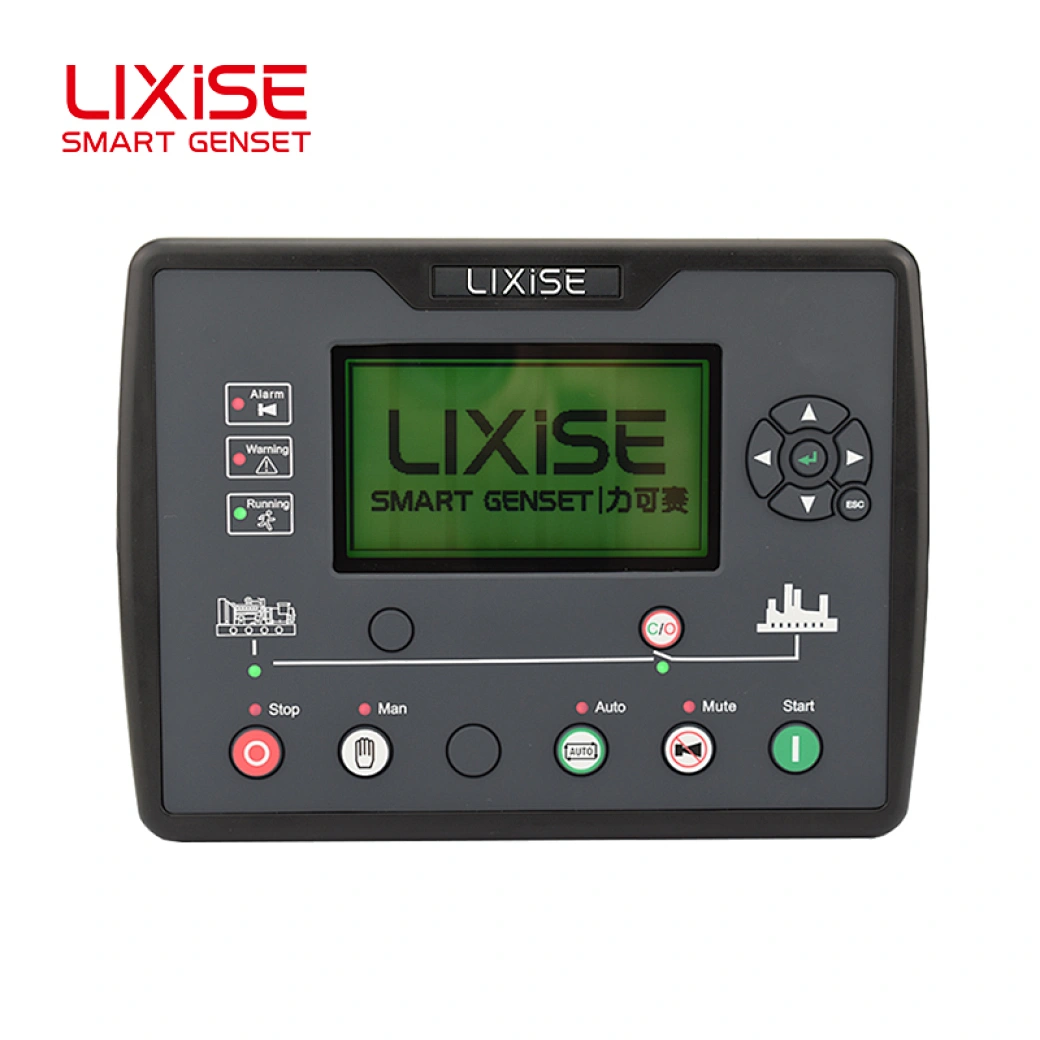

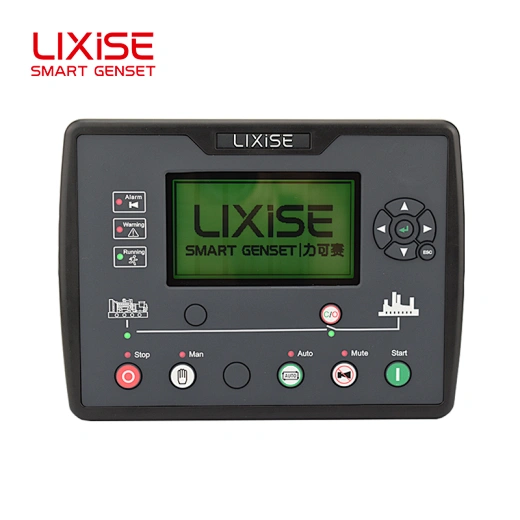

LXC6610 series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function. Through the built-in wireless communication module cooperate with mobile phone, you can connect the cloud server anywhere in the world, realize the unit remote monitoring, health check, early fault prevention, remote fault diagnosis and other services. Controller using high-precision electronic components, the operating temperature range is very wide: -32 ~ 75 ℃. At the same time can be displayed Chinese,English and other languages, all parameters can be adjusted from the controller panel, can also be a PC through a USB interface tweaks and RS232 or GPRS remote adjustment and monitoring. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.

The main function:

1.Remote monitoring and control.

2.WIFI Connection Technology.--There is no limit to the network, no limit to the country and condition,It can transmit data to cloud platform for fault analysis.

3.Black Box Patent Technology.--replay every second moment before failure data to realize remote fault diagnosis,quickly to solve the problem.

4.Failure early prevention technology.--besides common warning,also built more than 230 fault model and intelligent fuzzy reasoning,diagnosis of complex faults,realize health monitoring.

5)Mobile phone remote monitoring display.--Real-time video.

Operating VoltageDC8.0V to DC35.0V,Continuous Power Supply.
Power Consumption<3W(standby:≤2W)
Alternator Input Range15V - 360 V AC (ph-N)
3-Phase4-Wire26V - 620 V AC (ph-ph)
3-Phase3-Wire15V - 360 V AC (ph-N)
Single-phase2-wire15V - 360 V AC (ph-N)
Alternator Frequency50/60Hz
Speed Sensor voltage VPP2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency10000Hz (max)
Start Relay Output16Amp Controller Power Voltage Output
Fuel Relay Output16Amp Controller Power Voltage Output
Programmable Relay Output 17Amp 250VAC Voltage Free Output
Programmable Relay Output 27Amp 250VAC Voltage Free Output
Programmable Relay Output 316Amp 250VAC Voltage Free Output
Programmable Relay Output 416Amp 250VAC Voltage Free Output
Case Dimension210mm x 152 mm x 46 mm
Panel Cutout186mm x 141mm
C.T. Secondary5A Rated
Working ConditionsTemperature: (-25~+70)℃ Humidity:(20~90)%
Storage ConditionTemperature::(-40~+85)℃
Protection LevelIP55:When waterproof rubber seal installed between the controller and panel fascia.
IP42:When waterproof rubber seal is not installed between the controller and panel fascia.
Insulating IntensityObject: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Application domain

sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3days


answer all of your questions within 1day
