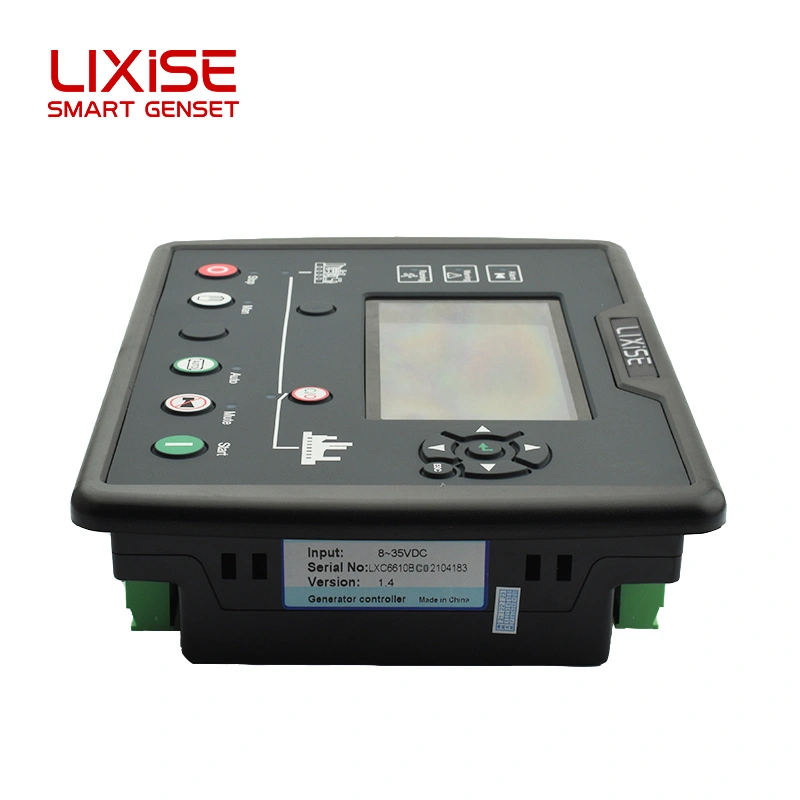

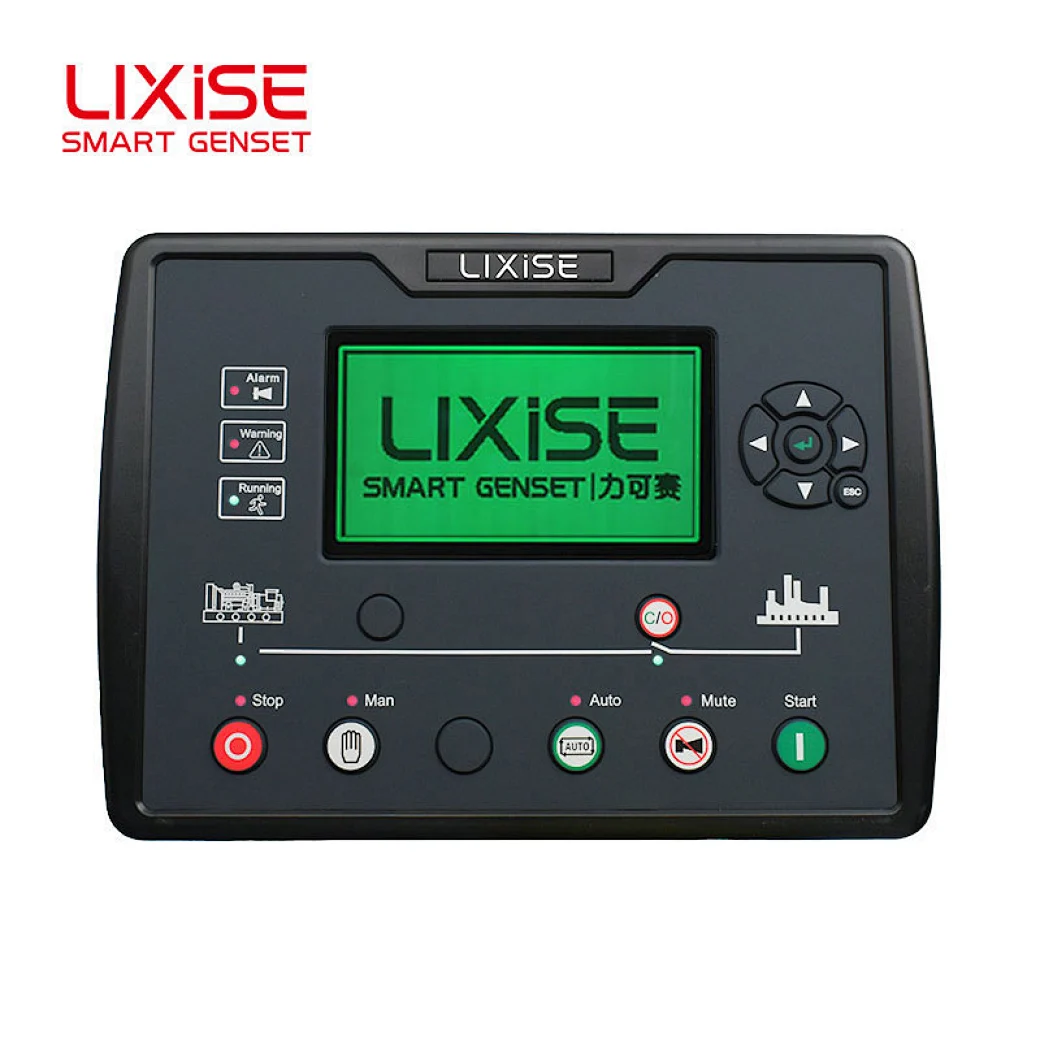

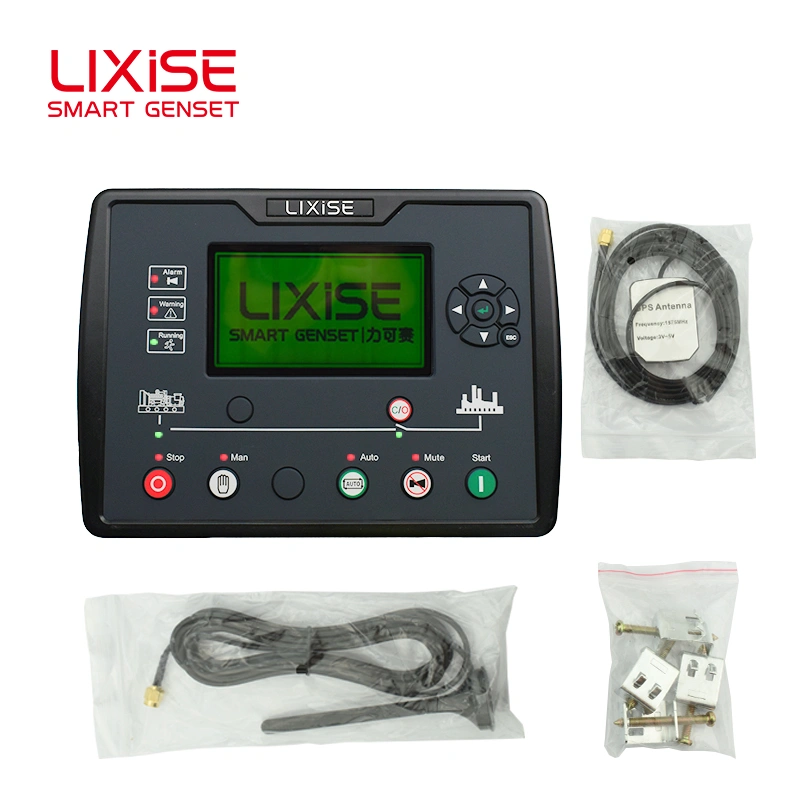

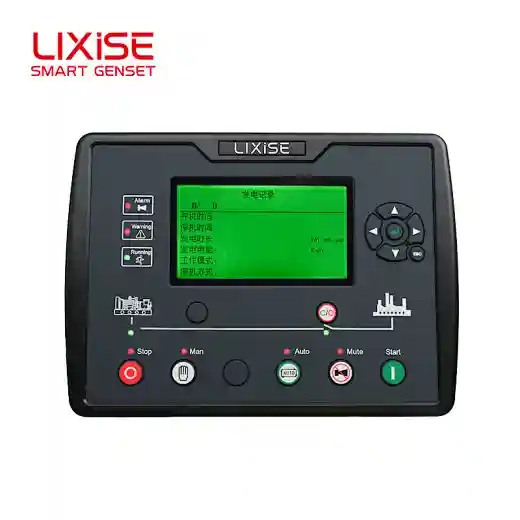

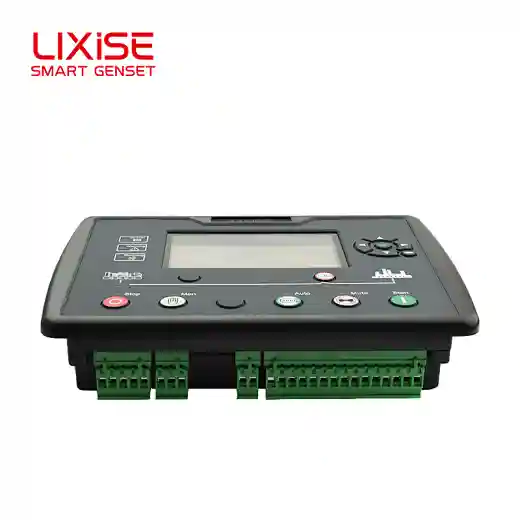

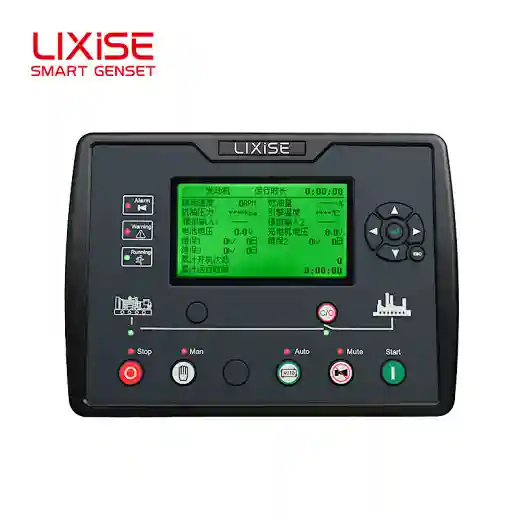

LXC6610 series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function. Through the built-in wireless communication module cooperate with mobile phone, you can connect the cloud server anywhere in the world, realize the unit remote monitoring, health check, early fault prevention, remote fault diagnosis and other services. Controller using high-precision electronic components, the operating temperature range is very wide: -32 ~ 75 ℃. At the same time can be displayed Chinese,English and other languages, all parameters can be adjusted from the controller panel, can also be a PC through a USB interface tweaks and RS232 or GPRS remote adjustment and monitoring. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.
The main function:
1.Remote monitoring and control.
2.WIFI Connection Technology.--There is no limit to the network, no limit to the country and condition,It can transmit data to cloud platform for fault analysis.
3.Black Box Patent Technology.--replay every second moment before failure data to realize remote fault diagnosis,quickly to solve the problem.
4.Failure early prevention technology.--besides common warning,also built more than 230 fault model and intelligent fuzzy reasoning,diagnosis of complex faults,realize health monitoring.
5)Mobile phone remote monitoring display.--Real-time video.
|Operating Voltage||DC8.0V to DC35.0V,Continuous Power Supply.|
|Alternator Input Range||15V - 360 V AC (ph-N)|
|3-Phase4-Wire||26V - 620 V AC (ph-ph)|
|3-Phase3-Wire||15V - 360 V AC (ph-N)|
|Single-phase2-wire||15V - 360 V AC (ph-N)|
|Speed Sensor voltage VPP||2.2 - 100Vpp (Peak to peak)|
|Speed Sensor Frequency||10000Hz (max)|
|Start Relay Output||16Amp Controller Power Voltage Output|
|Fuel Relay Output||16Amp Controller Power Voltage Output|
|Programmable Relay Output 1||7Amp 250VAC Voltage Free Output|
|Programmable Relay Output 2||7Amp 250VAC Voltage Free Output|
|Programmable Relay Output 3||16Amp 250VAC Voltage Free Output|
|Programmable Relay Output 4||16Amp 250VAC Voltage Free Output|
|Case Dimension||210mm x 152 mm x 46 mm|
|Panel Cutout||186mm x 141mm|
|C.T. Secondary||5A Rated|
|Working Conditions||Temperature: (-25~+70)℃ Humidity:(20~90)%|
|Protection Level||IP55:When waterproof rubber seal installed between the controller and panel fascia.|
|IP42:When waterproof rubber seal is not installed between the controller and panel fascia.|
|Insulating Intensity||Object: input/output/power|
|Quote standard: IEC688-1992|
|Test way: AC1.5kV/1min leakage current:3mA|
