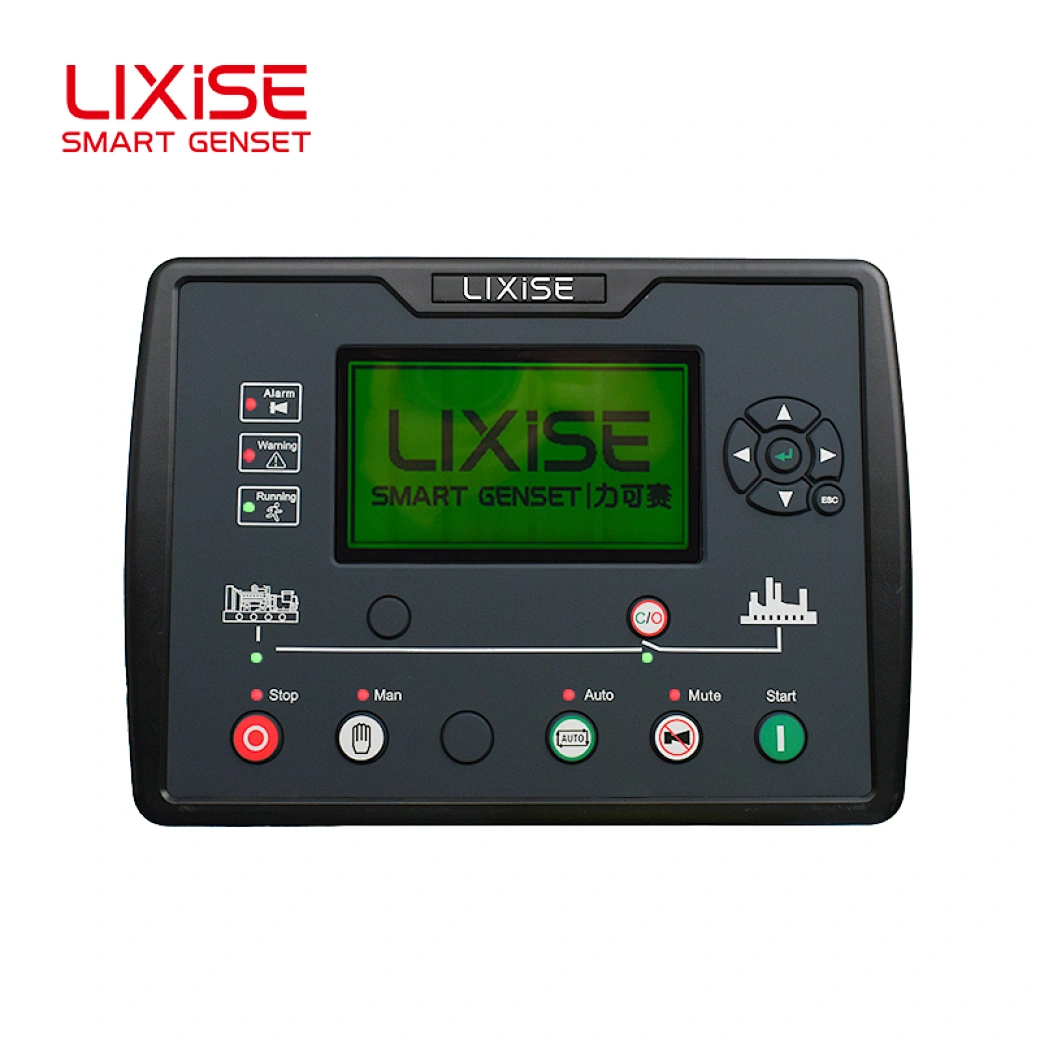

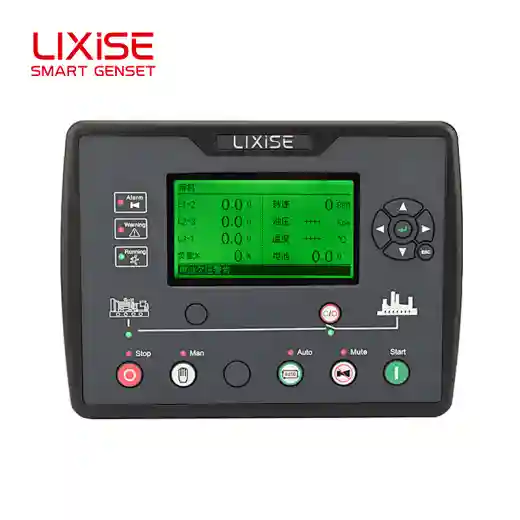

TheLXC6610BCAN is a GPS-enabled cloud controller that remotely monitors and manages generator sets via a mobile app. This is a stand-alone controller that does not have to be used with the DTU data collector.
Controller using high-precision electronic components, the operating temperature range is very wide: -32 ~ 75 ℃. Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.
|Operating Voltage||DC8.0V to DC35.0V,Continuous Power Supply.|
|Alternator Input Range||15V - 360 V AC (ph-N)|
|3-Phase4-Wire||26V - 620 V AC (ph-ph)|
|3-Phase3-Wire||15V - 360 V AC (ph-N)|
|Single-phase2-wire||15V - 360 V AC (ph-N)|
|Speed Sensor voltage VPP||2.2 - 100Vpp (Peak to peak)|
|Speed Sensor Frequency||10000Hz (max)|
|Start Relay Output||16Amp Controller Power Voltage Output|
|Fuel Relay Output||16Amp Controller Power Voltage Output|
|Programmable Relay Output 1||7Amp 250VAC Voltage Free Output|
|Programmable Relay Output 2||7Amp 250VAC Voltage Free Output|
|Programmable Relay Output 3||16Amp 250VAC Voltage Free Output|
|Programmable Relay Output 4||16Amp 250VAC Voltage Free Output|
|Case Dimension||210mm x 152 mm x 46 mm|
|Panel Cutout||186mm x 141mm|
|C.T. Secondary||5A Rated|
|Working Conditions||Temperature: (-25~+70)℃ Humidity:(20~90)%|
|Protection Level||IP55:When waterproof rubber seal installed between the controller and panel fascia.|
|IP42:When waterproof rubber seal is not installed between the controller and panel fascia.|
|Insulating Intensity||Object: input/output/power|
|Quote standard: IEC688-1992|
|Test way: AC1.5kV/1min leakage current:3mA|
