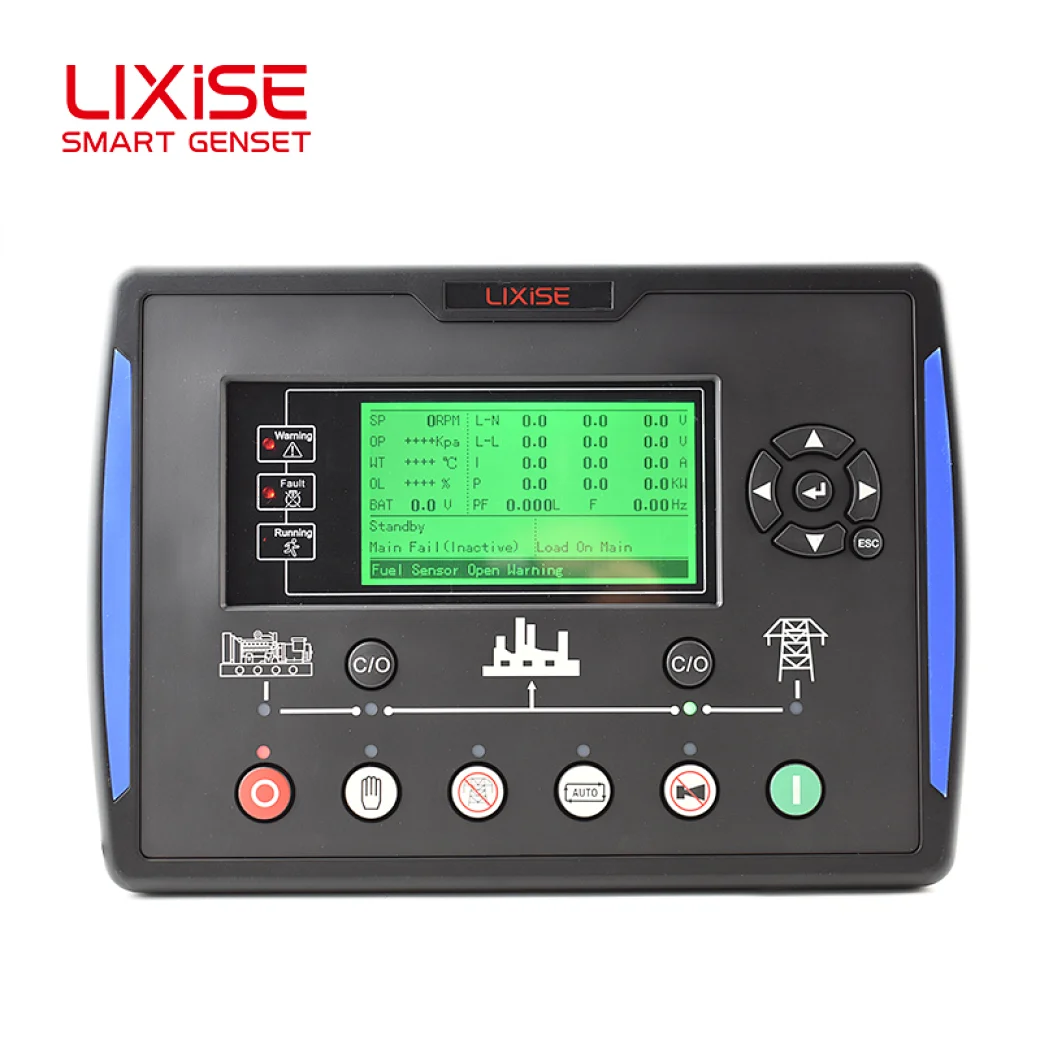

LXC9220 LIXiSE Diesel Genset Auto Start Controller Generator Control Panel Replace 7120

Minimum order quantity:
1 piece
$138.00 - $155.00 / piece
Contact Now
add to cart
  • Warranty:1year
  • Certification:ISO9001
  • Place of Origin:Guangdong, China, Guangdong China(Mainland)
  • Brand Name:LIXiSE
  • Model Number:LXC9220
  • Certificate:ISO9001
  • Guarantee:365 days
  • Material:Hard rubber base
  • Model:LXC9220
  • Service:OEM
  • Brand:LIXiSE
  • Stock:YES
  • Purpose:generator

Product Description

LXC9220 plant automation controller series diesel generator sets for a single automation and control systems, the use of 32-bit microprocessors and embedded real-time systems technology, turbine automatic start / stop, a variety of parameters precision measurement, alarm protection and"three remote"function. The controller uses LCD screen (240 * 128LCD) graphic display can be displayed on one page under almost all the important parameters, save the page. Also can display Chinese, English and other languages, all parameters can be adjusted from the control panel, or use a PC via USB, RS232, RS485, LINK or GPRS remote adjustment and monitoring. Its compact, simple wiring, high reliability, and can be widely used in various types of generators automation systems, but also for fire pumps, air compressor automation control systems.

-Using 240x128LCD display with backlight, multi-language interface operations include: Chinese, English, Spanish and Russian. Can be displayed on one page most parameters, save frequently switch the page view, making the operation more convenient;

-With SMS function, when there is an alarm generator can automatically set 5 phone numbers to send alarm information can also be controlled via SMS turbine generator sets and inspection status. With advanced networking capabilities, GPRS mobile network and the Internet via the Internet, at any place where the network can be remotely monitor; (GPRS module to be installed: LXI680)

-Acquisition and display mains / generator phase voltage, phase current, phase sequence, frequency, active power, reactive power, power factor, power, various engine sensor data;

-Mains overvoltage, undervoltage, over and under frequency, phase, reverse phase sequence warning function, power generation has overvoltage, undervoltage, over and under frequency, over current, over power, reverse power, phase, reverse phase sequence warning and shutdown protection;

-Three fixed analog sensors (temperature, oil pressure, liquid level), two programmable analog sensor can be set to the temperature or pressure or liquid level sensor (LXC71X0 no such function);

-A heater, cooler, fuel pump control functions;

-Perfect control and protection functions: to achieve diesel and natural gas generator set automatic start / stop, close / open gate (ATS switch) and perfect protection fault display function, when there are multiple warnings, the warning bar will display them in turn, facilitate the analyze the reasons;

-There fault history 200, can record instant warning or failure occurs in hydraulic, water temperature, voltage, current, power, and other important parameters, easy to analyze the causes and maintenance;

-There are real-time clock, timer switch (monthly / weekly / boot once a day and can be set with or without load) function;

-Group with three maintenance functions can be set to machine maintenance cycle. Maintenance time can be set to the action (warning or alarm shutdown);

Operating VoltageDC8.0V to DC35.0V, Continuous Power Supply.
Power Consumption<4W (standby 2W)
Alternator Input Range:
3-Phase 4-Wire12V - 360 V AC (ph-N)
3-Phase 3-Wire20V - 620 V AC (ph-ph)
Single-Phase 2-Wire12V - 360 V AC (ph-N)
2-Phase 3-Wire12V - 360 V AC (ph-N)
Alternator Frequency50/60Hz
Speed sensor voltage Vpp2.2 - 100Vpp (Peak to peak)
Speed sensor Frequency10,000 Hz (max.)
Start Relay Output16Amp Controller Power Voltage Output
Fuel Relay Output16Amp Controller Power Voltage Output
Programmable Relay Output 17Amp Controller Power Voltage Output
Programmable Relay Output 27Amp Controller Power Voltage Output
Programmable Relay Output 37Amp Controller Power Voltage Output
Programmable Relay Output 47Amp 250VAC voltage free output
Programmable Relay Output 57Amp 250VAC voltage free output(LXC9220)
Programmable Relay Output 67Amp 250VAC voltage free output(LXC9220)
Case Dimension254mm x 180 mm x 44 mm
Panel Cutout218mm x 160mm
C.T. Secondary5A rated
Working ConditionsTemperature: (-25~+70)Humidity: (20~90)%
Storage ConditionTemperature: (-40~+85)
Protection LevelIP55: when waterproof rubber seal installed between controller and
panel fascia.
IP42: when waterproof rubber seal is not installed between the
controller and panel fascia.
Insulating IntensityObject: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min
leakage current: 3mA
Net Weight0.86kg
sales4000pcs/monththe fastest transit time2days!
inventory situationa lauge number of stocksoperational advantageseasy for operation
production cycle1~3days


answer all of your questions within 1day
