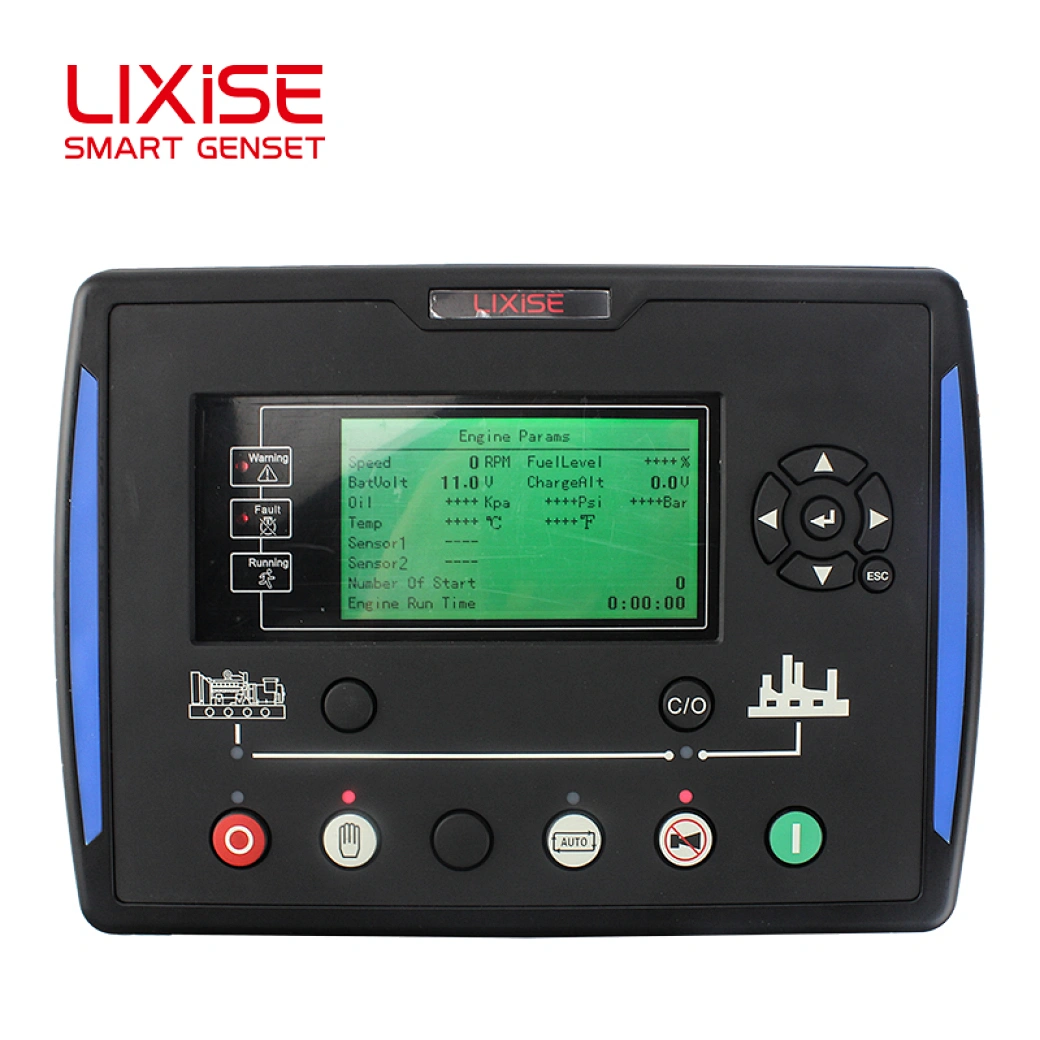

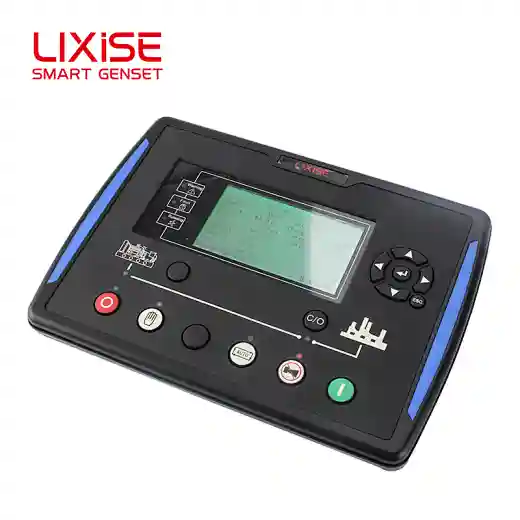

LXC9510 Diesel Genset Control Module Auto Start Unit(Coming soon)

LXC9510 generator set controller for multiple units in parallel with the capacity of generating units of different capacities or manual / automatic parallel system as well as for single generator set constant power output and electricity grid, to achieve the automatic generator start stop / parallel operation, data measurement, alarm protection and"three remote"feature. Controller with large-screen LCD graphic display, can display Chinese, English and other languages, simple, reliable operation. GOV and AVR has a control function, can automatically synchronize and load sharing, generator set controller accurately monitor various working state, when the generator does not work correctly resolve the row from the parent automatically turn off generators, while the fault status is displayed in LCD. All parameters can be used to adjust the PC through the USB interface, but also using a PC via the RS485 interface adjustments and monitoring. Its compact, simple wiring, high reliability, and can be widely used in various types of generator automatic parallel system

-Using 240 * 128LCD display with backlight, Chinese, English and other languages, optional interface operation, and can be selected in the field to facilitate plant commissioning test machine;
-With CAN BUS interface, you can connect with J1939 EFI machine can not only monitor the EFI machines used data (such as water temperature, oil pressure, speed, fuel consumption, etc.) can also be controlled via CANBUS interface to start, stop, acceleration and deceleration, etc.;
-Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120/240V) Power supply 50/60Hz system;
-Collect and display busbar / generator phase voltage, phase current, frequency, power parameters;
-Busbars with phase, reverse phase sequence detection, power generation has overvoltage, undervoltage, over and under frequency, over current, over power, reverse power, phase, reverse phase sequence detection function;
-Synchronization parameters are: generation and busbar voltage difference, frequency difference generation and busbars, busbar generation and phase angle difference;
-In the automatic mode with a variety of operating modes: without load operation, load operation, on-demand parallel operation;
-Has a parallel / splitting the load transfer function soft;
-Three fixed analog sensors (temperature, oil pressure, level),Two programmable analog sensor can be set to the temperature or pressure or liquid level sensor;
-A variety of temperature, pressure, oil level sensor curve can be used directly, and customize the sensor curve;
control and protection functions: diesel generator set automatic start / stop, switching sub-gate and perfect protection fault display function;
-Parameters setting: Allow user to change its parameters set, and memory in the internal EEPROM memory in the system when power is not lost. Most parameters can be adjusted from the controller front panel, all parameters can be used to adjust the PC through the USB interface, can be used to adjust the PC via the RS485 interface. Using MODBUS protocol can achieve"three remote"function;
-With 200 history, real time clock, timer switch (monthly / weekly / boot once a day and can be set with or without load) function;
-Has accumulated running A, B and accumulate the energy A, B, the user can remove accumulated again, user self statistics;
-A heater, cooler, fuel pump control functions;
-Has a maintenance function, maintenance time to the action can be set (warning, alarm stop or trip down);
-Modular structure design, flame retardant ABS shell, removable terminal blocks, embedded installation, compact, easy to install
