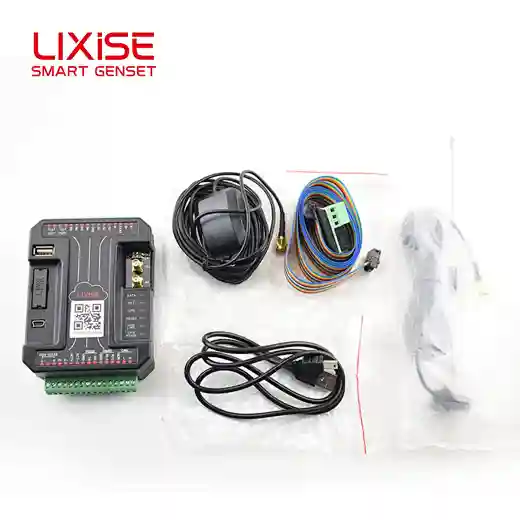

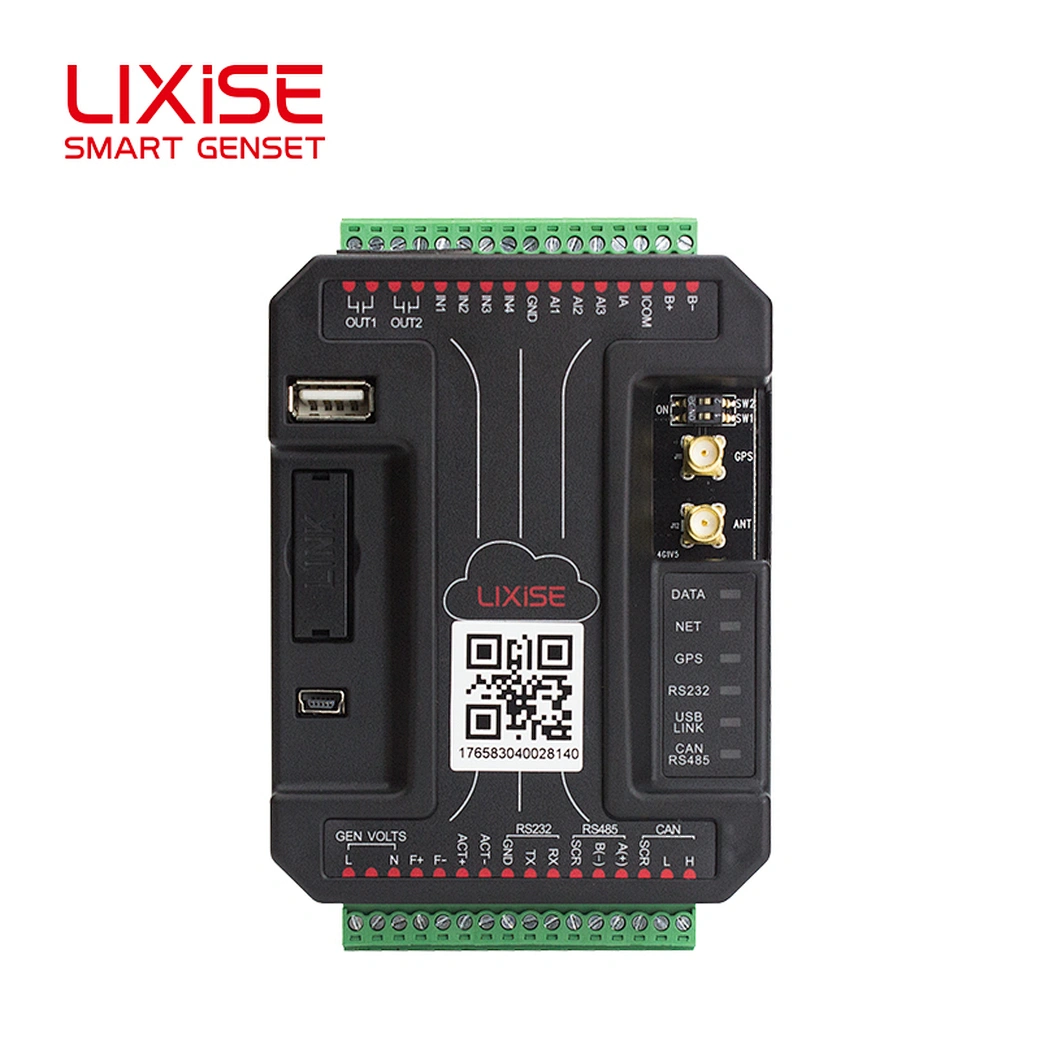

LXI980-CDMA LIXiSE Generator GPS Remote Data Collector
- Model Number:LXI980-CDMA
- Type:Controller
- Place of Origin:Guangdong, China, Guangdong China(Mainland)
- Brand Name:LIXiSE
- name:LXI980-CDMA
- OEM:yes
- Certificate:ISO9001
- Serial level type:RS-232 standard level
- Guarantee:One Year
- Operating Temperature:-25℃---+70℃
- Storage Temperature:-40℃--+80℃
LXI980-CDMA LIXiSE generator gps remote data collector
This series products are divided into LXI980-GSM,CDMA,ET Three Models ,Meet customer GPRS (mobile unicom) wireless communication ,Wireless Communications ,CDMA(telecommunications) Wireless Communications ,Ethernet cable communication WIFI wireless communication requirements .Compatible with deep sea ,ComAp , Harsen ,Smartgen ,LIXiSE and Mainstream controllers(Since more and more compatible with the controllers, Official website shall prevail)
Product features
1.A variety of connection , safety and stability , Wired Ethernet, WIFI, 2 g / 3 g / 4 g wireless networks , Suitable for all kinds of application scenarios
2.Use the industrial grade GPRS/CDMA Module , Embedded reliable agreements ;GPS positioning, real-time control unit information
3 . Transparent data transmission , Users no need to understand the complex TCP/IP,PPP agreement
4.Support dynamic domain name or IP address to access the data center , support APN Virtual private network business
5.Communication stability is not drop
6.Support local and remote graphical boundary surface configuration and maintenance
7.6V~36V Scope of supply ;With The power equipment off function ,Easy to control
8.In 2-3 times per second the adoption rate of high-speed data acquisition data , Truly achieve remote fault diagnosis
9.Multiple reliable hardware and software design , Composite watchdog technology ,let the equipment safe operation
10.The standard USB interface + special interface , high quality , Plug type design , Easy and convenient with humanized connection timing controlled function , Save the flow
11.Historical records, remote fault analysis
12.Support the GPS positioning data reporting and query function , Data input baidu map can realize accurate positioning satellite maps
13.Suitable for all kinds of application scenarios
14.The standard USB interface + upgrade special interface
15.High quality, plug type design, easy and convenient
16.980 Compatible with the national mainstream brand controllers , Connection had never been so easy .
17.In 2-3 times per second the adoption rate of high-speed data acquisition data
18.Historical records, remote fault analysis
19.GPS positioning, real-time control unit information
20.Base station power monitoring,Drag the generator monitoring,firefighting,plant information,biogas power generation,power monitoring,environmental monitoring,bridge monitoring
21.oil field equipment,The field of engineering,Flood prevention and fighting against natural disasters ,outdoor bill-boards etc
Name | Parameter | Remark |
Network type | GPRSmobile station type /GPRSMulti-slot type CDMA2000 1X /Ethemet | |
Frequency band | GSM850/900/1800/1900MHz CDMA 800MHz | |
GPRSnetwork CDMAnetwork | Downlink: | GPRSMax:85.6Kbps CDMAMax:153.6Kbps |
GPRS/CDMA network transmission rate | Uplink: | GPRSMax:42.8Kbps CDMAMax:153.6Kbps |
SIMcard voltage | 2.85V/1.8V | |
Antenna Interface | 50Ω/SMA | |
Serial interface Level type | RS-232Standard Level /RS485/LINK/CAN | |
Serial port baud rate | 300~115200bps | Supports standard baud rate |
Power supply | DC:+6V~36V | |
Power dissipation | Working:Max800mA-104dBm | communication module work current |
Standby:≤30 mA | ||
Working temperature | -25℃~+70℃ | |
Storage temperature | -40℃~+80℃ | |
Humidity range | 0~95% | Non-condensing |
| Apply |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
