LIXiSE LXC6310 Genset Controller Completely Replace DSE5110 5210 Generator Auto Start Control Panel
- Warranty:1 year
- Certification:ISO9001
- Place of Origin:Guangdong, China, Guangdong China (Mainland)
- Brand Name:LIXiSE, LIXiSE
- Model Number:LXC6310, LXC6310
- Weight:0.9kg
- Purpose:brushless generator
- Speed Sensor Signal:0.5-120 Volts RMS
- Droop Range:1-5% regulation
- Hole Size:220mm x 160mm

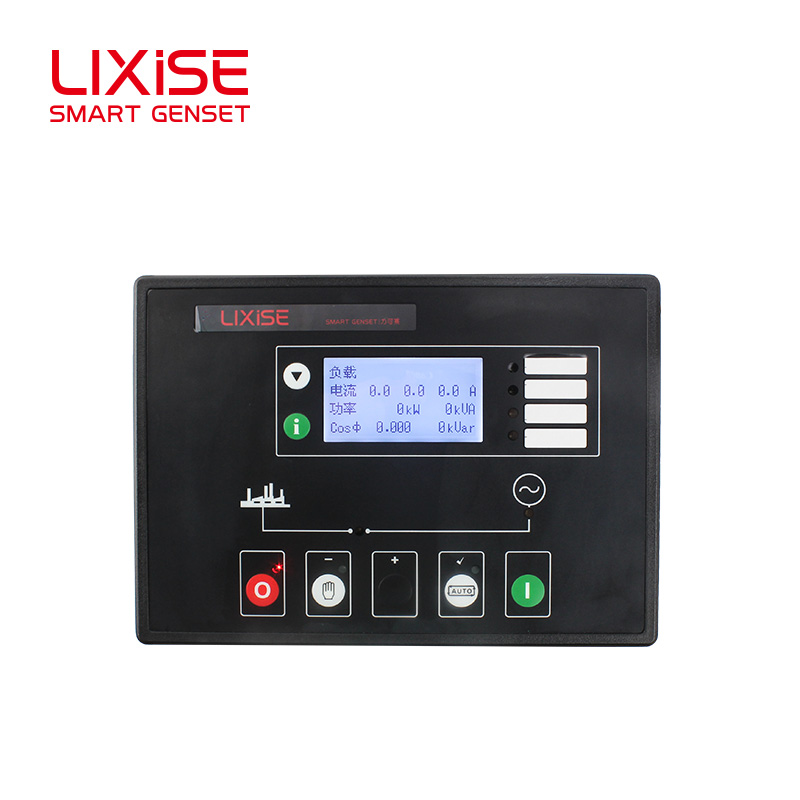

LXC6310 Completely replaced dse5110 5210 generator automatic control panel
The LXC6310/6320 is used in single machine automation, which can control the Genset starting by remote boot signal
The LXC6320 added the function is based in LX6310, which is automatic mains failure control module. can monitor a mains supply and automatically start.
Working voltage DC8.0V to 35.0V (continue to supply)
Consumer power <3W (stand model: ≤2W )
Alternator Input voltage:
20V AC - 360 V AC (ph-N) 3 Phase 4wire
30V AC - 620 V AC (ph-ph) 3 Phase 3wire
20V AC - 360 V AC (ph-N)
20V AC - 360 V AC (ph-N)
Frequency 50/60HZ
Speed sensor voltage : 1.0 - 70Vpp
Speed sensor Frequency: Max 10000HZ
Starting relay output: 16Amp
Fuel relay output : 16Amp
Programmable relay output 1: 16Amp
Programmable relay output 2: 16Amp
Programmable relay output 3: 16Amp
Programmable relay output 4: 16Amp
Power switching programmable relay output 5: 16Amp
Mains switch relay programmable relay output 6: 10Amp 250VAC
Out Size: 240mm x 172mm x 57mm
Tapping Size: 214mm x 160mm
Current transformer secondary electric 5A
Working condition: Temp. (-25~+70)°C humidity (20~90)%
Storage condition: Temp. (-40~+70)°C
Weight: 0.9kg
| Working voltage | DC8.0V to 35.0V (continue to supply) |
| Consumer power | <3W (stand model: ≤2W ) |
| Alternator Input voltage: | |
| 20V AC - 360 V AC (ph-N) 3 Phase 4wire | |
| 30V AC - 620 V AC (ph-ph) 3 Phase 3wire | |
| 20V AC - 360 V AC (ph-N) | |
| 20V AC - 360 V AC (ph-N) | |
| Frequency 50/60HZ | |
| Speed sensor voltage : | 1.0 - 70Vpp |
| Speed sensor Frequency: | Max 10000HZ |
| Starting relay output: | 16Amp |
| Fuel relay output : | 16Amp |
| Programmable relay output 1: | 16Amp |
| Programmable relay output 2: | 16Amp |
| Programmable relay output 3: | 16Amp |
| Programmable relay output 4: | 16Amp |
| Power switching programmable relay output 5: | 16Amp |
| Mains switch relay programmable relay output 6: | 10Amp 250VAC |
| Out Size: | 240mm x 172mm x 57mm |
| Tapping Size: | 214mm x 160mm |
| Current transformer secondary electric 5A | |
| Working condition: | Temp. (-25~+70)°C humidity (20~90)% |
| Storage condition: | Temp. (-40~+70)°C |
| Weight: 0.9kg |
| Apply |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
