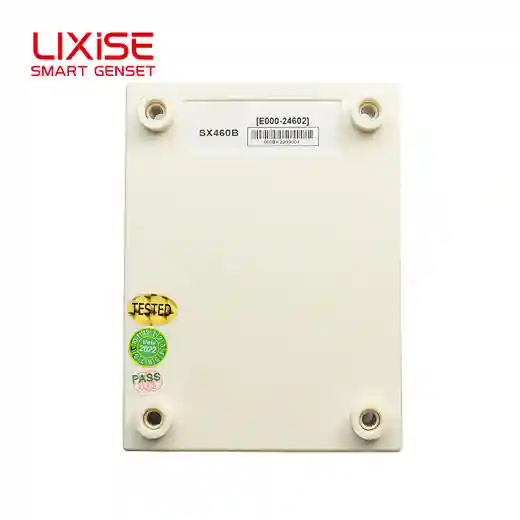

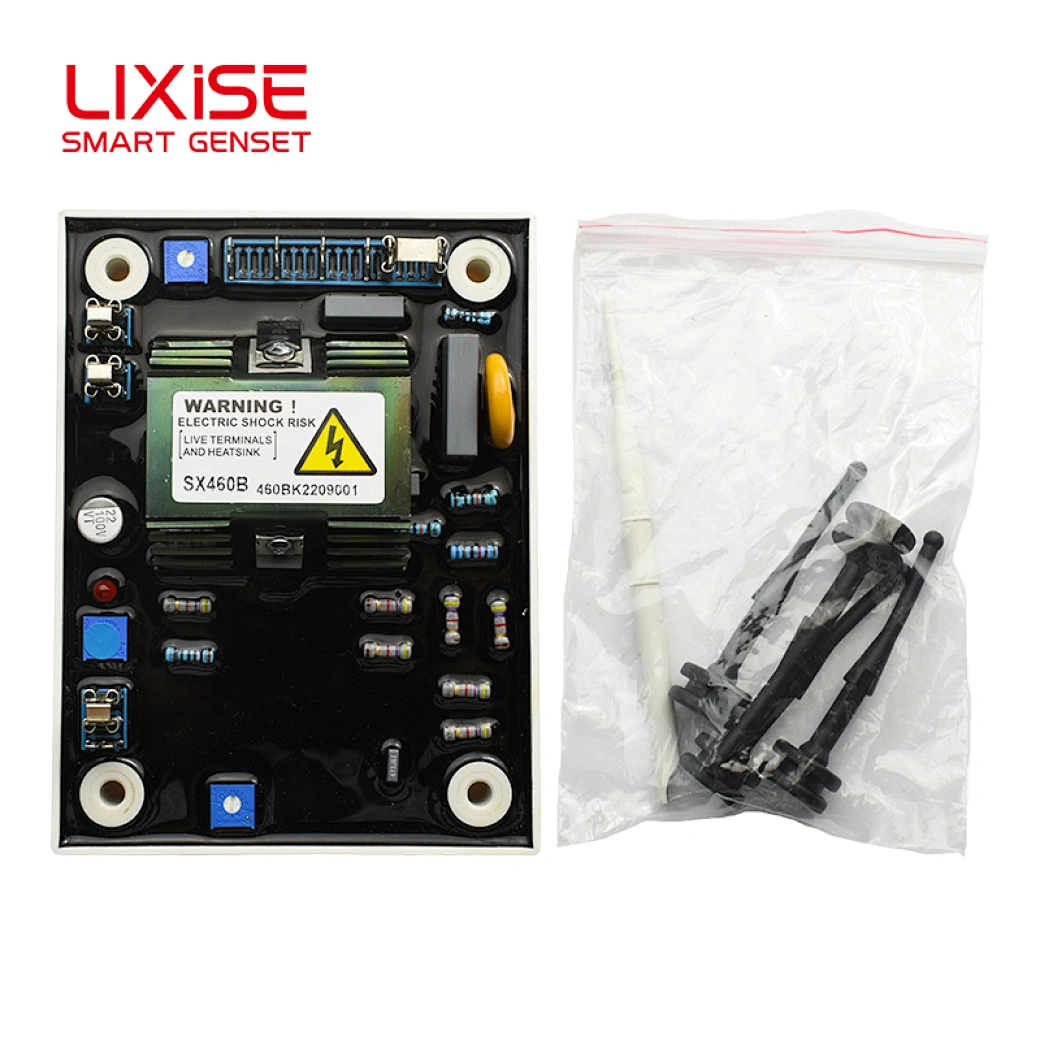

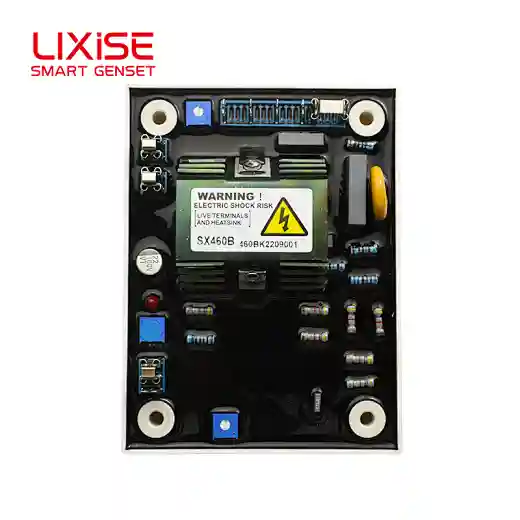

AVR
SX460BBKI
Minimum order quantity:
1
Quantity
Technical parameters:
Power input: 100-264 VAC
Detection input: voltage 380-480 VAC or 190-264 VAC
Single phase with jumper copper
Frequency 50/60 Hz is set by jumper copper
Output: 90 VDC maximum at 207 VAC input
The current is continuous 4A and discontinuous 6A within 10 seconds
Minimum resistance: 15 Ω
External voltage regulation: ± 7% with 1 K Ohms 1 Watt potentiometer
Slow voltage establishment time: 2 seconds
Voltage regulation rate:<± 1.5% (engine speed changes within 4%)
Voltage establishment: residual voltage above 5 VAC is required at AV R input terminal
Temperature difference stability: 0.02% voltage drift per ℃ change
Power consumption: max. 10 Watt
Low frequency protection: inflection point value: 95% Hz
Slope: 170% at 30 Hz
Size: 135mm L * 100mm W
Weight: 0.45KG ± 2%
Details:
Power input: 100-264 VAC
Detection input: voltage 380-480 VAC or 190-264 VAC
Single phase with jumper copper
Frequency 50/60 Hz is set by jumper copper
Output: 90 VDC maximum at 207 VAC input
The current is continuous 4A and discontinuous 6A within 10 seconds
Minimum resistance: 15 Ω
External voltage regulation: ± 7% with 1 K Ohms 1 Watt potentiometer
Slow voltage establishment time: 2 seconds
Voltage regulation rate:<± 1.5% (engine speed changes within 4%)
Voltage establishment: residual voltage above 5 VAC is required at AV R input terminal
Temperature difference stability: 0.02% voltage drift per ℃ change
Power consumption: max. 10 Watt
Low frequency protection: inflection point value: 95% Hz
Slope: 170% at 30 Hz
Size: 135mm L * 100mm W
Weight: 0.45KG ± 2%
