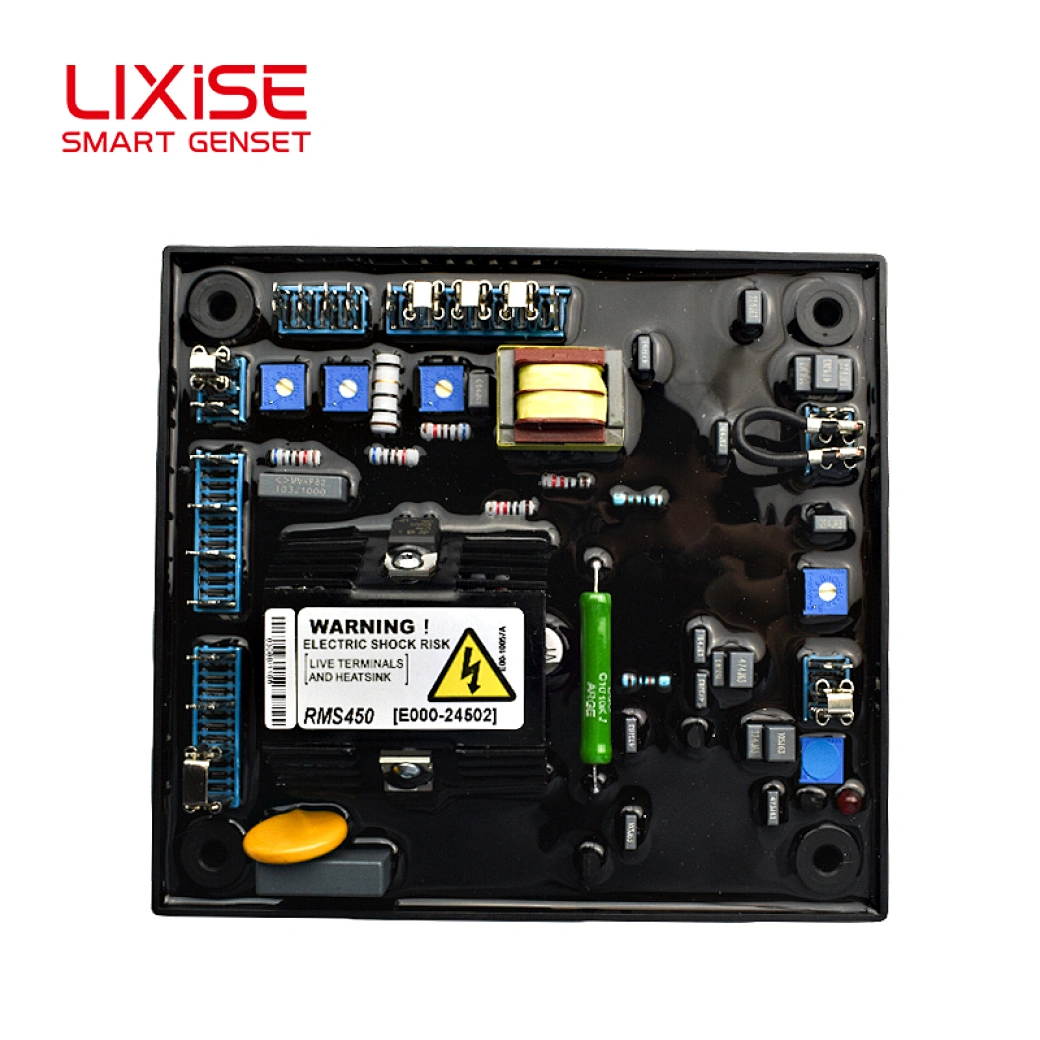

RMS450 AVR

RMS450 is a digital AVR that uses RMS true effective value detection. Compared to the SX440 that uses average value detection, the difference is that the SX440 that uses average value detection will increase and oscillate unstable when loaded with nonlinear equipment (frequency conversion equipment, servo motor, switching power supply, etc.), and even cause voltage loss. However, when RMS450 uses true effective value detection, the generator voltage will remain stable and not increase; The wiring method of RMS450 is the same as that of SX440, which facilitates replacement and improves generator performance; In addition, RMS450 has 360-450VAC detection and can be directly used for generators without central taps.


Parameter Description:
Detection input: voltage 190-264VAC/360-450VAC two-phase
Nominal frequency 50-60 Hz power input: voltage 180~245VAC single-phase or two-phase
Frequency 50/60 Hz nominal
Output: The maximum voltage at 207V AC input is 90V DC
Continuous current 3A
Non continuous 6A for 10 seconds
Output impedance>15 Ω
Establish voltage: 4.8Volts@AVR terminal
Thermal drift: AVR ambient temperature changes by 0.03% per degree Celsius
Special function: detection of input voltage loss protection

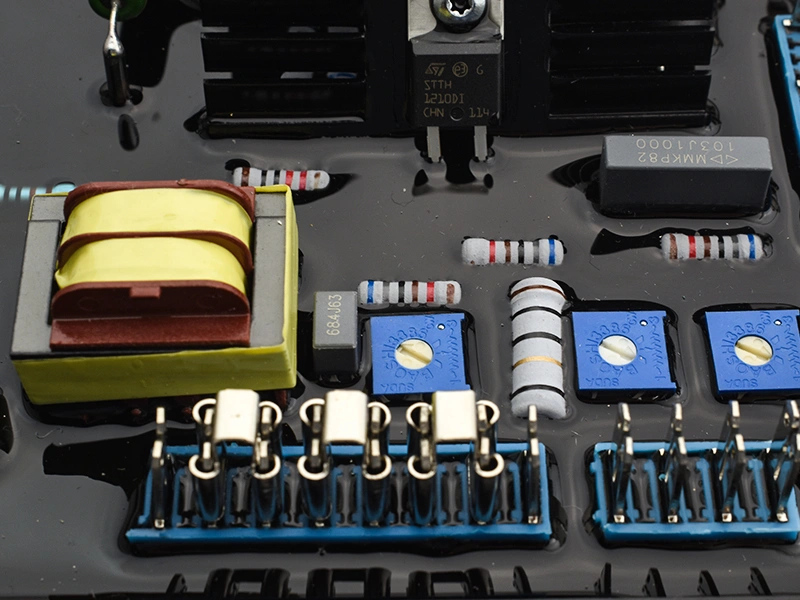

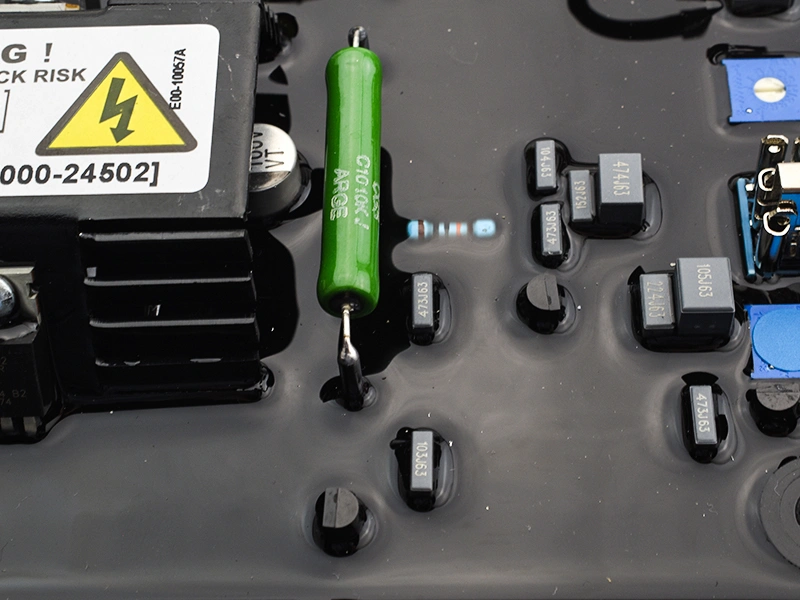

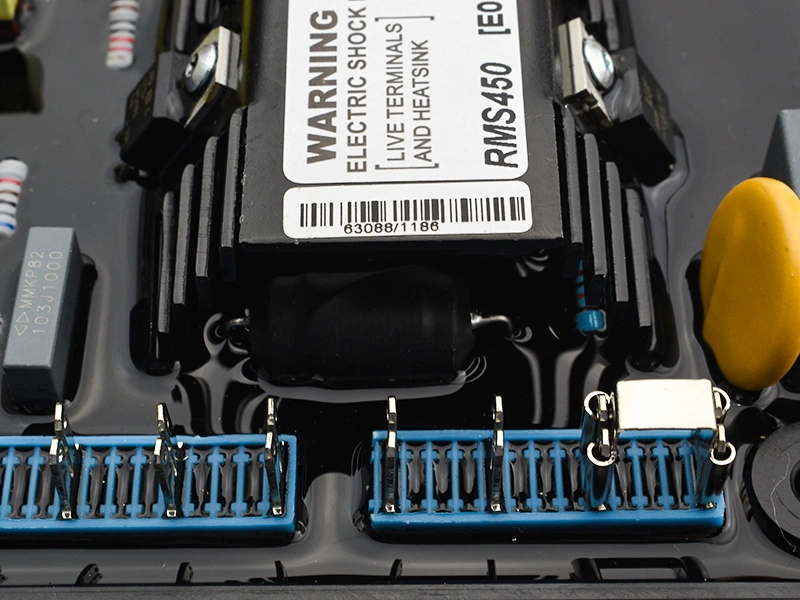

Image:
