Speed Control Unit Generator Speed Governor EG2000A
EG2000A
minimum order
1 acre
Quantity
$39.00 - $44.00
/ acre
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:EG2000A
- Product Name:Generator Electronic Governor
- Function:Governor Speed Control
- Weight:0.825kg
- Body size:14.7*11.4*5cm
- Test temperature:75 degree
- Color:gray
- Purpose:brushless generator
- Material:Hard rubber base
- Certificate:ISO9001
- Packing:Carton
Product Description
Speed Controller Unit EG2000A electronic speed governor for diesel engine
The EG2000A provides both an adjustable Idle Speed and ramp, for controlling engine smoke, vibration and warm-up. Together, the EG2000A Controller, Actuator and MPU (Magnetic Pickup) form the electronic engine governor assembly. The EG2000A receives the signal from the MPU and, depending on the engine RPM, the actuator controls the fuel intake on the engine. The EG2000A receives its power from the engine batteries or an AC to DC power supply rated from 12 or 24 VDC ±20% matching the Actuator voltage. The average operating current is around 2.5 to 3.5 amps, but it may reach 15 Amps during engine start or sudden load changes.
Specification
Product Name | Speed Governor |
Model | EG2000A |
Operating Voltage | 12 or 24 VDC ±20% |
Output Current | 0.5 ~ 15 A |
Run Speed Adjustment range | Speed adjustment Potentiometer (30 turn) 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz. |
Idle Speed Adjustment Range | Run Speed 30 ~ 85% |
Ramp Time | 3 ~ 20 Sec |

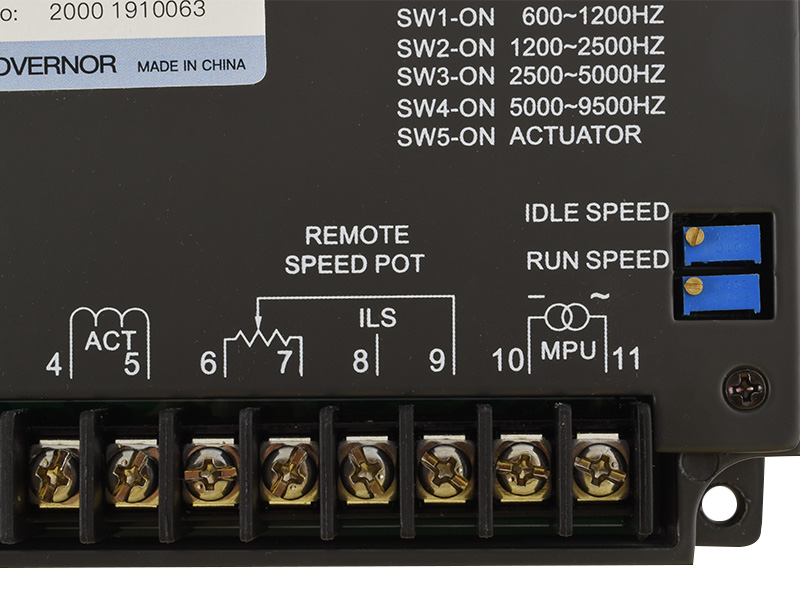

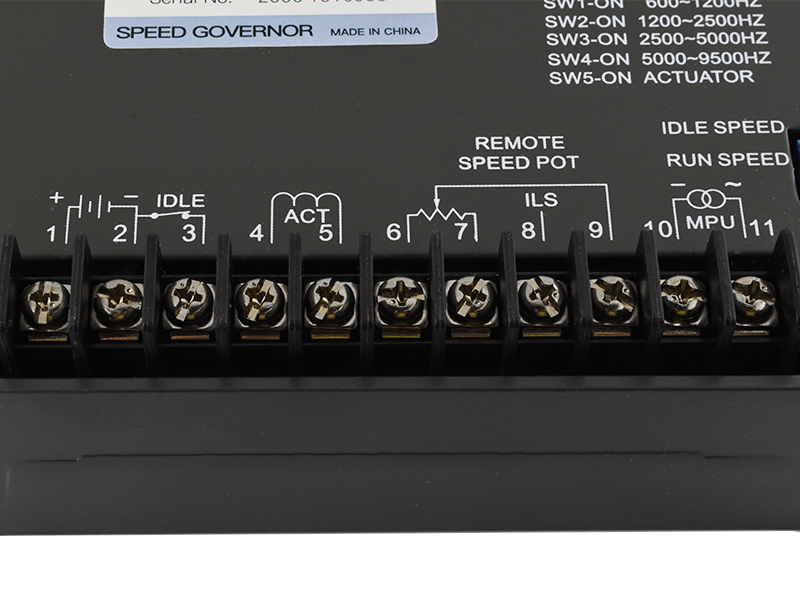

Remote Speed Pot | Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 connect a 5KΩ potentiometer ±5% adjustment range. |
Temp. Stability | <0.01% |
Run Speed Stability | ± 0.25 % at steady state |
MPU input signal | 1 ~ 120VAC RMS |
Droop | 4% |
Adjustment | Run Speed, Idle Speed, Ramp Time, Droop, Integration, Gain |
Mechanical Vibration | 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz |
Relative Humidity | < 95% |
Operating Temperature | -40 ~ 85℃ |
Storage Temperature | -40 ~ 85℃ |
Dimensions | 147mm L * 114mm W * 50mm H |
Weight | 690g ± 2% |

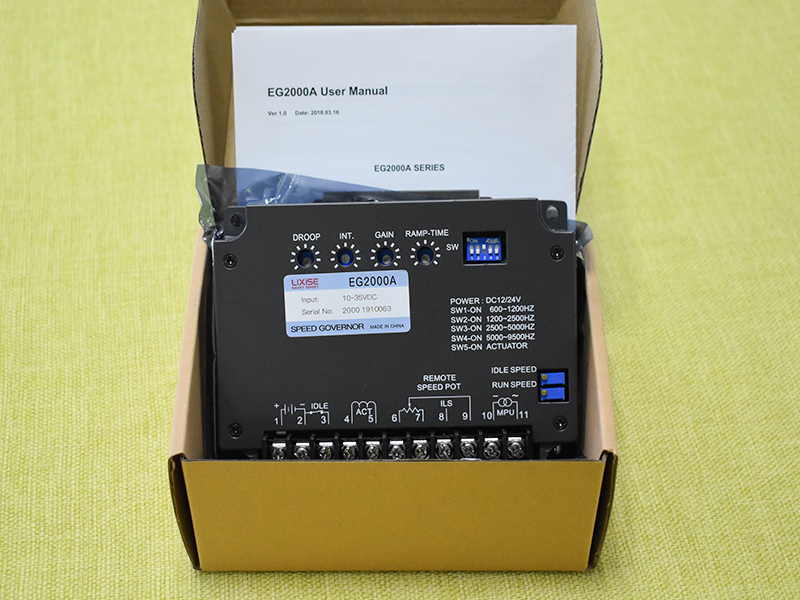

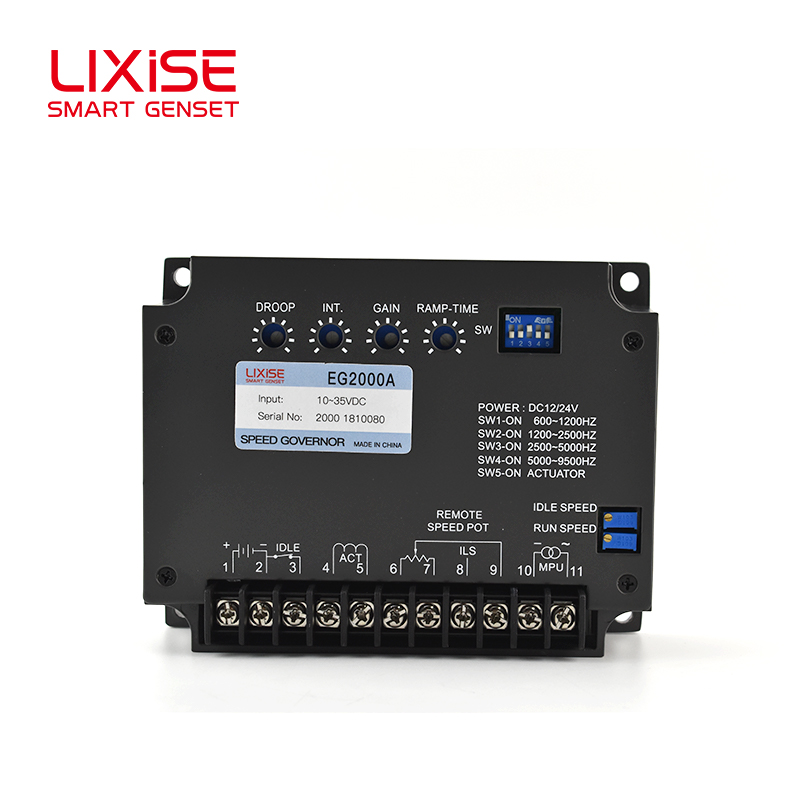

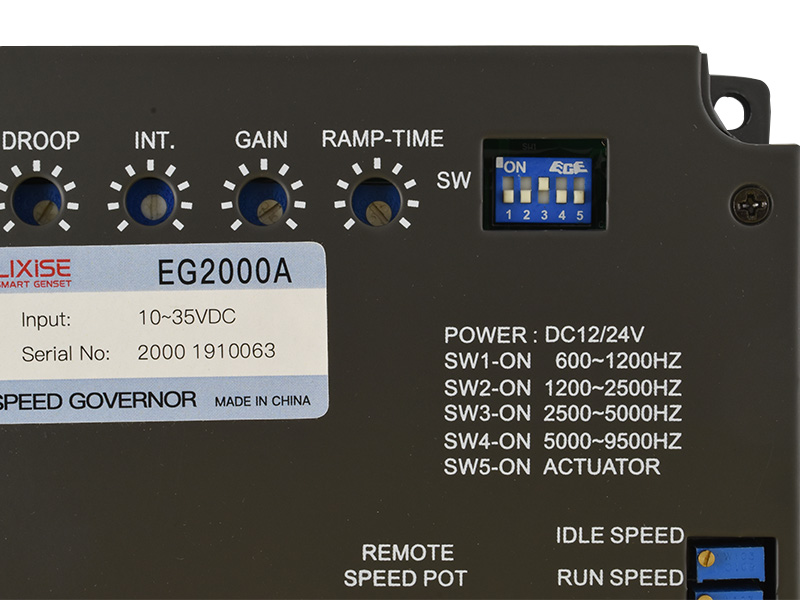

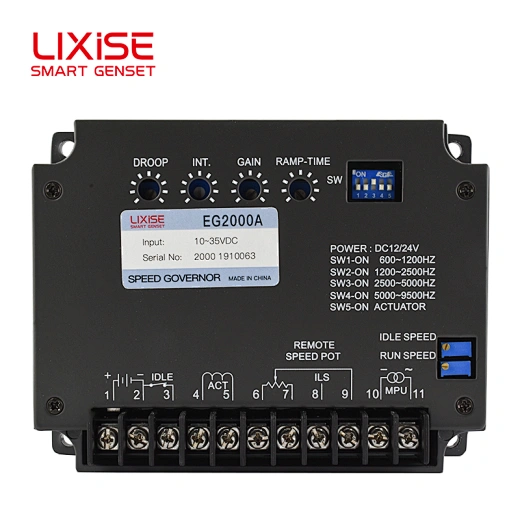

Details Images
Packing & Delivery
Packing Details : Packaging individual packing and standard export carton.
Delivery Details : reach most of the countries within 3 to 10 business days.
Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation.
Material: PE bag & Hard paper box. Size of box:15*15*6.5cm Size of carton :51*41*39cm 36pcs/carton
