SX440 Genset Automatic Ac Voltage Regulator Stabilizer
- Place of Origin:Guangdong, China
- Brand Name:LIXISE
- Model Number:SX440-G
- Usage:SVC
- Phase:Three Phase
- Current Type:AC
- Overall:17.5*15*6.5cm
- Certificate:ISO9001
- Services:OEM
- model:AVR SX400
- Input Voltage:190-264V ac
- Demension:15.2*13.5*4cm
- purpose:brushless generator

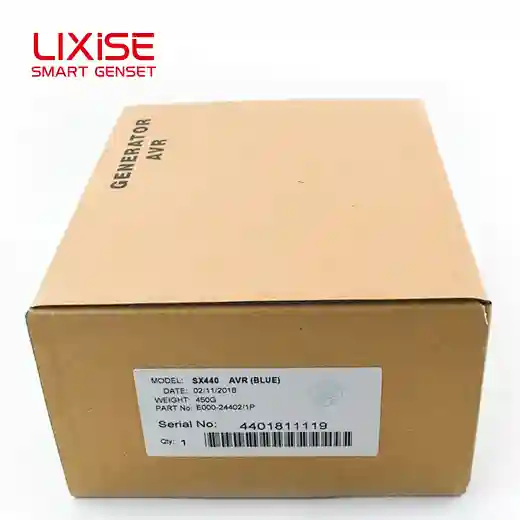

- Package:Catron box
- Weight:0.45kg
Note: If the contents mentioned other manufacturers's names and models, the narrative only for informational purposes, this product is not original, but it can compatible with them

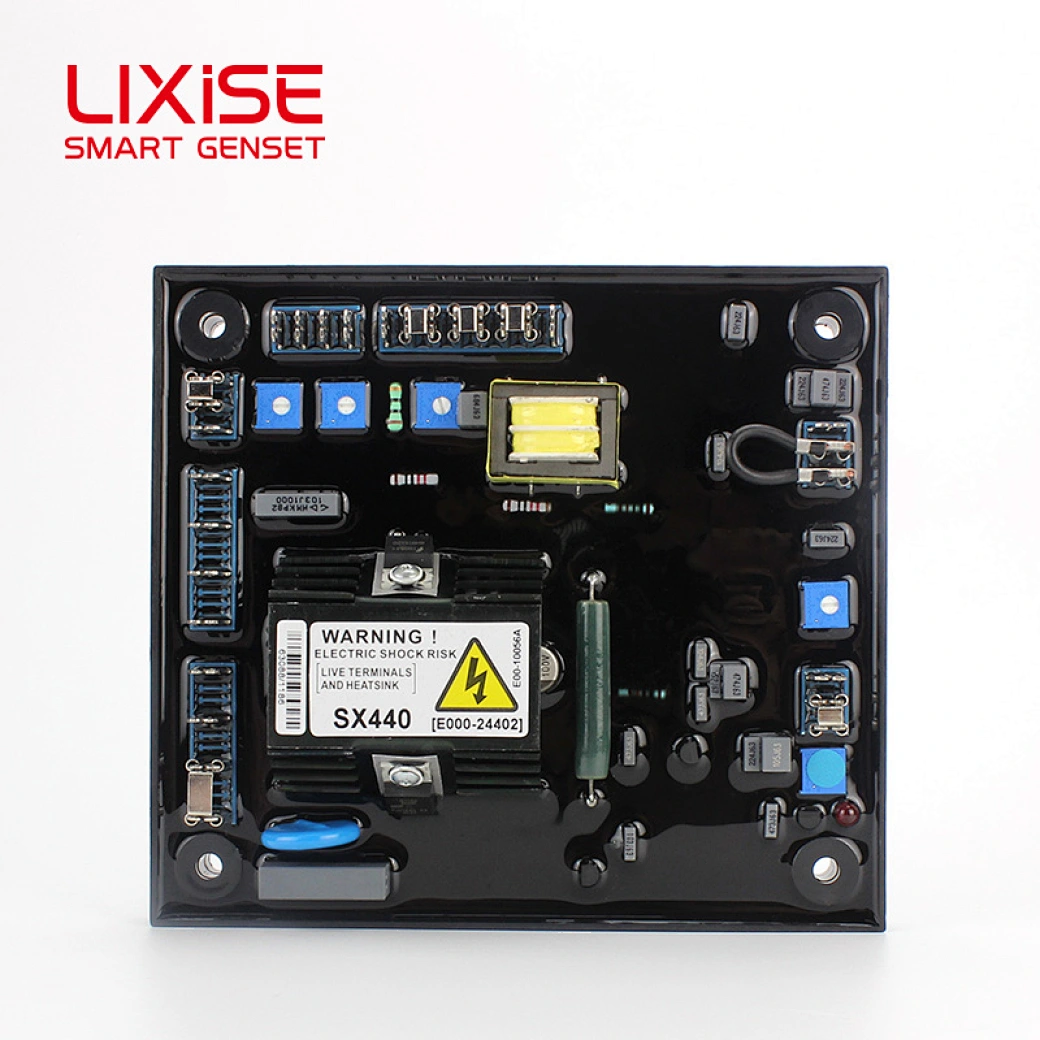

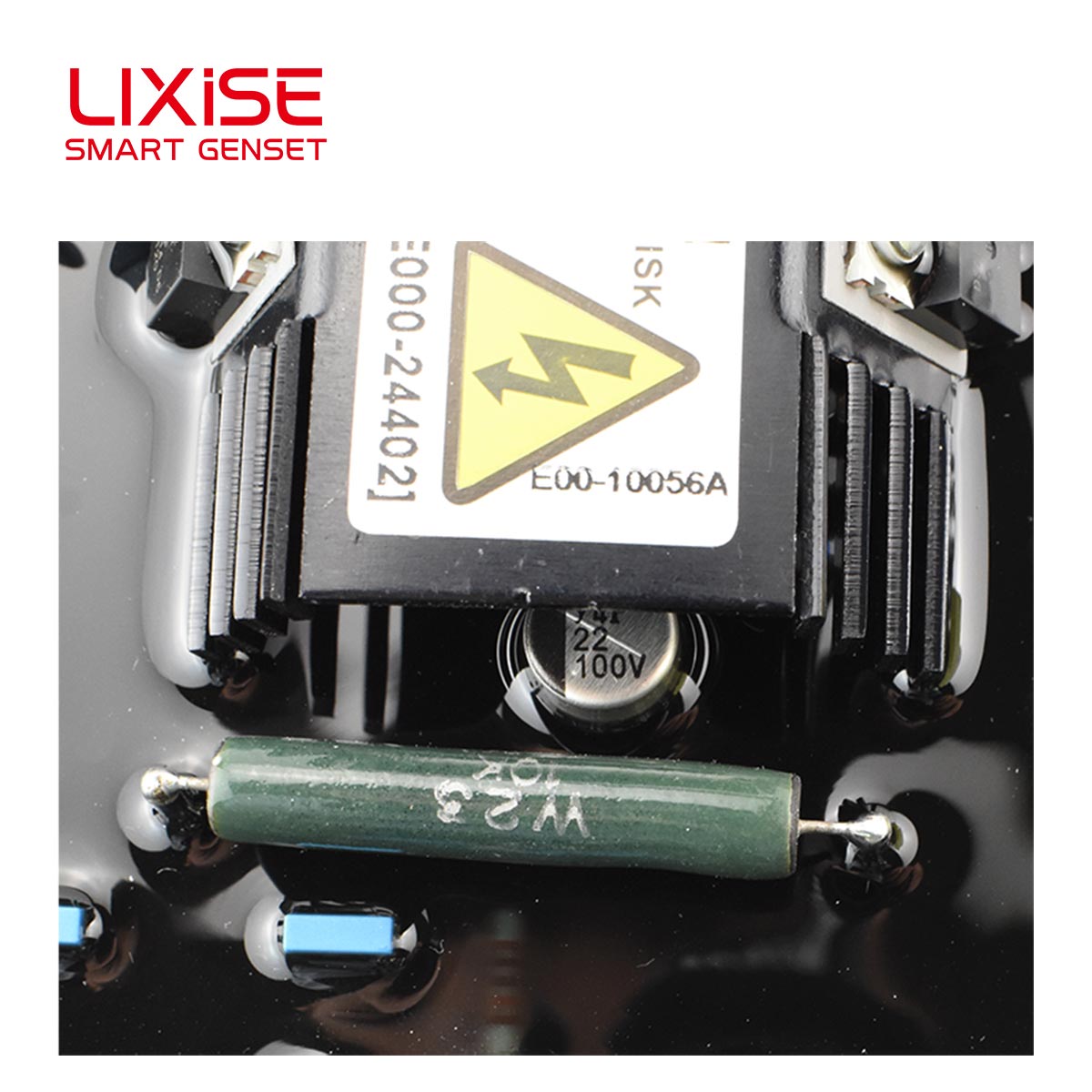

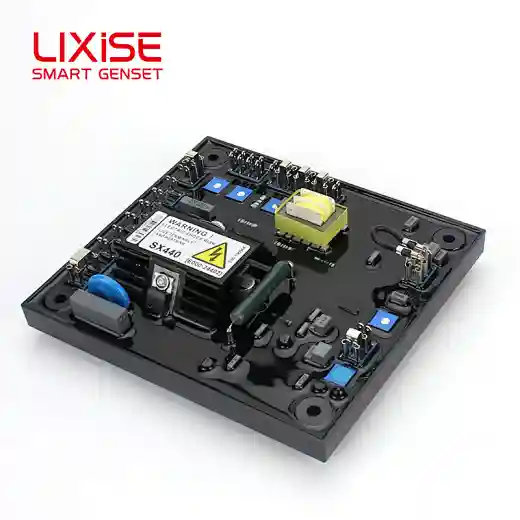

SX440 genset automatic ac voltage regulator stabilizer
Photos:
Description:
SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator
The Propose employs surface mount technology (SMT) for high integration of features in a minute footprint AVR. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. The control and voltage sensing circuits have separate terminals, allowing the excitation power to be resulting directly from the stator winding for necessary applications or from an auxiliary winding if sustained short circuit performance is essential. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1%
*Stability adjustment
*Under frequency roll off adjustment
* Trim adjustment
* Optimum response selection
* Droop adjustment
| Input | Voltage | 190-264V ac | |
| Frequency | 50-60 Hz nominal | ||
| Phase | 1 | ||
| Wire | 2 | ||
| Output | Voltage | max 90V dc at 207V ac input | |
| Current | continuous 4A dc, intermittent 6A for 10 secs | ||
| Resistance | 15 ohms minimum | ||
| Regulation | +/- 1.0% | ||
| Thermal Drift | 0.04% per deg. C change in AVR ambient | ||
| Typical system response | AVR response | 20ms | |
| Filed current to 90% | 80 ms | ||
| Machine Volts to 97% | 300ms | ||
| External voltage adjustment | +/-10% with 1 k ohm 1 watt trimmer | ||
| Under frequency protection | Set point | 95% Hz | |
| Slope | 170% down to 30 Hz | ||
| Unit power dissipation | 12 watts maximum | ||
| Build up voltage | 4 Volts @ AVR terminals | ||
| Analogue Input | Maximum input | ±5V dc | |
| Sensitivity | 1v for 5% | ||
| Input resistance | 1k ohm | ||
| Quadrature Droop Input | 10 ohms burden | ||
| Max. sensitivity: 0.07 A for 5% droop 0PF | |||
| Max. input: 0.33A | |||
| Environmental | Vibration | 20-100 Hz,50mm/se | |
| 100Hz - 2kHz, 3.3g | |||
| Operating temperature | -40 to +70 Deg. C | ||
| Relative Humidity 0-70 Deg. C | 95% | ||
| Storage temperature | -55 to +80 Deg. C | ||
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
