柴油发电机组电压调节器 VR6 K125-10B
AVR K125-10B
最低订单
1 个
数量
$122.40 - $138.03
/ 个
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:K125-10B
- Product Name:AVR
- Weight:1.3kg
- Usage:Regulating Voltage
- Function:Replaced
- Color:Black
- Generator type:Diesel Geneator
- Quality Class:High Quatity
- Phase:Single Phase/3 Phase
- Services:OEM
- Packing:Carton
Product Description

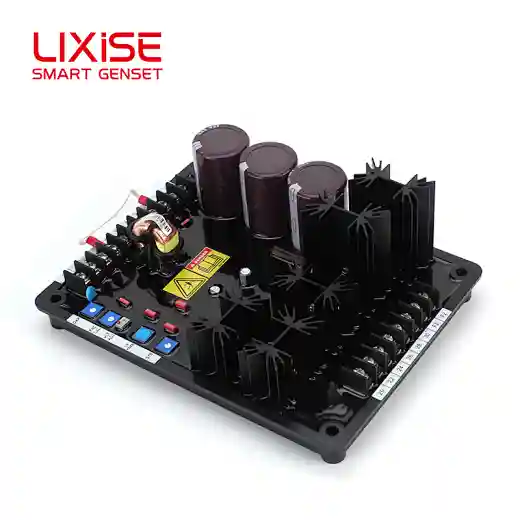

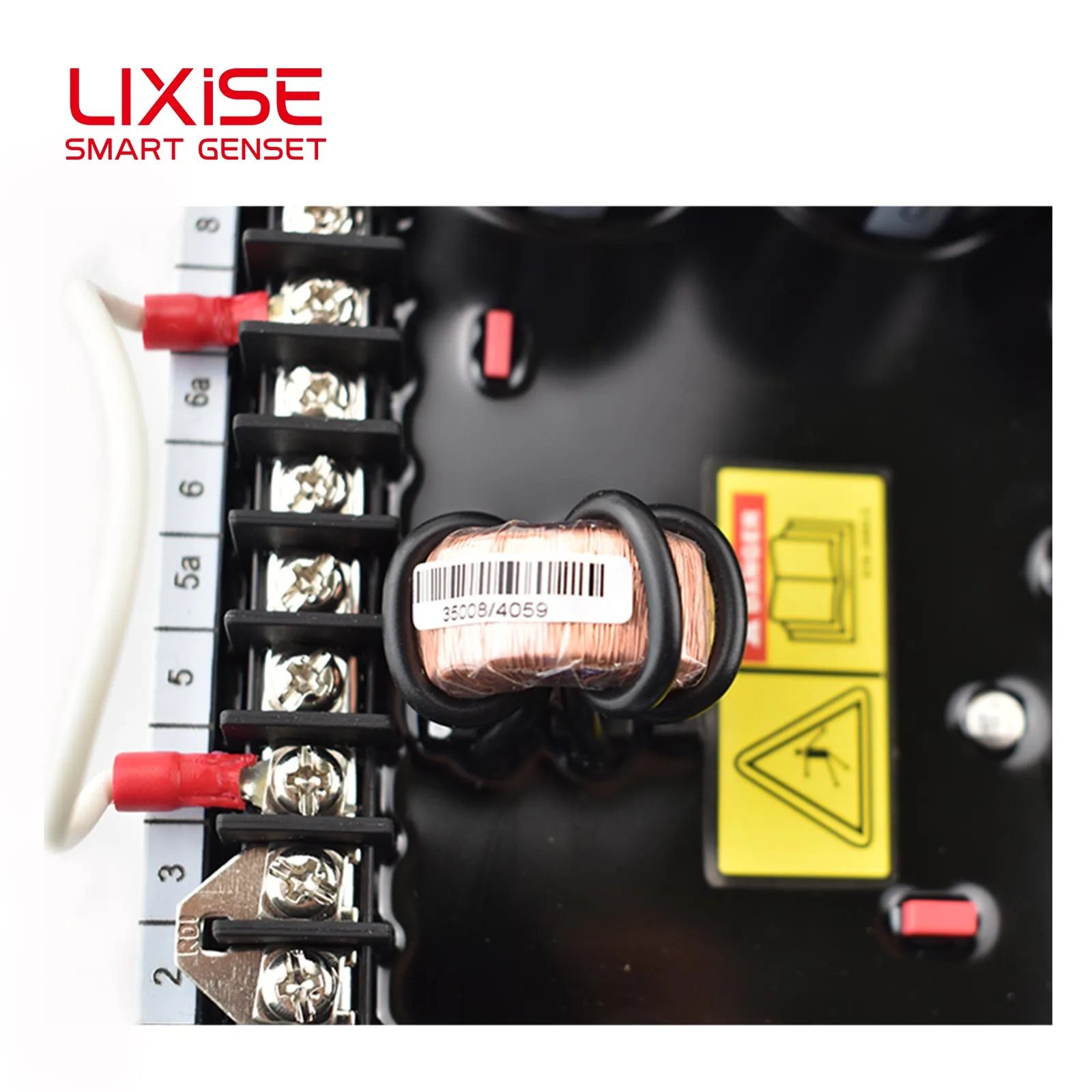

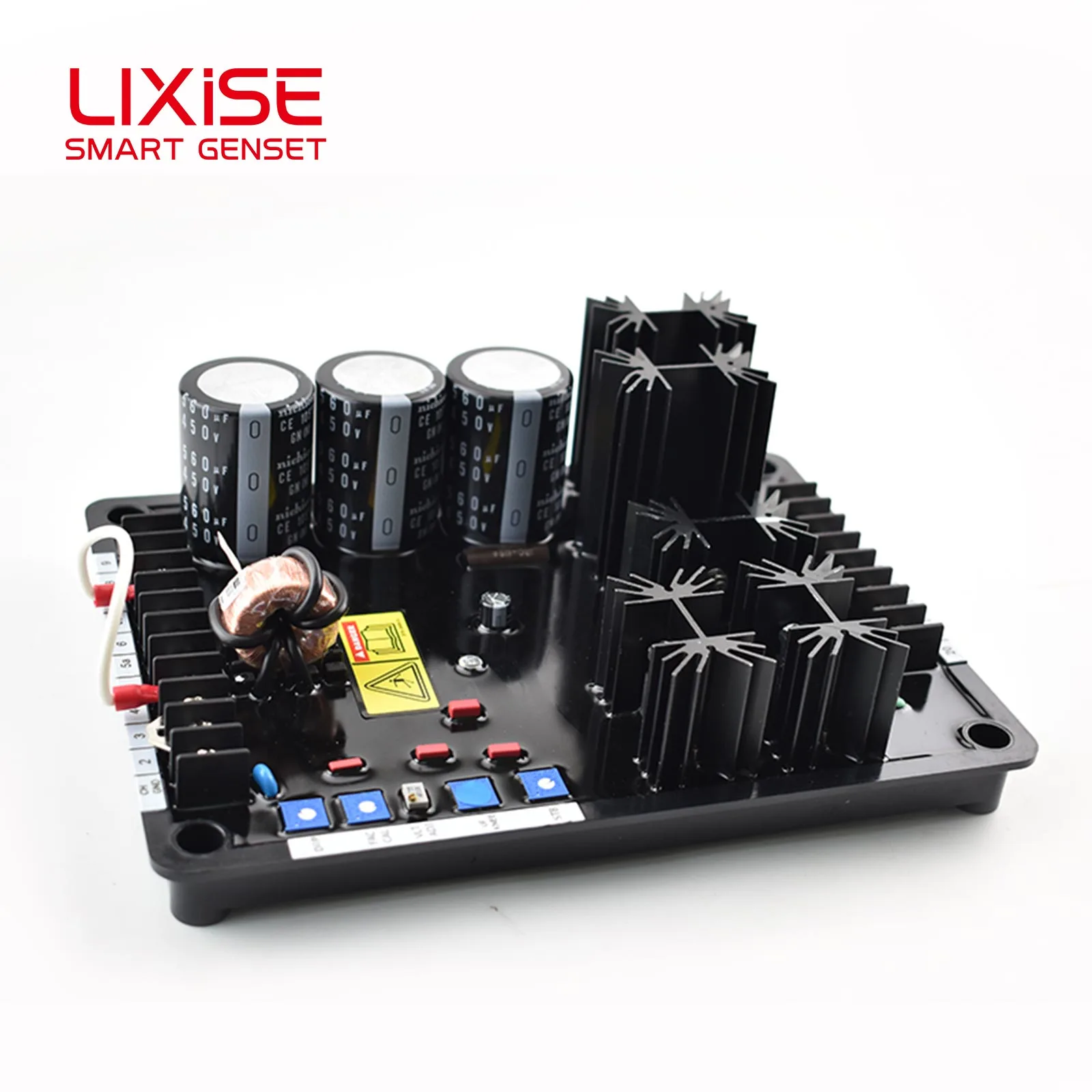

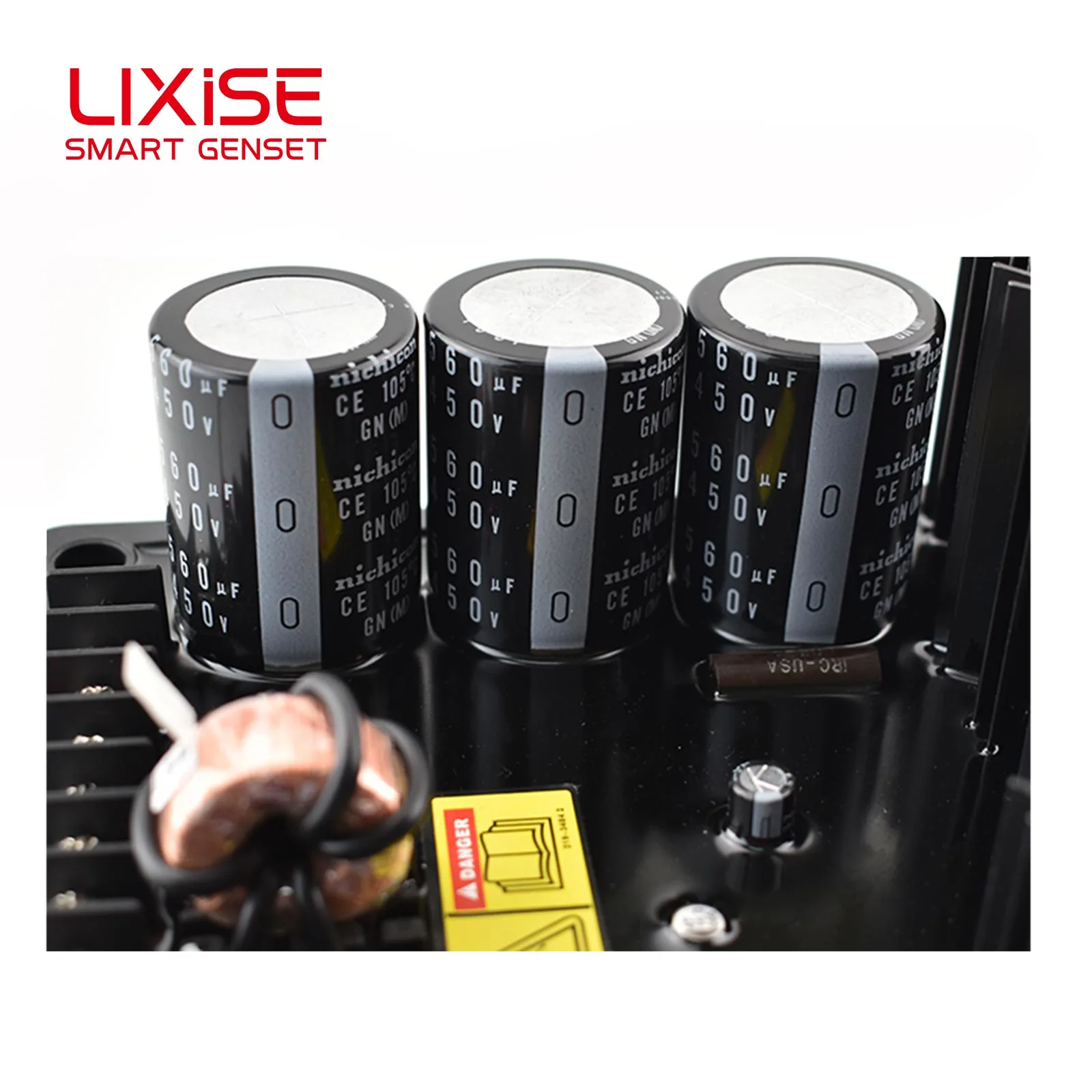

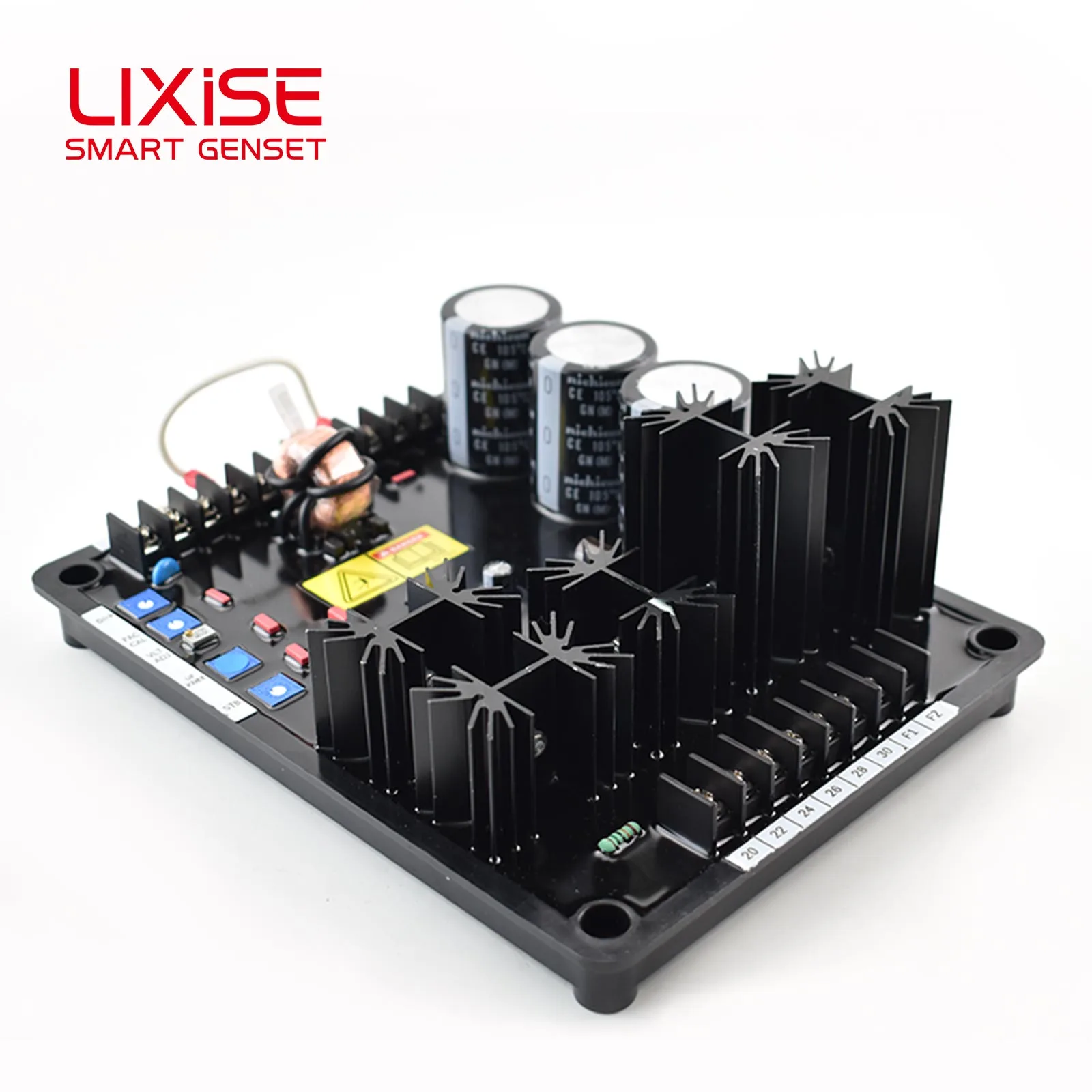

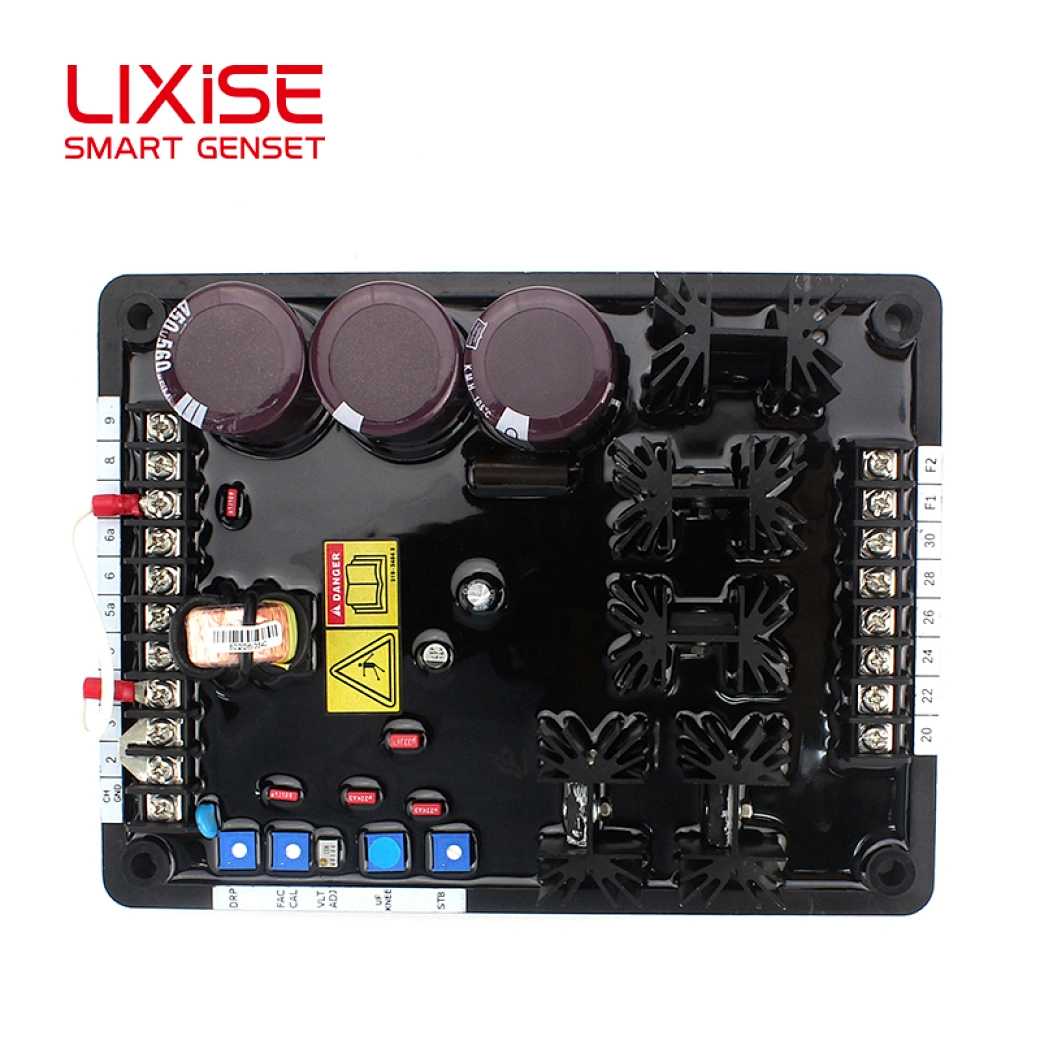

GENERATOR AVR VR6/K125-10B POWER GENSET AVR
The K125-10B Voltage Regulators are contained in an encapsulated plastic case. The regulator controls the DC exciter fi eld power of conventional, 50 or 60 Hz brushless genera tors.
Regulation is provided by sensing the generator output voltage, converting it to a DC signal and comparing the signal to a
reference voltage signal. An error signal is developed and used to control the DC fi eld power in order to maintain a constant generator output.
Regulation is provided by sensing the generator output voltage, converting it to a DC signal and comparing the signal to a
reference voltage signal. An error signal is developed and used to control the DC fi eld power in order to maintain a constant generator output.
The regulator includes frequency compensation with selectable slope, inverse time over-excitation shutdown, solid-state build-up circuitry, single-phase or three-phase voltage sensing, single-phase or threephase shunt, or permanent magnet power input, and parallel droop compensation, and an accessory input. The accessory input provides compatibility with accessories such as a var/power factor controller.

Specification
Product Name | Generator Automatic voltage regulator |
Model | K125-10B |
Output power(with a 240 Vac input) | 10 Adc @ 125 Vdc max continuous. 20 Adc @ 250 Vdc forcing for 10 Seconds. |
AC input power | 180 to 280 Vac, single-phase or Three-Phase, 50 to 400 Hz, 1750 VA Max Continous burden. |
AC sensing voltage | 90 to 140 Vac, 50/60 Hz; single-or- Three Phase. |
External voltage adjust rheostat | 10K ohm, 2W, potentiometer |
Regulation accuracy | ±0.5% Average responding |
Voltage drift | ±1% voltage variation for a 40 Deg. C Change. |
Response time | <4ms |
Frequency compensation | 1 or 2 V/Hz jumper selectable with Knee Adjustable from 45 Hz to 65 Hz |
EMI suppression | Internal filter |
Voltage Build-Up | Internal provisions for automatic Voltage Build-up from generator Residual voltages As low as six Vac |
Droop | 1 A or 5 A, <10 VA,adjustable from 0 To 10% at rated input current, 0.38 Power Factor |
Operating and storage temperature | -40 Deg. C to +70 Deg.C |
Shock | Withstands up to 20 g in each of three Mutually perpendicular axes |
Vibtation | Withstands the following Accelerations at The stated Frequency: 0.5g; 18 to 2000Hz |

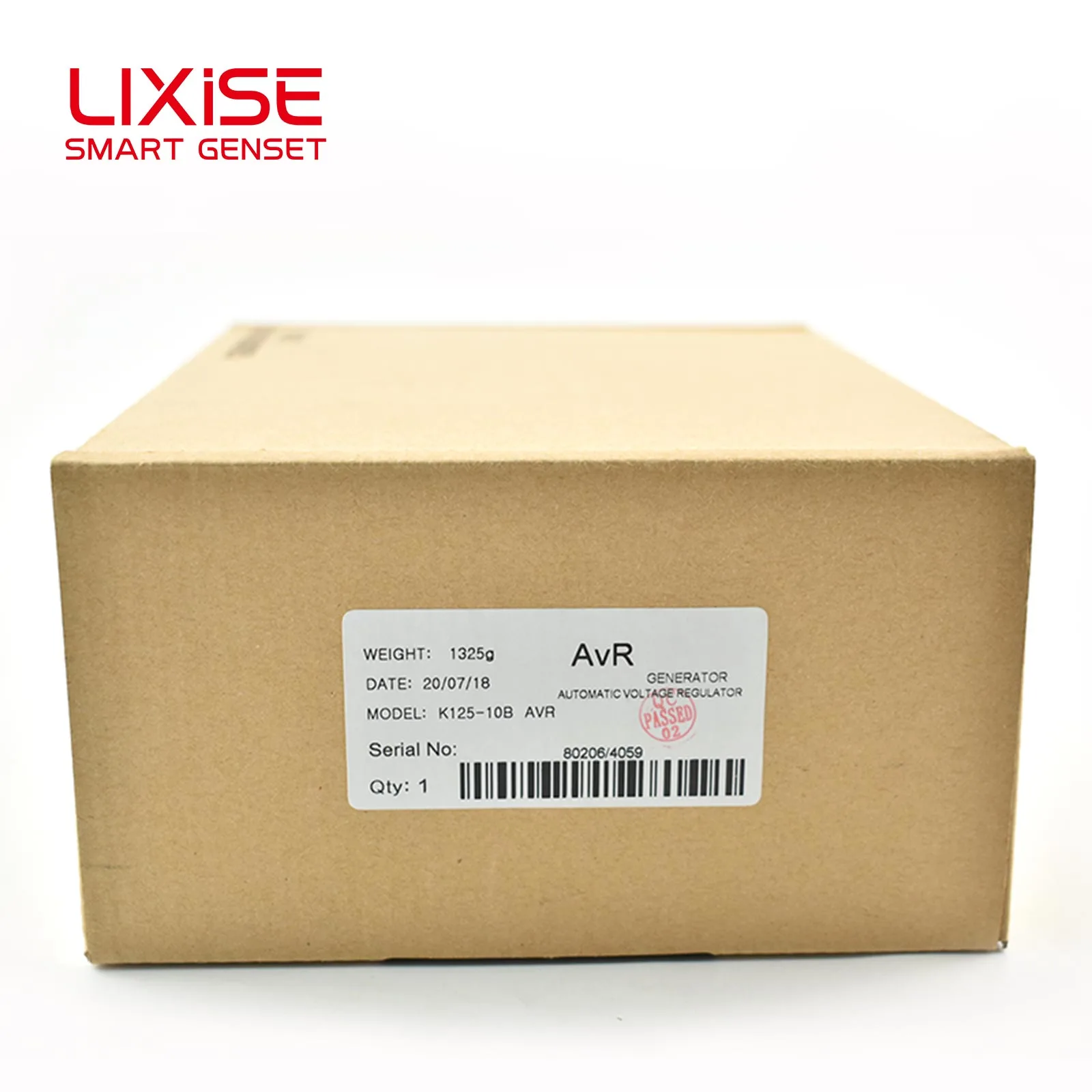

Packing & Delivery
Packing Details : Packaging individual packing and standard export carton. Delivery Details : reach most of the countries within 3 to 10 business days.

Special logistics packaging The packing box of each product is very strong to ensure that the product will not be damaged due to transportation

Shock bubble film
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation

Suitable carton size
We will choose the right size box according to the weight of the product. Too Much Weight / too little weight per case is not good for product protection and freight savings for customers.

Box packing requirements
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.Marks should be pasted according to clients’s requirement.

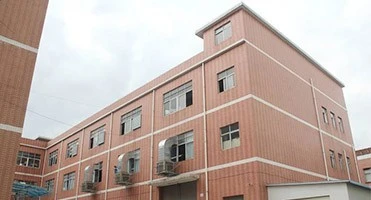

Company Profile

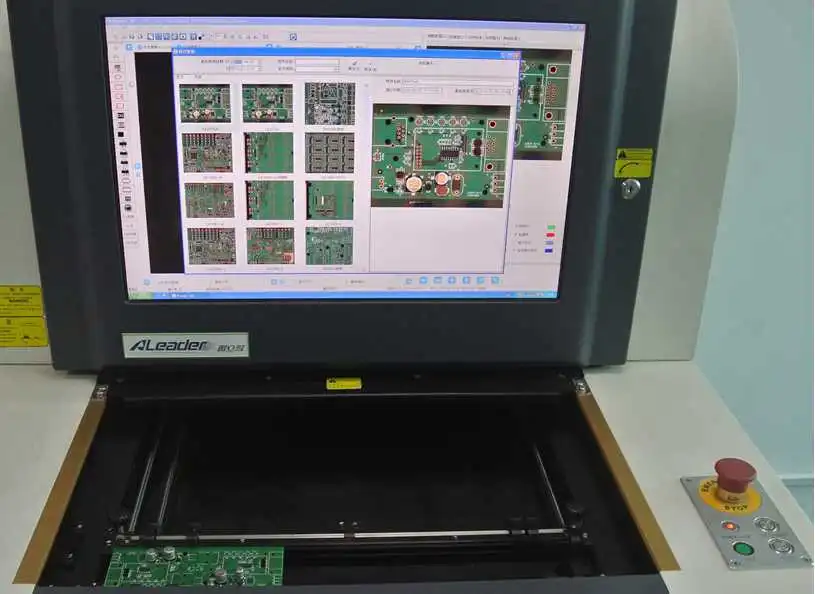

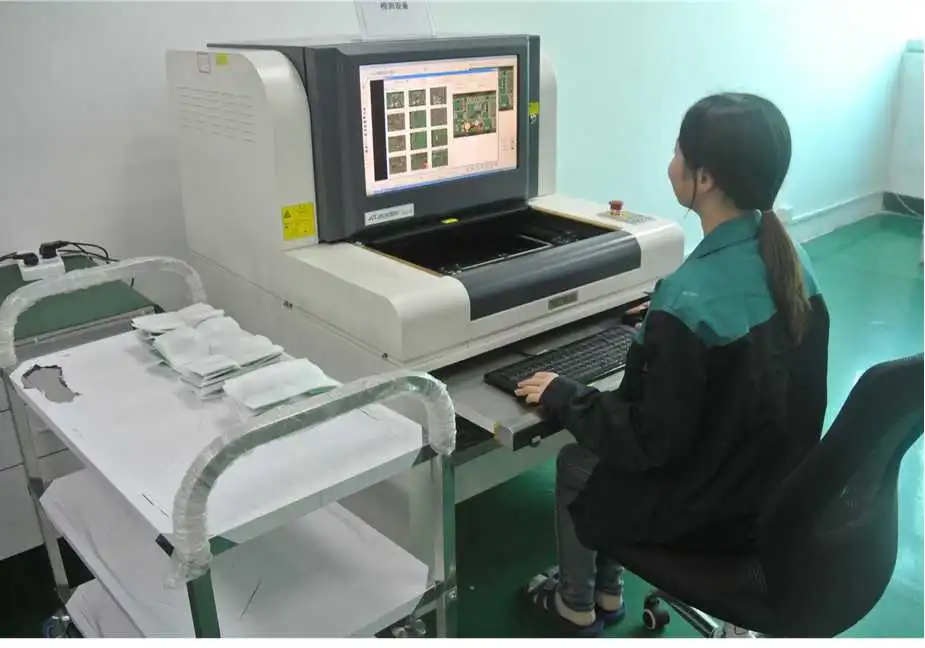

PCBA Automatic Optical Inspection Equipment:
ALD-620 type automatic optical inspection equipment, referred to as AOI, is based on the principles of optics, image comparison theory, statistical modeling principles of smart devices to detect welding defects on common problems encountered. AOI technology to detect the most representative of the three functions: fault, leakage, anti.

1. After the solder paste printing: printing process can be found in the defect, which will produce bad because the solder paste printing welding defects to a minimum. 2. reflow ago: most defects can be found from the solder paste printing and placement of the machine. 3. Reflow: bad ownership process can be detected at this stage, so there is no defect flows final customer.

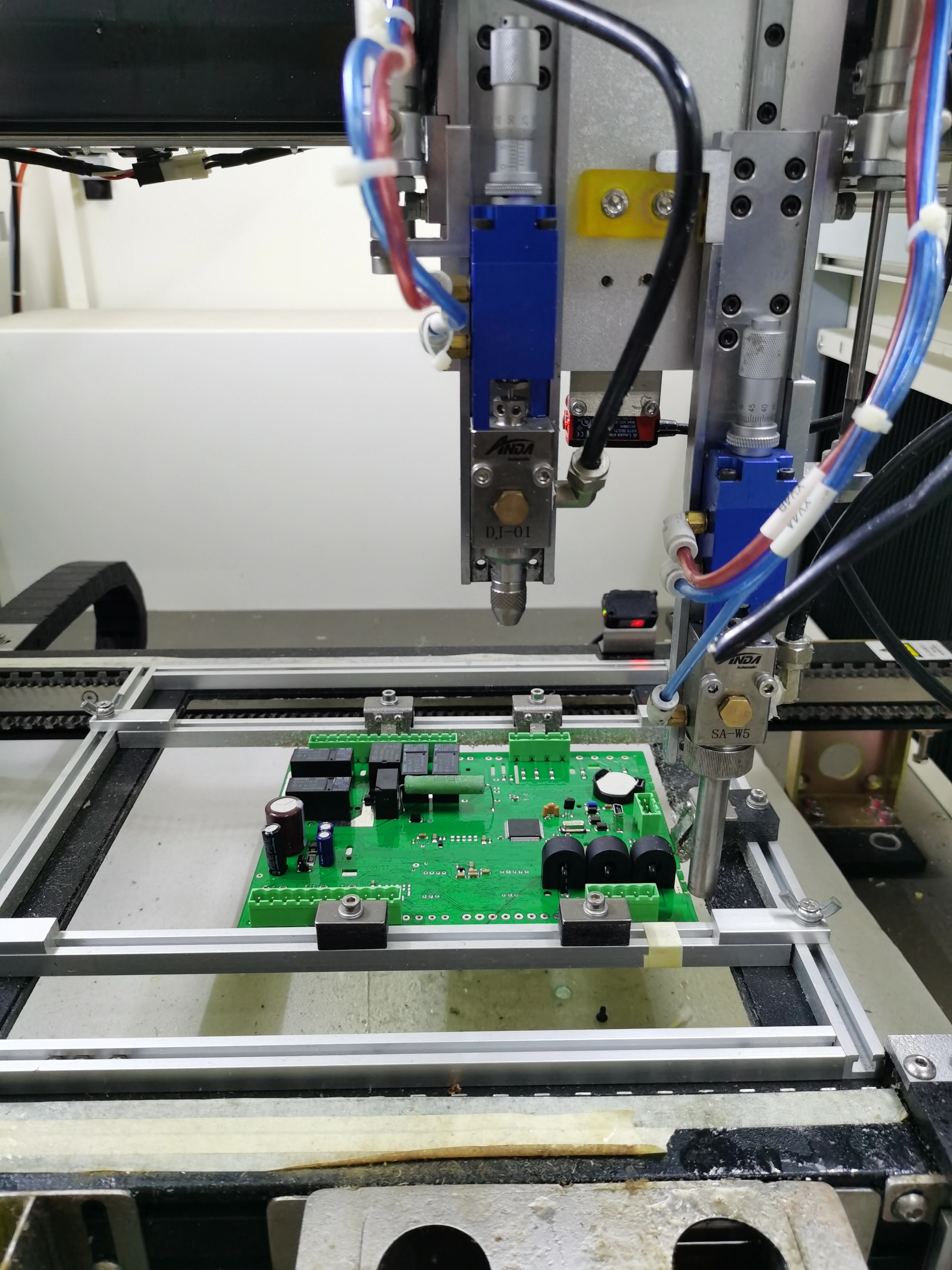

Rubber sealing machine:
In order to improve production efficiency, the company has introduced advanced glue injection machine, which not only improves the speed, but also makes the surface of glue injection more beautiful and even.

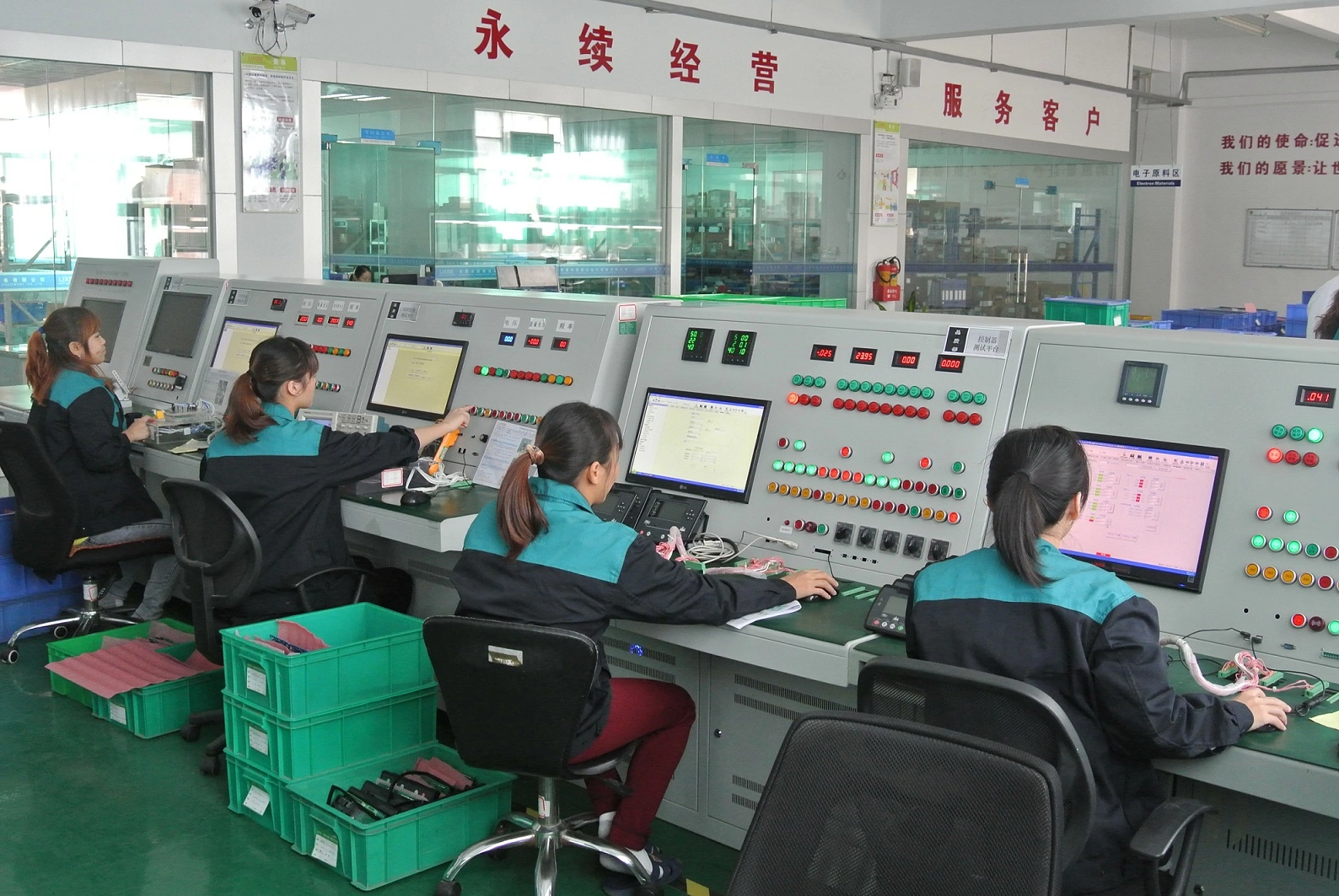

Simulation Test Platform:
Quality Department simulation test platform, according to the electric generator no-load, with load actual operating conditions, combined with various electronic parameters. Simulate the operation of the generator, test whether the electrical functions of the electronic products are effective, whether the performance is reliable and stable, such as: Start, stop sensitive and effective; low-frequency, high-frequency effective early warning; low-speed, high-speed Early Warning overspeed protection; The output voltage is stable, the speed is normal and so on. Through a series of anti-true test platform inspection, screen out unqualified products or early failure products.

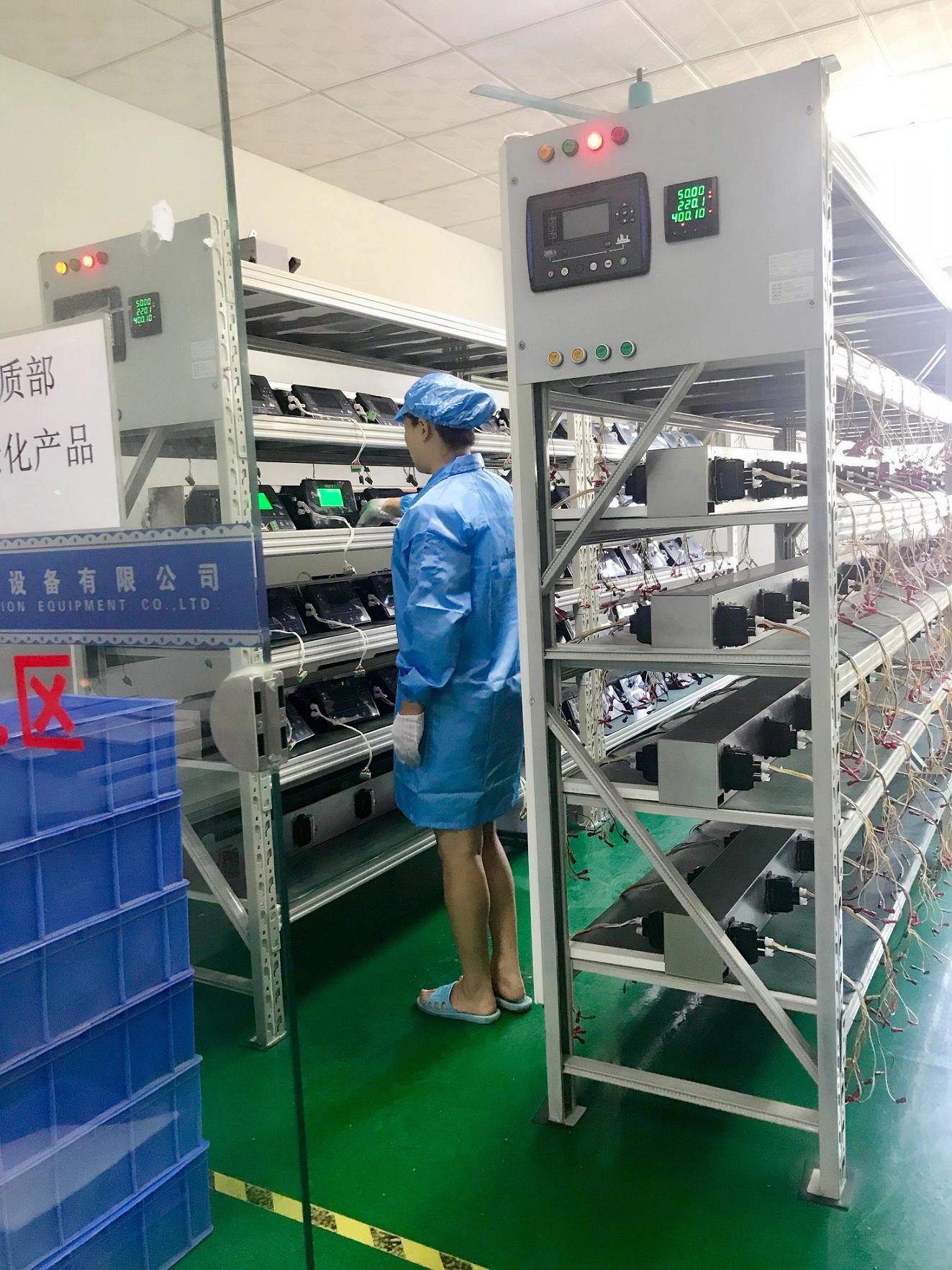

Workshop Goods Final Test Room:
Products be aging tested specially, such as Regulator Board(AVR) Seriees, Governor Series, Controller Series and so on. It simulating generator load works for 12 hours continuely,to test products' Electrical Property if reliable and stable , after continuous work in high temperature. (According to Aging Test of electronic components probable failure course of various reasons,unqualified items and early-failures will be filtered).




EXHIBITION
Our company takes part in Shanghai power exhibition every year. This well-known professional exhibition enables us to establish a happy relationship with customers from all over the world. Our products are exported to 30 countries and areas such as Southeast Asia, the Middle East and Africa, highly recommended by domestic and foreign customers.


Visting LIXiSE Controllers
Customers highly appraise the company's advanced
technology research and development ability, perfect production process and advanced testing equipment. More importantly, the
products are simple to operate and have complete functions, which attract customers to place orders and purchase on site.
technology research and development ability, perfect production process and advanced testing equipment. More importantly, the
products are simple to operate and have complete functions, which attract customers to place orders and purchase on site.
Remote control system i6 cloud
Customers highly appraise the company's advanced technology research and development ability, perfect production process and advanced testing equipment. More importantly, the products are simple to operate and have complete functions, which attract customers to place orders and purchase on site.
In the picture, Our customers are very interested in our remote monitoring system.
No matter anywhere in the world, as long as there is the network, you can use mobile phones or computers to monitor the operation
data of the generator set, control and manage the generator set remotely.
In addition to monitoring the basic information of the unit, it can also monitor the excitation voltage, the output voltage of the
electric regulation, the bearing temperature, the winding temperature, etc.
No matter anywhere in the world, as long as there is the network, you can use mobile phones or computers to monitor the operation
data of the generator set, control and manage the generator set remotely.
In addition to monitoring the basic information of the unit, it can also monitor the excitation voltage, the output voltage of the
electric regulation, the bearing temperature, the winding temperature, etc.

CUSTOMERS CAME FOR VISITING






Reply All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
High quality We always adhere to the refined and specialized production. management.Based on the 13 years technology accumulation,obtains many national patents.
Guarantee Guarantee:365 days after selled. During guarantee,the items share free repairs or replacement.
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? 1.Generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity. Q: What is your terms of payment ? 1.We accept alibaba order online, Alipay, West Union, TT. Cash. 2.All major Credit cards are accepted through secure payment processor ESCROW.
Our vision: Let the generator also enjoy a healthy life!
