EA05A柴油发电机备件通用自动电压调节器AVR
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:EA05A
- Name:16Amp AVR
- weight:0.45KG
- Current Output:16 ADC
- Soft Start Voltage:Ramping
- Current Compensation:Analogue Voltage Input
- Phase:1 phase
- current type:AC
- Usage:regulating voltage
- Product Name:generator avr ea05a
- Keyword:avr ea05a

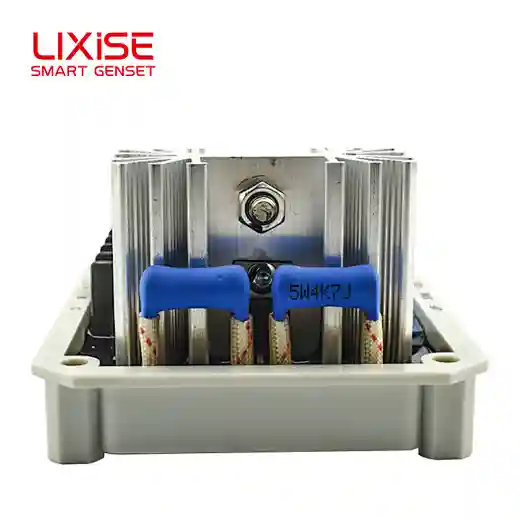

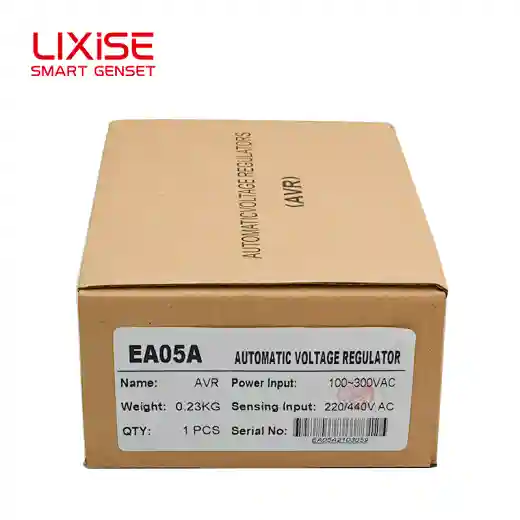

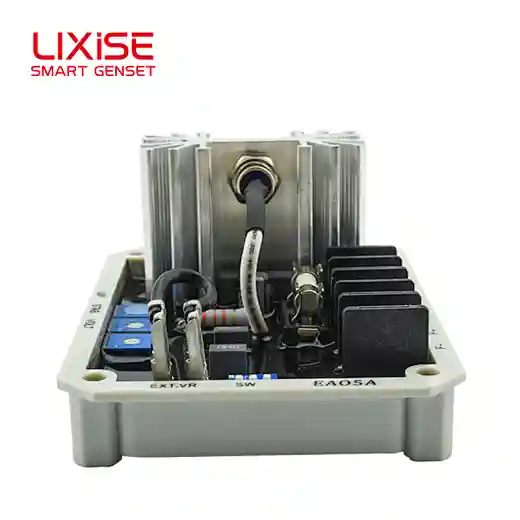

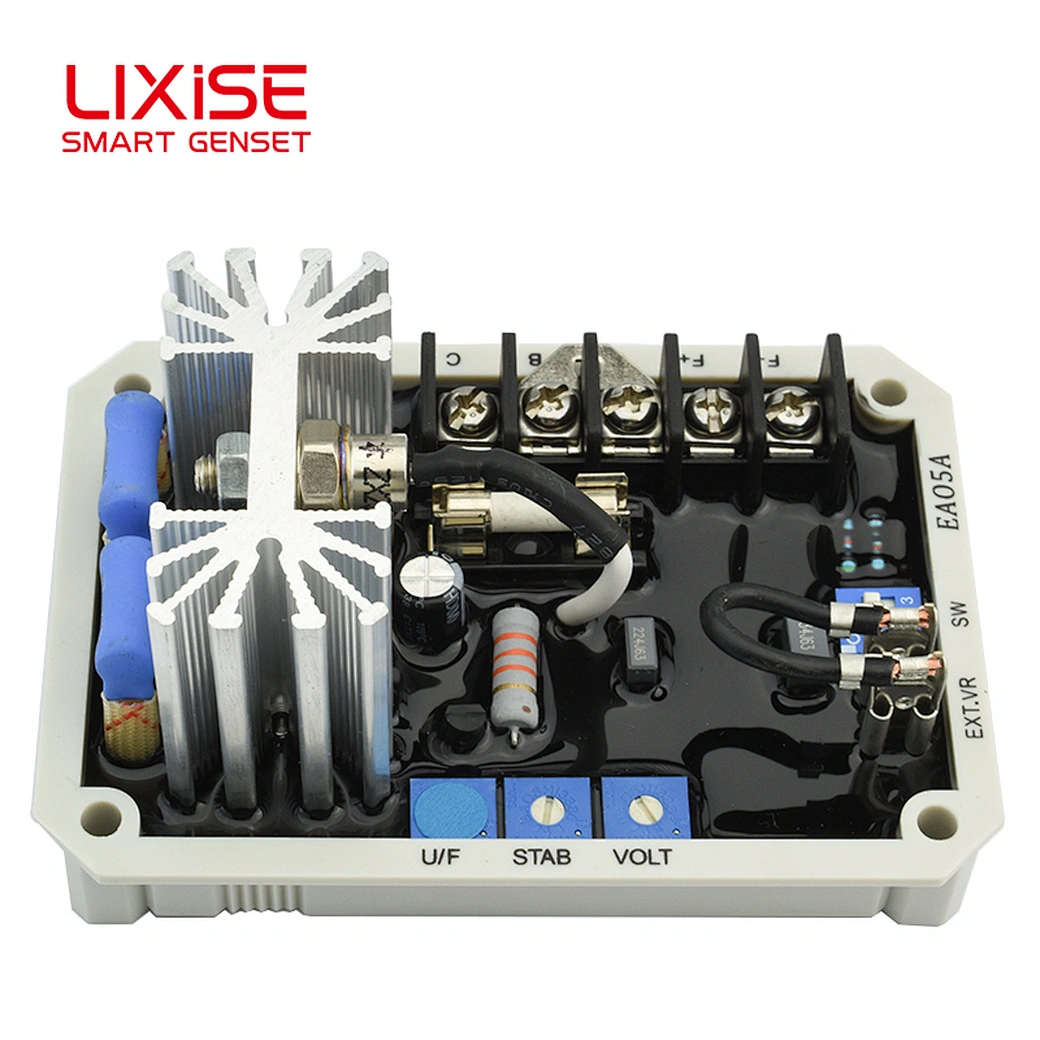

EA05A avr automatic voltage regulator for genset
- < ±0.5% Regulation
- Suitable for brushless type generator Sensing Input 170~510 VAC
- Can be used in Parallel Operation
- 16 ADC Current Output
- EA16 Suitable Frequency 50/60 Hz , EA16-400Hz Suitable Frequency 400 Hz
- Soft Start Voltage Ramping Load CT Current Compensation, Analogue Voltage Input
| EA05A | |
| Sensing Input | Voltage 220/380/440 VAC 1 phase 2 wire DIP switch selectable |
| Frequency 50/60 Hz DIP switch selectable | |
| Power Input | Voltage 100~300 VAC 1 phase 2 wire |
| Output | Voltage Max. 63 VDC @ 220 VAC input |
| Max. 90 VDC @ 240 VAC input | |
| Current Continuous 5A, Intermittent 7A for 10 sec | |
| Resistance Min. 15 Ohm Max. 100 Ohm | |
| Volts Regulation | < ±0.5% |
| Voltage Build-up | Residual volts at AVR terminal > 5 VAC |
| External Volts Adjustment | 7% with 1 K Ohm 1 watt trimmer |
| Unit Power Dissipation | Max. 8 watt |
| Soft Start Ramp Time | 3 sec |
| Thermal Drift | 0.03% per °C change in AVR ambient |
| Under Frequency Protection | 60 Hz system presets knee point at 55 Hz |
| 50 Hz system presets knee point at 45 Hz | |
| Environment | Operating Temperature : -40~70 °C |
| Storage Temperature : -40~85 °C | |
| Relative Humidity : Maximum 95% | |
| Vibration: 3G @ 100~2 KHz | |
| Dimensions | 101.0 (L) x 69.0 (W) x 49.5 (H) mm |
| Weight | 183g ±2% |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.

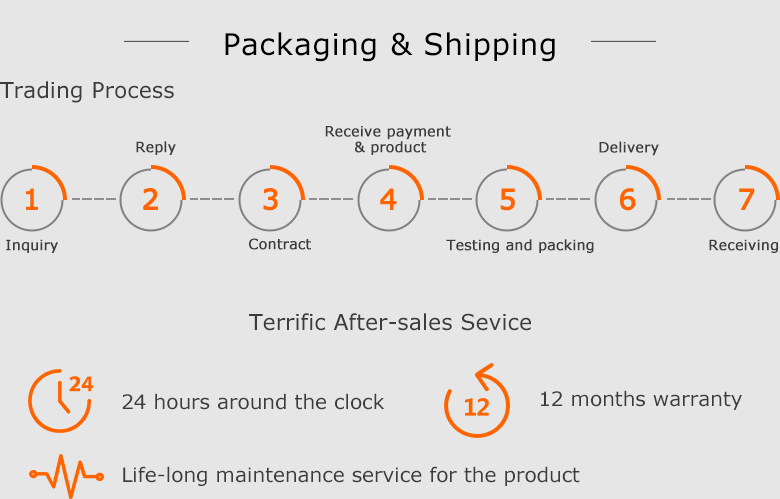

Shipment Term
