发电机 avr R450 交流发电机 avr kipor
- Warranty:1year
- Certification:ISO9001
- Place of Origin:Guangdong, China, Guangdong China(Mainland)
- Brand Name:LIXiSE
- Model Number:R450, R450
- weight:1KG
- purpose:brushless generator
- Size:21.5*15*6 cm
- Services:OEM
- delivery date:In stock
R450 AVR is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage.
On Application of load, the rotation speed of the generator set deceases, when it passes below the preset frequency threshold the LAM causes the voltage to drop by approximately13% or 25% and consequently the quantity of active load applied is reduced by approximately 25% to 45%, until the speed reaches its rated value again. Hence the LAM can be used either to reduce the speed variation (frequency) and its duration for a given applied load, or to increase the applied load probable for one speed variation (turbo-charged engine).

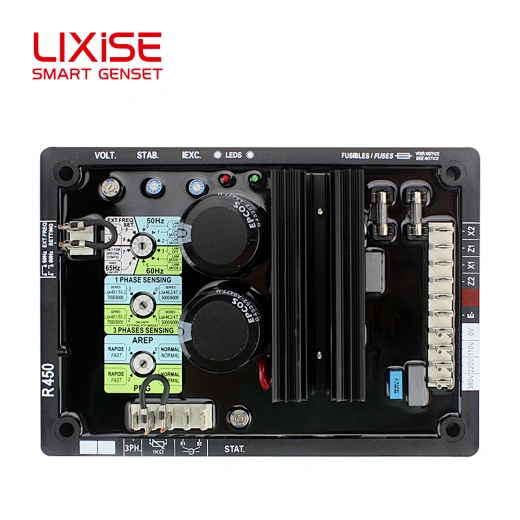

1. Leroy SomerAutomatic Voltage Regulator R450
2.Single or three phase voltage sensing with optional module.
3. Load acceptance module, PMG / AREP excitation system
4. Phase to phase voltage sensing.
5. Suitable for high levels of vibration and harsh environments
Main characteristics:
Voltage regulation +/- 0.5% at steady state and constant speed.
Control by transistor means that the regulation quality is independant of applied load.
Phase to phase voltage sensing.
Suitable for high levels of vibration and harsh environments.
Integrated"LAM"and"auto adaptative LAM"system to cope with load impacts applied to the engine
AREP or PMG excitation with normal or fast response.
Single or three phase voltage sensing with optional module.
Rotating switch facilitating selection.
| Voltage | 230± 2V |
| Voltage Steady Range | ± 1V |
| Starting Excitation Voltage | ≥1.5V |
| Loading Capacity | With 110% loading, the regulator can work normally |
| Output Voltage Steady on hot and cool condition | ≤2V |
| Temperature float on Output Voltage | ≤2V |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
