发电机速度控制单元 S6700H 备件发电机
- Warranty:3months-1year
- Certification:ce
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:S6700H
- weight:0.7kg
- purpose:brushless generator
- Environmental Relative humidity:95%
- Input Power Supply:24VDC
- Input Power Speed sensor signal:1-20v
- Characteristics Frequency fluctuation:± 0.25%
- Steady speed droop:0~3% (variable)
- Temperature drift:± 1% (maximum)
- Product Name:Governor Speed Control Unit
- Keywords:Engine Governor Speed
genset governor speed control unit s6700h

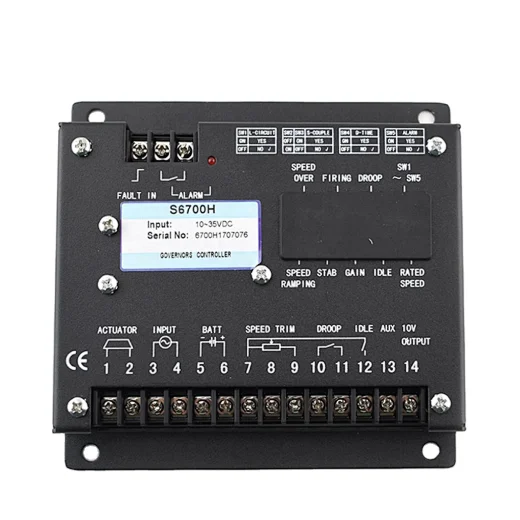

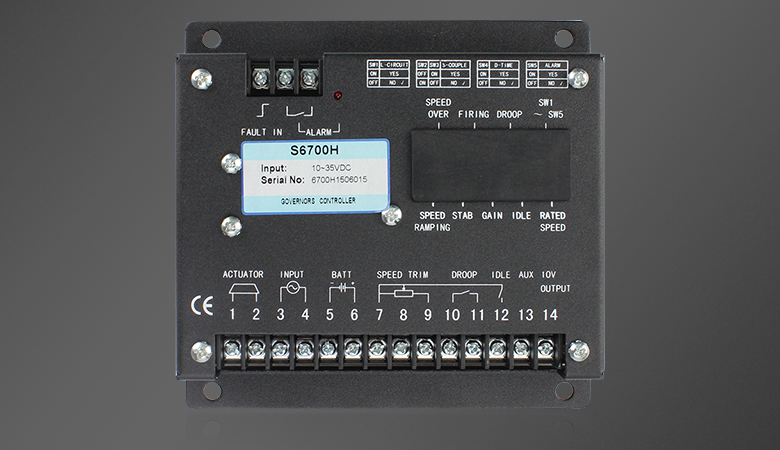

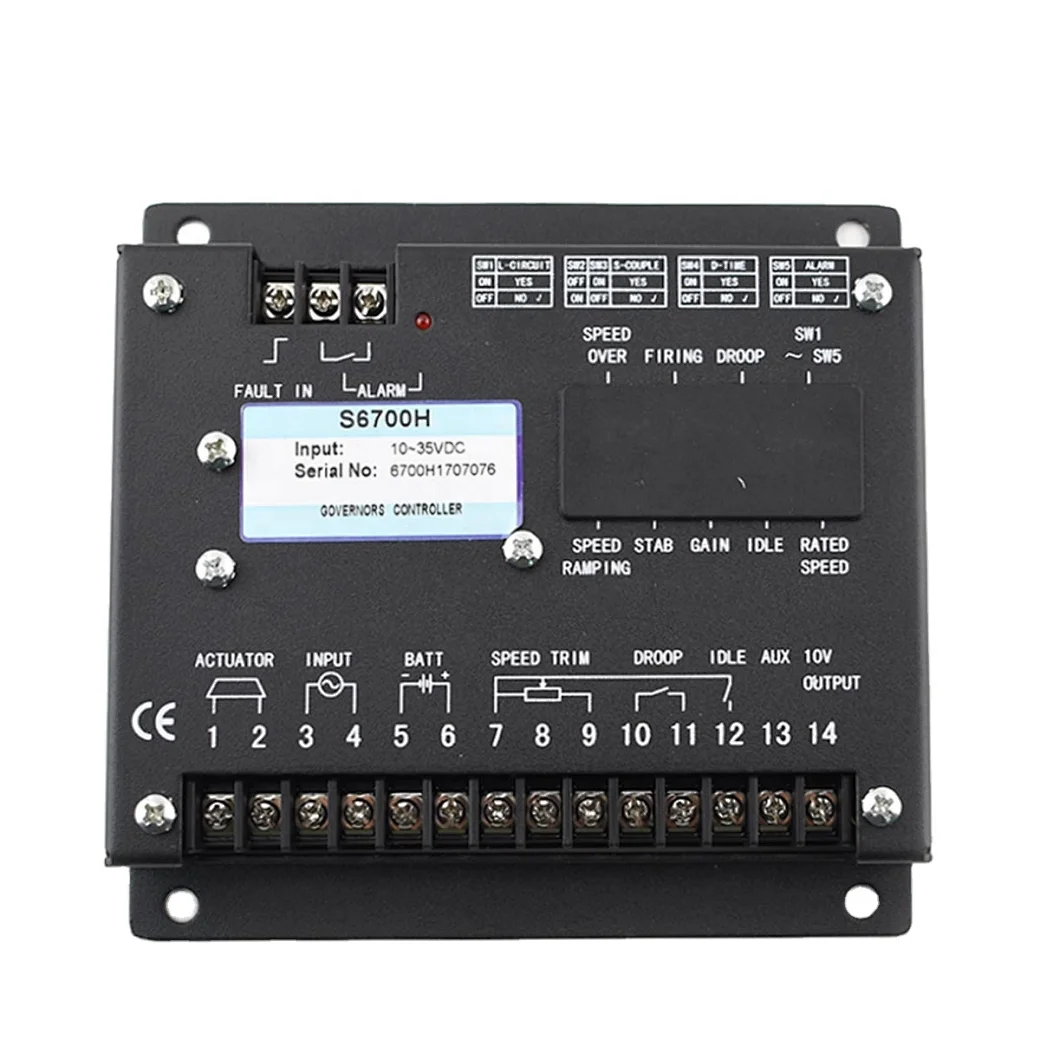

Photos:
The S6700H Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.
- Power reverse connection protection
- Actuator default protection
- Speed signal Lose protection
- Over-speed & External high Level input Alam
Specification
S6700H | ||
Environmental | Ambient operating temperature range | - 40 ~ 85 °C |
Relative humidity | 95% | |
Input Power | Supply | 24VDC |
Actuator current range | 2.5-10A(continuous) | |
Speed sensor signal | 1-20v | |
Characteristics | Speed fine adjustment range | ± 100% r / min |
Frequency fluctuation | ± 0.25% | |
Steady speed droop | 0~3% (variable) | |
Temperature drift | ± 1% (maximum) |
MOVE ADVANTAGE | |||
sales | 4000pcs/month | the fastest transit time | 2days! |
inventory situation | a lauge number of stocks | operational advantages | easy for operation |
production cycle | 1~3days | Service | answer all of your questions within 1day |
