LIXiSE 工厂供应 M16FA655A AVR 自动电压调节器用于无刷发电机
- Warranty:1 year
- Certification:ISO9001
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE
- Model Number:M16FA655A
- Current:5A
- weight:0.35kg
- BODY SIZE:15*9*4cm
- OEM Service:yes
- purpose:brushless
- Certificate:ISO9001
- stock:yes
- Guarantee:1 years
- Usage:brushless generator
- phase:3 phase

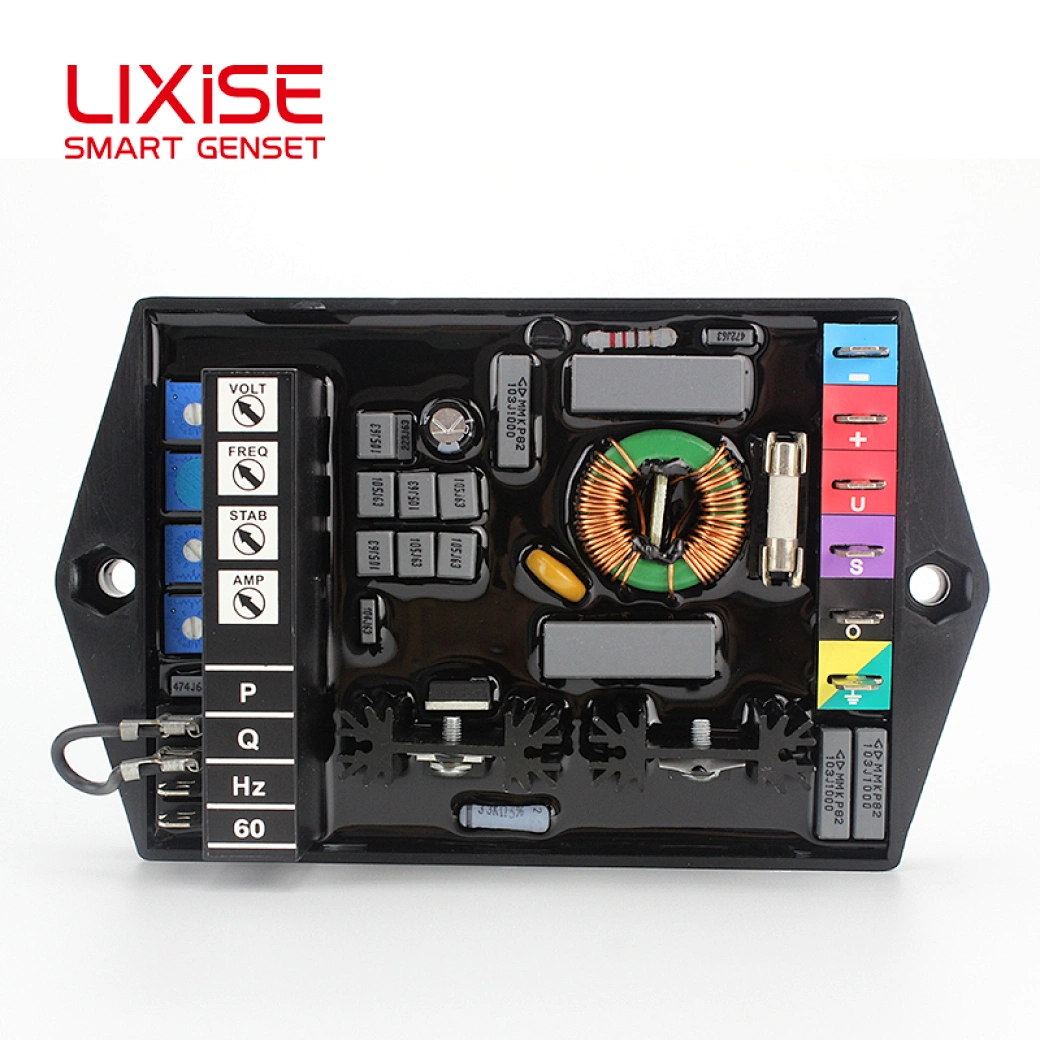

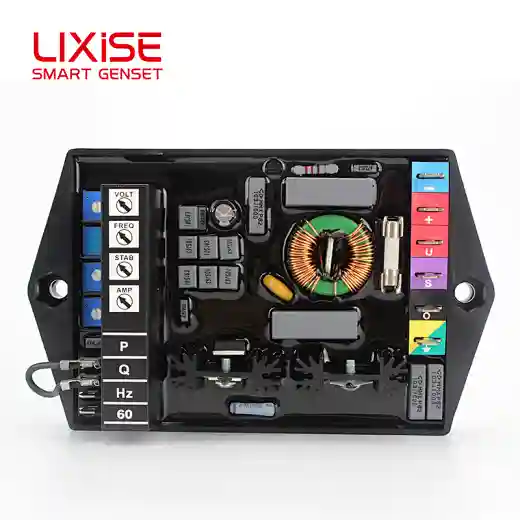

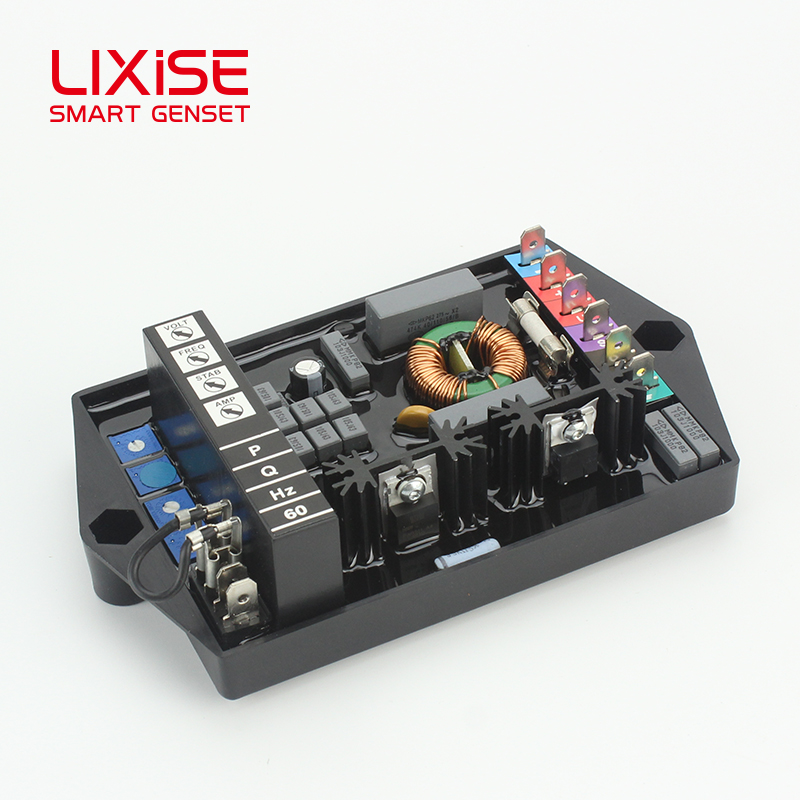

Marelli AVR M16FA655A automatic voltage regulator
M16FA655AAutomaticVoltageRegulator is developed by Marelli suitable for Three-phase Synchronous Generators. Which is provided with internal circuits in order to reduce the excitation, when running at low speed, in order to avoid damages to the excitation system of the generator.
1. Marelli Automatic voltage regulator
2.The voltage regulator type"MARK V", is suitable for Synchronous Generators of
MARELLI MOTOR make
3.Fully insulated in order to maintain high reliability also with severe ambient
Conditions (high level of humidity, dust, salt atmosphere), and in case of
high vibrations level
4.Proper both for single and 3-phase generators
| Power supply voltage | 170÷277 V | ||
| (±10% of range tolerance, 50/60Hz) | |||
| Voltage sensing (single-phase) | 170÷277 V | ||
| (±10% of range tolerance, 50/60Hz) | |||
| Maximum continuative field current | 5 A | ||
| Maximum forcing field current (1 minute) | 8A | ||
| Maximum field voltage | 100 V | ||
| Field resistance | 8 Ω ÷ 20 Ω | ||
| Regulation accuracy | ±0.5 % | ||
| (steady state conditions, rated, balanced and non deforming load, constant frequency) | |||
| Thermal Drift | ±0.5 % | ||
| (% voltage change for 50°C change from Tamb, after 10 minutes) | |||
| Response time | 1 cycle | ||
| Operating temperature | -30°C / +70°C | ||
| Weight | 320 g | ||
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
