External voltage adjustment:+/-10% with 1k ohm 1 watt trimmer

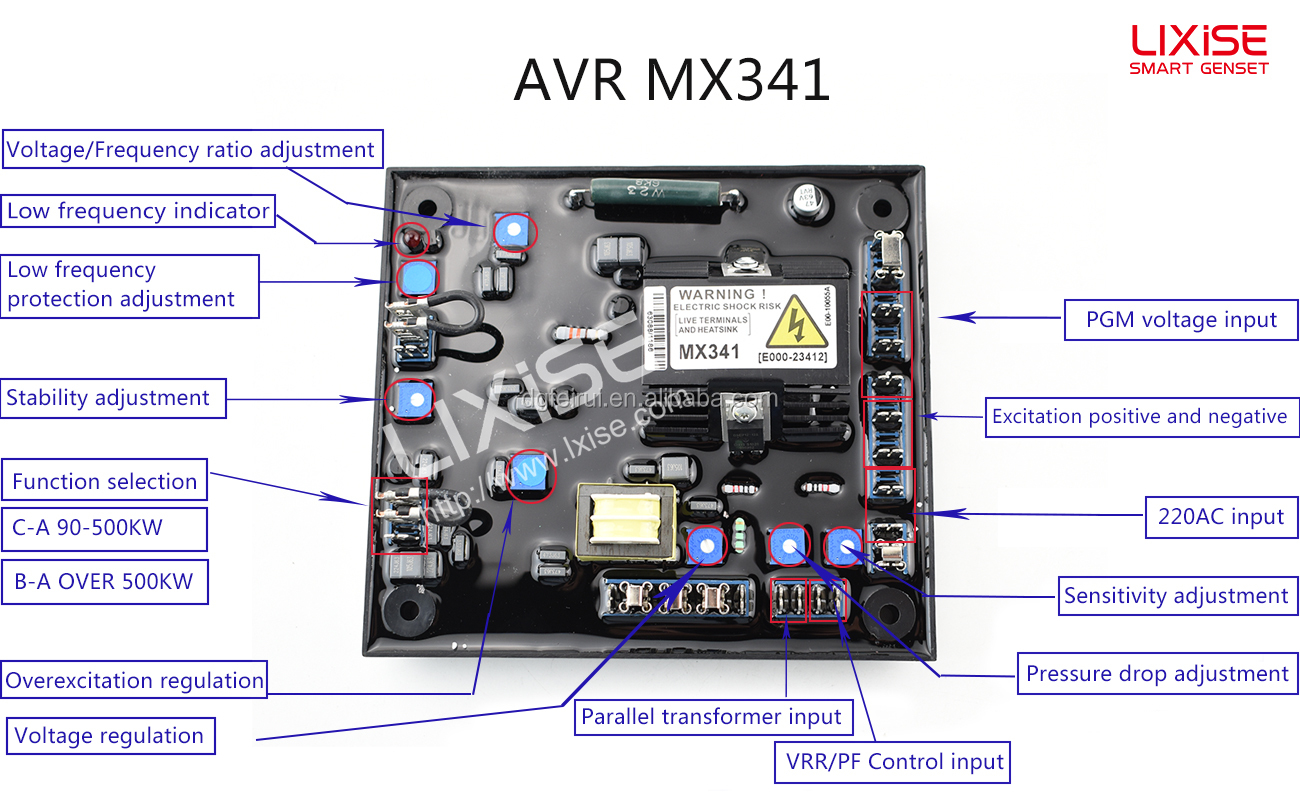

parts of voltage stabilizer MX 341 thyristor voltage regulator
2.Stability selection & adjustment 3.Under frequency roll off adjustment 4.two phase sensed brushless avr
Automatic Voltage Regulator MX341 used for brushless generator sets ISO9001 Quality System Certification

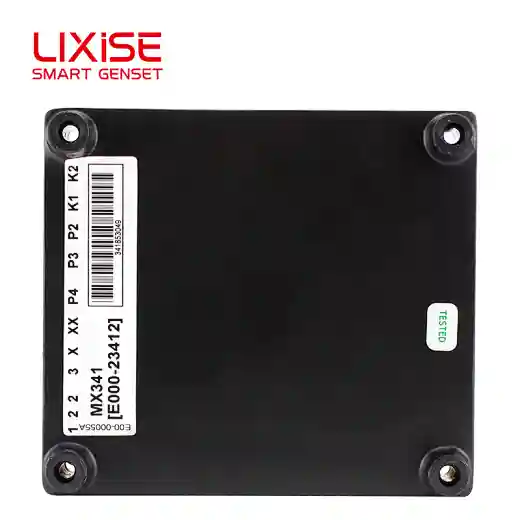

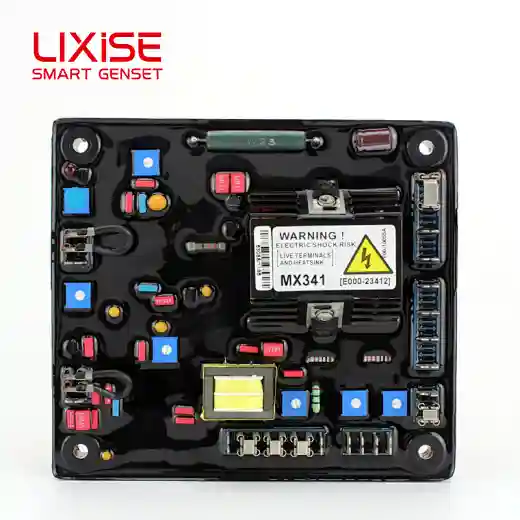

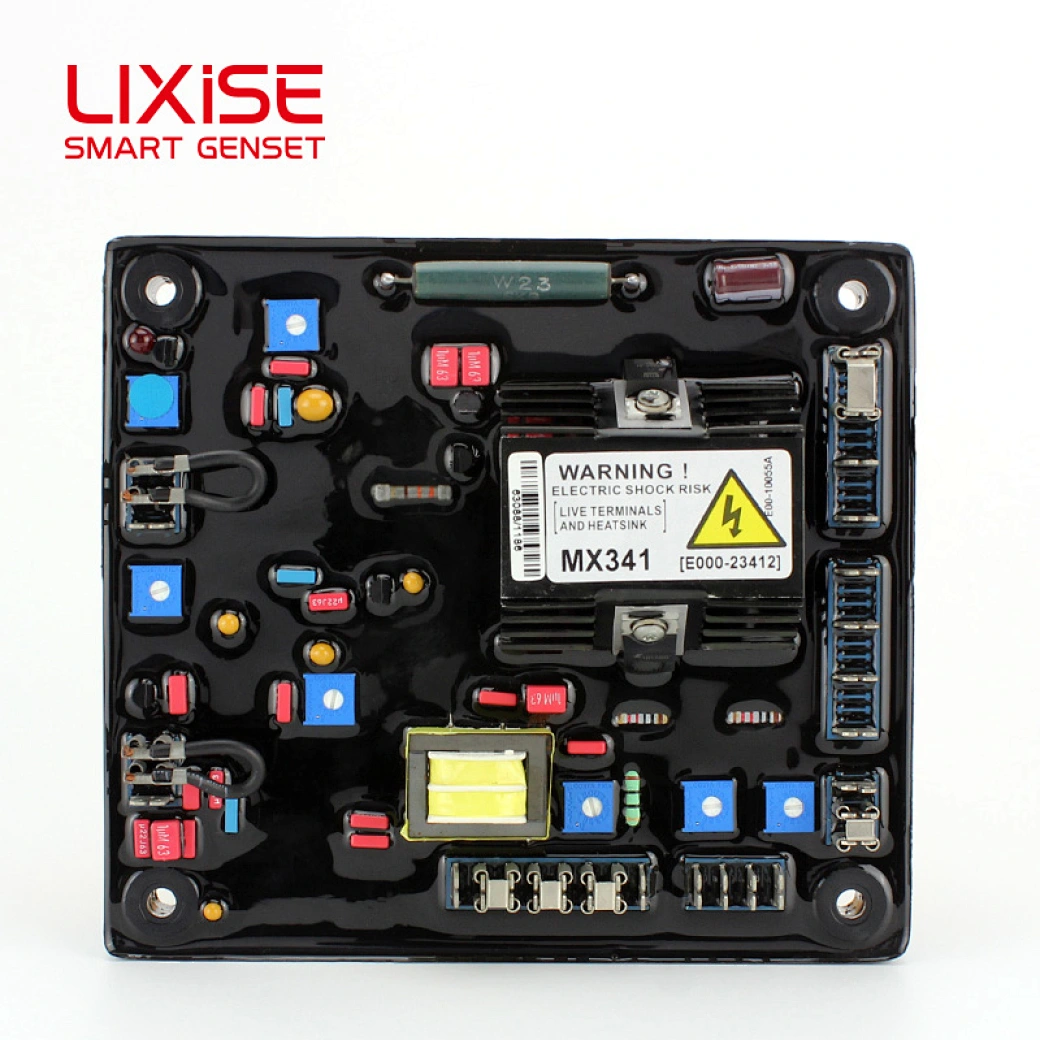

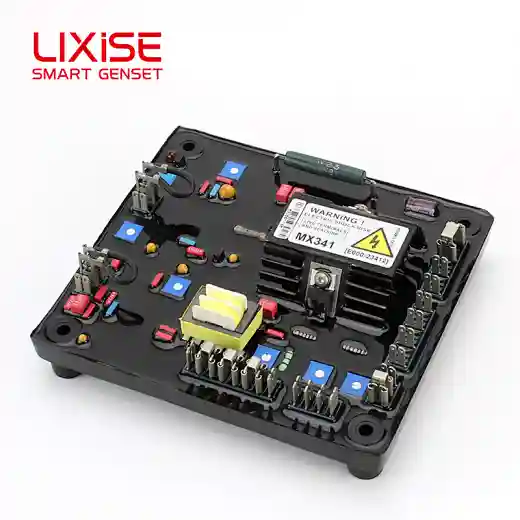

Automatic Voltage Regulator MX341
MX341 Automatic Voltage Regulator
avr for generator Be applicable for separated excited alternator, brushless generator with the frequency of 50H
1. Technical specification:
190-264V ac max, 1 phase, 2 wire
50-60 Hz nominal
140-220V ac max, 3 phase, 3 wire
100-120 Hz nominal
Max 120V dc
Continuous 2.7 A Intermittent 6A for 10 secs
15 ohms minimum
0.02% per Deg. C change In AVR ambient
0.03% per Deg. C change In AVR ambient
Soft Staret Ramp Time
Typical system response
Filed current to 90%
Machine Volts to 97%
External voltage adjustment
+/-10% with 1k ohm 1 watt trimmer
Under frequency protection
170% down to 30 Hz
Unit power dissipation
12 watts maximum
+/- 5 Vdc
1v for 5% Generator Volts (adjustable)
Quadrature Droop Input
10 ohms burden
Max. sensitivity: 0.22 A for 5% droop 0PF
Max. sensitivity: 0.07 A for 5% droop 0PF
Max. input: 0.33A
100Hz – 2kHz, 3.3g
-40 to +70 Deg. C
Relative Humidity 0-70 Deg. C
-55 to +80 Deg. C
* Biogas Power Generation
*Natural Gas Power
the fastest transit time
a lauge number of stocks
easy for operation
answer all of your questions within 1day
Packaging & Shipping
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
