4914090 柴油发电机发动机电子调速器速度控制单元
认证：ce
原产地：中国广东
品牌名称：LIXISE
型号：4914090
重量：0.5kg
产品名称：发电机调速器
机身尺寸：14.5*11.2*14.8cm
速度范围：1KHz~6.5KHz
RPM稳定性：
震动：25HZ 2mm
电源：负极
服务：OEM
关键词：发电机调速器4914090
注：如果内容中提到了其他制造商的名称和型号，说明仅供参考，本产品不是原创产品，但可以与他们兼容
4914090水轮机调速器测试仪4914090

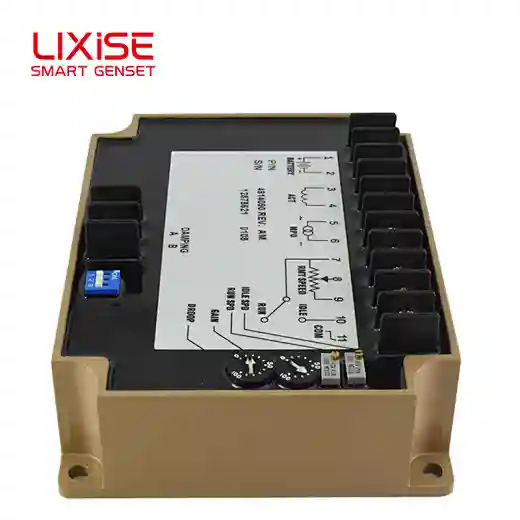

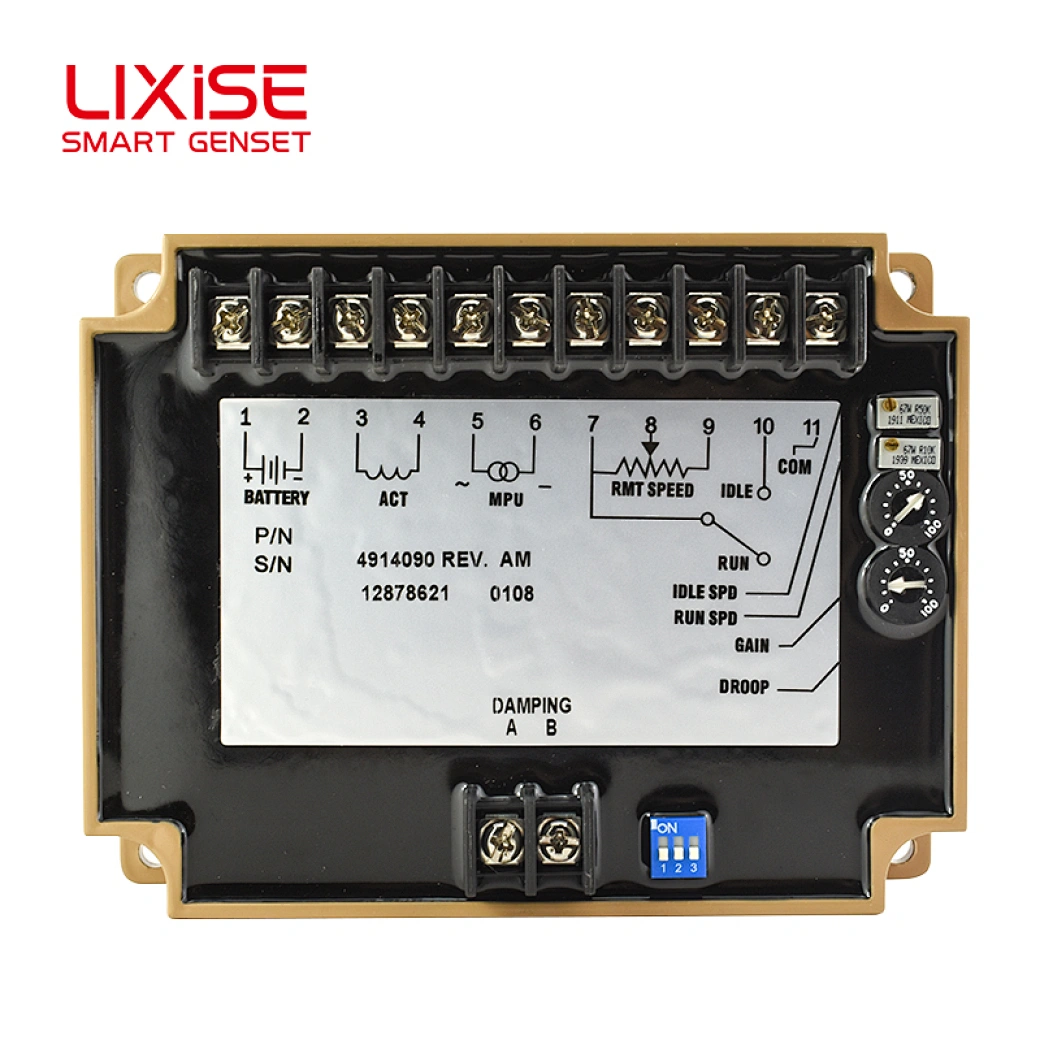

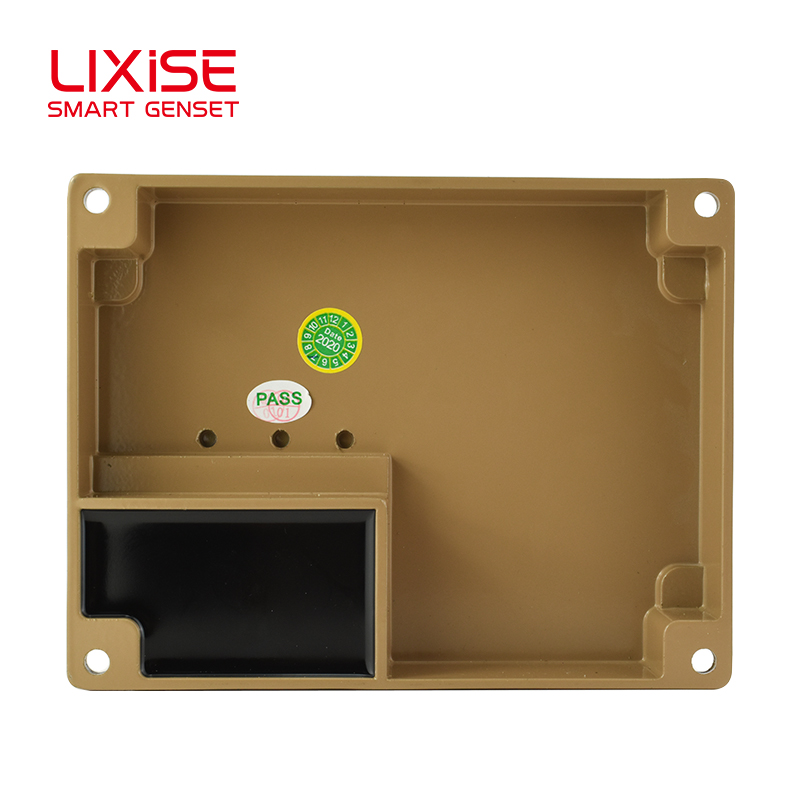

Photos:
说明：
应用程序功能
A.排烟量小，噪音小
满足环境保护和人民生活的需要
感觉
B.在寒冷、高原和Ww压力区容易启动，
特别适用于N-G-250kw和K-G-300kw机组。
C.抗干扰能力强大功率对讲机稳定工作·
D.执行机构在短路的情况下不会因以下原因而损坏
输出保护器。
E.带水泵凸轮的柴油机以wad启动，凸轮每分钟转数的范围为±600，即1000-1200rpm。
规范
调速器的油阀完全
打开，如果增压器低速且带少量
空气输入，因此很难点燃燃料，也不能
完全点燃并有浓烟排出。它的转速为400-1200rpm，需要3-5或10-20分钟
加速。
如果我们减少油的输入，它可以很容易地启动。启动后，增加油量，转速和柴油发电机温度将逐渐升高。因此，烟雾位移是Ww，并且噪声是柔和的。
机组启动后的操作和使用与其他调节器相同。
操作方法A.外观特征：与其他监管机构相同。
B.切换：当3个开关都向下切换时，启动后进行切换，可以立即加速，同时分别向上切换。它可以分别在5'、10'、15'内加速。
如图所示（7-10无法连接提示开关）。时间越需要烟越细，越容易启动。
C.启动开关振动的持续时间有点摇晃。。。
在加速过程中，如果有位移行程和位移黑烟，请调节GAIN。
D.如果机组采用自启动
| 4914090 | |
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 6.5KHz |
| Thermal Stability: | Max ±0.7% |
| IDLE Regulation: | 260 ±20Hz |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
| Maximum: 400Hz ±75Hz/ 1 Amp | |
| External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
| AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
| Impedance: | 1MΩ |
| ENVIRONMENT: | |
| Working Humidity Range: | Maximum 95% |
| Environment Temprature: | -15 ~ 55 °C |
| Shocking: | 25HZ 2mm |
| INPUT POWER SUPPLY: | |
| Voltage: | 24V DC |
| Grounding Pole: | Negative pole |
| Power Supply: | Negative pole |
| Actuator Continuous Current: | Maximum 2.5A |
| insulating strength | ≥500MΩ |
Governor Series ---------
| Usage |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |

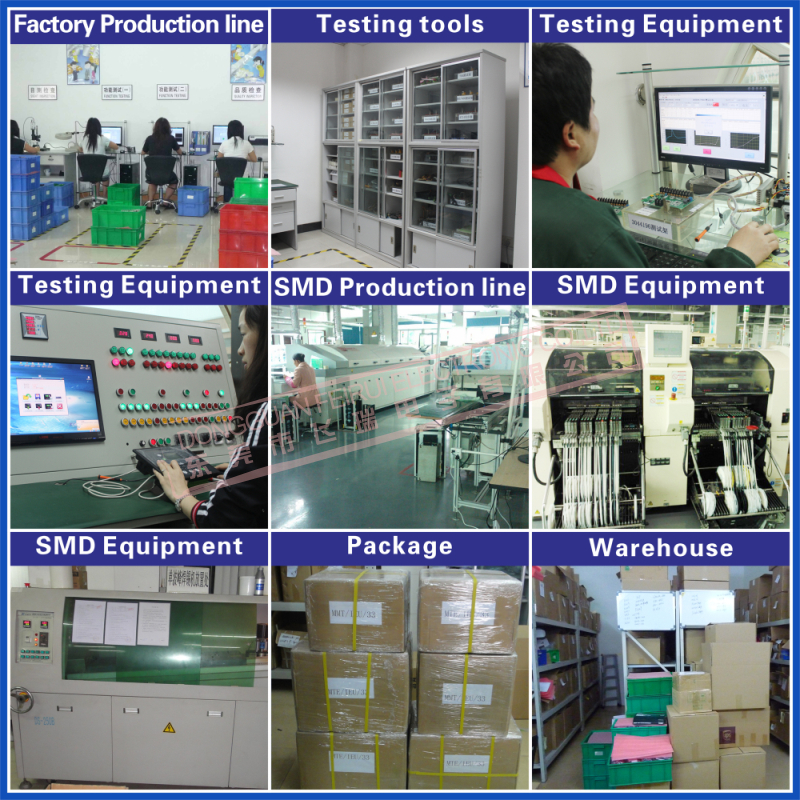

Why Choose Us? ---------
| Advantages In Technology and Materials | compatible governor | compatible governor |
| Semiconductor power devices | 41A High Current MOSFET and low internal resistance of the diode | 40A High Current MOSFET and low internal resistance of the diode |
| Main power resistors | The United States DELAS original high-precision current sense resistor | The United States DELAS original high-precision current sense resistor |
| Adjusting potentiometer | U.S. BOURNS original | U.S. BOURNS original |
| Chip capacitors | All Japanese TDK | All Japanese TDK |
| Glue | PU environmental protection, at the same time does not change the electrical properties of high-temperature and high-temperature characteristics | PU environmental protection, at the same time does not change the electrical properties of high-temperature and high-temperature characteristics |

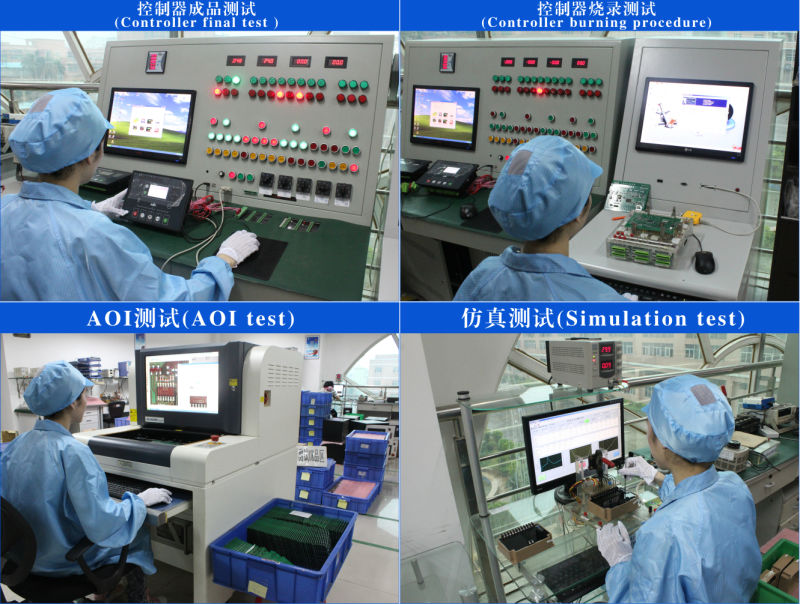

| More Features | After the the strict fully functional and performance testing, and high-temperature aging, each batch of test reliability ratio of 4%. The parameters of each board are rigorously tested and adjusted, fully compatible with original products | After the the strict fully functional and performance testing, and high-temperature aging, each batch of test reliability ratio of 3%. The parameters of each board are rigorously tested and adjusted, fully compatible with original products |
More advantages | ||||
| Sales | 4000PCS/month | The fastest transit time | 2days | |
| Inventory situation | A large number of stocks | Operational advantages | Easy to operate | |
| Production cycle | 1~3days | Service | Answer all your questions within 1 day | |
