调压板
- Warranty:3months-1year
- Certification:CE
- Place of Origin:Guangdong, China
- Brand Name:LIXiSE

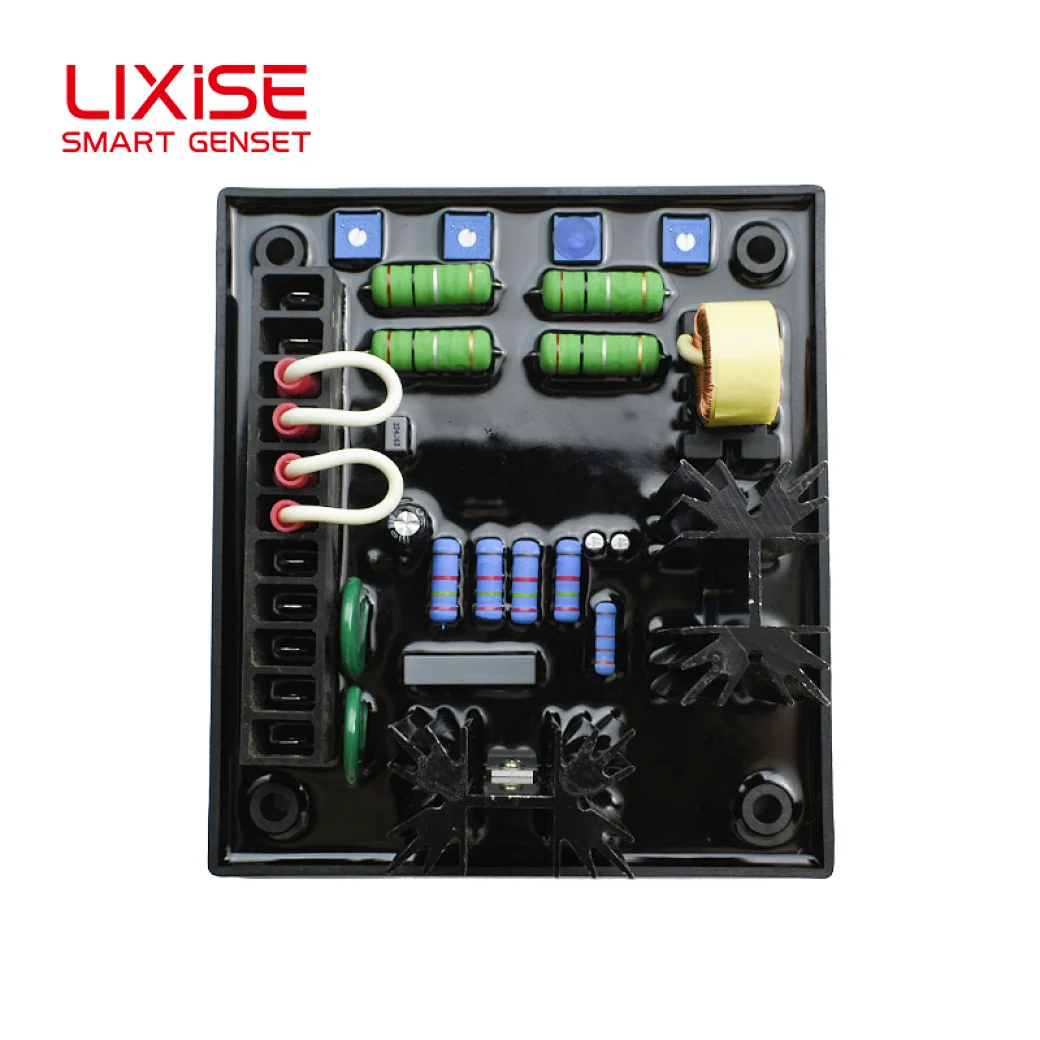

- Model Number:AVC63-7
- Weight:0.5kg
- Purpose:generator
- Certificate:ISO9001
- Services:OEM
- Packaging Details:Standard carton,size of carton:52x38x42cm,17.5x12.5x8cm,45PCS/carton
- Power Input Voltage:180~240VAC, 1phase 2wire
- Unit Power Dissipation:Max.8Watt
- Input Sensing Voltage:220/400VAC,1phase 2wire
- Package:Catron box
- Guarantee:365 days

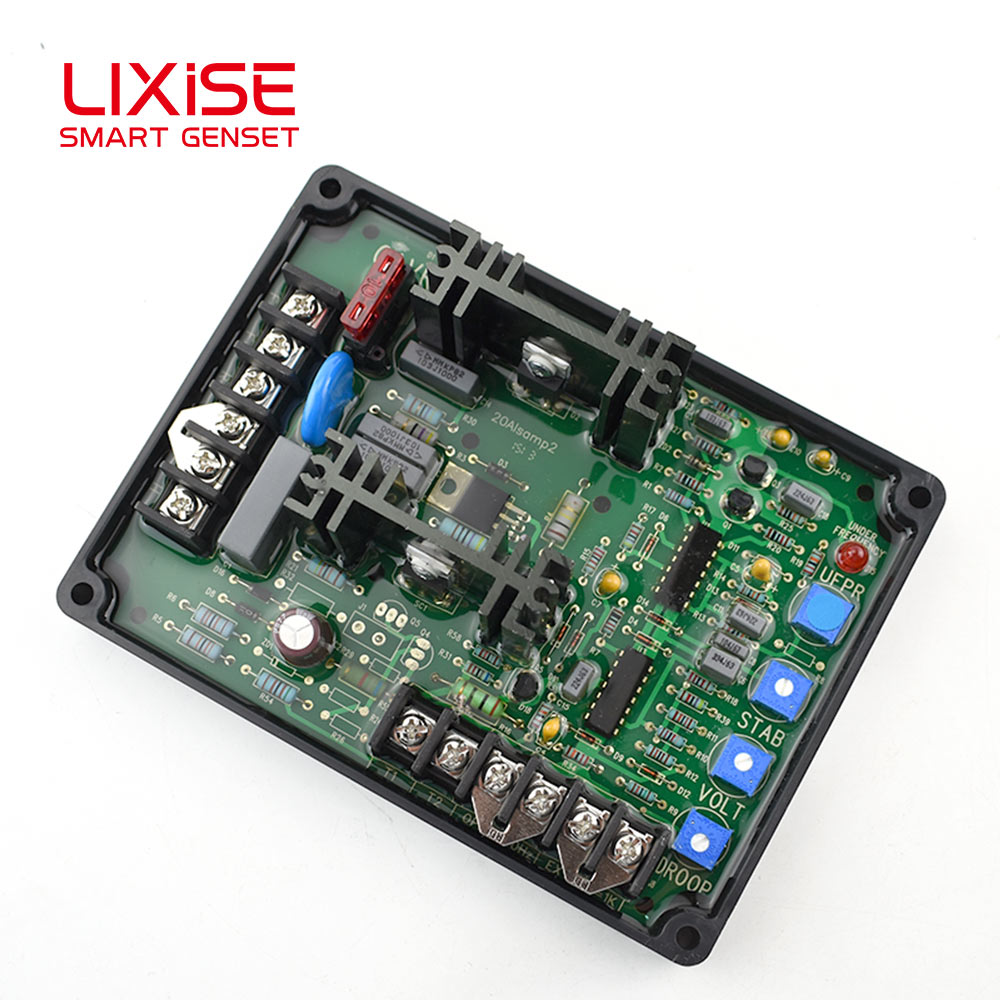

avr electrical automatic voltage regulator gavr8a
GAVR-8A is Universal 8 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
*SensingInput Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 6A for 10SEE
Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal>5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
| GAVR-8A | ||
| Input | Sensing Voltage | 220/400VAC,1phase 2wire |
| Power Voltage | 180~240VAC, 1phase 2wire | |
| Voltage Jumper selectable | 95-132V ac or 190-264 Hz nominal | |
| Frequency | 50-60 Hz nominal | |
| Output | Voltage max | 90V dc at 207V ac input |
| Current continuous | 2A dc | |
| Current intermittent | 5A for 10 secs | |
| Resistance | 20 ohms minimum | |
| Voltage Build-up | esidualvolts at AVR teminal>5VAC | |
| External volts adjustment | +/-7%with 1KΩ 1watt trimmer | |
| Unit Power Dissipation | Max.8Watt | |
| Under Frequency Protection | 60Hz system presets knee point at 57Hz | |
| Factory Settings | 50Hz system presets knee point at 47Hz | |
| Body size | 15.7*11.5*6cm | |
| Apply |
| * Biogas Power Generation |
| *Natural Gas Power |
| *Field Engineering |
| *Electric Power |
| *Factory |
| *Fire-fighting |
| MOVE ADVANTAGE | |||
| sales | 4000pcs/month | the fastest transit time | 2days! |
| inventory situation | a lauge number of stocks | operational advantages | easy for operation |
| production cycle | 1~3days | Service | answer all of your questions within 1day |
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
