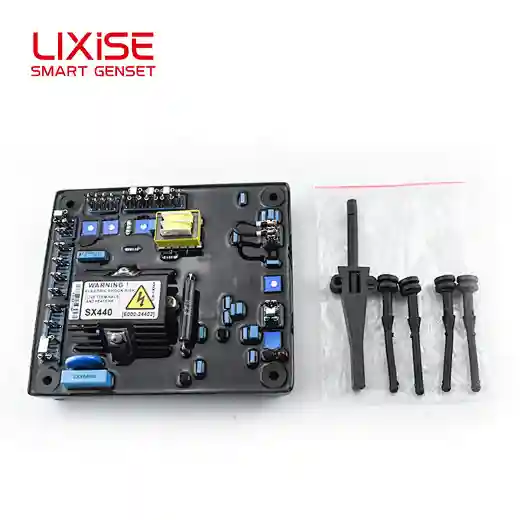

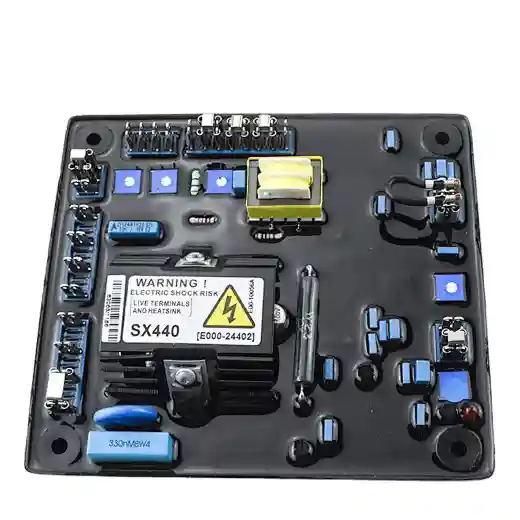

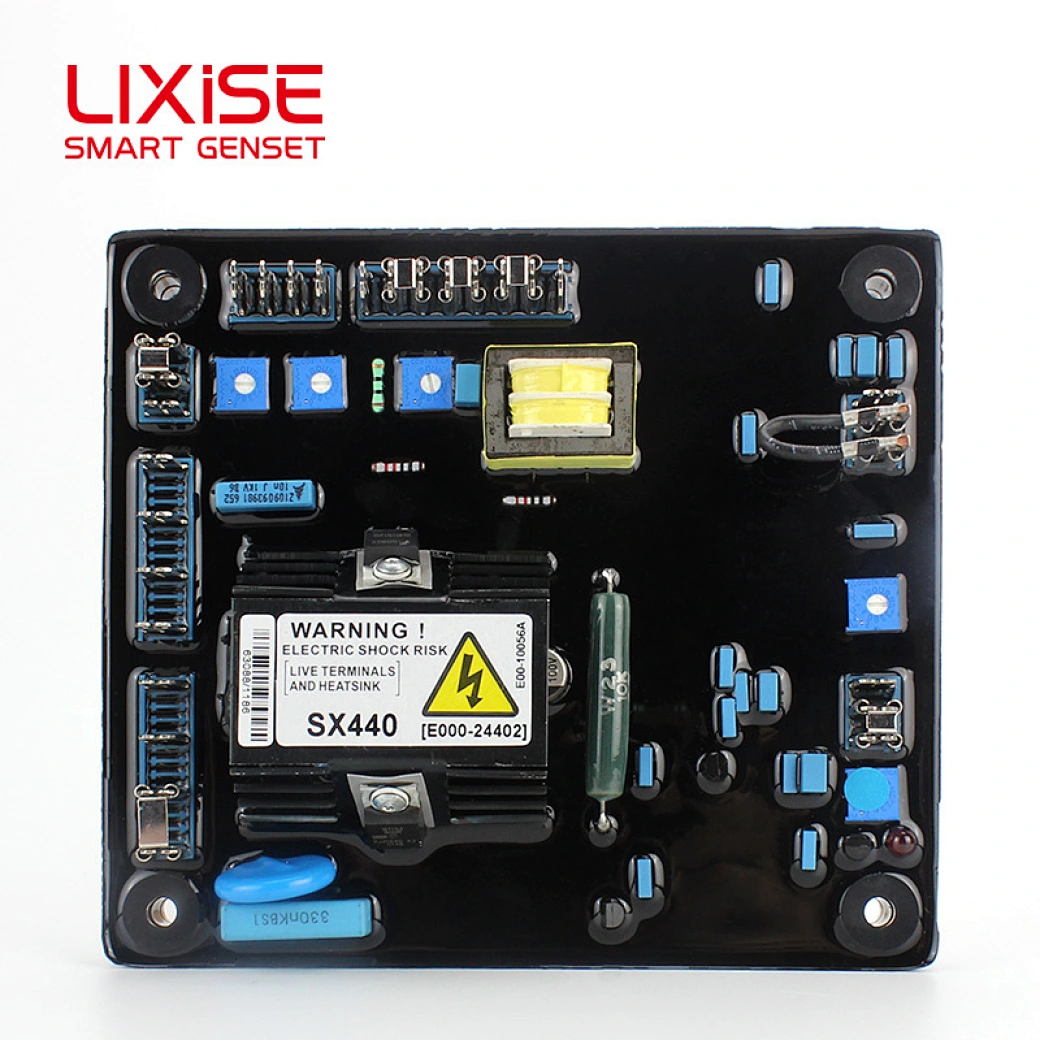

SX440 brushless 3 phase Generator automatic voltage regulator
SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator
The Propose employs surface mount technology (SMT) for high integration of features in a minute footprint AVR. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. The control and voltage sensing circuits have separate terminals, allowing the excitation power to be resulting directly from the stator winding for necessary applications or from an auxiliary winding if sustained short circuit performance is essential. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1%
*Under frequency roll off adjustment
* Trim adjustment
* Optimum response selection
* Droop adjustment
50-60 Hz nominal
max 90V dc at 207V ac input
continuous 4A dc, intermittent 6A for 10 secs
15 ohms minimum
0.04% per deg. C change in AVR ambient
Typical system response
Filed current to 90%
Machine Volts to 97%
External voltage adjustment
+/-10% with 1 k ohm 1 watt trimmer
Under frequency protection
170% down to 30 Hz
Unit power dissipation
12 watts maximum
Build up voltage
4 Volts @ AVR terminals
1v for 5%
Quadrature Droop Input
10 ohms burden
Max. sensitivity: 0.07 A for 5% droop 0PF
Max. input: 0.33A
100Hz – 2kHz, 3.3g
-40 to +70 Deg. C
Relative Humidity 0-70 Deg. C
-55 to +80 Deg. C
the fastest transit time
a lauge number of stocks
easy for operation
answer all of your questions within 1day
