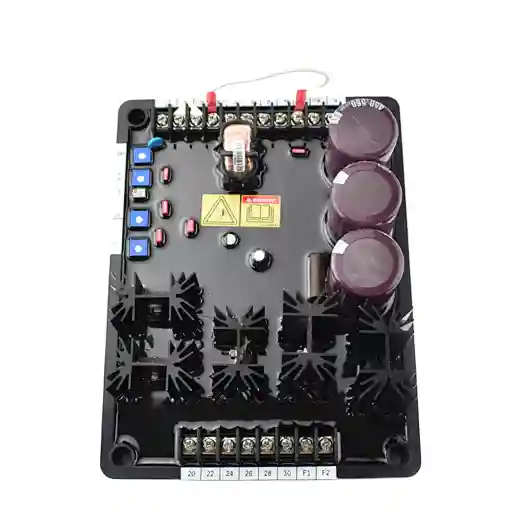

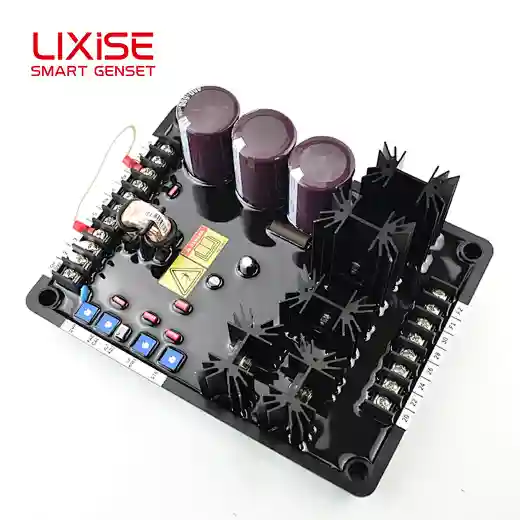

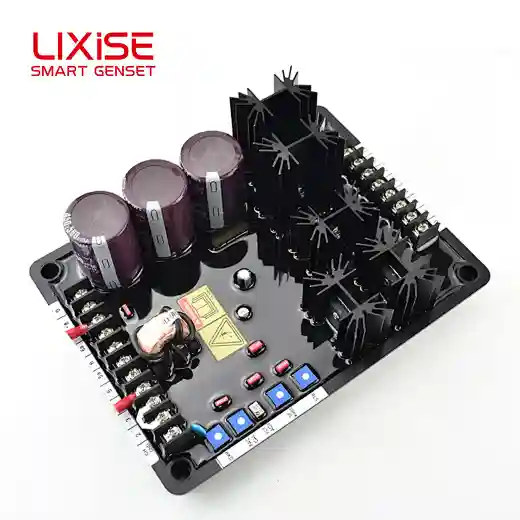

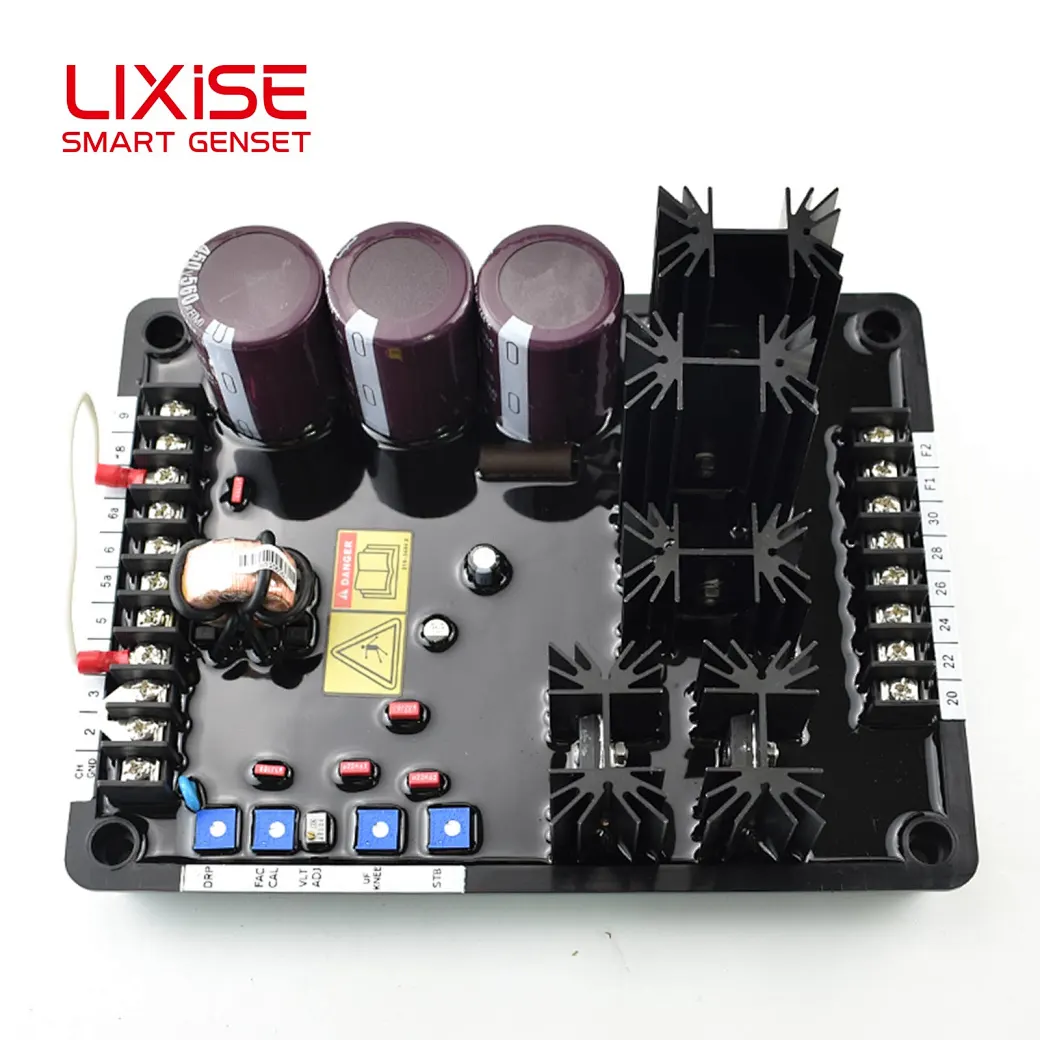

The AVC125-10B1 Voltage Regulator is contained in an encapsulated plastic case.
Sensing: 220VAC; Output: 10A/125V.
For 50 or 60 Hz brushless generators.The regulator includes frequency compensation with selectable slope, inverse time over-excitation shutdown, solid-state build-up circuitry, single-phase or three-phase voltage sensing, single-phase or three phase shunt, or permanent magnet power input, and parallel droop compensation, and an accessory input. The accessory input provides compatibility with accessories such as a var/power factor controller.
The AVC125-10B1 regulate the level of excitation supplied to the field of a conventional,brushless, synchronous generator. Regulation is achieved by sensing the generator output voltage,converting it to a dc signal, and comparing the signal to a reference voltage.
An error signal is developed and used to control the dc field power in order to maintain a constant generator output. Each regulator includes frequency compensation with selectable slope, inverse-time overexcitation shutdown, buildup circuitry, single- or three-phase voltage sensing, single-or three-phase shunt or permanent magnet generator (PMG) power input, parallel droop compensation, and an accessory input.
The accessory input provides compatibility with devices such as var/power factor controllers or excitation limiters.
the fastest transit time
a lauge number of stocks
easy for operation
answer all of your questions within 1day
Packaging & Shipping
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing remittance copy.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
4.Items are shipped from China by Airmail, reach most of the countries within 4 to 20 business days.
5.Delivery time depends on destination and other factors, it may takes up to 20 business days.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
1. Guarantee:365 days after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
We are expecting the long time and mutual benefit cooperation with you!
